AUTO STRONG

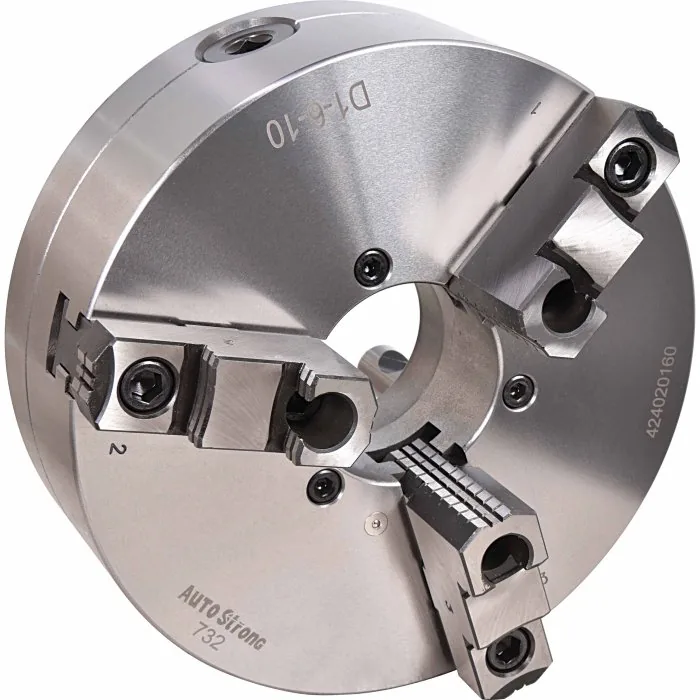

High Precision 3 Jaw Self Centring Lathe Chuck — KD-6-10, Ø250mm D1-6 Camlock Mount
Part No: C7028 | Barcode: 9344195355431 | Model: KD-6-10
AUTO STRONG KD-6-10 High Precision 3 Jaw Self Centring Lathe Chuck (Ø250mm D1-6 Camlock Mount). Auto Strong are one of the world’s leading manufacturers of lathe chucks. The KD Series, camlock direct mounting chucks are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite…
Model KD-6-10
Ø250mm
D1-6 Camlock Mount
Speed: 1800 rpm
Key Features & Benefits
- 3 Jaw self centering lathe chuck

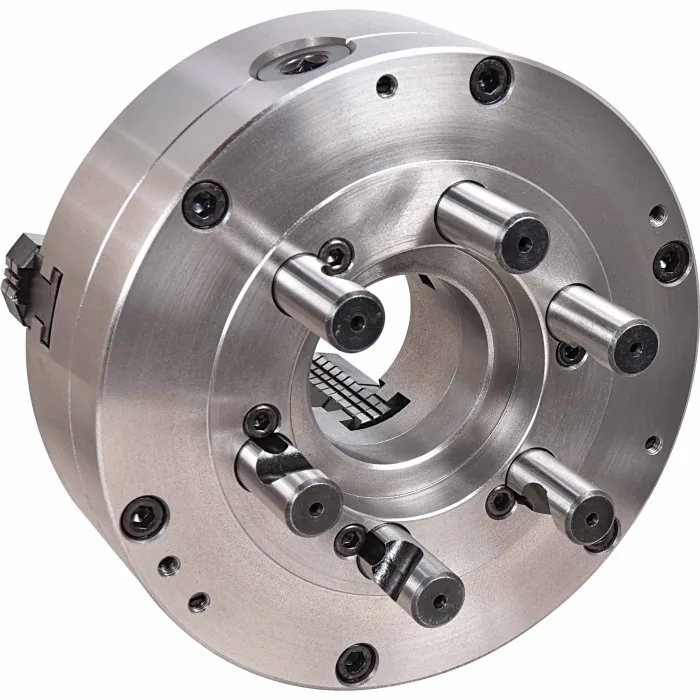

- D1-6 Camlock direct mount
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R

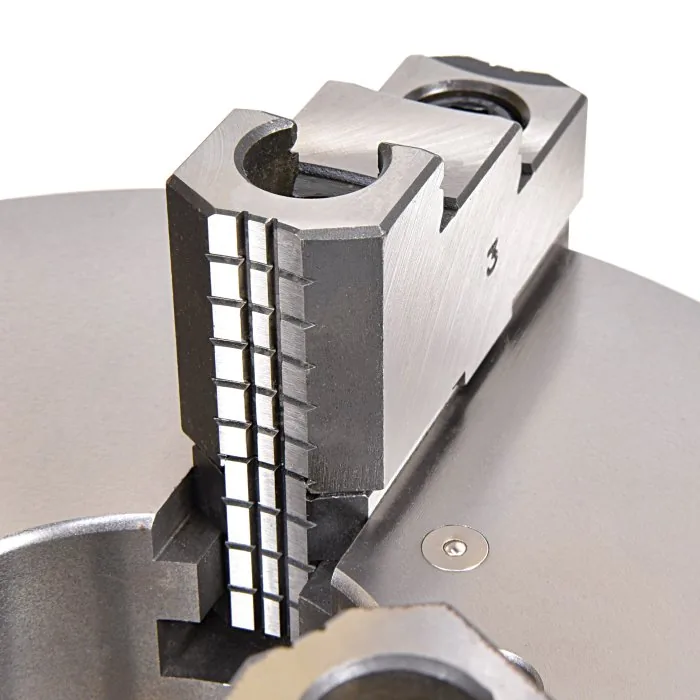

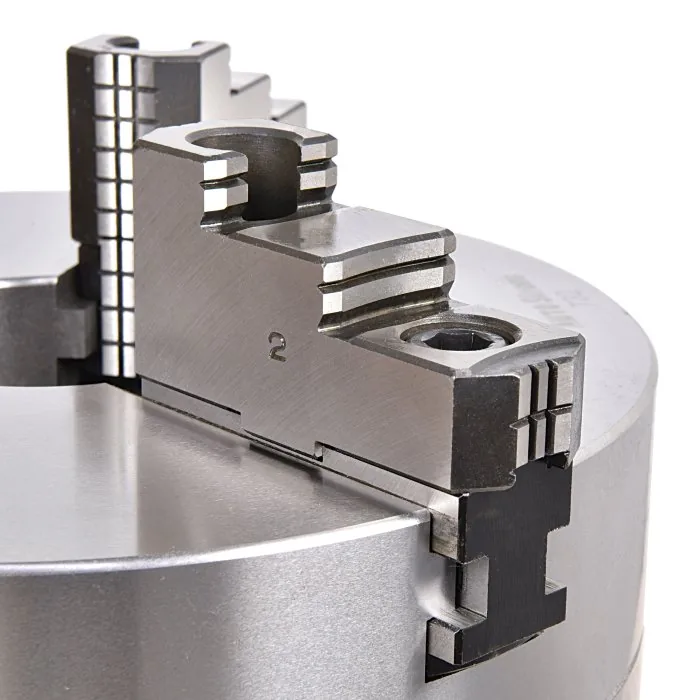

- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 1800rpm)
- Optional bolt on soft jaws are available, Order Code: C7021
About This Product
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The KD Series, camlock direct mounting chucks are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C7028) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Chuck Size (mm) | Ø250 |
| Camlock | D1-6 |
| Outside Jaw (mm) | 11-220 |
| Inside Jaw (mm) | 70-210 |
| Speed (rpm) | 1800 |
| D1 (mm) | 106.375 |
| D3 (mm) | 76 |
| H (mm) | 136.8 |
| H1 (mm) | 86 |
| h (mm) | 17 |
| Nett Weight (kg) | 29.5 |
