AUTO STRONG
High Precision 3 Jaw Self Centring Lathe Chuck — KD-5-8, Ø200mm D1-5 Camlock Mount
Part No: C7026 | Barcode: 9344195355424 | Model: KD-5-8
AUTO STRONG KD-5-8 High Precision 3 Jaw Self Centring Lathe Chuck (Ø200mm D1-5 Camlock Mount). Auto Strong are one of the world’s leading manufacturers of lathe chucks. The KD Series, camlock direct mounting chucks are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite…
Model KD-5-8
Ø200mm
D1-5 Camlock Mount
Speed: 2000 rpm
Key Features & Benefits
- 3 Jaw self centering lathe chuck

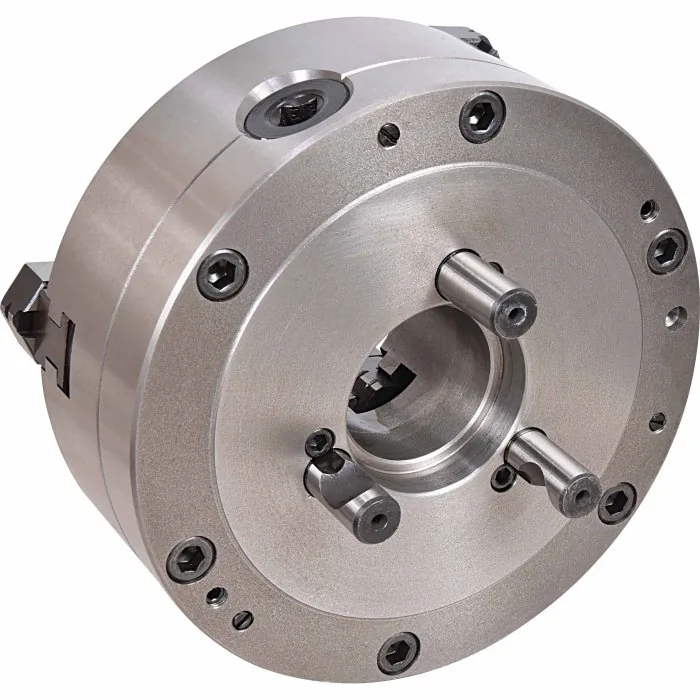

- D1-5 Camlock direct mount
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R

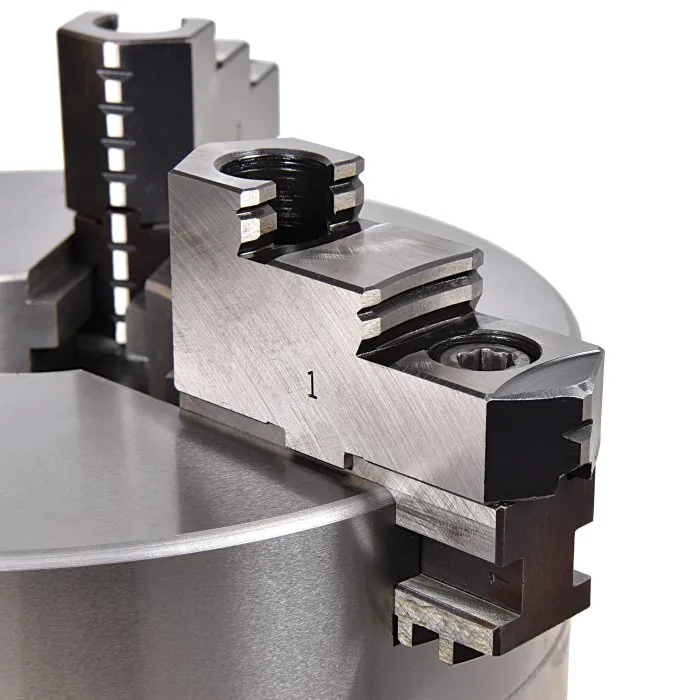

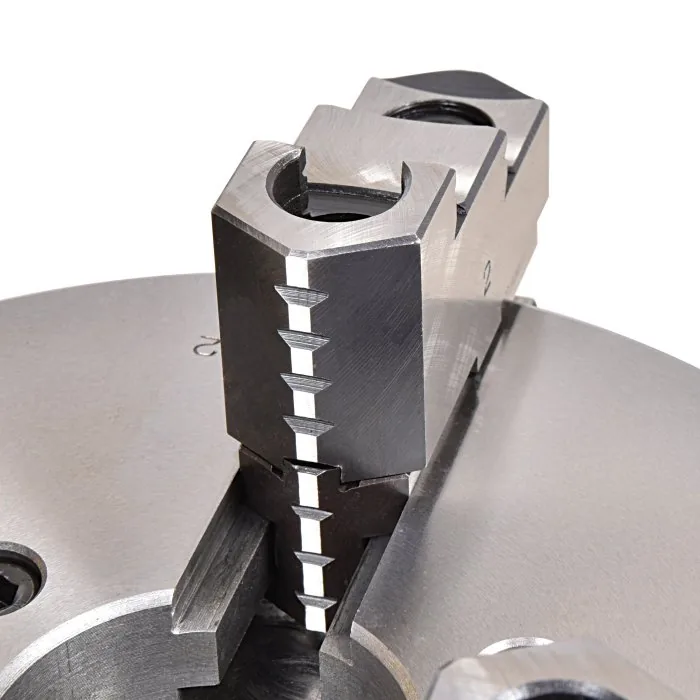

- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 2000rpm)
- Optional bolt on soft jaws are available, Order Code: C7019
About This Product
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The KD Series, camlock direct mounting chucks are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C7026) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Chuck Size (mm) | Ø200 |
| Camlock | D1-5 |
| Outside Jaw (mm) | 8-180 |
| Inside Jaw (mm) | 62-170 |
| Speed (rpm) | 2000 |
| D1 (mm) | 82.563 |
| D3 (mm) | 55 |
| H (mm) | 119.4 |
| H1 (mm) | 77.2 |
| h (mm) | 16 |
| Nett Weight (kg) | 18 |
