Description
TOOLMASTER

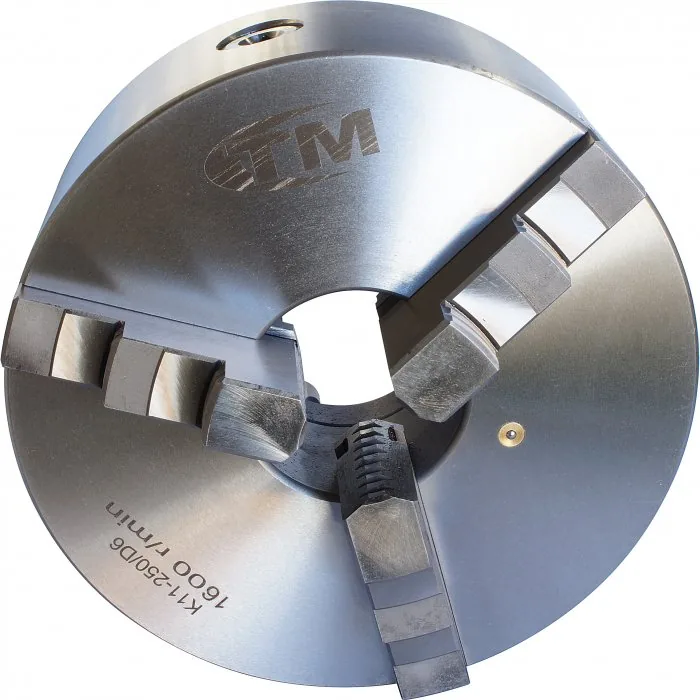

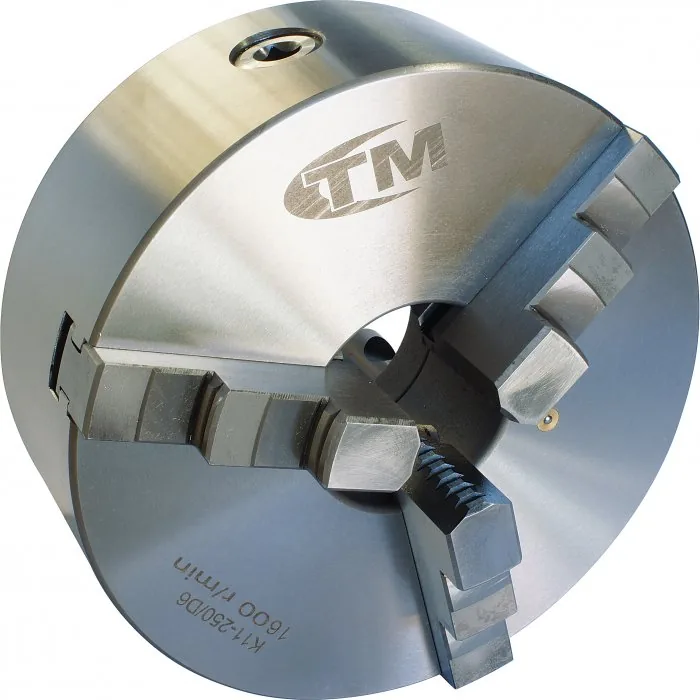

3 Jaw Self Centring Lathe Chuck — K11- 250/D16, Ø250mm D1-6 Camlock Mount
Part No: C263 | Barcode: 9344195012631 | Model: K11- 250/D16
TOOLMASTER K11- 250/D16 3 Jaw Self Centring Lathe Chuck (Ø250mm D1-6 Camlock Mount). K11 SERIES Cast Iron Body Standard GB/T 4346.2-2002
Model K11- 250/D16
Ø250mm

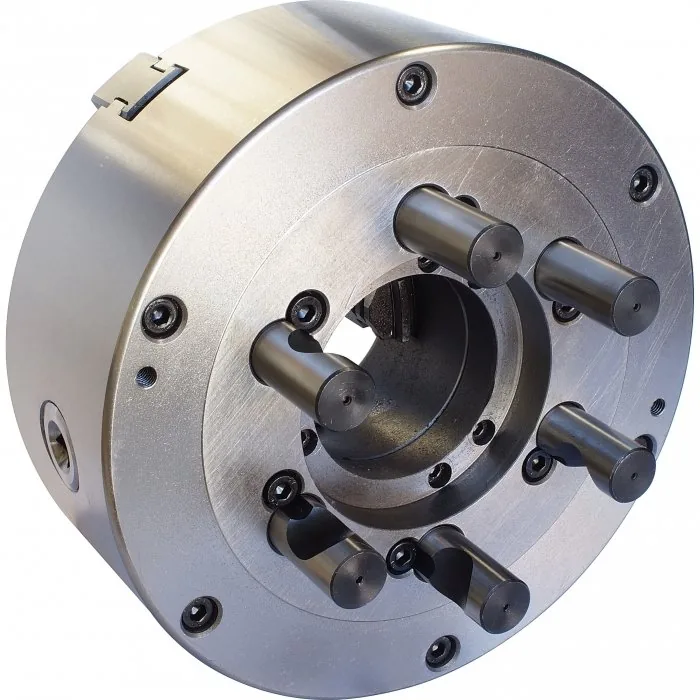

D1-6 Camlock Mount
Speed: 1600 rpm
Key Features & Benefits
- World-class and industry leader in the manual lathe chuck field with over 30 years of manufacturing
- ToolMaster quality assurance and accuracy testing ensure standards remain high. ToolMaster is ISO 9001-2000 approved
- Each chuck is supplied with a set of inside and outside jaws and a chuck key
About This Product
K11 SERIES Cast Iron Body Standard GB/T 4346.2-2002 This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C263) for collection in store.

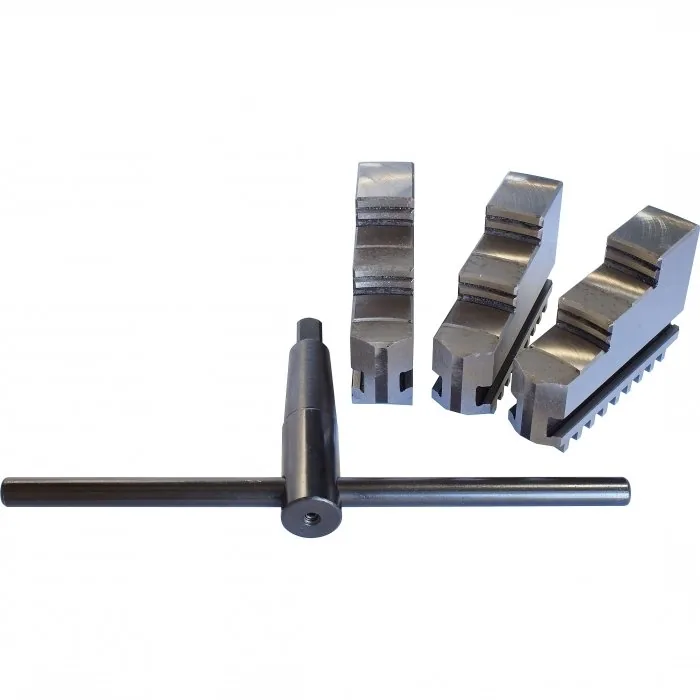

In the Box
- Outside jaws
- Inside jaws
- Chuck key
Product Specifications
| Specification | Detail |
|---|---|
| Chuck Size (mm) | Ø250 |
| Camlock | D1-6 |
| Outside Jaw (mm) | 6 – 110 |
| Inside Jaw (mm) | 90 – 250 |
| Speed (rpm) | 1600 |
| D1 (mm) | 106.3 |
| D2 (mm) | 133.4 |
| D3 (mm) | 80 |
| H (mm) | 120 |
| H1 (mm) | 80 |
| h (mm) | 5 |
| Nett Weight (kg) | 26 |
