GATOR

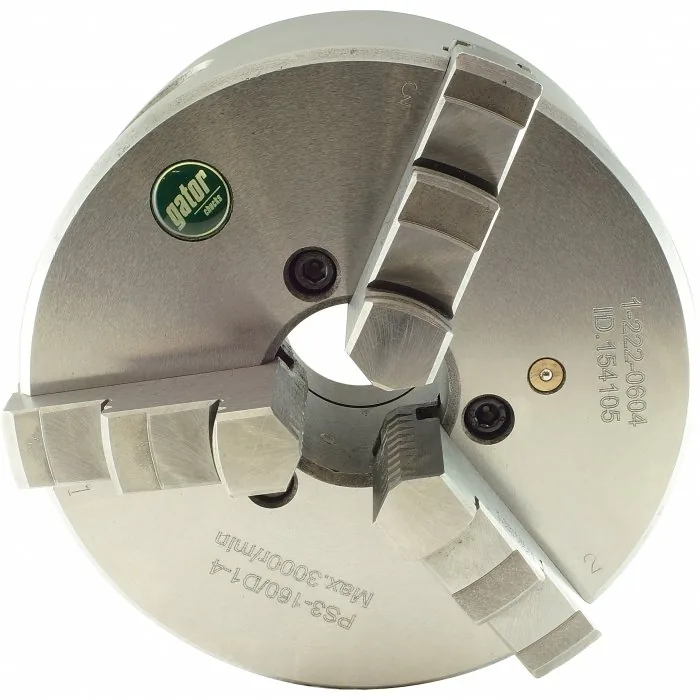

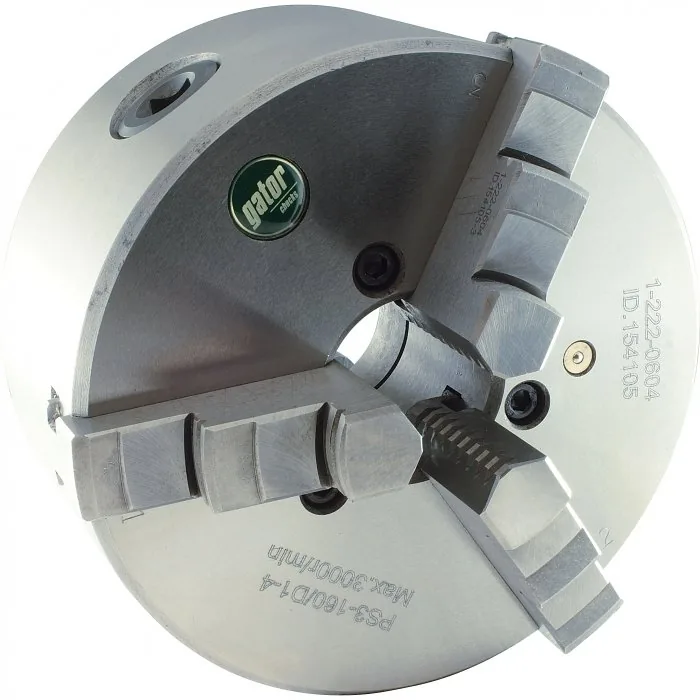

3 Jaw Self Centring Lathe Chuck — PS3-160/DI4, Ø160mm D1-4 Camlock Mount
Part No: C7064 | Barcode: 9344195013577 | Model: PS3-160/DI4
GATOR PS3-160/DI4 3 Jaw Self Centring Lathe Chuck (Ø160mm D1-4 Camlock Mount). PS Series semi steel body lathe chucks are supplied with one piece standard and reverse jaws.
Model PS3-160/DI4
Ø160mm

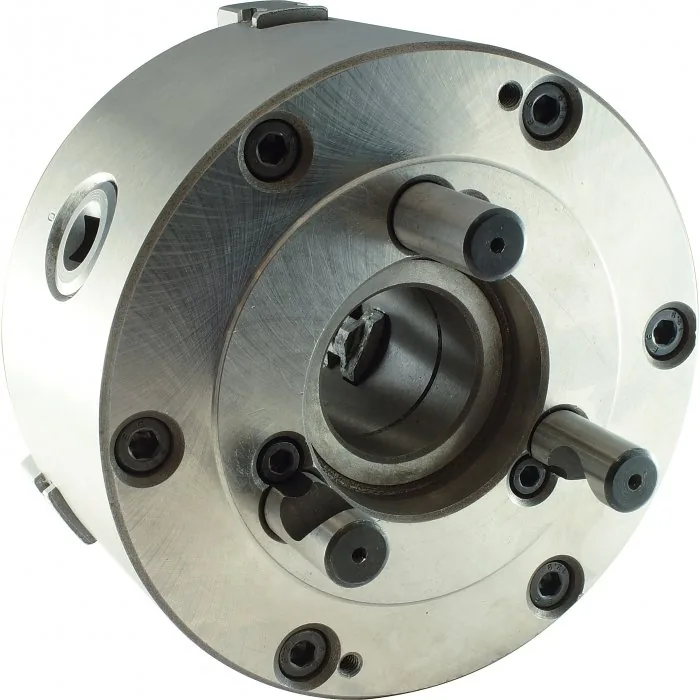

D1-4 Camlock Mount
Speed: 3000 rpm
Key Features & Benefits
- Comprehensive quality assurance and accuracy testing ensure standards remain high
- Each chuck is supplied with a set of inside and outside jaws and a chuck key
- All bearing surfaces are precisely machined
- Scroll plate is drop forged from fine alloy steel and finished with case hardening
- Jaw teeth, guideways & pinions are hardened & ground
About This Product
PS Series semi steel body lathe chucks are supplied with one piece standard and reverse jaws. Gator is a world class state of the art producer of manual lathe chucks with over 30 years of manufacturing experience and production excellence. Gator chucks are manufacturing to DIN 55029 standard and built to last for precision machining applications. The state of the art, ISO 9001-2000 manufacturing facility is quality focused producing chucks for the worldwide market. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C7064) for collection in store.

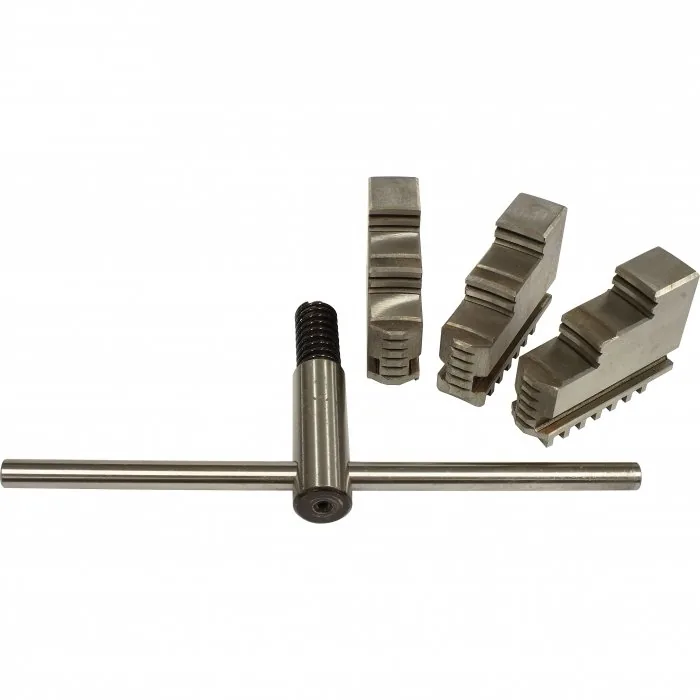

In the Box
- Outside jaws
- Inside jaws
- Chuck key
Product Specifications
| Specification | Detail |
|---|---|
| Chuck Size (mm) | Ø160 |
| Camlock | D1-4 |
| Outside Jaw (mm) | 3 – 64 |
| Inside Jaw (mm) | 50 – 160 |
| Speed (rpm) | 3000 |
| D1 (mm) | 63.52 |
| D2 (mm) | 82.6 |
| D3 (mm) | 42 |
| H (mm) | 105.5 |
| H1 (mm) | 81.5 |
| h (mm) | 13 |
| Nett Weight (kg) | 10 |
