AUTO STRONG

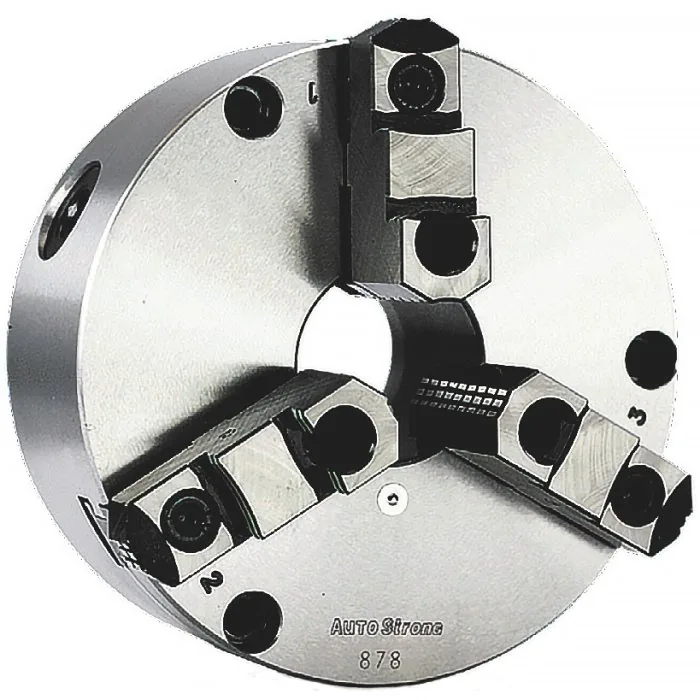

High Precision 3 Jaw Self Centering Lathe Chuck — SK-10, Ø273mm Front or Rear Back Plate Mount
Part No: C7007 | Barcode: 9344195306730 | Model: SK-10
AUTO STRONG SK-10 High Precision 3 Jaw Self Centering Lathe Chuck (Ø273mm Front or Rear Back Plate Mount). Auto Strong are one of the world’s leading manufacturers of lathe chucks. The SK Series are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are…
Model SK-10
Ø273mm
Front or Rear Back Plate Mount
Max Speed Rating: 1800 rpm
Key Features & Benefits
- 3 Jaw self centering lathe chuck
- High precision gripping accuracy of 0.03mm (0.0012”) T.I.R

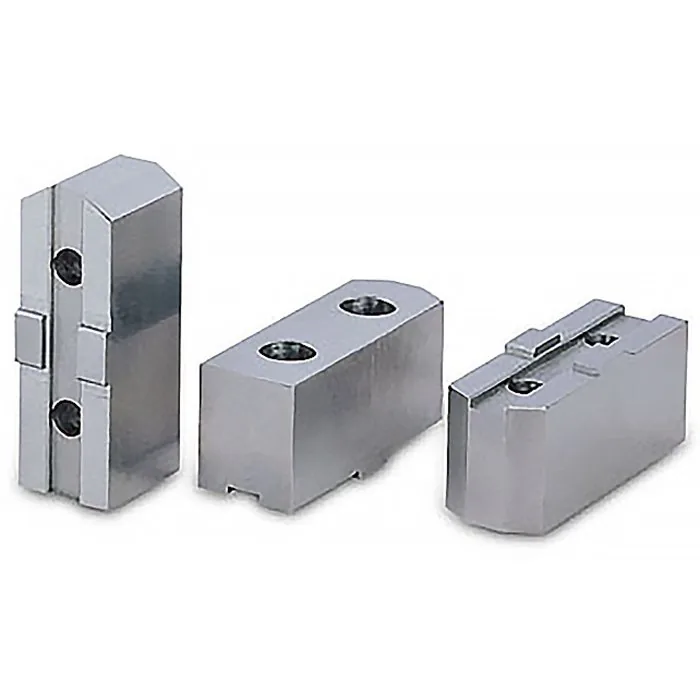

- 2 Piece hard jaws could be used as internal jaws and external jaws
- Meehanite chuck body suitable for high speed (Max. 1800rpm)
- Plain back suitable for front or rear back plate mounting
- Optional bolt on soft jaws are available
About This Product
Auto Strong are one of the world’s leading manufacturers of lathe chucks. The SK Series are manufactured in Taiwan with a high precision gripping accuracy of 0.03mm and with a Meehanite casting body they are suitable for high-speed applications. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C7007) for collection in store.
In the Box
- Chuck key
Product Specifications
| Specification | Detail |
|---|---|
| Chuck Size (mm) | Ø273 |
| Bore / Through Hole Size (mm) | Ø89 |
| Mounting Type | Back Plate |
| Gripping Force ((kgf)) | 4000 |
| Gripping Range OD (mm) | Ø12 – 260 |
| Gripping Range ID (mm) | Ø80 – 250 |
| Max Speed Rating (rpm) | 1800 |
| Nett Weight (Kg) | 32 |
