TOOLMASTER

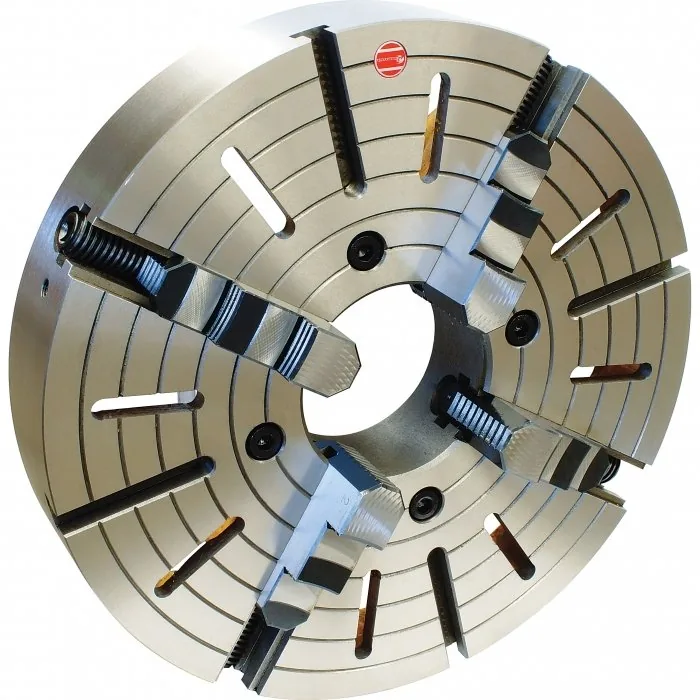

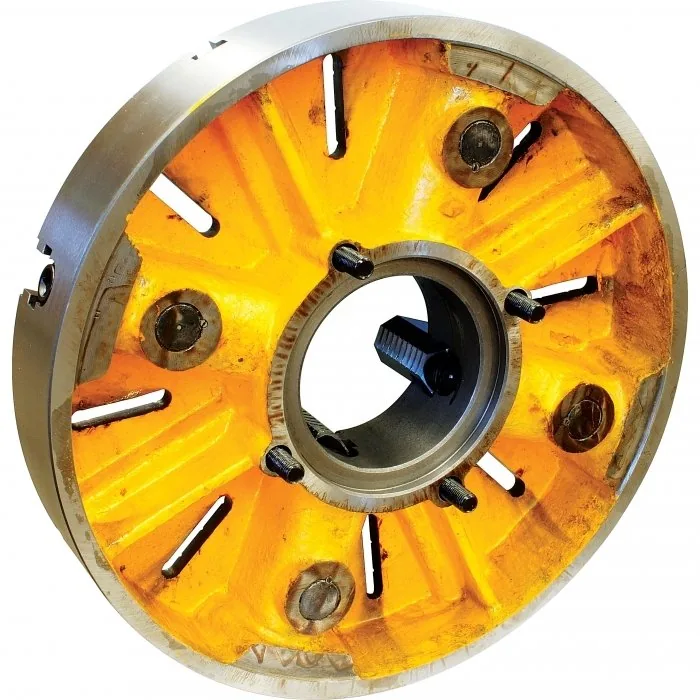

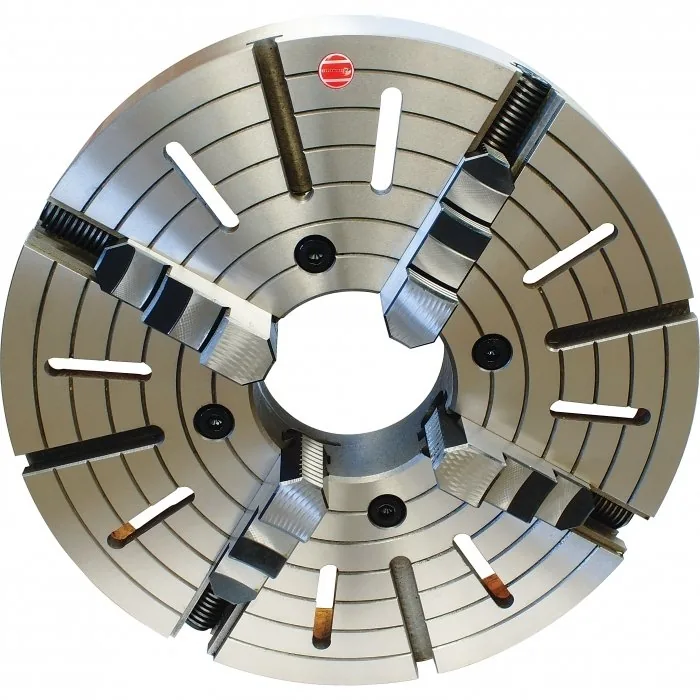

4 Jaw Independent Lathe Chuck — K72-630, Ø630mm Back Plate Mount
Part No: C259A | Barcode: 9344195012600 | Model: K72-630
TOOLMASTER K72-630 4 Jaw Independent Lathe Chuck (Ø630mm Back Plate Mount). Manufactured from High Strength semi steel and precision machined Jaws are case-hardened to minimise wear Operating screws are made from alloy steel and case-hardened
Model K72-630
Ø630mm
Back Plate Mount
Speed: 600 rpm
Key Features & Benefits
- Front Mounting
About This Product
Manufactured from High Strength semi steel and precision machined Jaws are case-hardened to minimise wear Operating screws are made from alloy steel and case-hardened This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C259A) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Chuck Size | Ø630 |
| External Jaw Range (mm) | 160 – 630 |
| Internal Jaw Range (mm) | 50 – 400 |
| Speed (rpm) | 600 |
| D1 (mm) | 220 |
| D2 (mm) | 258 |
| D3 (mm) | 180 |
| H1 (mm) | 118 |
| h (mm) | 10 |
| z-d (mm) | 4 – M20 |
| Nett Weight (kg) | 159 |
