TOOLMASTER

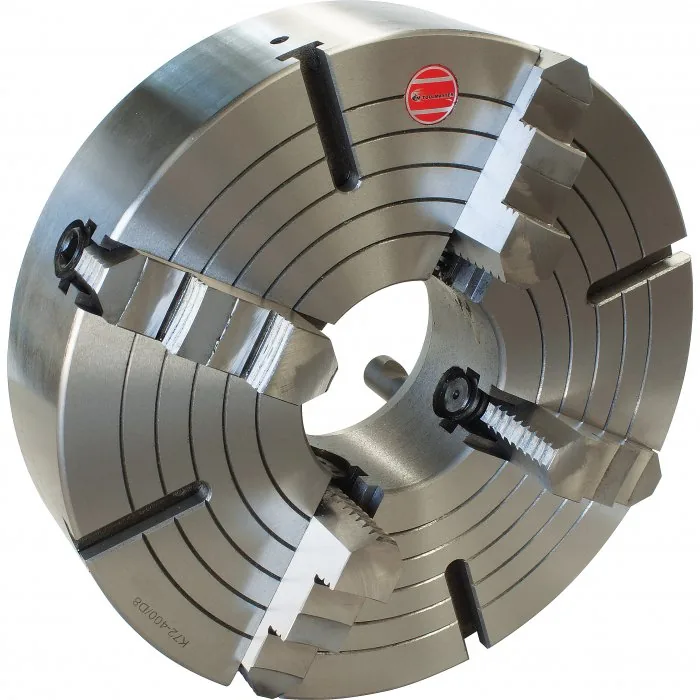

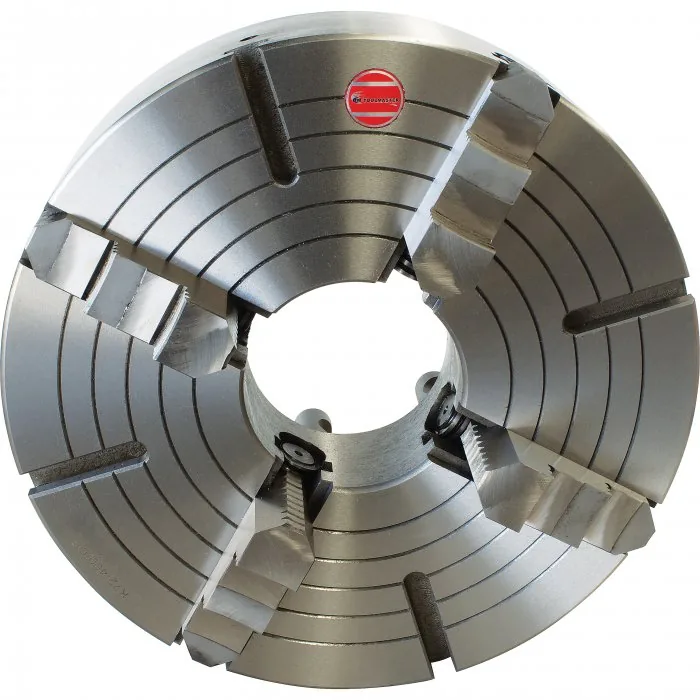

4 Jaw Independent Lathe Chuck — K72-400/D1-8, Ø400mm D1-8 Camlock Mount
Part No: C273 | Barcode: 9344195012716 | Model: K72-400/D1-8

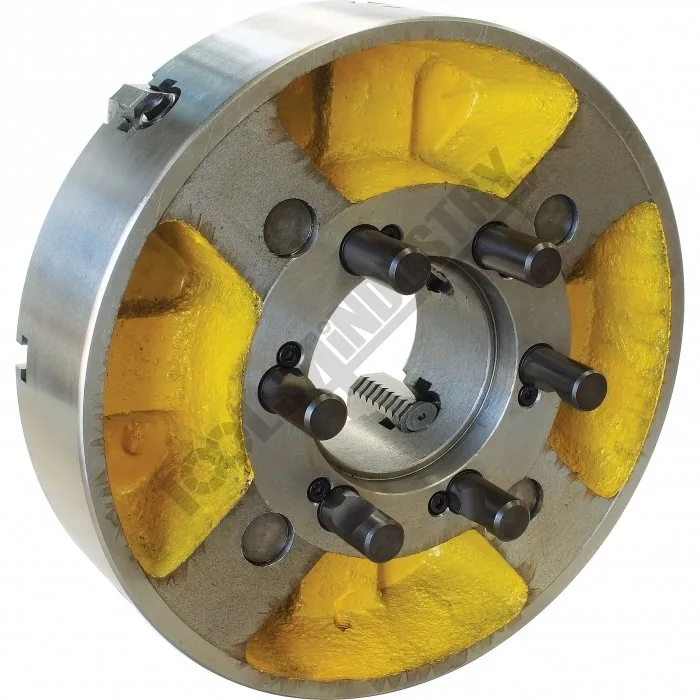

TOOLMASTER K72-400/D1-8 4 Jaw Independent Lathe Chuck (Ø400mm D1-8 Camlock Mount). Manufactured from High Strength semi steel and precision machined Jaws are case-hardened to minimise wear Operating screws are made from alloy steel and case-hardened Supplied with camlock pins, 1 set of jaws and wrench
Model K72-400/D1-8
Ø400mm
D1-8 Camlock Mount
Speed: 1000 rpm
About This Product
Manufactured from High Strength semi steel and precision machined Jaws are case-hardened to minimise wear Operating screws are made from alloy steel and case-hardened Supplied with camlock pins, 1 set of jaws and wrench This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C273) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Chuck Size (mm) | Ø400 |
| Camlock | D1-8 |
| Speed (rpm) | 1000 |
| D1 (mm) | 139.7 |
| D2 (mm) | 171.4 |
| D3 (mm) | 125 |
| H1 (mm) | 95 |
| h (mm) | 14 |
| Nett Weight (kg) | 78 |
