TOOLMASTER

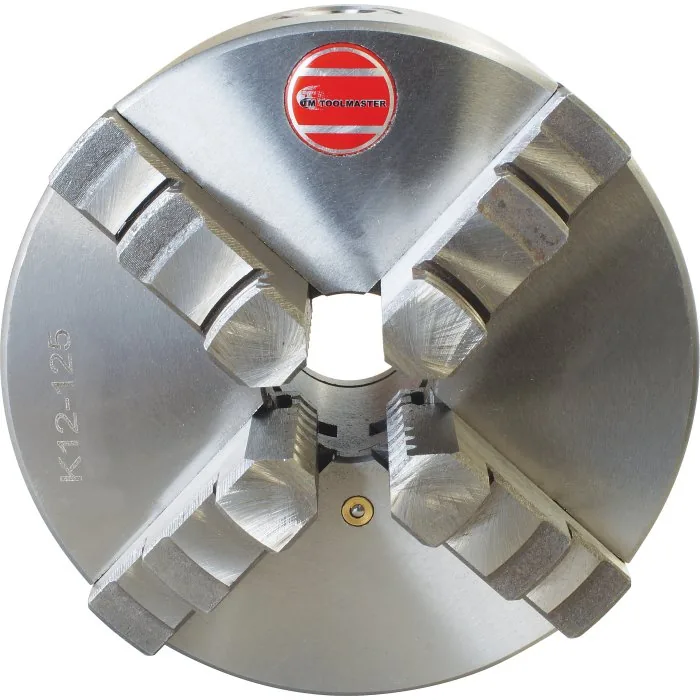

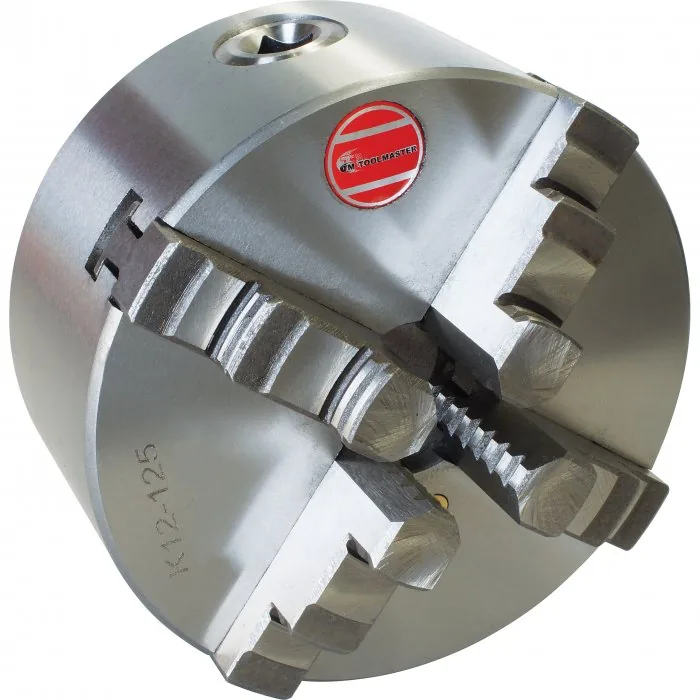

4 Jaw Self Centring Lathe Chuck — K12-125, Ø125mm
Part No: C722 | Barcode: 9344195013140 | Model: K12-125

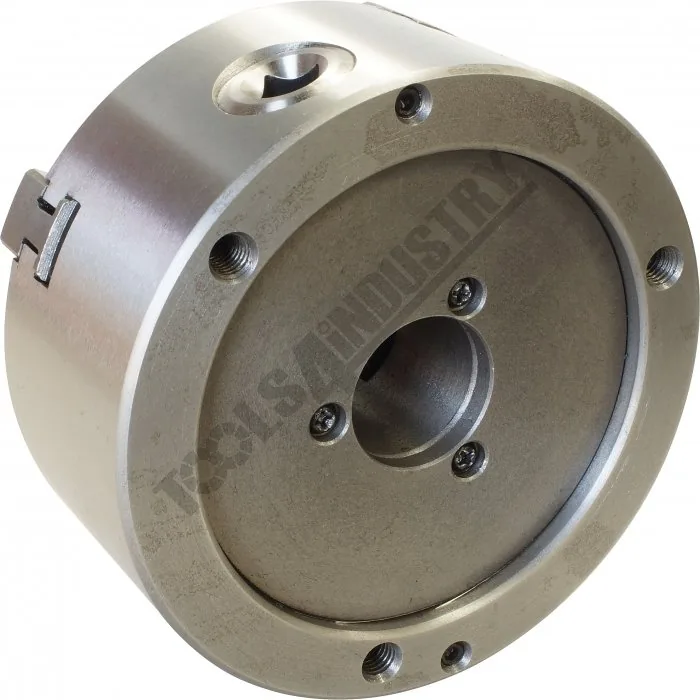

TOOLMASTER K12-125 4 Jaw Self Centring Lathe Chuck (Ø125mm). 125mm 4-JAW SELF-CENTRING LATHE CHUCK Manufactured cast iron. Available only in back mount.
Model K12-125
Ø125mm
Speed: 3000 rpm
About This Product
125mm 4-JAW SELF-CENTRING LATHE CHUCK Manufactured cast iron. Available only in back mount. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C722) for collection in store.

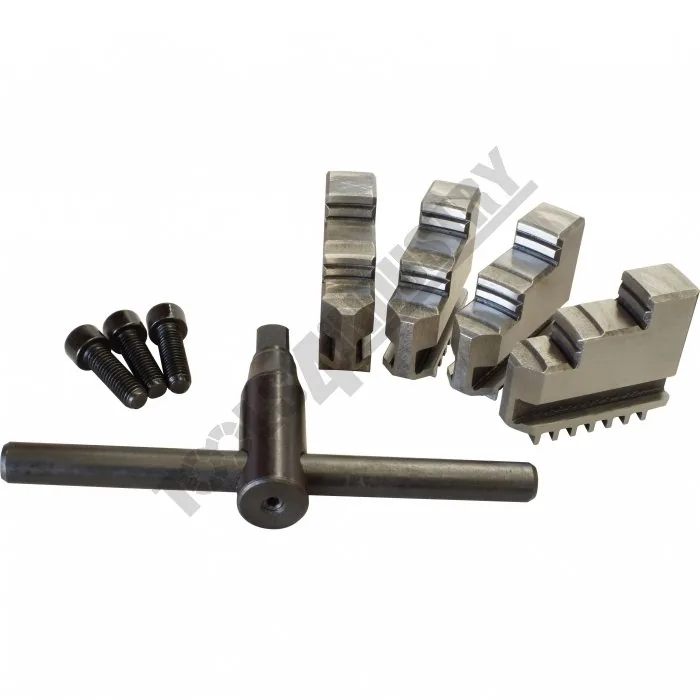

In the Box
- 1 x set of outside hard jaws
- 1 x set of inside hard jaws
- 1 x key
- 1 x set of mounting screws
Product Specifications
| Specification | Detail |
|---|---|
| Size (mm) | Ø125 |
| Outside Jaw (mm) | 2.5 – 40 |
| Inside Jaw (mm) | 38 – 110 |
| Speed (rpm) | 3000 |
| D1 (mm) | 95 |
| D2 (mm) | 108 |
| D3 (bore) (mm) | 30 |
| H (mm) | 84 |
| H1 (mm) | 58 |
| h (mm) | 4 |
| z-d (mm) | 3-M8 |
| Nett Weight (kg) | 5.1 |
