TOOLMASTER

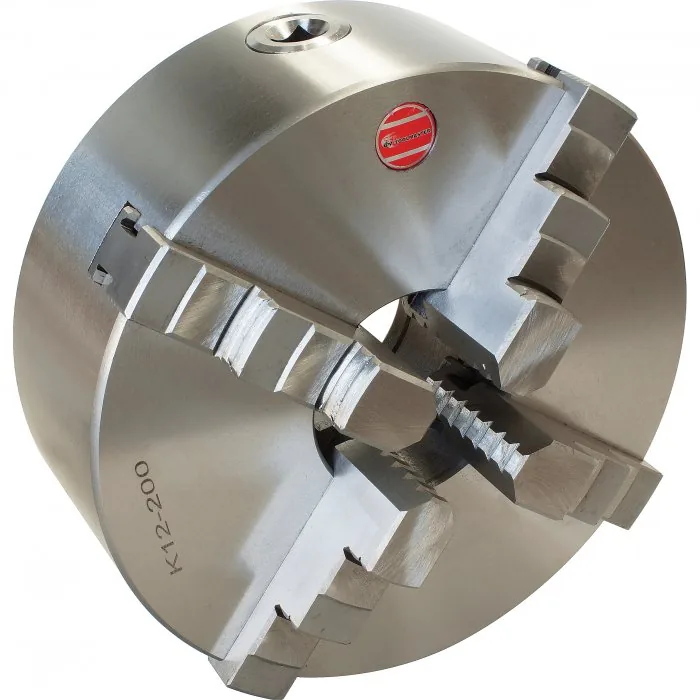

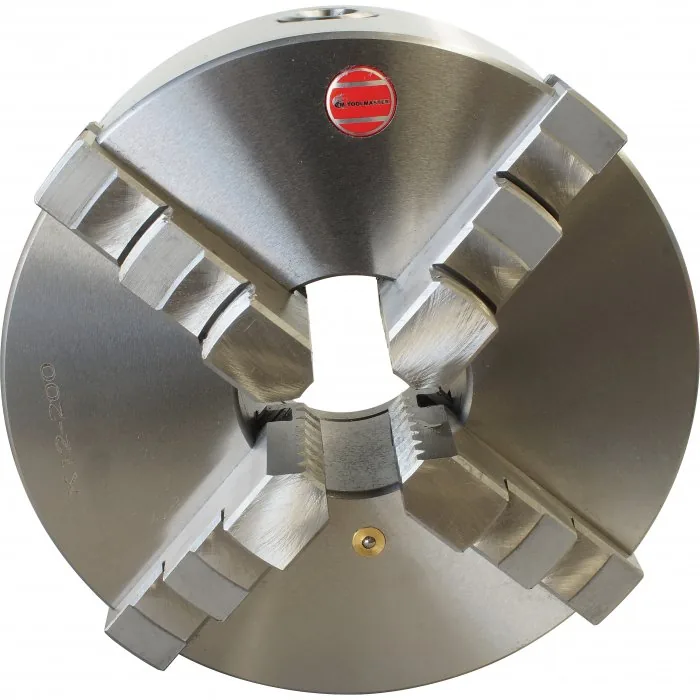

4 Jaw Self Centring Lathe Chuck — K12-200, Ø200mm
Part No: C724 | Barcode: 9344195013164 | Model: K12-200

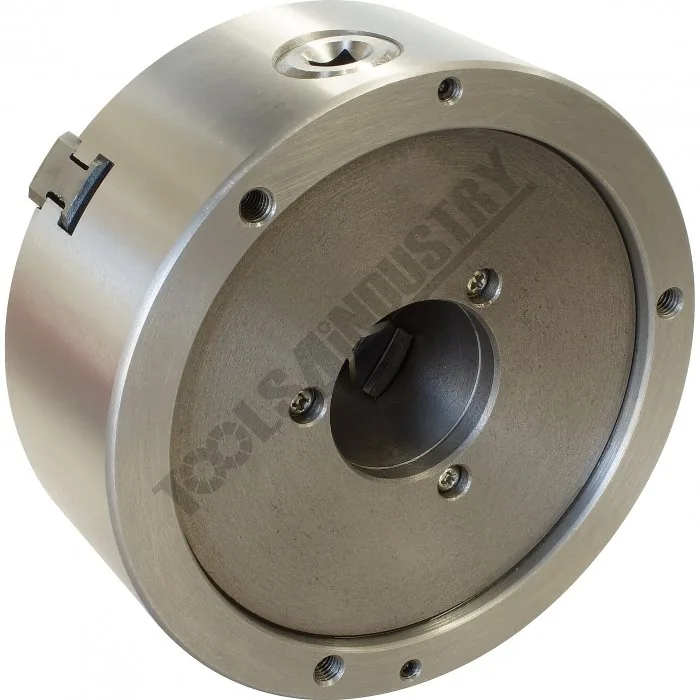

TOOLMASTER K12-200 4 Jaw Self Centring Lathe Chuck (Ø200mm). 200mm 4-JAW SELF-CENTRING LATHE CHUCK Manufactured from cast iron. Available only in back mount.
Model K12-200
Ø200mm
Speed: 2000 rpm
About This Product
200mm 4-JAW SELF-CENTRING LATHE CHUCK Manufactured from cast iron. Available only in back mount. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code C724) for collection in store.

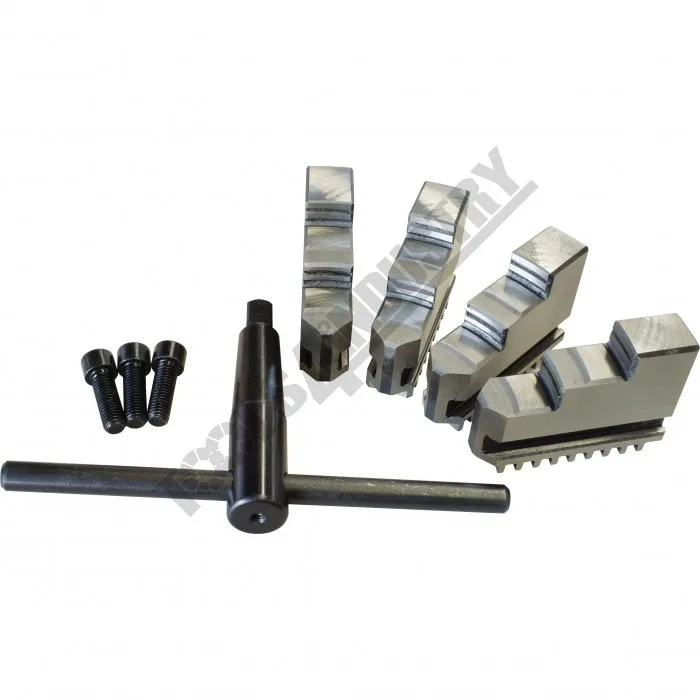

In the Box
- 1 x set of outside hard jaws
- 1 x set of inside hard jaws
- 1 x key
- 1 x set of mounting screws
Product Specifications
| Specification | Detail |
|---|---|
| Size (mm) | Ø200 |
| Outside Jaw (mm) | 4 – 85 |
| Inside Jaw (mm) | 65 – 200 |
| Speed (rpm) | 2000 |
| D1 (mm) | 165 |
| D2 (mm) | 180 |
| D3 (bore) (mm) | 65 |
| H (mm) | 109 |
| H1 (mm) | 75 |
| h (mm) | 5 |
| z-d (mm) | 3-M10 |
| Nett Weight (kg) | 17 |
