HAFCO-METALMASTER

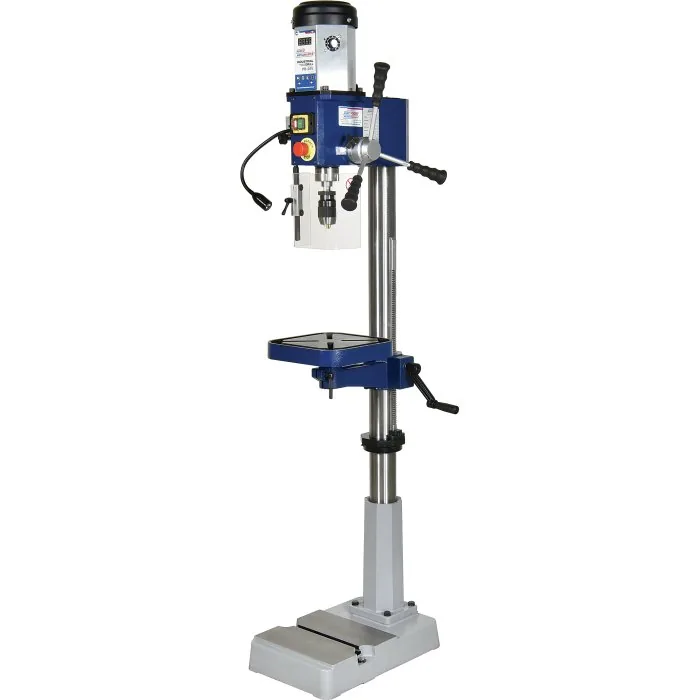

Industrial Pedestal Drill – Variable Speed — PD-28V, 200-2400rpm Variable Speed Ø16mm Drill Capacity with 2MT Spindle Taper
Part No: D158 | Barcode: 9344195312472 | Model: PD-28V
HAFCO-METALMASTER PD-28V Industrial Pedestal Drill – Variable Speed (200-2400rpm Variable Speed Ø16mm Drill Capacity with 2MT Spindle Taper). The Hafco Metalmaster PD-28V Industrial variable speed drill is the statement of quality that is unlike anything else on the market. The direct drive variable speed brushless…
Model PD-28V
200-2400rpm Variable Speed
Drilling Diameter Capacity: Ø16 mm
Spindle Taper: 2 MT
Spindle Travel: 83 mm
Throat Depth: 185 mm
Spindle To Table: 645 mm
Key Features & Benefits

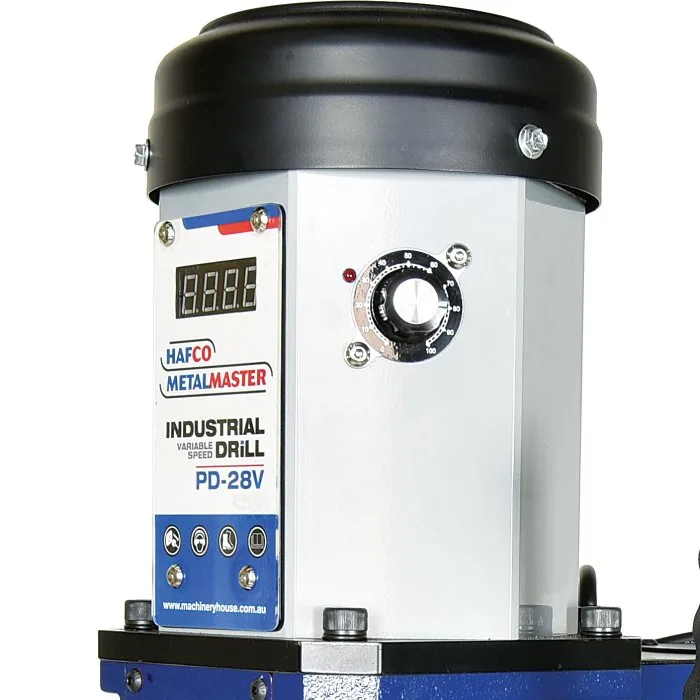

- Brushless DC 1hp motor – direct drive for higher torque and smooth operation

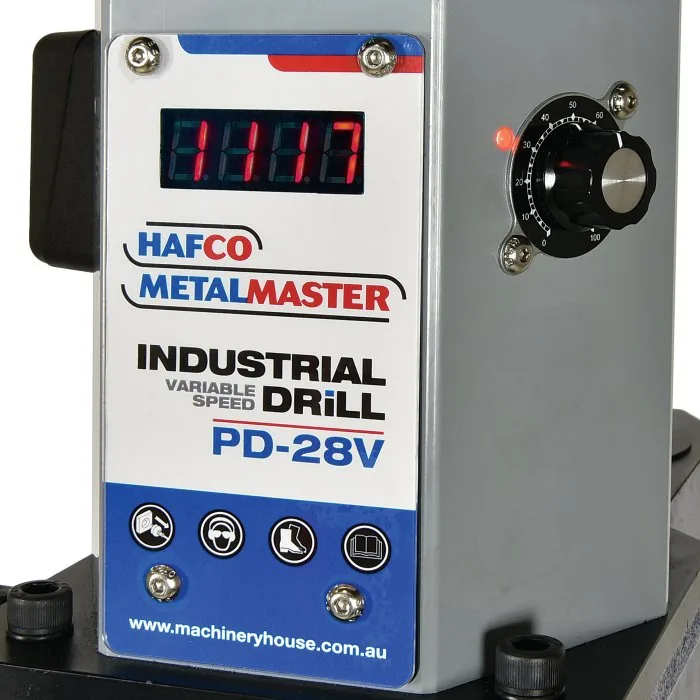

- 200-2400rpm variable speed with digital readout
- Heavy cast iron construction for rigidity and accuracy

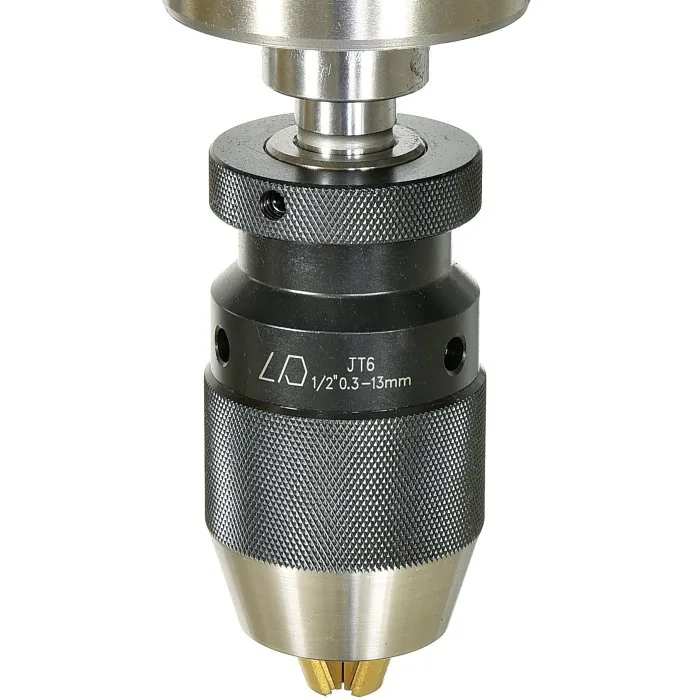

- Precision Ø0.03 – Ø13mm keyless chuck included

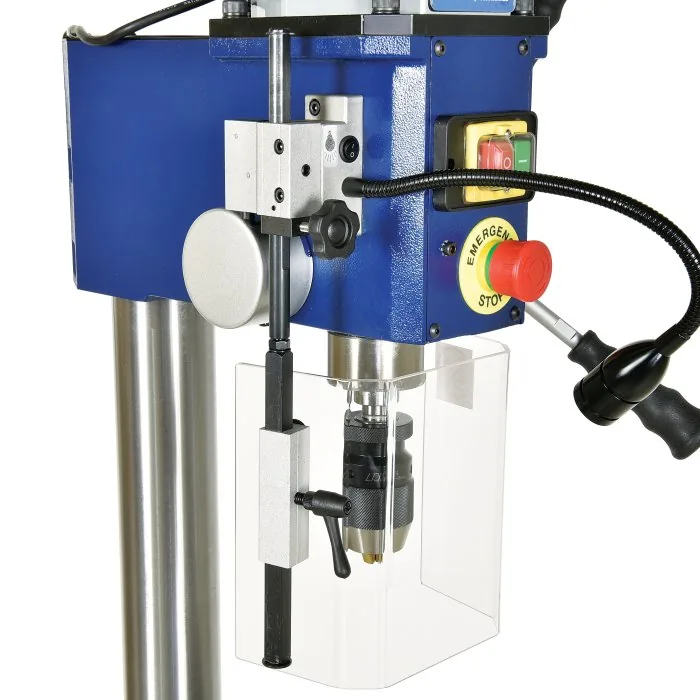

- Safety drilling chuck guard with micro switch
- Safety magnetic-type switch

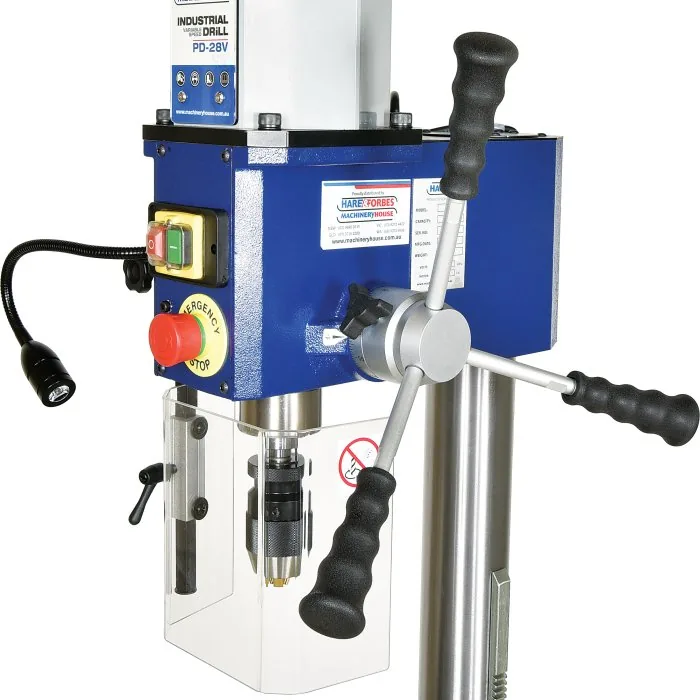

- Emergency stop switch

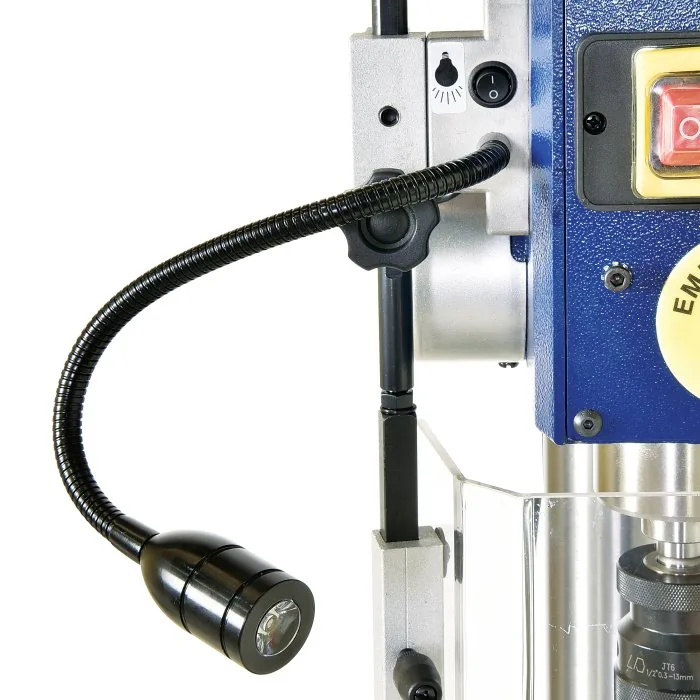

- LED Light

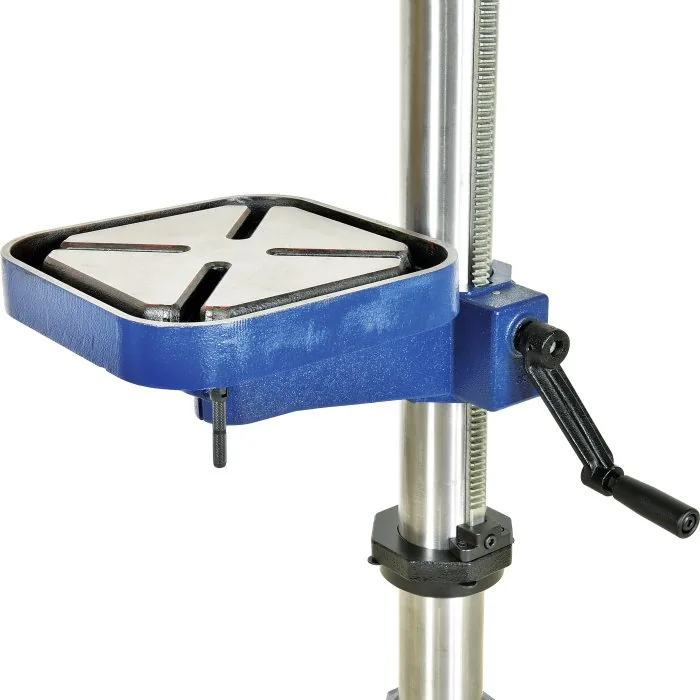

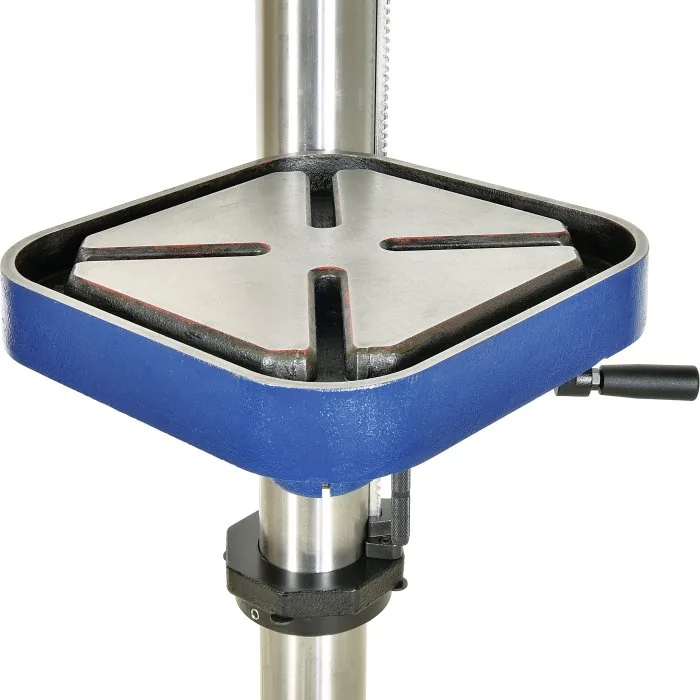

- T slotted work table rotates 360º

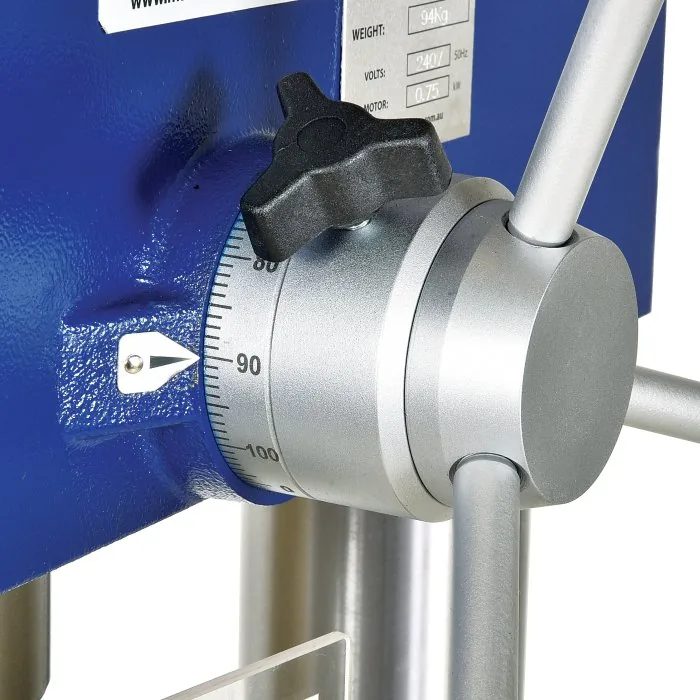

- Drilling depth stop setting with scale
- Rack & pinion table height adjustment with locking lever
- Thick walled column ensuring greater rigidity
- Ideal for industrial workshop use
About This Product
The Hafco Metalmaster PD-28V Industrial variable speed drill is the statement of quality that is unlike anything else on the market. The direct drive variable speed brushless DC motor provides smooth and effortless power. No more messing around with belts and pulleys, simply turn the speed dial to adjust the spindle speed from 200-2400 rpm displayed on the digital readout. The direct drive design optimizes full torque throughout the entire rpm range with no slippage. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code D158) for collection in store.
In the Box
- 13mm Keyless drill chuck & arbor
- Drill drift
Product Specifications
| Specification | Detail |
|---|---|
| Type – Bench / Pedestal | Pedestal |
| Duty Type | Industrial-Duty |
| Drilling Diameter Capacity (mm) | Ø16 |
| Spindle Taper (MT) | 2 |
| Spindle Travel (mm) | 83 |
| Throat Depth (mm) | 185 |
| Quill Diameter (mm) | 47 |
| Collar Diameter (mm) | 65 |
| Column Diameter (mm) | 80 |
| Spindle To Table (mm) | 645 |
| Spindle To Base (mm) | 1180 |
| Table Shape | Square |
| Table Size (mm) | 285 x 285 |
| Work Light | Yes |
| Micro Switch On Pulley Guard | Yes |
| Spindle Speed Steps (No.) | Variable Speed |
| Spindle Speed Range (rpm) | 200 – 2400 |
| Motor Power (kW / hp) | 0.75 / 1 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Overall Height (mm) | 1800 |
| Nett Weight (kg) | 102 |
