HAFCO
Portable Magnetic Drill — HF-50, 2 Speeds 300 / 450rpm Ø50mm Drill Capacity – Manual Feed
Part No: D9508 | Barcode: 9344195151576 | Model: HF-50

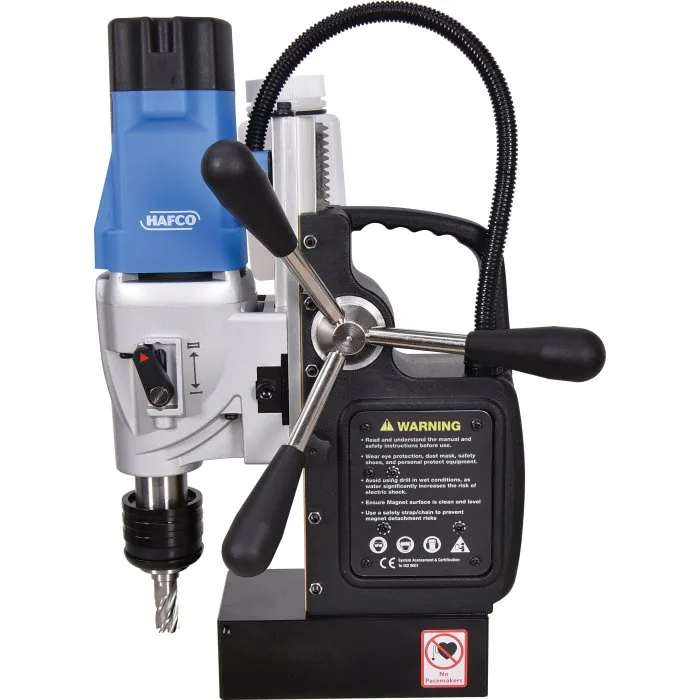

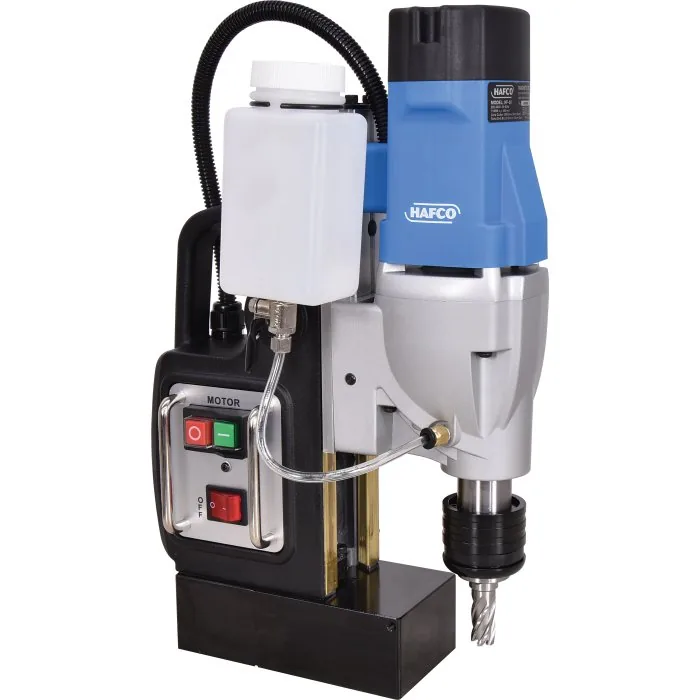

HAFCO HF-50 Portable Magnetic Drill (2 Speeds 300 / 450rpm Ø50mm Drill Capacity – Manual Feed). Hafco HF-50 features 2 drilling speeds and also includes a quick release chuck for where repetitive productivity is required
Model HF-50
2 Speeds 300 / 450rpm
Ø50mm Drill Capacity – Manual Feed
Maximum Thickness: 50 mm
Number of Drilling Speeds: 2 No.
Full Load Drilling Speeds: 180 / 270 rpm
No Load Drilling Speeds: 300 / 450 rpm
Key Features & Benefits

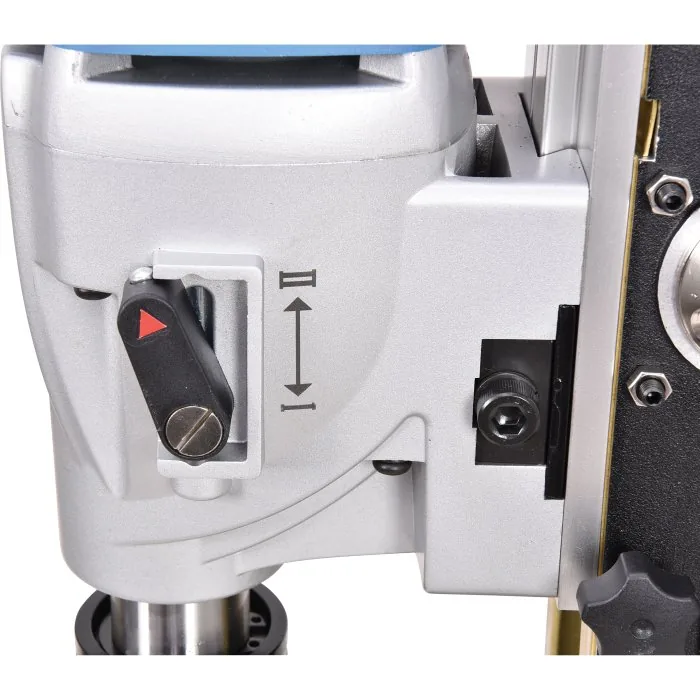

- 2 x drilling speed selection

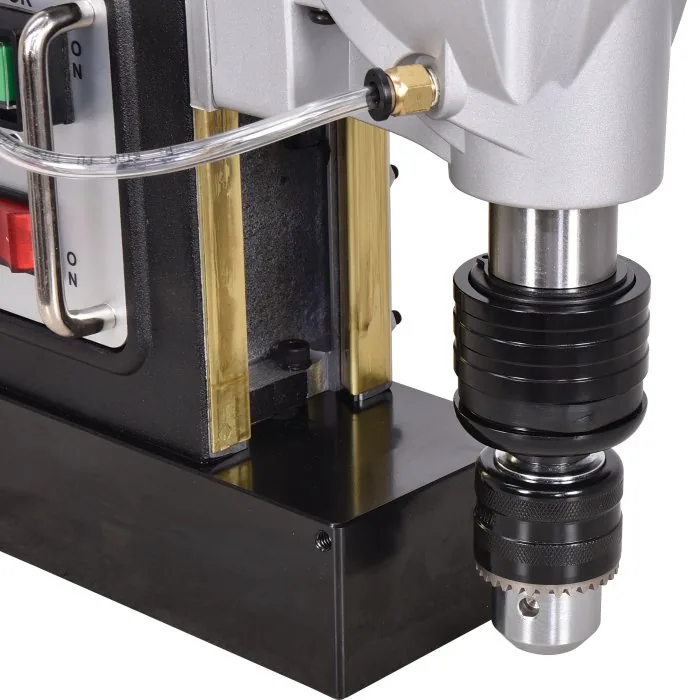

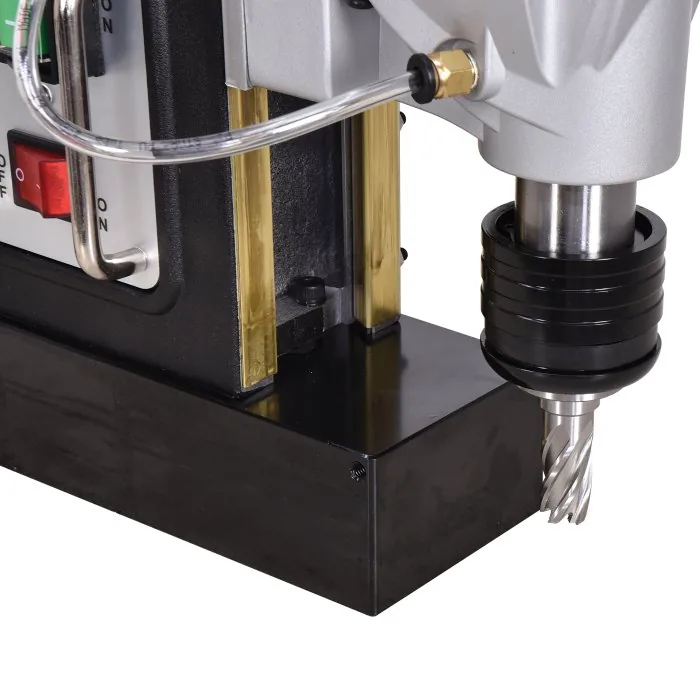

- Quick release chuck for broach cutters

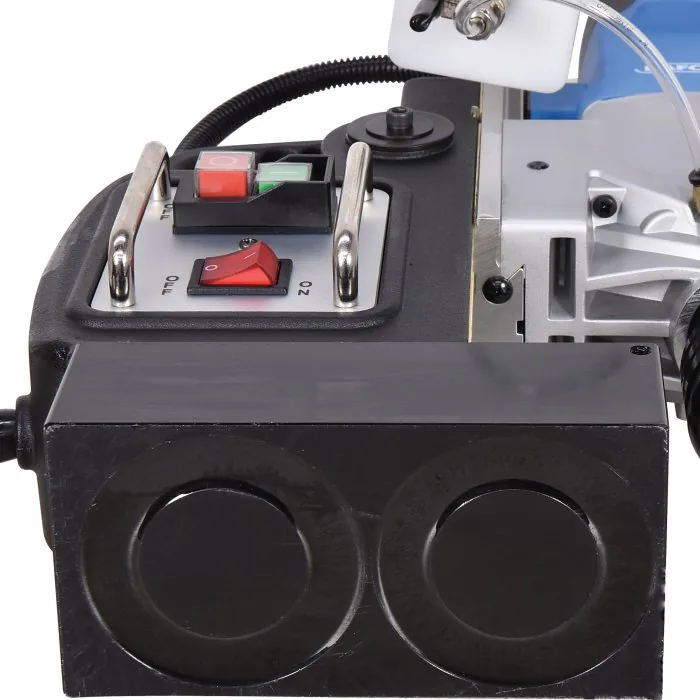

- Compact design with heavy duty magnet
- Drills up to 50mm diameter through 50mm plate

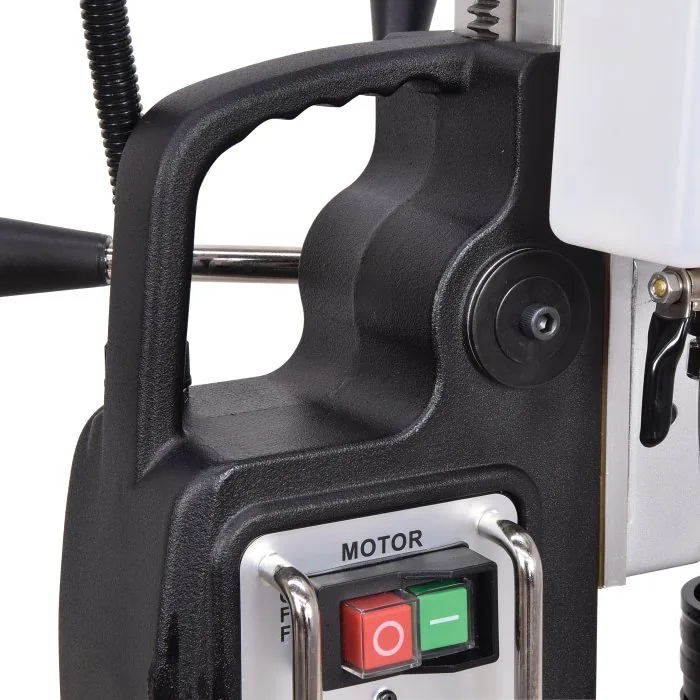

- Sturdy feed handles
- CE approved
About This Product
Hafco HF-50 features 2 drilling speeds and also includes a quick release chuck for where repetitive productivity is required On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs. NOTE: Shown with optional broach cutter This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code D9508) for collection in store.

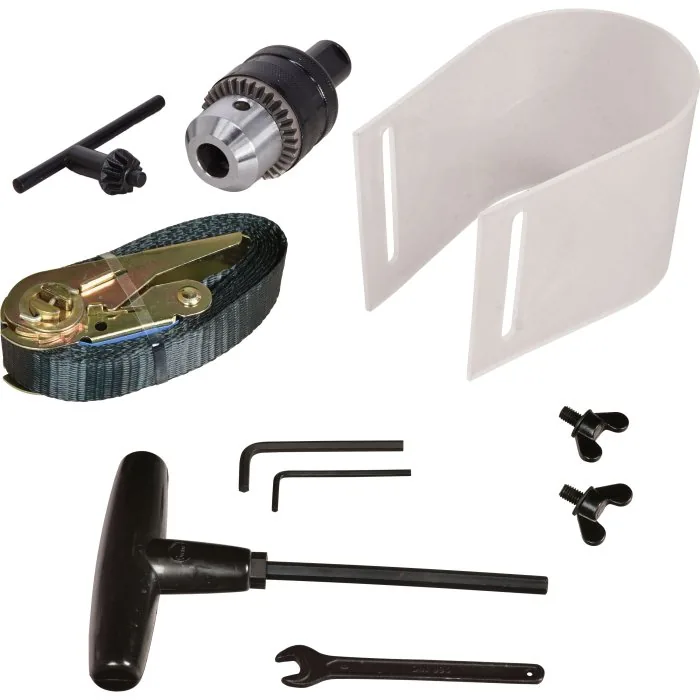

In the Box
- Quick release chuck for broach cutters

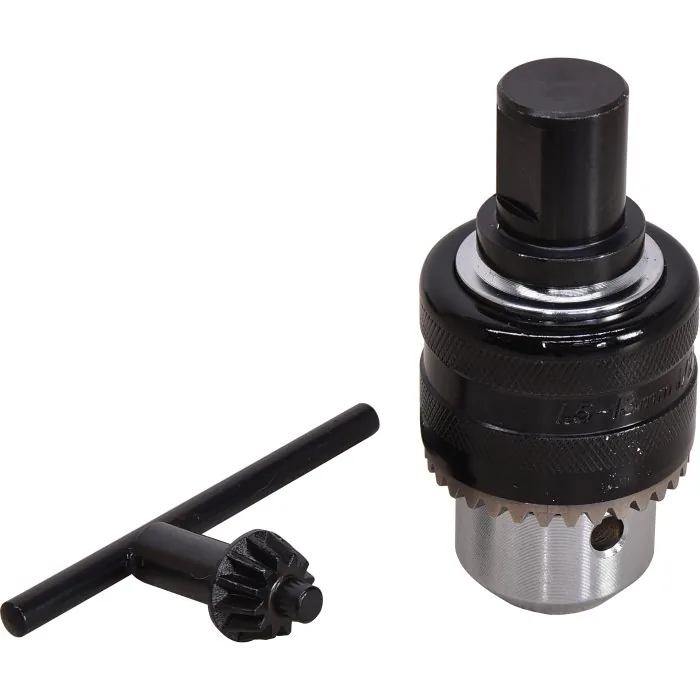

- 13mm drill chuck & adaptor

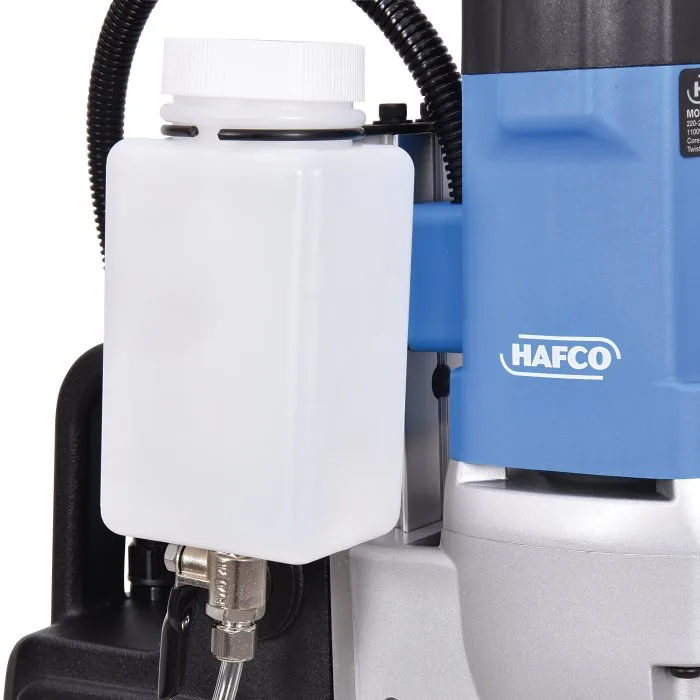

- Coolant tank kit
- Safety chain

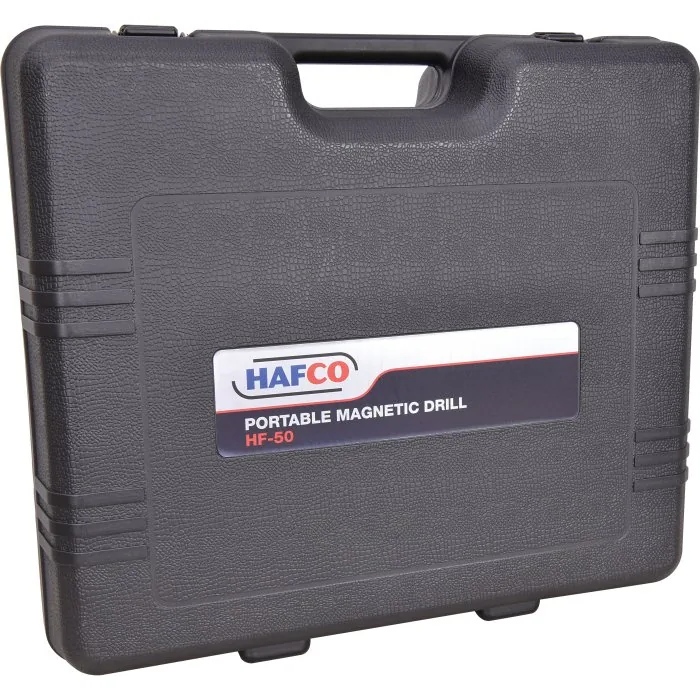

- Blow mould plastic case
Product Specifications
| Specification | Detail |
|---|---|
| Feed | Manual |
| Drilling Capacity Range – Manual (mm) | 12 – 50 |
| Maximum Thickness (mm) | 50 |
| Suits Cutter Shank Size (mm) | 19 |
| Number of Drilling Speeds (No.) | 2 |
| Full Load Drilling Speeds (rpm) | 180 / 270 |
| No Load Drilling Speeds (rpm) | 300 / 450 |
| Magnetic Holding Power (kg/f) | 1733 |
| Motor Power (kW / hp) | 1.1 / 1.46 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Machine Weight Only (kg) | 14 |
| Nett Weight (kg) | 17.5 |
