HAFCO-METALMASTER

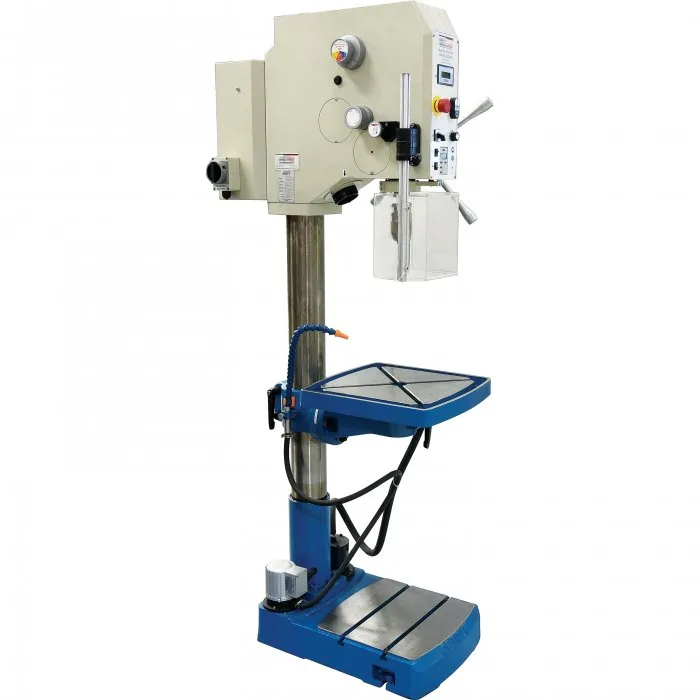

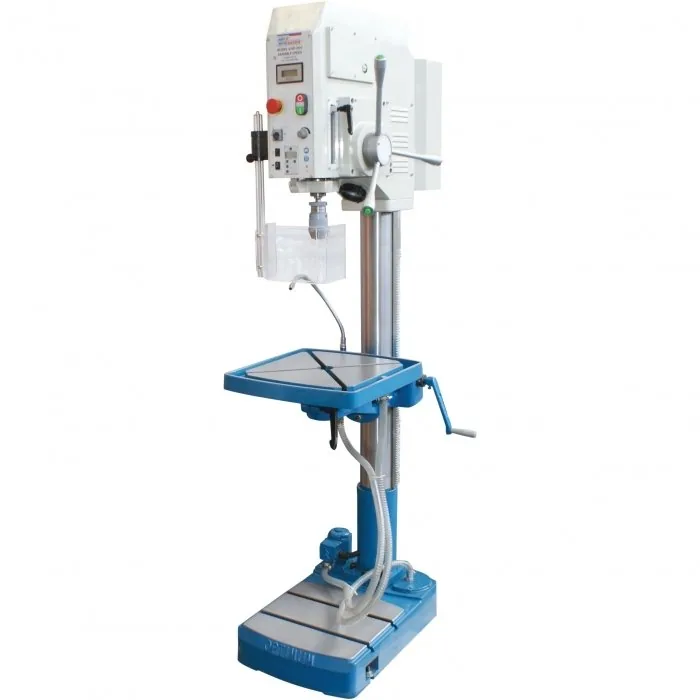

Industrial 3MT Geared Head & Variable Speed Drilling Machine — GHD-30V, Ø31.5mm Drilling Capacity Includes Automatic Feed & Tapping
Part No: D176 | Barcode: 9344195024023 | Model: GHD-30V
HAFCO-METALMASTER GHD-30V Industrial 3MT Geared Head & Variable Speed Drilling Machine (Ø31.5mm Drilling Capacity Includes Automatic Feed & Tapping). If you are seeking an industrial drilling machine but do not have the required 3 phase power (415V) connected in your workshop that most machines require, then you…
Model GHD-30V
Ø31.5mm Drilling Capacity
Includes Automatic Feed & Tapping
Drilling Capacity: Ø31.5 mm
Thread Tapping Capacity: M20 Metric
Spindle Taper: 3 MT
Spindle Travel: 125 mm
Key Features & Benefits
- 31.5mm drill capacity with 125mm spindle travel

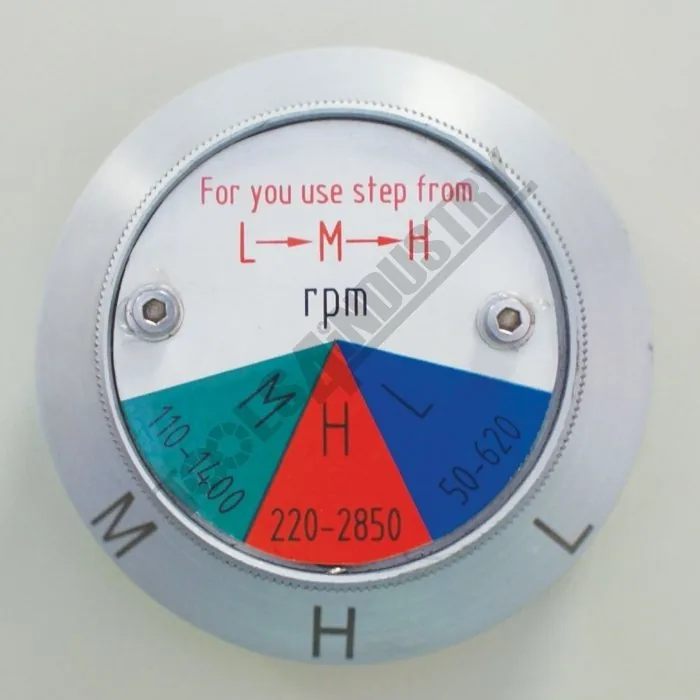

- Geared head drilling machine with low, medium, & high selector

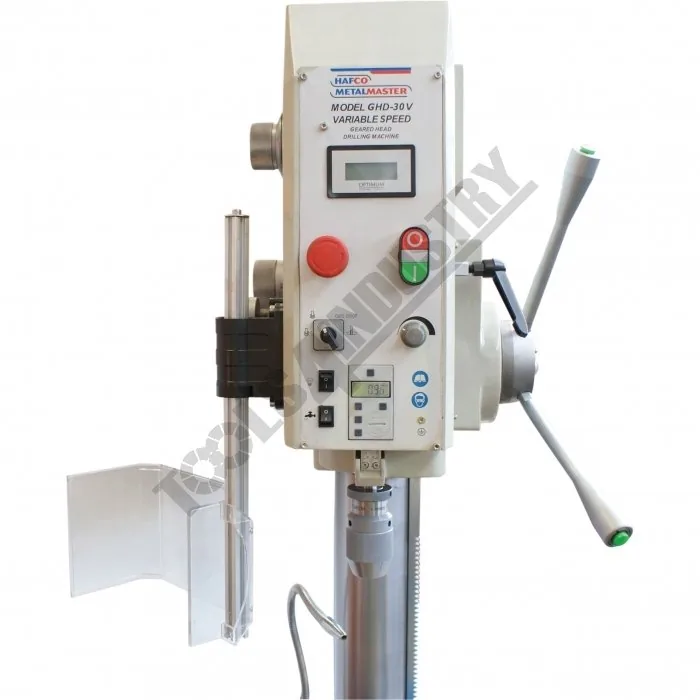

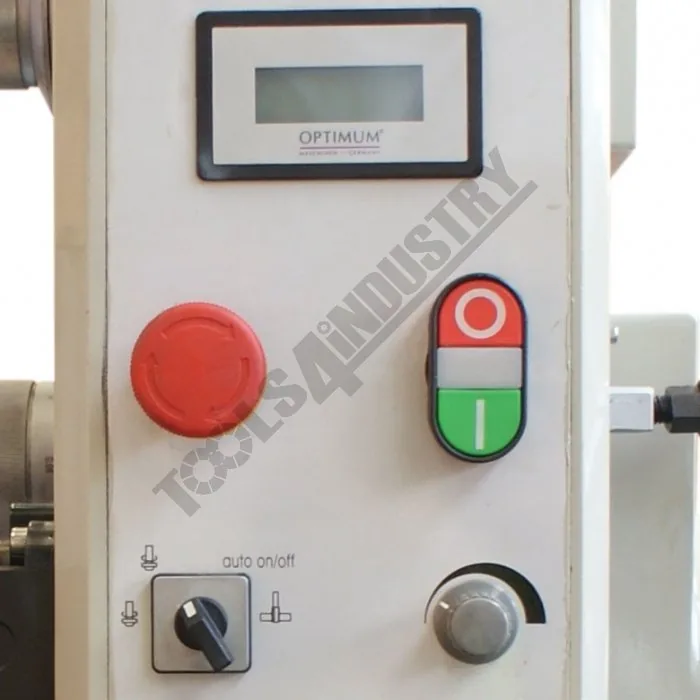

- Electronic variable speed from 50-2850rpm with digital display
- Automatic start drill function for repetition work

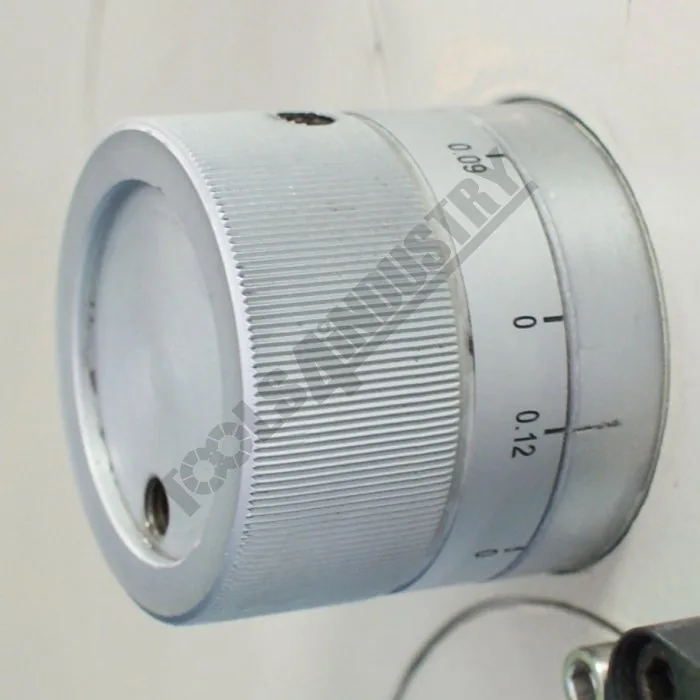

- Automatic Power Feed with range of (0.06, 0.09, 0.12mm/rev)
- Thread tapping with auto reverse

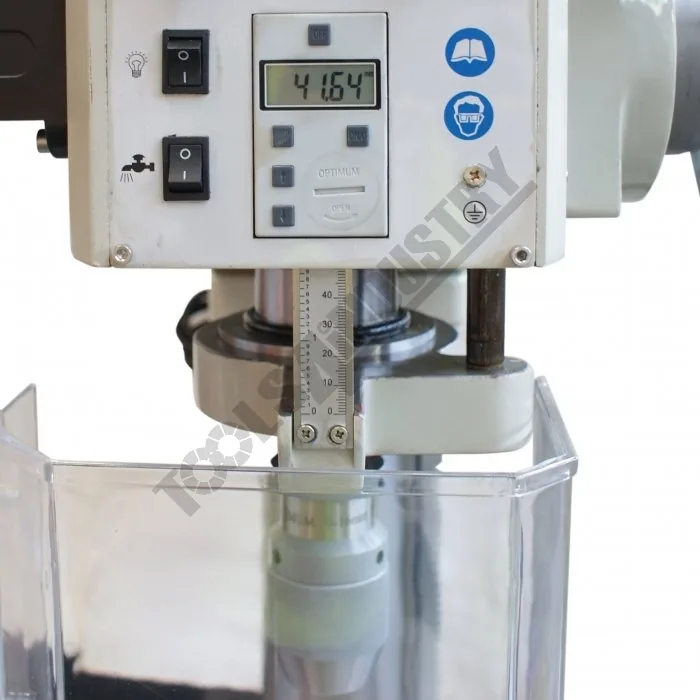

- Digital readout depth gauge mounted on front panel

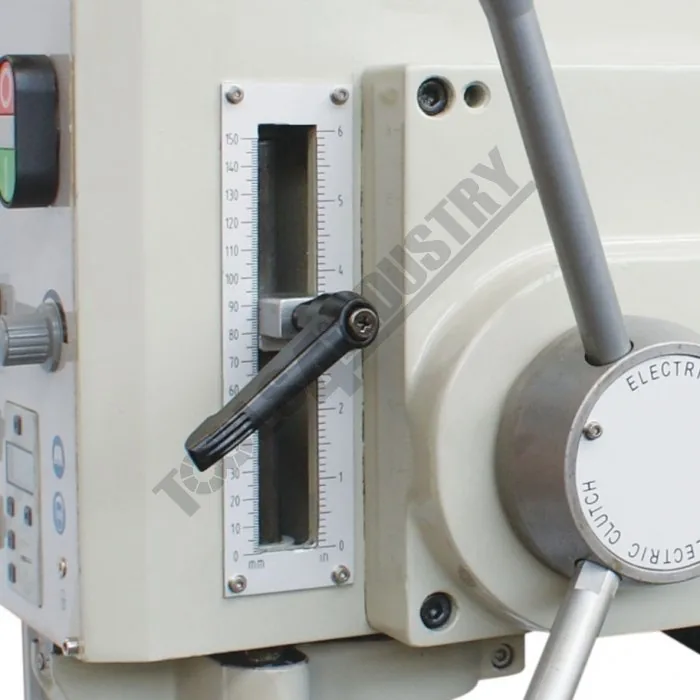

- Adjustable accurate depth setting for increased productivity

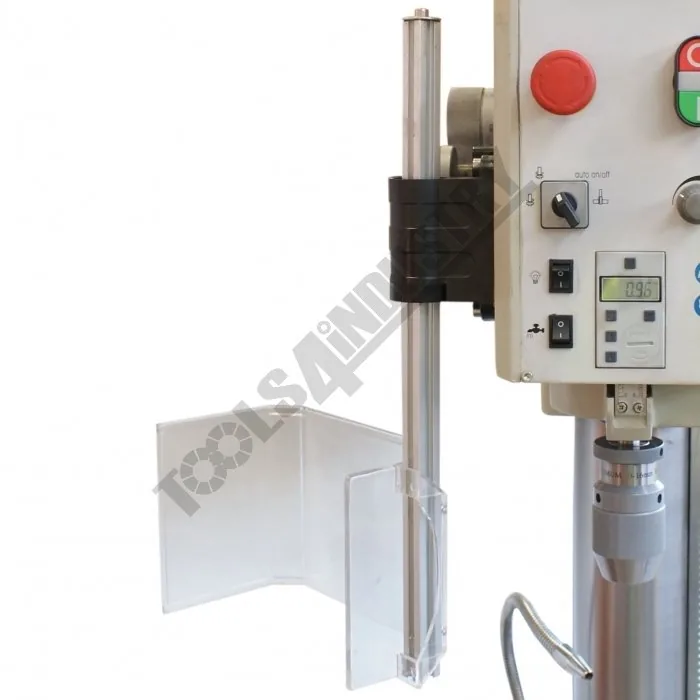

- Interlocked spindle safety guard

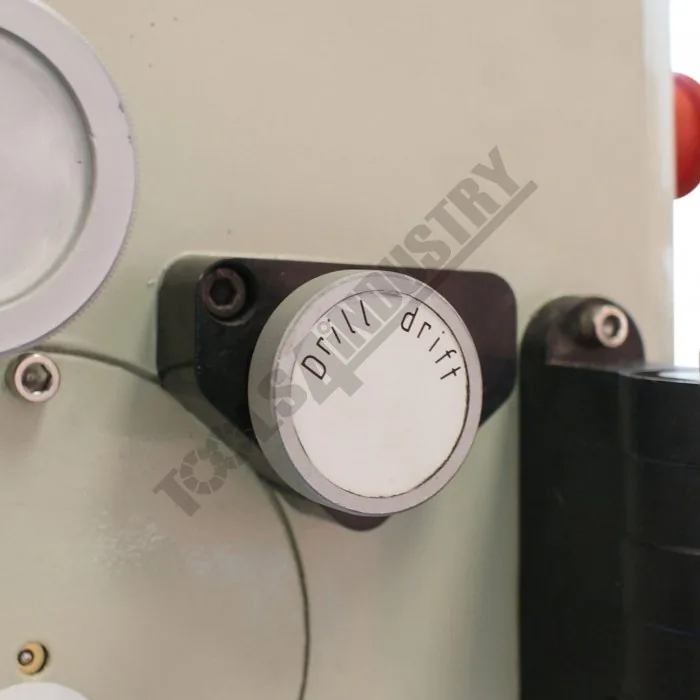

- Drill ejector incorporated in machine

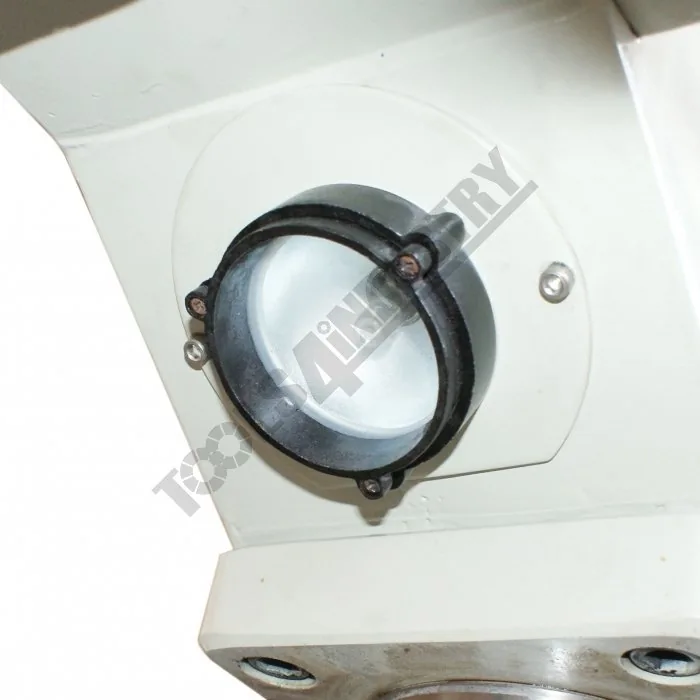

- Work light mounted in convenient location

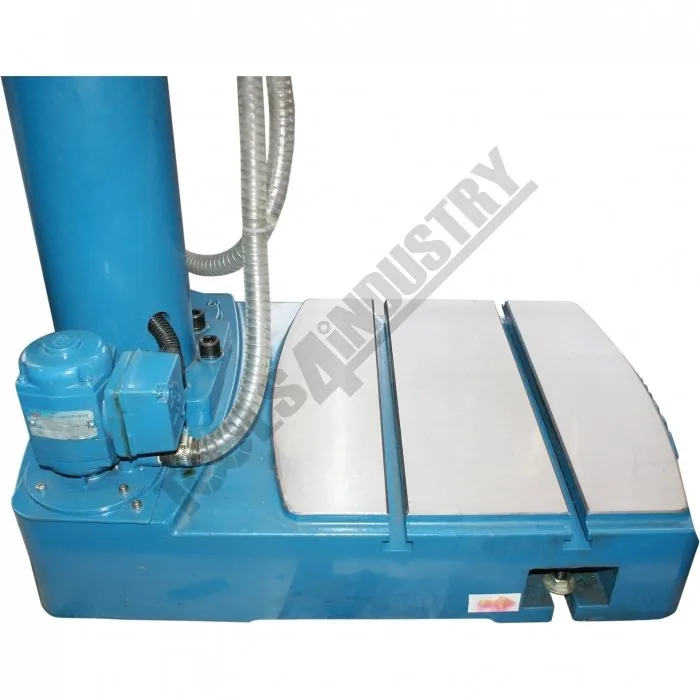

- T slotted work table & base

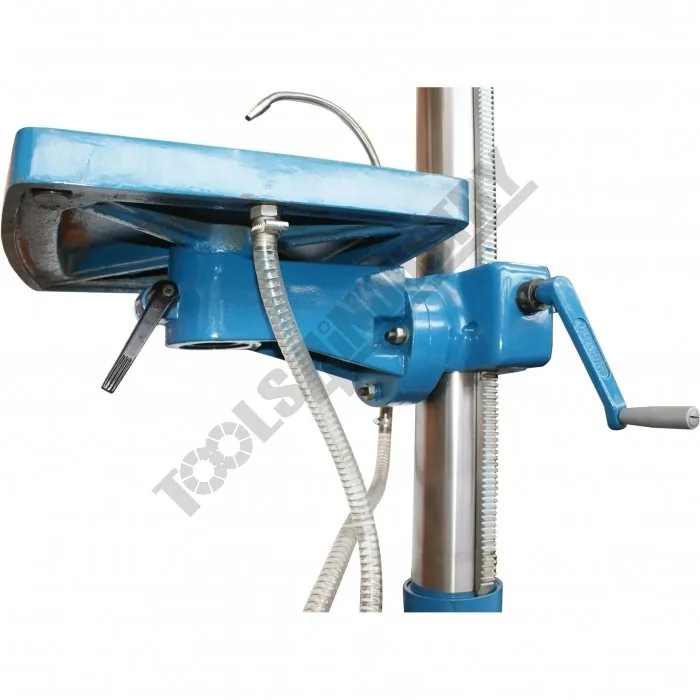

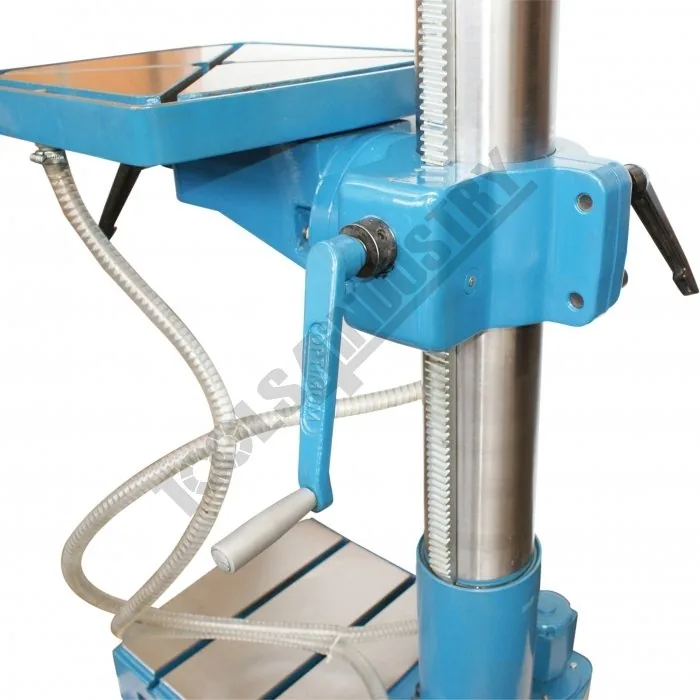

- Rack & pinion wind-up table

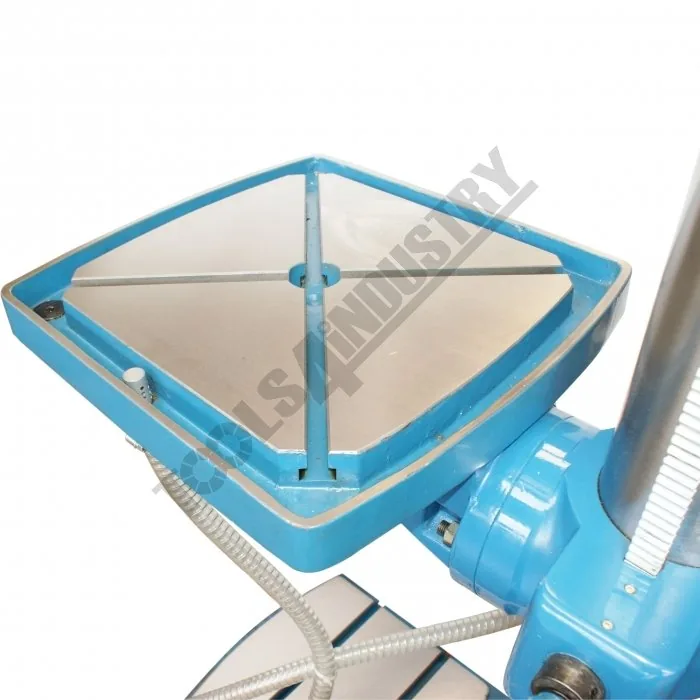

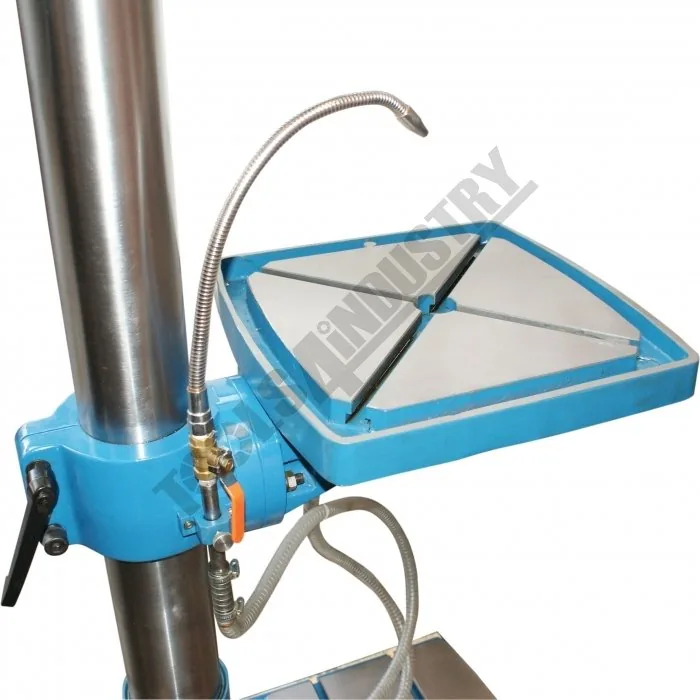

- Square work table tilts to ±45º

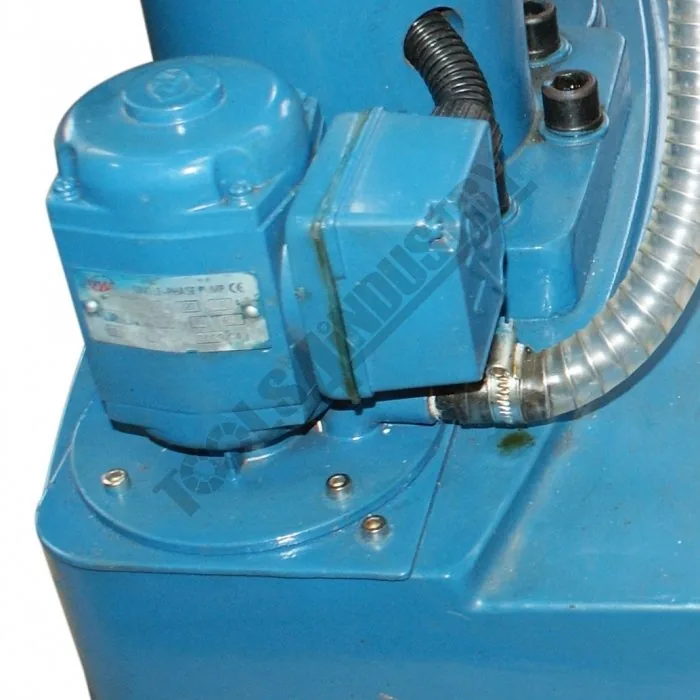

- Coolant pump system with flexible hose
- 2.2kW / 3hp motor 240V

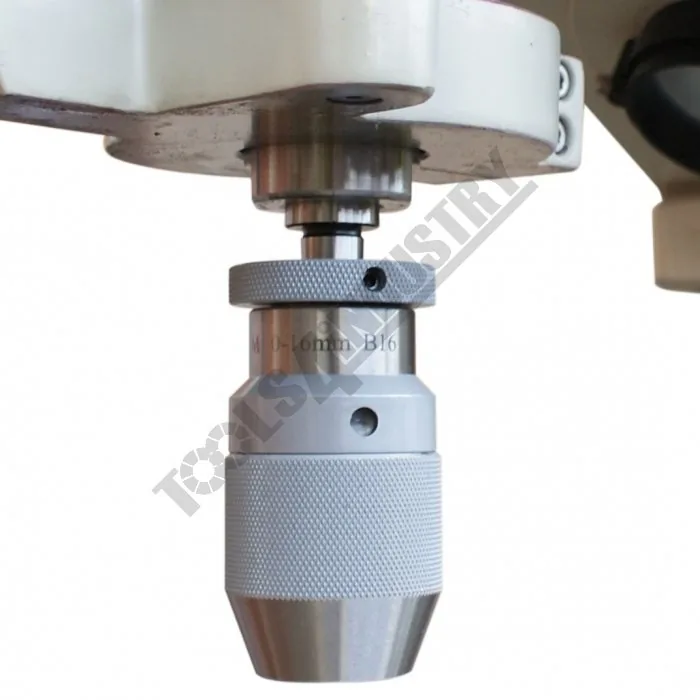

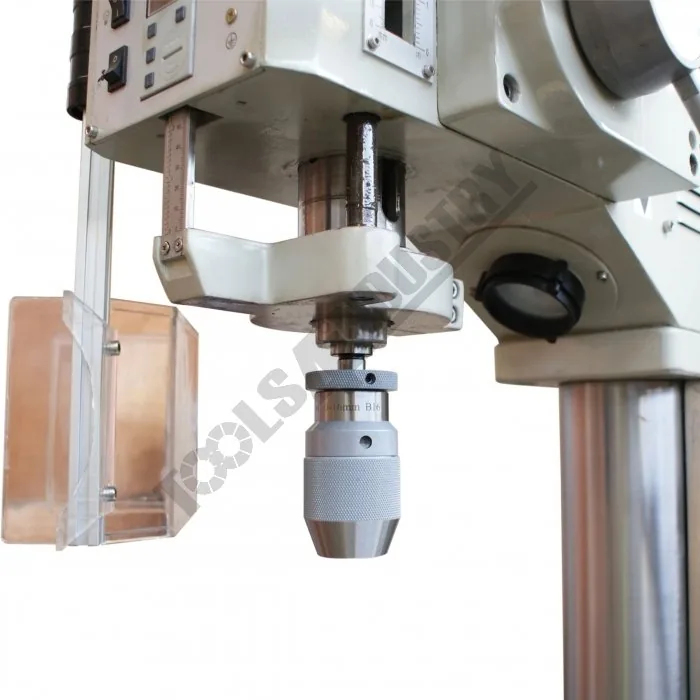

- Includes 16mm keyless drill chuck and arbor
About This Product
If you are seeking an industrial drilling machine but do not have the required 3 phase power (415V) connected in your workshop that most machines require, then you may like to consider our 240V GHD-30V Industrial 3MT Geared Head & Variable Speed Drilling Machine to drill all your holes up to 31.5mm. This machine is packed with plenty of great useful features to make drilling holes easier, the most popular that most operators seem to always point out first is that the electronic variable spindle speed dial connected to the digital speed readout display is easily adjusted from the control panel and can be fine tuned on the go. Second on the list is that the 3-speed auto power feed system certainly reduces the operator fatigue when drilling large holes all day. Thirdly is that tapping holes can be achieved easily now by selecting this function on the control panel, setting the depth stop and appropriate spindle speed, and once the tapping depth is reached the spindle will automatically revere and your tap will retract out of the hole. Just a few more to mention are, a work light that shines directly onto your job, the square work table tilts to ±45º & rotates 360º and the automatic start drill function sets this drill apart from our competitors. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code D176) for collection in store.
In the Box
- Coolant pump system
- 16mm keyless drill chuck and arbor
- Interlocked spindle safety guard
Product Specifications
| Specification | Detail |
|---|---|
| Drilling Capacity (mm) | Ø31.5 |
| Thread Tapping Capacity (Metric) | M20 |
| Spindle Taper (MT) | 3 |
| Spindle Travel (mm) | 125 |
| Throat Depth (mm) | 285 |
| Quill Diameter (mm) | 62 |
| Column Diameter (mm) | 115 |
| Spindle To Table (mm) | 790 |
| Spindle To Base (mm) | 1270 |
| Table (Type) | Rectangle |
| Table Size (mm) | 426 x 400 |
| T-Slot Size (mm) | 14 |
| Automatic Quill Feed (mm/rev) | 0.06, 0.09, 0.12 |
| Work Light (Includes) | Yes |
| Coolant System (Includes) | Yes |
| Spindle Speed Steps (No.) | Variable (3 Steps) |
| Spindle Speed Range (rpm) | 50 2850 |
| Motor Power (kW / hp) | 2.2 / 3 |
| Voltage / Amperage (V / amp) | 240 / 15 |
| Full Height (mm) | 1940 |
| Nett Weight (kg) | 344 |
