HAFCO

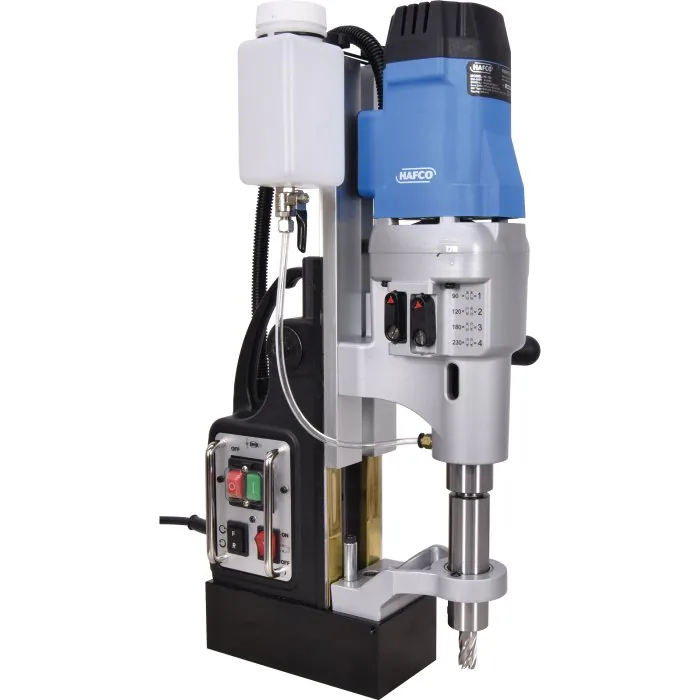

Portable Magnetic Drill – 3MT — HF-750, 4 Speed – 150 / 200 / 300 / 380rpm Ø75mm Drill Capacity – Manual Feed
Part No: D9507 | Barcode: 9344195023248 | Model: HF-750
HAFCO HF-750 Portable Magnetic Drill – 3MT (4 Speed – 150 / 200 / 300 / 380rpm Ø75mm Drill Capacity – Manual Feed). On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.
Model HF-750
4 Speed – 150 / 200 / 300 / 380rpm
Ø75mm Drill Capacity – Manual Feed
Maximum Thickness: 50 mm
Number of Drilling Speeds: 4 No.
Magnetic Holding Power: 3263
Motor Power: 1.8 / 2.4
Key Features & Benefits
- 3MT spindle taper
- 19mm shank broach holder & bracket

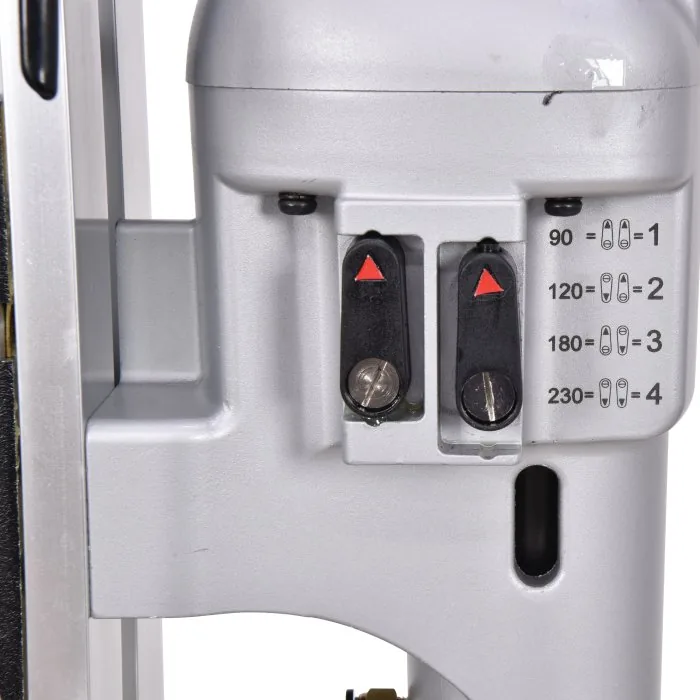

- 4-speed gearbox
- No load speeds: 150, 200, 300, 380rpm
- Full load speeds: 90, 120, 180, 230rpm
- 1800W 240V motor

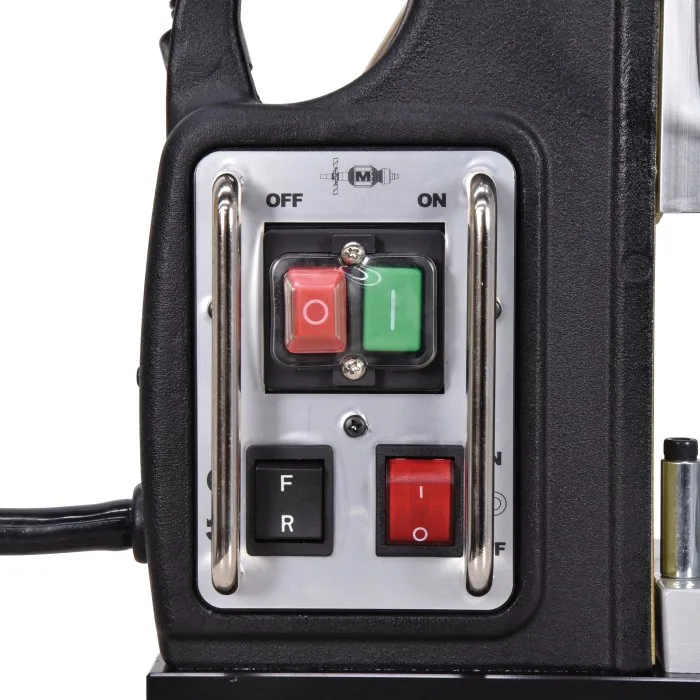

- Forward/reverse for tapping
- Ø75mm drilling capacity through 50mm plate
- Bronze dovetail slides
- Can be used with 3MT drills up-to 31.5mm
- CE approved
About This Product

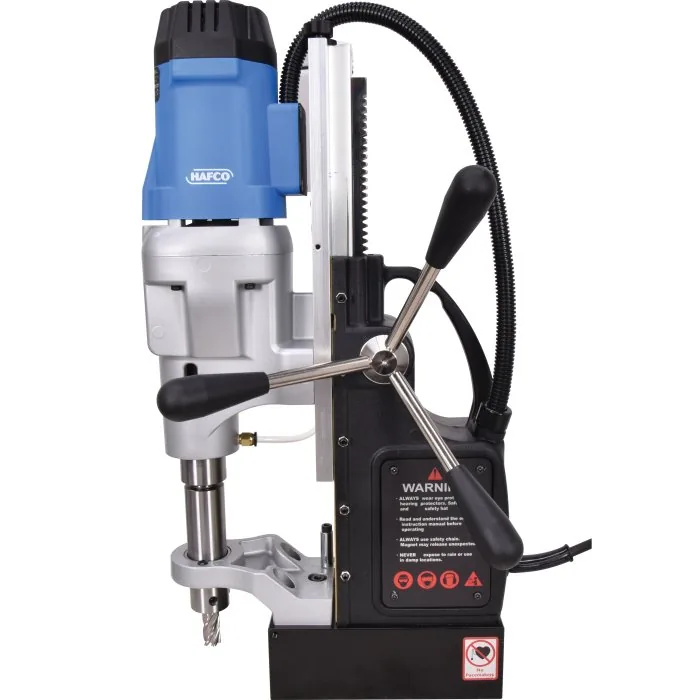

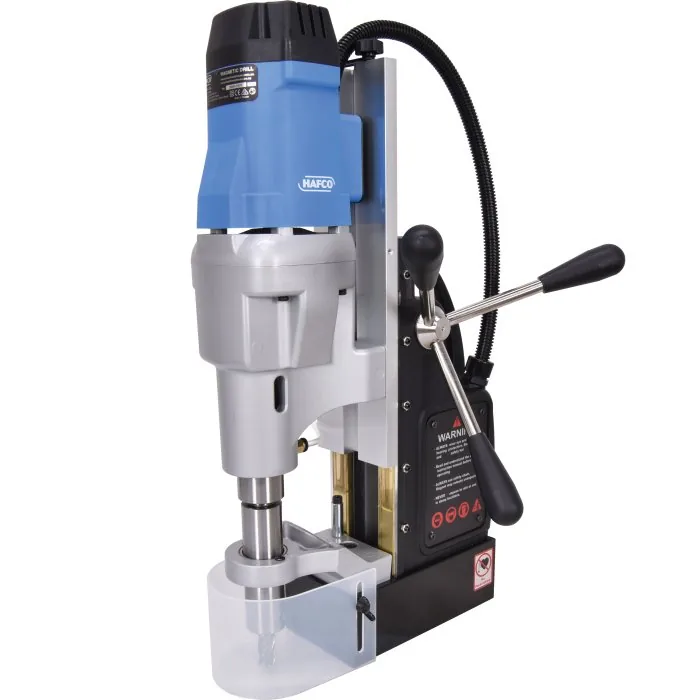

On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs. Hafco offers a full line of robust and versatile magnetic drilling machines built specifically for the hole making needs of various industries. Applications include fabrication, industrial and civil construction, maintenance, ship building and many others. This large No. 3 morse taper four speed model drill, has the versatility of using either broach cutters or taper shank drills. It is manual feed and has forward and reverse to make it suitable to be used as a tapping machine. This model features a purpose-built mag drill motor. This is designed to have the ideal torque characteristics to produce the best performance and durability for heavy-duty industrial use. NOTE: Shown with optional broach cutter This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code D9507) for collection in store.

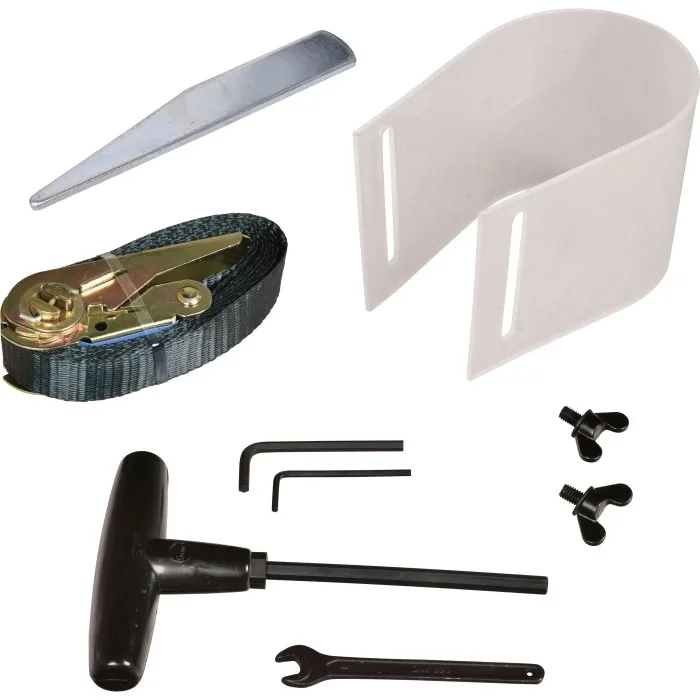

In the Box
- 3MT spindle taper
- 4 speed gearbox

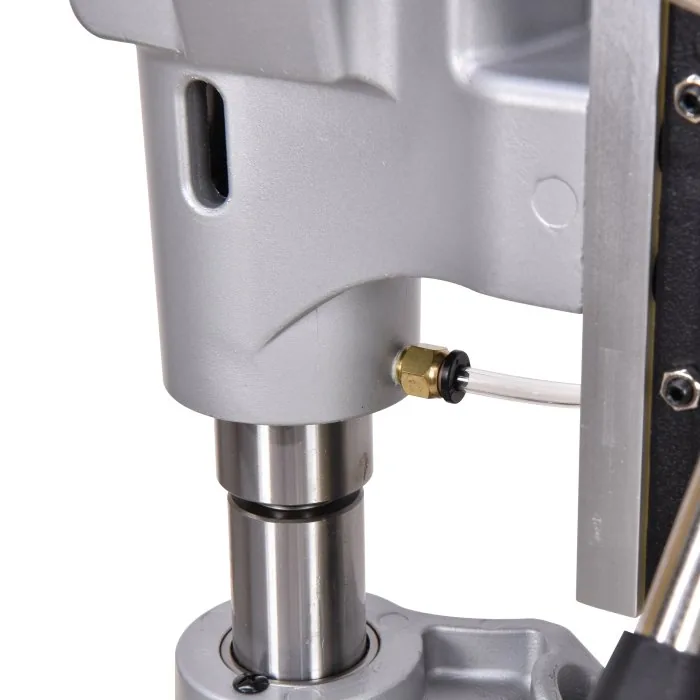

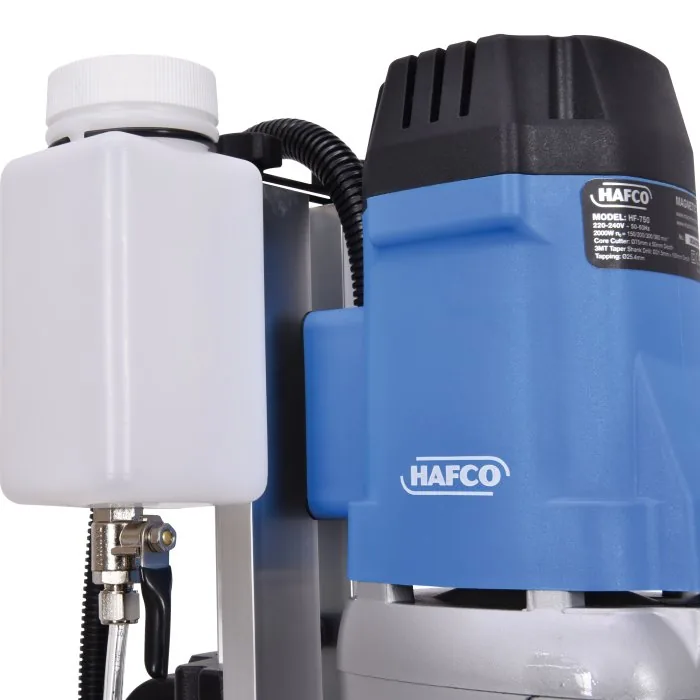

- Coolant tank kit
- Safety chain

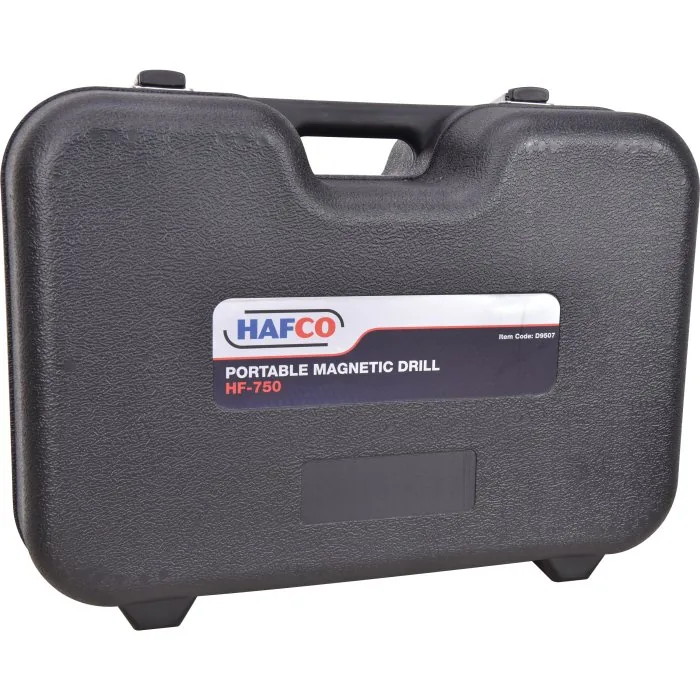

- Blow mould plastic case
Product Specifications
Portable Magnetic Drill – 3MT — Specifications
| Specification |
Detail |
| Feed |
Manual |
| Drilling Capacity Range – Manual (mm) |
12 – 75 |
| Maximum Thickness (mm) |
50 |
| Suits Cutter Shank Size (mm) |
19 |
| Number of Drilling Speeds (No.) |
4 |
| Full Load Drilling Speeds (rpm) |
90 / 120 / 180 / 230 |
| No Load Drilling Speeds (rpm) |
150 / 200 / 300 / 380 |
| Magnetic Holding Power (kg/f) |
3263 |
| Motor Power (kW / hp) |
1.8 / 2.4 |
| Voltage / Amperage (V / amp) |
240 / 10 |
| Machine Weight Only (kg) |
24.8 |
| Nett Weight (kg) |
31 |
Brand: HAFCOModel: HF-750Order Code: D9507Barcode: 9344195023248Country of Origin: TaiwanAvailability: Special order — collect in store
