HAFCO-METALMASTER

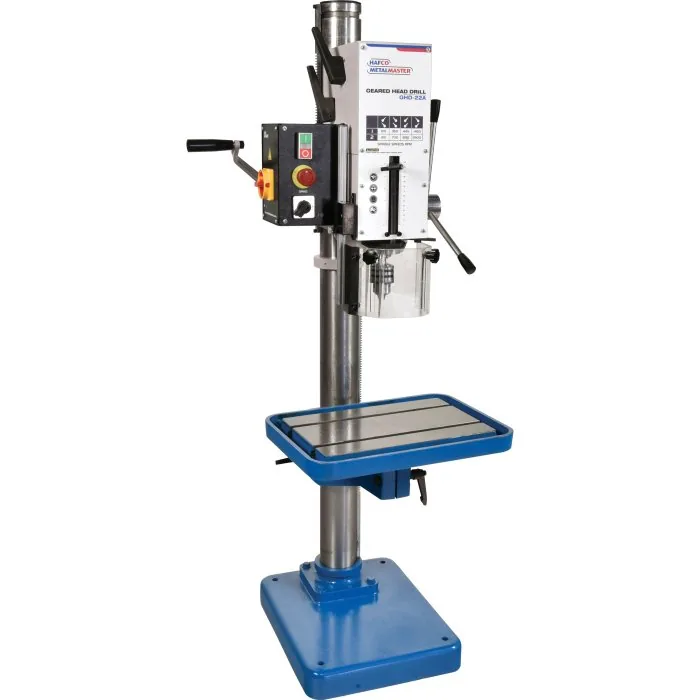

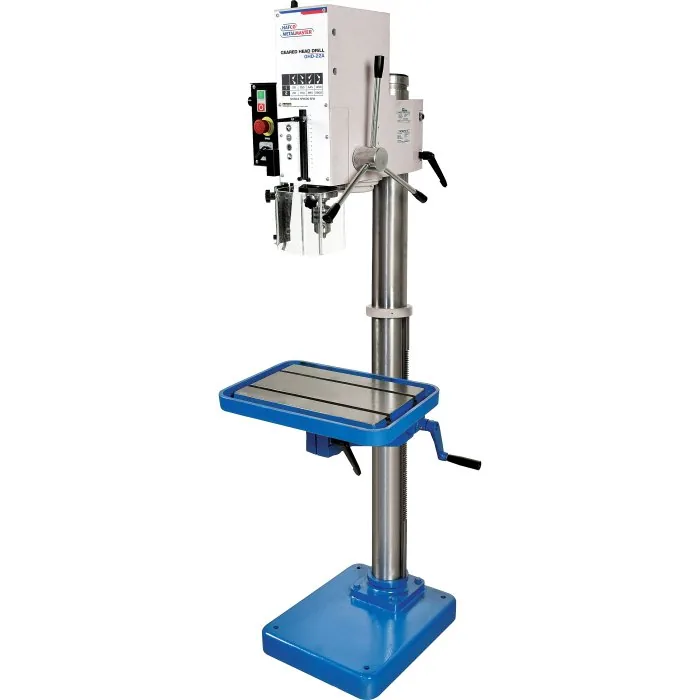

Industrial Geared Head Drilling Machine — GHD-22A, Ø25mm Drilling Capacity
Part No: D171 | Barcode: 9344195319440 | Model: GHD-22A
HAFCO-METALMASTER GHD-22A Industrial Geared Head Drilling Machine (Ø25mm Drilling Capacity). The GHD-22A Industrial Drilling Machine features a 3 Morse Taper spindle geared head rather than a pulley and belt drive system, making adjusting speed faster and simpler. Using this machine is straightforward, thanks to…
Model GHD-22A
Ø25mm Drilling Capacity
Drilling Capacity: Ø25 mm
Spindle Taper: 3 MT
Spindle Travel: 125 mm
Throat Depth: 255 mm
Spindle To Table: 830 mm
Key Features & Benefits
- Ideal for industrial or workshop use
- Geared head drilling machine with 3 morse taper spindle

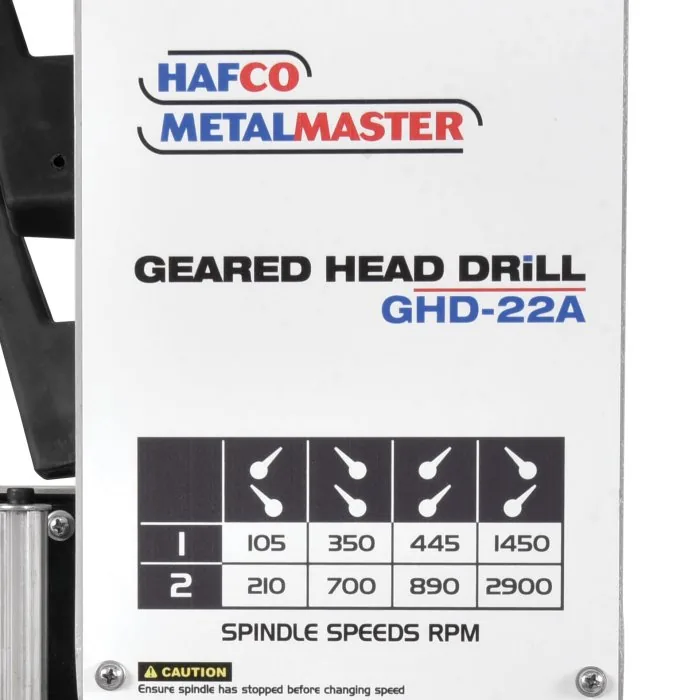

- 8 drilling speeds from 105 – 2900 rpm

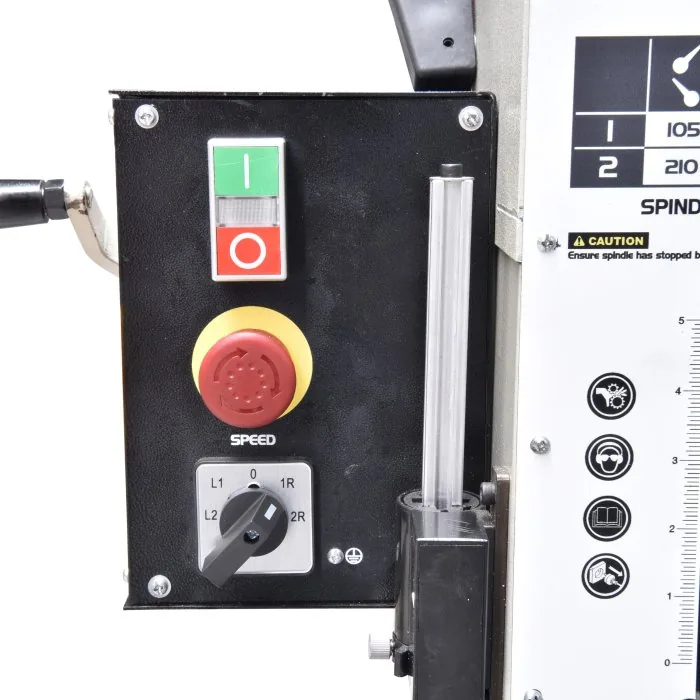

- High/low with forward & reverse switch
- Helical cut gears for quiet & smooth operation

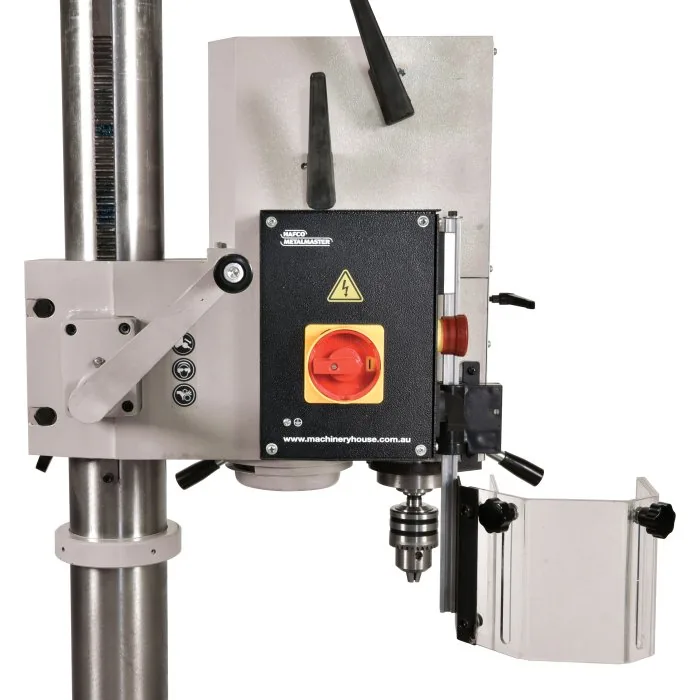

- Interlocked spindle safety guard

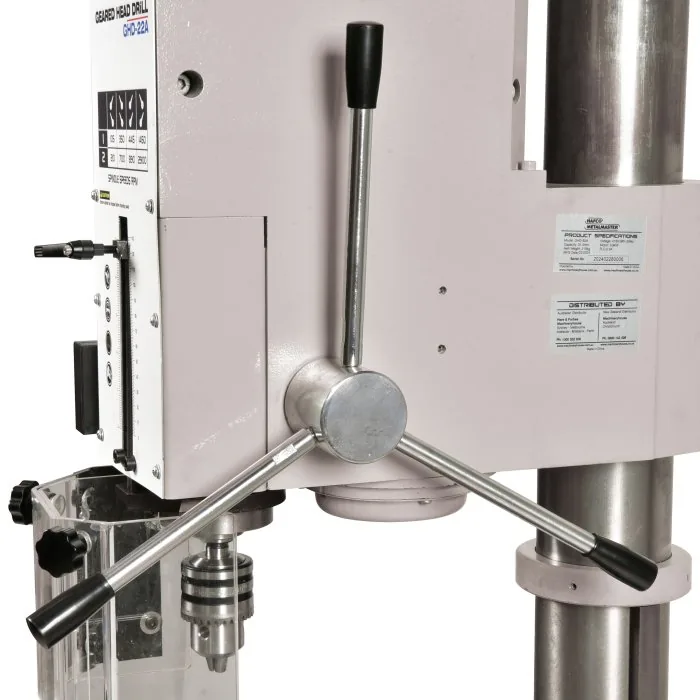

- Rack and pinion wind-up drill head
- Rack & pinion table height adjustment with locking lever
- Thick walled column ensuring greater rigidity
- Drill ejector lever
- Safety emergency stop/reset switch
- Table rotates 360º
- Drilling depth stop setting with scale
- T slotted work table
About This Product

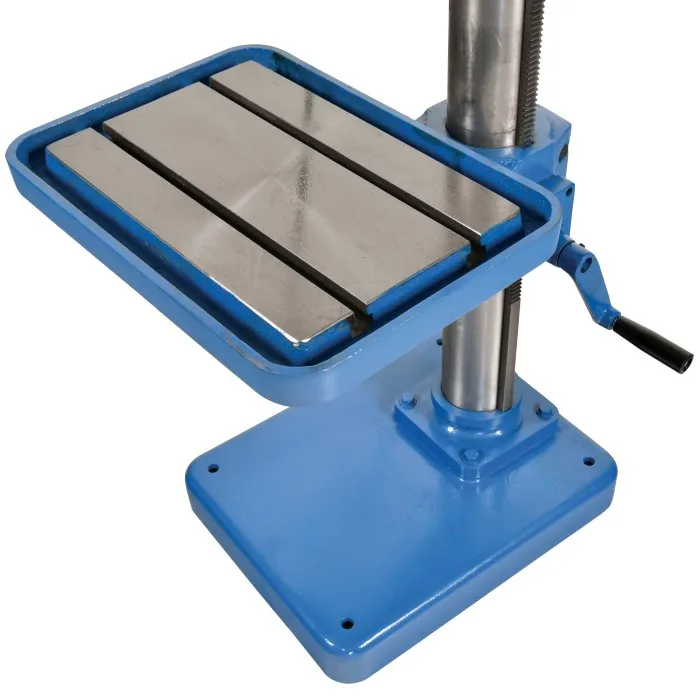

The GHD-22A Industrial Drilling Machine features a 3 Morse Taper spindle geared head rather than a pulley and belt drive system, making adjusting speed faster and simpler. Using this machine is straightforward, thanks to its large cast table with 14mm T-slots, which rotates 360 º and uses a rack and pinion to adjust its height. Drilling speeds vary from 105 to 2900rpm and, there is a drill depth stop for accurate and repeatable drilling. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code D171) for collection in store.
In the Box

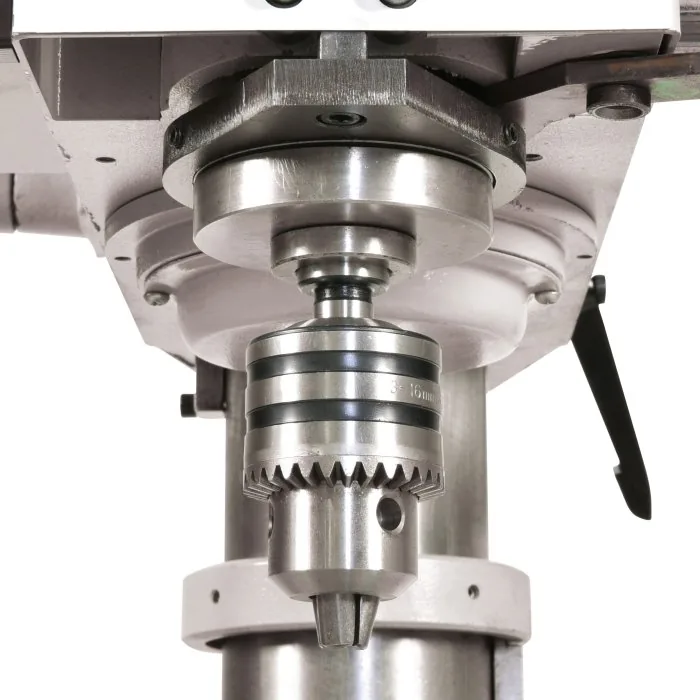

- 16mm keyed drill chuck and arbor
- Chuck key to suit
- Drill drift tool to remove drill chuck or taper shank drills
- Interlocked spindle safety guard
Product Specifications
| Specification | Detail |
|---|---|
| Drilling Capacity (mm) | Ø25 |
| Spindle Taper (MT) | 3 |
| Spindle Travel (mm) | 125 |
| Throat Depth (mm) | 255 |
| Quill Diameter (mm) | 60 |
| Column Diameter (mm) | 100 |
| Spindle To Table (mm) | 830 |
| Spindle To Base (mm) | 1240 |
| Table (Type) | Rectangle |
| Table Size (mm) | 350 x 500 |
| T-Slot Size (mm) | 14 |
| Spindle Speed Steps (No.) | 8 |
| Spindle Speed Range (rpm) | 105 2900 |
| Motor Power (kW / hp) | 0.9 / 1.2 |
| Voltage / Amperage (V / amp) | 415 |
| Full Height (mm) | 1800 |
| Nett Weight (kg) | 220 |
