HAFCO
Portable Magnetic Drill – Low Profile — HFLP-35, Includes Quick Action Broach Chuck & LED Work Light Ø35mm Drill Capacity – Manual Feed
Part No: D9506 | Barcode: 9344195096372 | Model: HFLP-35

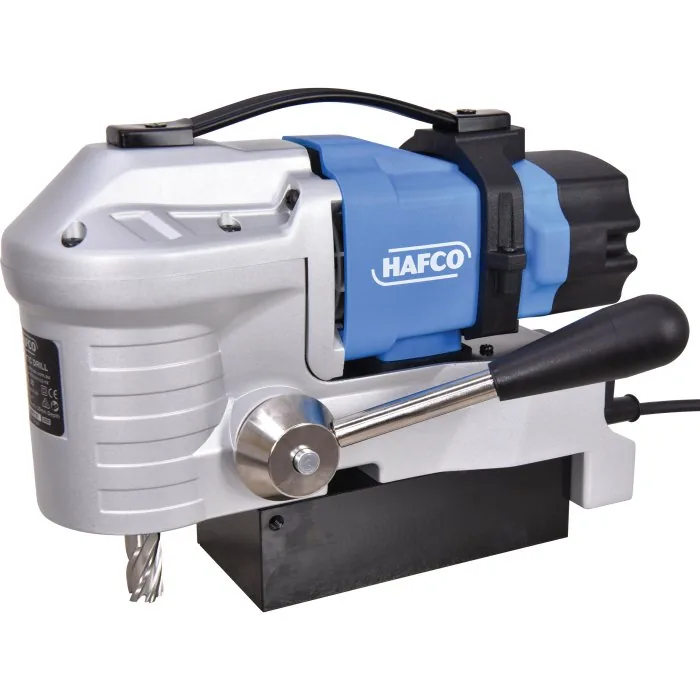

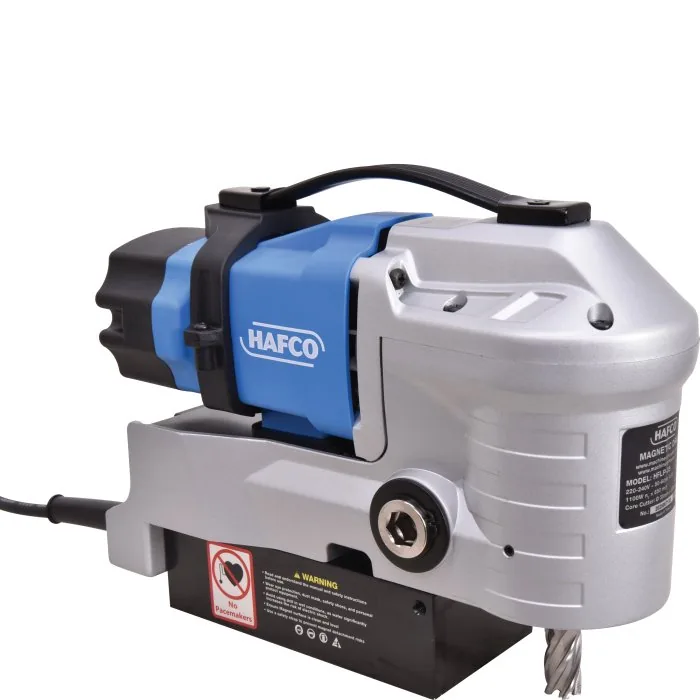

HAFCO HFLP-35 Portable Magnetic Drill – Low Profile (Includes Quick Action Broach Chuck & LED Work Light Ø35mm Drill Capacity – Manual Feed). “New Low Profile Magnetic Drilling Machine” is designed to can enter spaces impossible to reach with a conventional magnetic drill as the total height is only 200mm.
Model HFLP-35
Ø35mm Drill Capacity – Manual Feed
Maximum Thickness: 35 mm
Number of Drilling Speeds: 1 No.
Full Load Drilling Speeds: 390 rpm
No Load Drilling Speeds: 650 rpm
Magnetic Holding Power: 1500
Key Features & Benefits
- Low profile & compact with heavy duty magnet
- Drills up to 35mm diameter through 35mm plate
- LED work light help locate drill centre in dark areas
- Quick action broach drill lock release chuck mechanism
- Sturdy carrying strap fixed to unit for convenient positioning
- Sturdy feed handle with quick release can be used on left or right side of machine
- 285 x 101 x 200mm (L x W x H)
- CE approved
About This Product
“New Low Profile Magnetic Drilling Machine” is designed to can enter spaces impossible to reach with a conventional magnetic drill as the total height is only 200mm. On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs. NOTE: Shown with optional broach cutter This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code D9506) for collection in store.

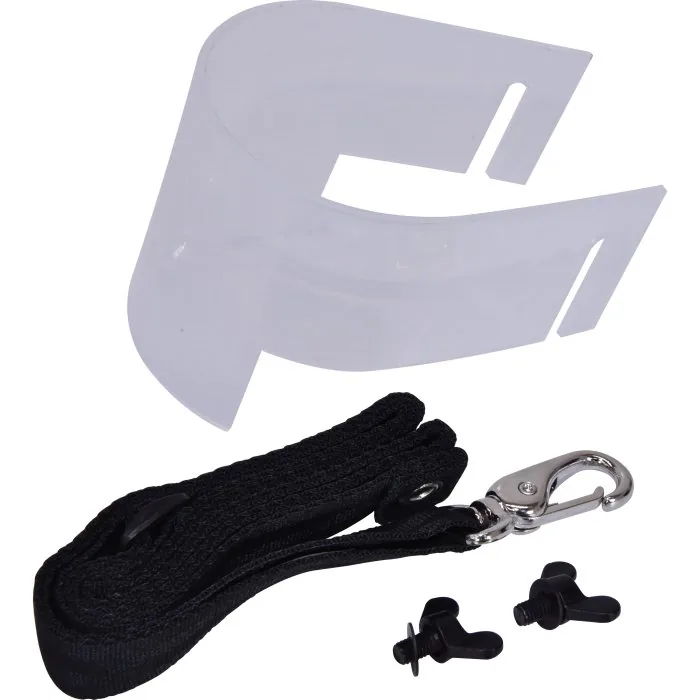

In the Box

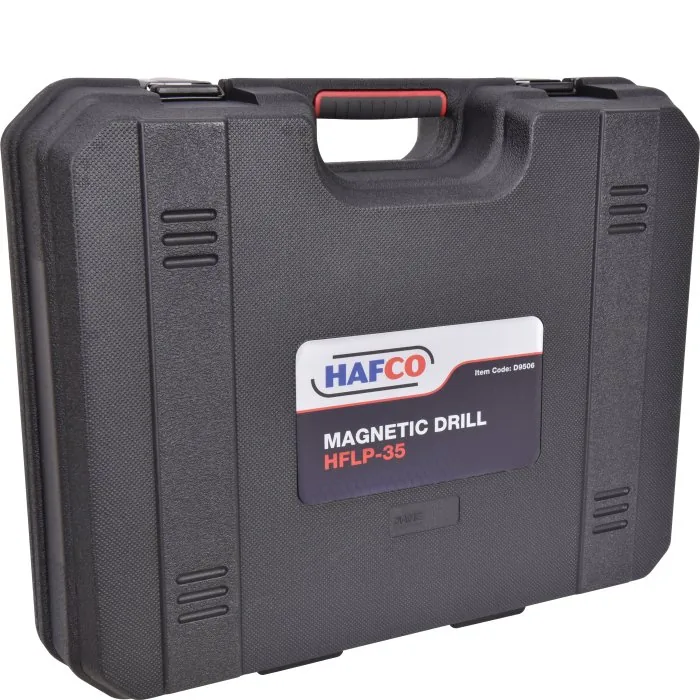

- Blow mould plastic case

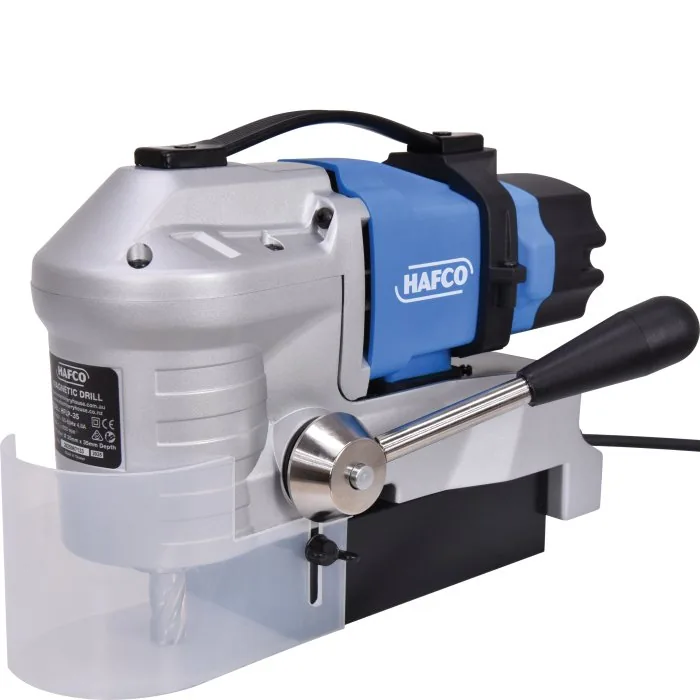

- Chip guard
- Safety strap
Product Specifications
| Specification | Detail |
|---|---|
| Feed | Manual |
| Drilling Capacity Range – Manual (mm) | 12 – 35 |
| Maximum Thickness (mm) | 35 |
| Suits Cutter Shank Size (mm) | 19 |
| Number of Drilling Speeds (No.) | 1 |
| Full Load Drilling Speeds (rpm) | 390 |
| No Load Drilling Speeds (rpm) | 650 |
| Magnetic Holding Power (kg/f) | 1500 |
| Motor Power (kW / hp) | 1.1 / 1.46 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Machine Weight Only (kg) | 10 |
| Nett Weight (kg) | 14 |
