Makita DTD154Z — lxt brushless 4 mode hex available at Alltools Geelong. Shop our full lxt brushless 4 mode hex range in Geelong.
Makita

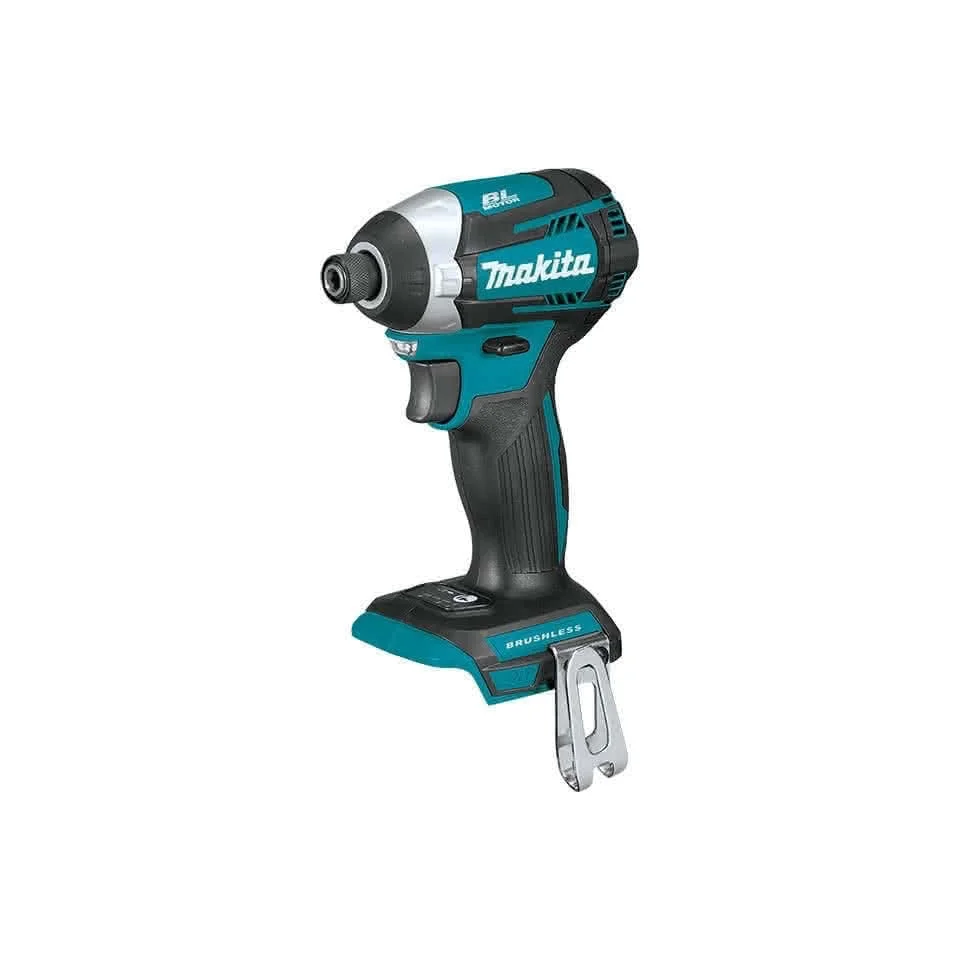

18V LXT Brushless 4-Mode 1/4″ Hex Impact Driver — 175 Nm, XPT
Part No: DTD154Z | Barcode: 88381824125
Makita’s DTD154Z is an 18V LXT brushless impact driver with 175 Nm of torque, 4-mode impact selection including Tek screw mode, and a compact 117 mm head length. XPT protection provides dust and water resistance for outdoor and site work, making it the most featured single-speed impact driver in the LXT range.
175 Nm Torque
3,800 IPM
3,600 RPM
4-Mode Impact
117 mm Head
XPT Protected
18V LXT Platform
Suitable For
Framing
Steel Roofing
Decking
Cabinetry
Electrical
General Construction
Key Features & Benefits
- 175 Nm Brushless Motor — 5 Nm more than the DTD153Z, with 4-mode impact selection for greater control across different fastener types.

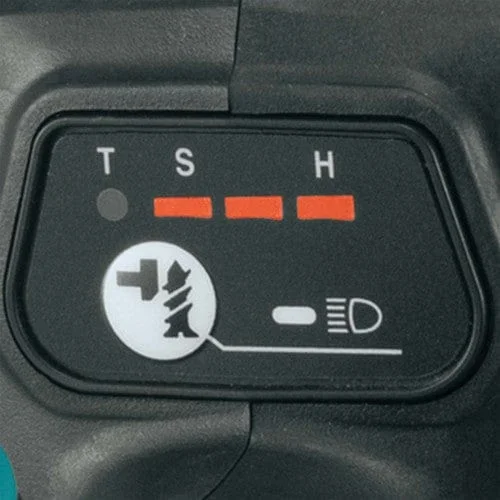

- 4-Mode Impact Selection + Tek Mode — three speed/torque settings plus a dedicated Tek screw mode that prevents walking and overdriving on self-tapping steel fasteners.
- Compact 117 mm Head Length — the most compact impact driver in its class, fitting into tight spaces between studs and behind fixtures.
- XPT (Extreme Protection Technology) — improved dust and water resistance sealing for reliable operation in outdoor and dusty site conditions.
- Electronic Brake — stops the bit instantly for precise fastener placement and overdriving prevention.

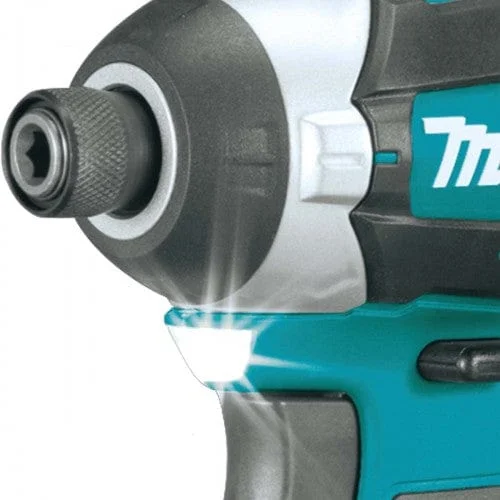

- Dual LED Job Lights — illuminate the fastener from two angles for shadow-free visibility in recessed areas.
When to Use This Impact Driver
The DTD154Z is the upgraded impact driver for Makita LXT users who want 4-mode control and Tek screw mode on the Makita platform. The Tek mode is particularly valuable for roofing and steel framing trades who drive self-tapping screws all day — it prevents the walking and overdriving that wastes fasteners and damages panels. At 117 mm head length it matches the compactness of the Milwaukee M12FID20 while running on the more powerful 18V platform. For trades who do not need mode selection, the simpler DTD153Z at 170 Nm is a more affordable option.
Authorised Australian Dealer — This product is sourced directly from Makita Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Voltage | 18V LXT |
| Max Torque | 175 Nm |
| No-Load Speed (Hi/Med/Lo) | 3,600 / 2,100 / 1,100 RPM |
| IPM (Hi/Med/Lo) | 3,800 / 2,600 / 1,100 |
| Impact Modes | 3 + Tek Screw Mode |
| Drive | 1/4″ Hex |
| Bolt Capacity | M5–M16 |
| Head Length | 117 mm |
| Weight (bare) | 1.5 kg |
| Motor | Brushless (XPT) |
