Description
Makita TD001GZ — max xgt brushless hex impact available at Alltools Geelong. Shop our full max xgt brushless hex impact range in Geelong.
Makita

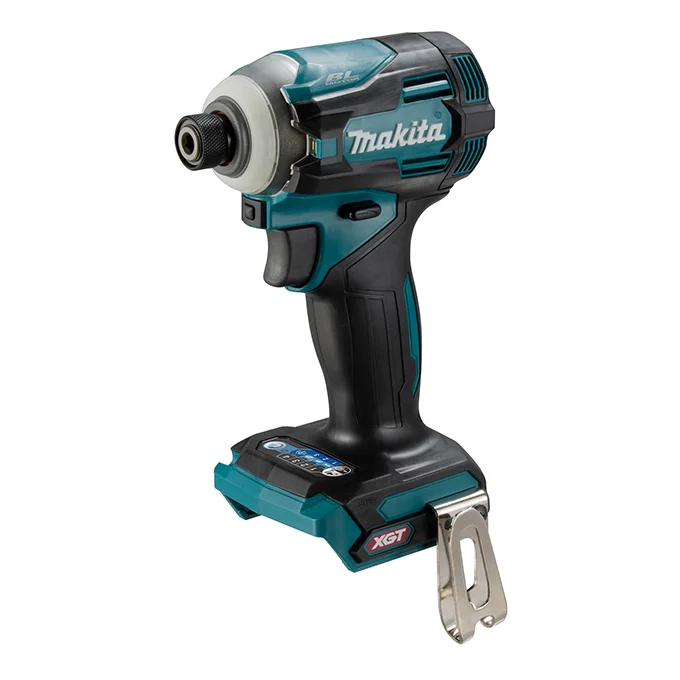

40V Max XGT Brushless 1/4″ Hex Impact Driver — 220 Nm, 6-Mode
Part No: TD001GZ | Barcode: 88381891752
Makita’s TD001GZ is a 40V Max XGT brushless impact driver delivering 220 Nm of torque through six optimised fastening modes. The 4-speed selection and XPT protection make it the most powerful and controllable impact driver in Makita’s cordless range, at just 120 mm long and 1.0 kg bare.
220 Nm Torque
4,400 IPM
3,700 RPM
6-Mode Control
120 mm Length
1.0 kg
40V XGT Platform
Suitable For
Structural Framing
Steel Roofing
Heavy Decking
Cabinetry
Lag Bolts
General Construction
Key Features & Benefits
- 220 Nm Maximum Torque — the highest torque in Makita’s impact driver range, handling the heaviest lag bolts, structural fasteners, and self-tappers.
- 6 Optimised Fastening Modes — each mode tailors speed and impact rate to the specific task, from delicate trim screws to heavy structural work.
- 4-Speed Selection (1,100–3,700 RPM) — fine-grained speed control across all fastener types and materials.
- Compact 120 mm Body at 1.0 kg — surprisingly compact for a 220 Nm driver, fitting tight spaces without the bulk of high-torque competitors.
- XPT Protection — dust and water resistance for reliable outdoor and site use.
- 40V XGT Battery Platform — more power and runtime than 18V for sustained high-torque fastening.
When to Use This Impact Driver
The TD001GZ is Makita’s most powerful impact driver, built for trades on the 40V XGT platform who need maximum fastening torque. At 220 Nm it handles the heaviest structural fasteners that 18V drivers struggle with, while the 6-mode control gives precision when needed. The 120 mm body keeps it compact despite the increased power. For trades on the 18V LXT platform, the DTD173Z at 180 Nm is the closest equivalent.
Authorised Australian Dealer — This product is sourced directly from Makita Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Specification | Value |
|---|---|
| Voltage | 40V Max XGT |
| Max Torque | 220 Nm |
| No-Load Speed (4 speeds) | 1,100 / 2,100 / 3,200 / 3,700 RPM |
| IPM (4 speeds) | 1,100 / 2,600 / 3,600 / 4,400 |
| Fastening Modes | 6 |
| Drive | 1/4″ Hex |
| Bolt Capacity | M5–M16 |
| Head Length | 120 mm |
| Weight (bare) | 1.0 kg |
| Motor | Brushless (XPT) |
