Description
Milwaukee M18FID30 — m18 fuel gen hex impact available at Alltools Geelong. Shop our full m18 fuel gen hex impact range in Geelong.
Milwaukee

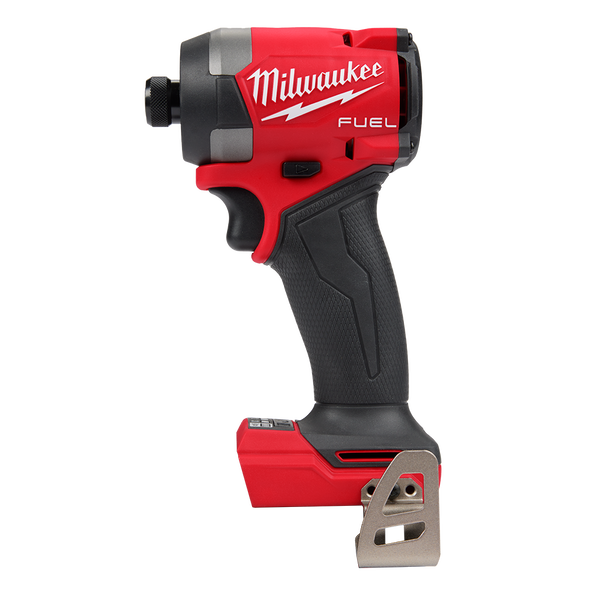

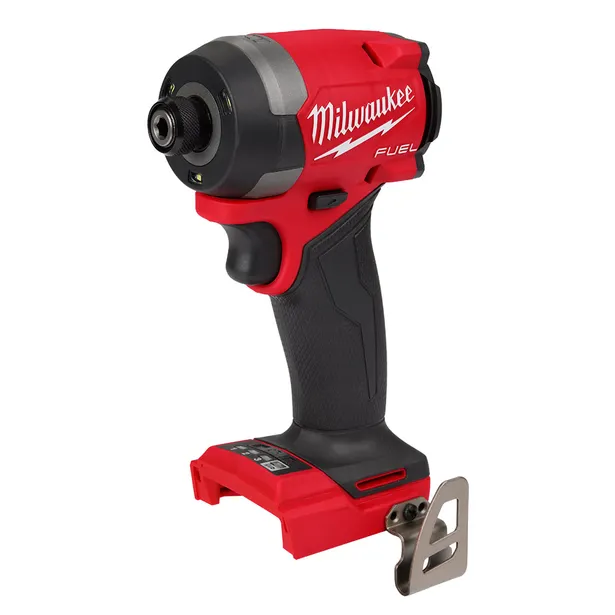

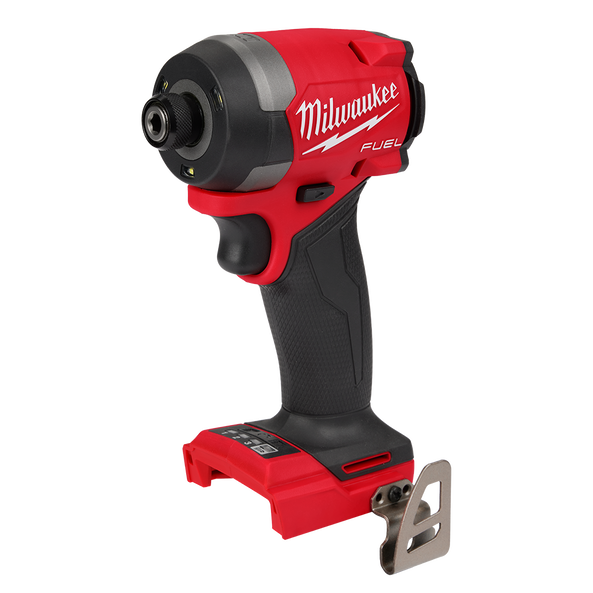

M18 FUEL Gen 4 1/4″ Hex Impact Driver — 226 Nm, 4-Mode DRIVE CONTROL
Part No: M18FID30 | Barcode: 4892210209870
Milwaukee’s Gen 4 M18 FUEL impact driver packs 226 Nm of fastening torque into a body just 113 mm long. The POWERSTATE brushless motor teams with 4-mode DRIVE CONTROL so you can shift from delicate trim screws right through to structural lag bolts without swapping tools.
226 Nm Torque
4,400 IPM
3,900 RPM
113 mm Length
4-Mode Drive Control
Tri-LED Light
18V M18 Platform
Suitable For
Framing
Decking
Steel Roofing
Cabinetry
Electrical
Plumbing
Key Features & Benefits
- POWERSTATE Brushless Motor — delivers 226 Nm of torque and 3,900 RPM for the widest range of fastening applications on a single platform.

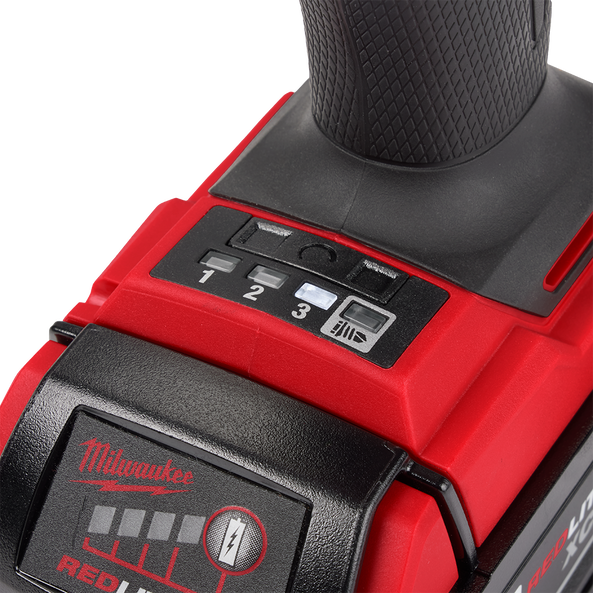

- 4-Mode DRIVE CONTROL — Mode 1 for precision trim work, Mode 2 to prevent fastener cam-out, Mode 3 for maximum power, and Mode 4 balancing speed with control.
- Ultra-Compact 113 mm Body — fits into joist bays, between studs, and behind switchboards where longer drivers cannot reach.
- Self-Tapping Screw Mode — reduces bit walking and overdriving when running self-tappers into steel framing or roofing.
- REDLINK PLUS Intelligence — communicates between tool and battery in real time to prevent overload, overheating, and over-discharge.
- Tri-LED Work Light — three LEDs surround the chuck to illuminate the fastener with no shadows, even in deep recesses.
When to Use This Impact Driver
Reach for the M18FID30 whenever you need a compact, high-torque impact driver that handles everything from fine cabinetry screws to heavy structural fasteners. The 4-mode drive control makes it equally at home running delicate trim screws in Mode 1 and driving 14 mm lag bolts in Mode 3. Its 113 mm body length is among the shortest in the 18 V class, making it the go-to driver for tight-access work between joists, behind wall frames, or inside switchboards.
Authorised Australian Dealer — This product is sourced directly from Milwaukee Tool Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Mode | RPM | IPM | Best For |
|---|---|---|---|
| Mode 1 | 0–1,700 | 0–1,400 | Precision / trim screws |
| Mode 2 | 3,000 | 3,600 | General fastening |
| Mode 3 | 3,900 | 4,400 | Maximum performance |
| Mode 4 | 3,900 | 4,400 | Self-tapping screw mode |
| Specification | Value |
|---|---|
| Voltage | 18V |
| Max Torque | 226 Nm |
| Max RPM | 3,900 |
| Max IPM | 4,400 |
| Chuck | 1/4″ Hex |
| Drive Modes | 4 |
| Body Length | 113 mm |
| Weight (bare) | 1.8 kg |
| Motor | POWERSTATE Brushless |
| Battery Platform | M18 REDLITHIUM |
| Warranty | 5 Years |
