Harlingen Cut-Off & Grooving Lathe Tool Kit 20mm — H-11-262-T30
Part No: H-11-262-T30 | Barcode: 9346967106555 | Brand: Harlingen

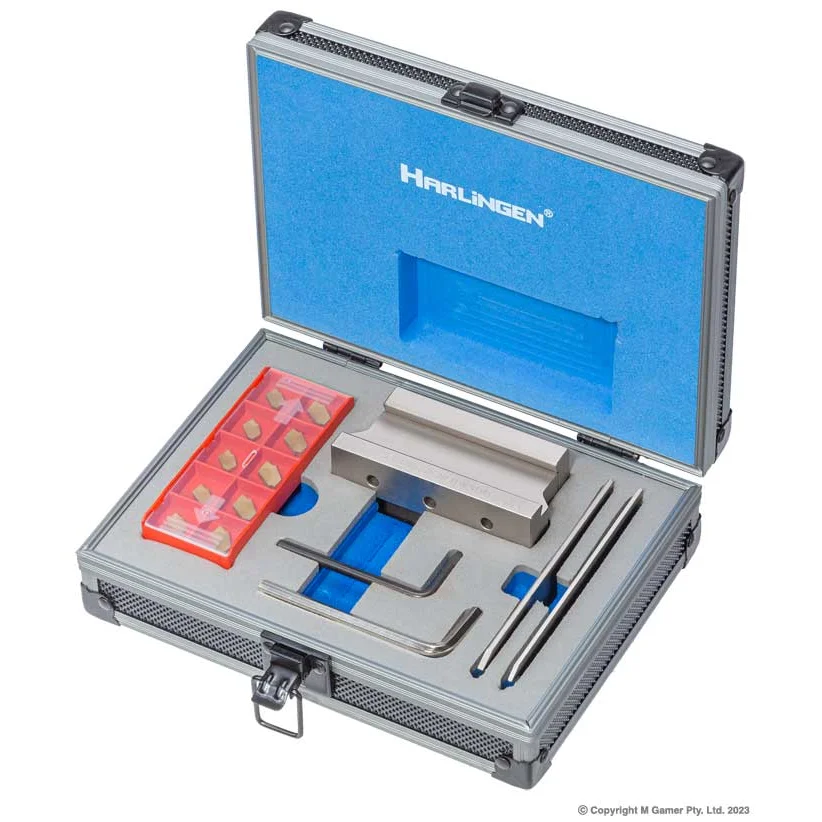

A complete 20mm parting and grooving package built around the SLTBN20-05 tool block, with two NCIH cut-off blades and ten GTN carbide inserts. Drops straight into a 20mm tool post for clean parting and groove work on small to mid-size lathes.
20mm Tool Block
SLTBN20-05 Holder
2 Cut-Off Blades
10 Carbide Inserts
GTN-2 + GTN-3
Parting & Grooving
Compatible Materials
Carbon Steel
Alloy Steel
Stainless Steel
Cast Iron
Key Features & Benefits
- SLTBN20-05 modular tool block — 20mm shank fits standard square tool posts and accepts both NCIH-2 and NCIH-3 blade widths.
- Two NCIH cut-off blades supplied — NCIH26-2 and NCIH26-3 cover 2mm and 3mm parting widths so you can match insert width to job.
- Ten carbide inserts in the box — Five GTN-2 and five GTN-3 inserts means you start cutting straight away — no separate insert order.
- Indexable insert geometry — Rotate to a fresh edge in seconds; no regrinding or HSS sharpening between jobs.
- General-purpose lathe coverage — Suits parting bar stock, cutting O-ring grooves, retaining clip grooves and undercuts on shoulders.
When to Use This Tool
Choose H-11-262-T30 when you have a lathe with a 20mm tool post and want one purchase that covers parting and grooving from day one. Ideal for trade workshops, fitter-machinists and serious home metalworkers stepping up from HSS parting blades.
Authorised Australian Distributor — This product is sourced via Australia’s Harlingen distributor Gamer Industries and is backed by full Australian warranty and local support.
Product Specifications
| Component | Part No. | Width | Quantity |
|---|---|---|---|
| Tool Block | SLTBN20-05 | 20 mm shank | 1 |
| Cut-Off Blade | NCIH26-2 | 2 mm | 1 |
| Cut-Off Blade | NCIH26-3 | 3 mm | 1 |
| Carbide Insert | GTN-2 | 2 mm | 5 |
| Carbide Insert | GTN-3 | 3 mm | 5 |
