Hafco Metalmaster

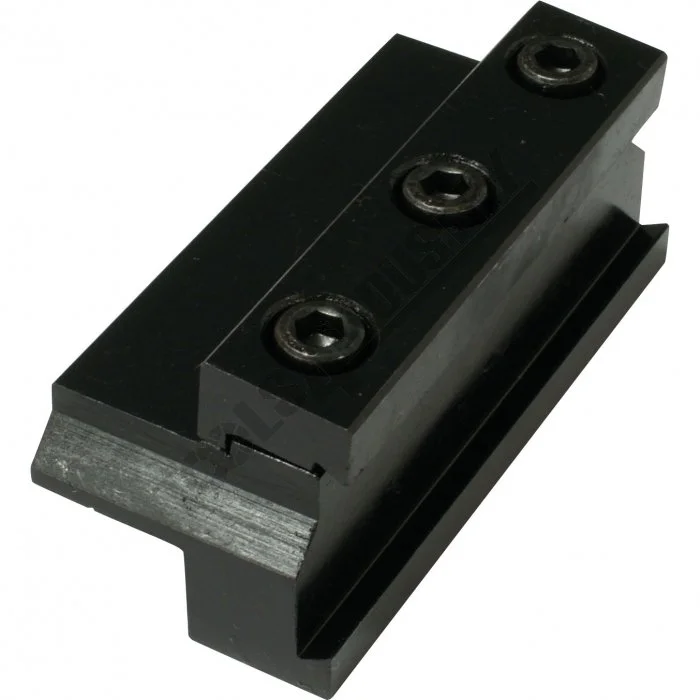

L027 Lathe Parting Block — 12mm Tool Height
Part No: L027 | Barcode: 9344195002625 | Brand: Hafco Metalmaster
Compact parting block with a 12mm tool-height shank, sized for lathes with a 12mm centre-height tool post. Accepts standard 26mm × 2-3mm parting blades — supplied without blade.
12mm Tool Height
16mm Body
87mm Long
Suits 26mm Blade
For Lathe Cut-Off Work
Key Features & Benefits
- 26mm blade slot — standard size matched to the L468 parting blade and most common HSS / insert blades.
- Hardened body — resists deformation under heavy parting loads where rigidity is everything.
- Squared shank — sits flat in the tool post without needing parallels or shimming.
- Locking screws on top — clamp the blade firmly without crushing or bowing it.
When to Use This Block
Parting blocks are the preferred way to hold a tall, thin parting blade rigid against the work. The blade hangs below the block, and the block sits in the tool post — this puts the cutting edge close to the toolpost and minimises chatter. Choose the tool height that matches your lathe’s tool-post centre height.
Authorised Australian Dealer — This product is sourced through Australian distributor Hafco Australia (Hare & Forbes Machineryhouse) and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Order Code | Type | Tool Height | Blade Size |
|---|---|---|---|
| L027 ★ | Parting Block | 12mm | 26mm slot |
| L028 | Parting Block | 16mm | 26mm slot |
| L074 | Parting Tool Holder | 1/2″ (12.7mm) | 1/2″ HSS bit |
| L468 | Parting Blade | — | 26 × 2 × 110mm |
★ You are viewing the highlighted variant. Match the parting block’s tool height to your lathe’s tool post centre height.
