Description
Holemaker HMPRO35K1 — magnetic base drilling machine dia available at Alltools Geelong. Shop our full magnetic base drilling machine dia range in Geelong.
Holemaker

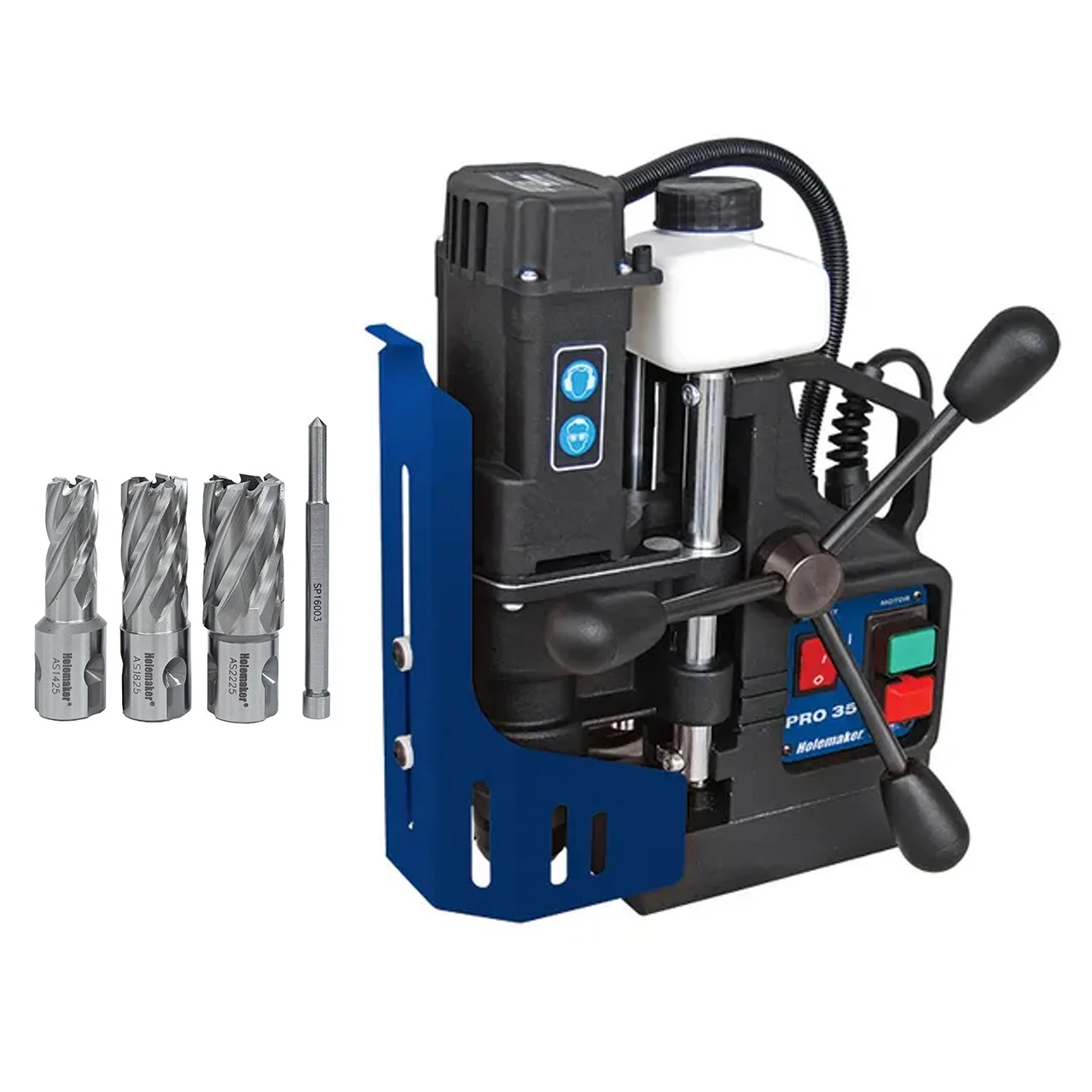

HMPRO35K1 Magnetic Base Drilling Machine — 35mm dia x 52mm depth Capacity
Part No: HMPRO35K1 | Barcode: 9328042020710 | Product Group: Mag Drills
Holemaker HMPRO35K1 magnetic base drilling machine with 35mm dia x 52mm depth cutting capacity and 920W motor. Lightest in the range at 10kg with gravity feed coolant and magnetically attached bottle.
35mm dia x 52mm depth
920W Motor
240V single phase
350rpm
6,000Nm Mag Force
10kg
Suitable For
Steel Fabrication
Structural Steelwork
On-Site Installation
Maintenance & Repair
Plate Work
Key Features & Benefits
- 920W Motor — delivers consistent power for cutting through steel plate and structural sections with 1000W input power.
- Lightest in Class at 10kg — ideal for overhead drilling and on-site portability where every kilogram matters.
- Gravity Feed Coolant System — magnetically attached coolant bottle keeps the cutting zone lubricated for longer cutter life.

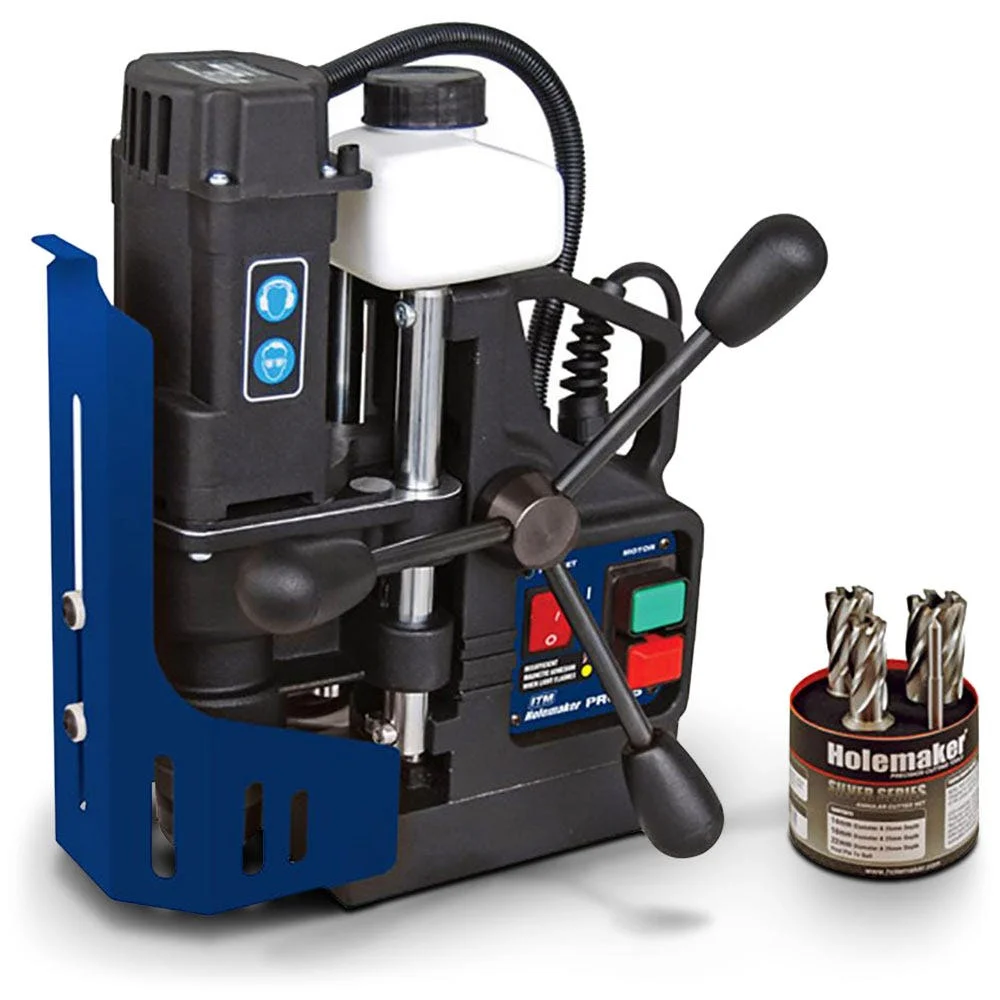

- Bonus Cutter Kit Included — ready to cut out of the box with a selection of annular cutters included.
When to Use This Mag Drill
The HMPRO35K1 is Holemaker’s lightweight entry into magnetic base drilling. At just 10kg, it is the lightest model in the range, making it the go-to choice for overhead work, on-site steel fabrication, and any application where portability is a priority. It handles annular cutters up to 35mm diameter and 52mm depth. Includes a bonus cutter kit so you can start cutting straight away.
Pro Tip: Always ensure the work surface is clean and free of debris before engaging the magnet. Use the correct annular cutter size with the matching pilot pin, and apply cutting fluid throughout the cut. For best results, use moderate feed pressure and let the cutter do the work.
Authorised Australian Dealer — This product is sourced directly from Holemaker Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Capacity | Motor | Input Power | Speed | Mag Force | Weight | Barcode |
|---|---|---|---|---|---|---|---|
| HMPRO35K1 ★ | 35mm x 52mm | 920W | 1000W | 350rpm | 6,000Nm | 10kg | 9328042020710 |
| HMPRO40 | 40mm x 52mm | 1020W | — | — | — | — | 9328042016157 |
| HMPRO42K1 | 42mm x 52mm | 1020W | 1100W | 440rpm | 9,900Nm | 12.5kg | 9328042041470 |
★ You are viewing the highlighted variant. Other models in this series are also available.
