Description
Holemaker HMPRO42K1 — magnetic base drilling machine dia available at Alltools Geelong. Shop our full magnetic base drilling machine dia range in Geelong.
Holemaker

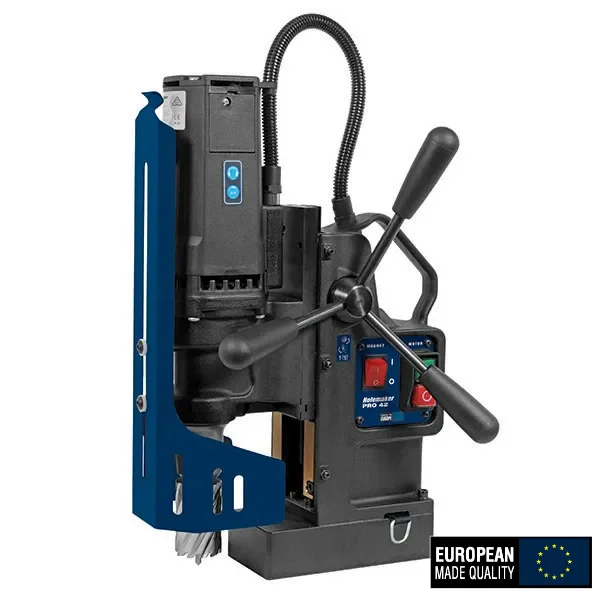

HMPRO42K1 Magnetic Base Drilling Machine — 42mm dia x 52mm depth Capacity
Part No: HMPRO42K1 | Barcode: 9328042041470 | Product Group: Mag Drills
Holemaker HMPRO42K1 magnetic base drilling machine with 42mm dia x 52mm depth cutting capacity and 1020W motor. Features Magnetic Field Shape Control (MFSC) for thin materials. European made with carry case.
42mm dia x 52mm depth
1020W Motor
240V single phase
440rpm
9,900Nm Mag Force
12.5kg
Suitable For
Steel Fabrication
Structural Steelwork
On-Site Installation
Maintenance & Repair
Plate Work
Key Features & Benefits
- 1020W Motor — delivers consistent power for cutting through steel plate and structural sections with 1100W input power.
- Magnetic Field Shape Control (MFSC) — adjusts the magnetic field pattern for secure hold on thin materials where standard magnets struggle.
- 9,900Nm Magnetic Dead Lift — industry-leading holding force on 25mm steel for maximum stability during heavy cuts.
- European Made — precision-engineered and manufactured in Europe for consistent quality and reliability.
- 165mm Stroke — generous stroke length accommodates deep cuts and stack drilling.
- Integrated Cutter Guard — built-in safety guard protects the operator during cutting.
- Blow Mould Carry Case — durable plastic case included for protected transport and storage.

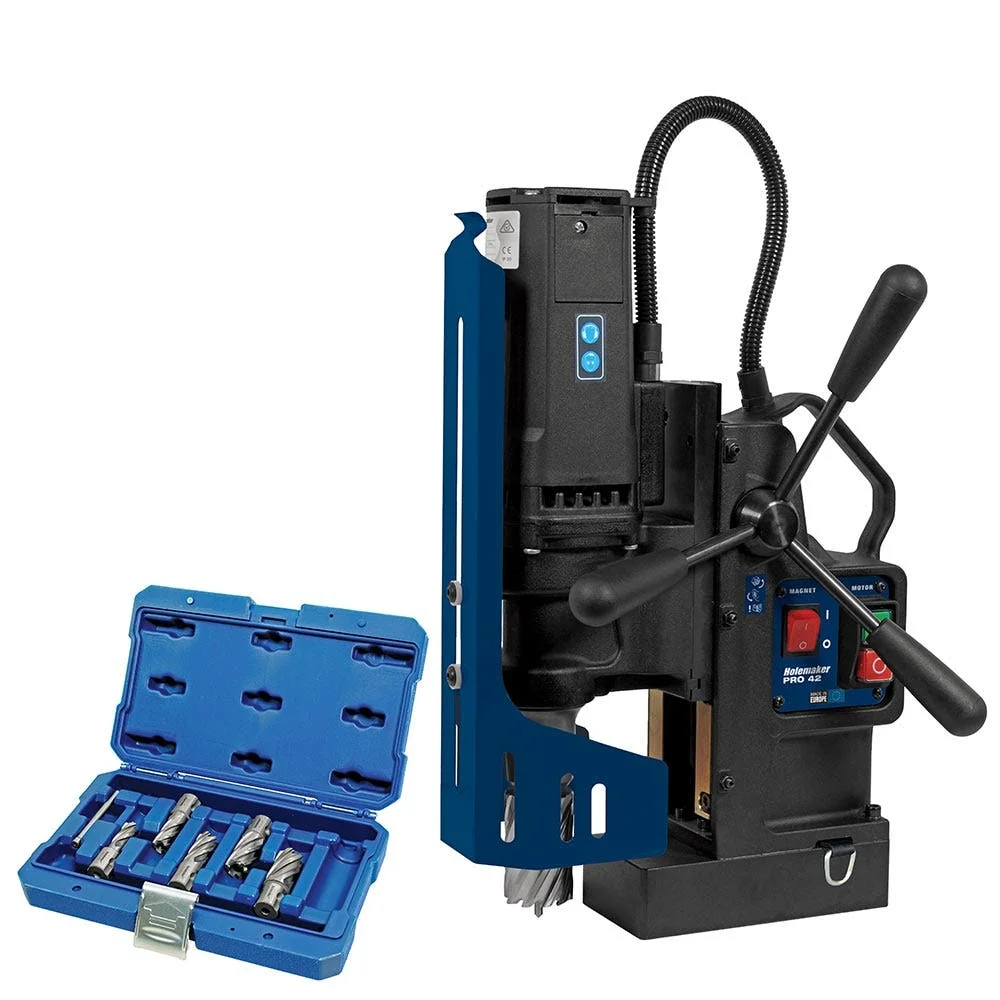

- Bonus Cutter Kit Included — arrives ready to work with a selection of annular cutters.
When to Use This Mag Drill
The HMPRO42K1 is Holemaker’s top-of-the-range magnetic base drill, built for demanding professional and industrial use. With 42mm cutting capacity, 1020W motor, and 9,900Nm magnetic holding force, it handles the heaviest annular cutting tasks. The MFSC system makes it uniquely suited to thin material work where other mag drills lose grip. European made with a bonus cutter kit and carry case included.
Pro Tip: Always ensure the work surface is clean and free of debris before engaging the magnet. Use the correct annular cutter size with the matching pilot pin, and apply cutting fluid throughout the cut. For best results, use moderate feed pressure and let the cutter do the work.
Authorised Australian Dealer — This product is sourced directly from Holemaker Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Capacity | Motor | Input Power | Speed | Mag Force | Weight | Barcode |
|---|---|---|---|---|---|---|---|
| HMPRO35K1 | 35mm x 52mm | 920W | 1000W | 350rpm | 6,000Nm | 10kg | 9328042020710 |
| HMPRO40 | 40mm x 52mm | 1020W | — | — | — | — | 9328042016157 |
| HMPRO42K1 ★ | 42mm x 52mm | 1020W | 1100W | 440rpm | 9,900Nm | 12.5kg | 9328042041470 |
★ You are viewing the highlighted variant. Other models in this series are also available.
