Holemaker

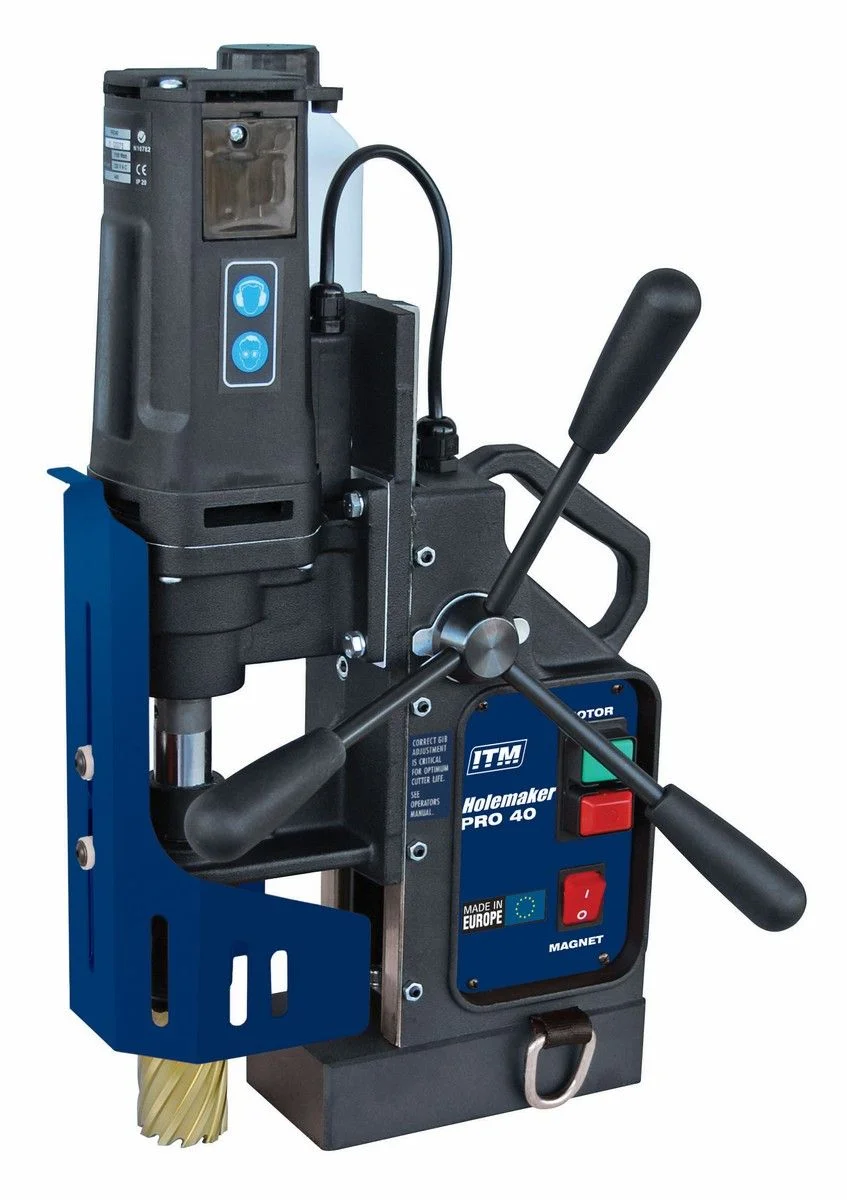

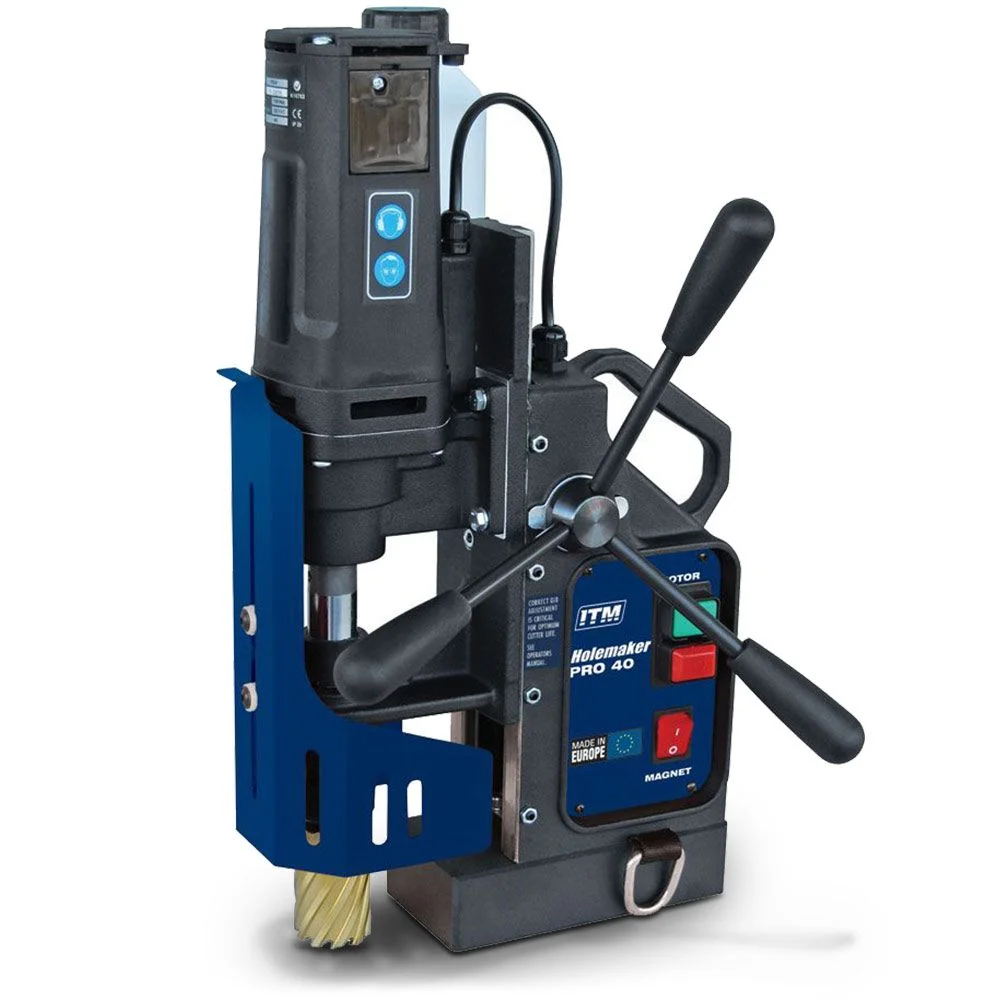

HMPRO40 Magnetic Base Drilling Machine — 40mm dia x 52mm depth Capacity
Part No: HMPRO40 | Barcode: 9328042016157 | Product Group: Mag Drills
Holemaker HMPRO40 magnetic base drilling machine with 40mm dia x 52mm depth cutting capacity and 1020W motor. Dual coil magnet with through-cutter coolant. Discontinued model — limited stock.
40mm dia x 52mm depth
1020W Motor
240V
Suitable For
Steel Fabrication
Structural Steelwork
On-Site Installation
Maintenance & Repair
Plate Work
Key Features & Benefits
- 1020W Motor — delivers consistent power for cutting through steel plate and structural sections.
- Dual Coil Magnet — provides strong, reliable hold on steel surfaces for stable, accurate drilling.
- Through-Cutter Coolant — side-mounted gravity feed tank delivers coolant directly through the cutter for efficient chip clearing and extended tool life.
- Grub Screw Arbor System — secure cutter holding with reliable grub screw retention.
- Optional Drill Chuck (SA70102) — Quick Grip arbor adapter allows use of standard twist drills up to 16mm diameter.
When to Use This Mag Drill
The HMPRO40 is a proven 40mm capacity magnetic base drill with a powerful 1020W industrial motor. It handles annular cutters up to 40mm diameter and features through-cutter coolant for demanding applications. This is a discontinued model with limited stock remaining — once sold out, consider the HMPRO42K1 as the upgraded replacement.
Pro Tip: Always ensure the work surface is clean and free of debris before engaging the magnet. Use the correct annular cutter size with the matching pilot pin, and apply cutting fluid throughout the cut. For best results, use moderate feed pressure and let the cutter do the work.
Authorised Australian Dealer — This product is sourced directly from Holemaker Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Capacity | Motor | Input Power | Speed | Mag Force | Weight | Barcode |
|---|---|---|---|---|---|---|---|

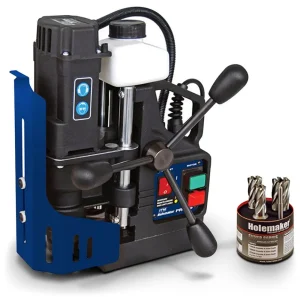

| HMPRO35K1 | 35mm x 52mm | 920W | 1000W | 350rpm | 6,000Nm | 10kg | 9328042020710 |
| HMPRO40 ★ | 40mm x 52mm | 1020W | — | — | — | — | 9328042016157 |
| HMPRO42K1 | 42mm x 52mm | 1020W | 1100W | 440rpm | 9,900Nm | 12.5kg | 9328042041470 |
★ You are viewing the highlighted variant. Other models in this series are also available.
