Hafco L0099 Lathe Turning Tool Set — 12mm Shank, 7 Piece Indexable Insert
Part No: L0099 | Barcode: 9344195021626 | Replacement Insert Code: L0098
A complete seven-piece indexable carbide insert turning tool set with 12mm shank, ready to handle the full range of basic lathe operations — turning, facing, profiling, threading and parting. Distributed by Hare & Forbes Machineryhouse and supplied in a labelled storage tray for the workshop.
12mm Shank
Indexable Inserts
Carbide Tipped
Replacement Code L0098
Workshop Storage Tray

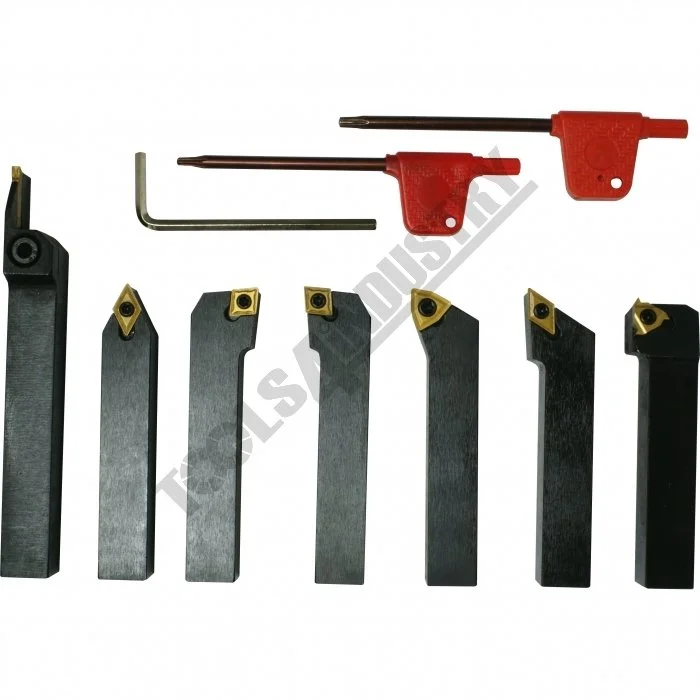

What’s in the Set
- Right-hand parting tool. For grooving and parting off finished work.
- Threading tool. Cuts external threads with a 60° insert profile.
- Right-hand roughing turning tool. Aggressive stock removal across the bar.
- Left-hand 90° turning tool. Facing and shoulder work cutting away from the chuck.
- Right-hand 90° turning tool. Facing and shoulder work cutting toward the chuck.
- Straight profile turning tool. Light finishing cuts and contour work.
- Right-hand profile turning tool. Profiling close to a shoulder or in a corner.
Key Features & Benefits
- Indexable carbide inserts. Rotate or replace the insert when an edge dulls instead of regrinding the whole tool — less downtime, more spindle hours.
- 12mm shank size. Suits Hafco AL-320G / AL-336 class hobby and entry-trade lathes and any tool post that accepts a 12mm shank.
- Covers the full lathe workflow. One kit gives you tools for facing, turning, profiling, threading and parting — no need to assemble pieces individually.
- Each tool comes with one insert fitted. Set is ready to mount on the post and start cutting straight out of the tray.
- Replacement insert code L0098. Single-part-number reorder when inserts wear out, available from Hafco distribution.
When to Use This Set
This is the right starter set for a hobby or workshop lathe owner stepping up from HSS blanks to indexable carbide tooling. Ideal for general-purpose turning on a 12mm shank lathe — you get every common operation covered in one kit, with cheap, fast insert replacement when an edge wears.
Pro Tip
Carbide inserts prefer higher surface speeds than HSS — typically 90–150 m/min on mild steel for the L0098 inserts. If you’re getting a poor finish at lower speeds, it’s usually because the insert is rubbing rather than cutting; lift the rpm before changing the tool.
Specifications
| Tool Type | Carbide Indexable Insert |
| Shank Size / Tool Height | 12mm |
| Pieces in Set | 7 |
| Replacement Insert Code | L0098 |
| Net Weight | 1.9 kg |
| Brand | Hafco Metalmaster |
| Distributor | Hare & Forbes Machineryhouse |
