Description
Hafco Metalmaster
L0077 Lathe Turning Tool Kit — 16mm Tool Height, 7 Piece
Part No: L0077 | Barcode: 9344195021633 | Brand: Hafco Metalmaster
Indexable carbide-insert lathe tool set with 7 tool holders sharing common ISO inserts. Each tool comes pre-loaded with one carbide insert; replacement insert pack is order code L0078. Supplied in a fitted case.
16mm Tool Height
7 Pieces
Carbide Insert Type
ISO Standard Inserts
Replacement: L0078
Fitted Case

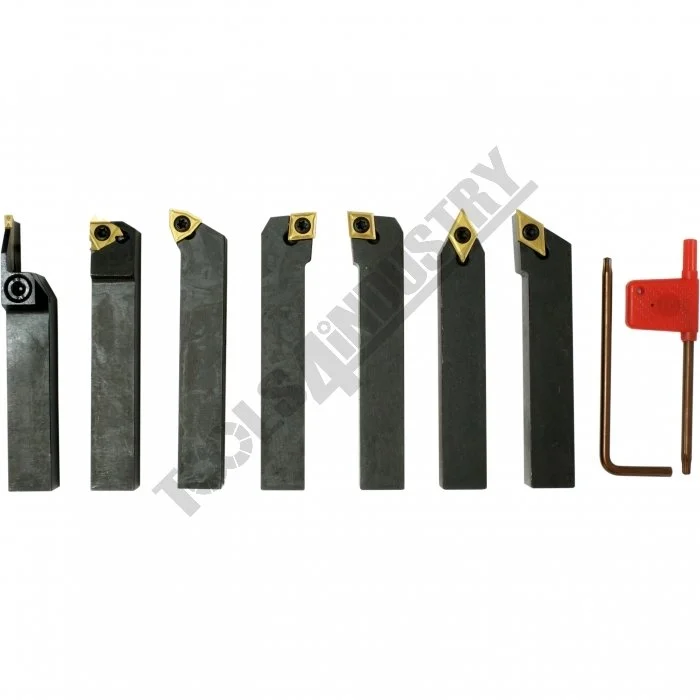

Set Contents
RH Roughing Tool
RH 90° Facing
LH 90° Facing
RH Profile
LH Profile
Parting Tool
Threading Tool
Key Features & Benefits
- Indexable carbide inserts — rotate the insert when an edge dulls instead of regrinding HSS, saving setup time.
- Common insert across multiple holders — one box of replacements (L0078) keeps the whole set running.
- ISO-standard inserts — substitute any major brand (Kyocera, Sandvik, Mitsubishi, Korloy) when stocking up.
- 16mm square shank — matched to the 16mm centre-height tool post on Hafco bench lathes.
- Fitted storage case — keeps tools paired with their dedicated insert seats for fast set changes.
When to Use This Set
Comprehensive 7-piece kit covering roughing, finishing, profiling, threading and parting on 16mm centre-height tool posts — the right pick for the L689 TU-2506V and similar mid-size bench lathes. Match the tool height to your lathe’s tool post — a 16mm centre-height post needs a 16mm shank tool with no shimming. Reorder replacement inserts as L0078.
Authorised Australian Dealer — This product is sourced through Australian distributor Hafco Australia (Hare & Forbes Machineryhouse) and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Order Code | Pieces | Tool Height | Replacement Insert |
|---|---|---|---|
| L0085 | 11pc | 8mm | Brazed Carbide (non-indexable) |
| L0055 | 5pc | 10mm | L0615 |
| L450 | 3pc | 12mm | L062 |
| L451 | 3pc | 16mm | L0078 |
| L0077 ★ | 7pc | 16mm | L0078 |
★ You are viewing the highlighted variant. Other tool-set sizes in the Hafco Metalmaster range are also available.
