Description
Hafco Metalmaster
L450 Lathe Turning Tool Kit — 12mm Tool Height, 3 Piece
Part No: L450 | Barcode: 9344195000430 | Brand: Hafco Metalmaster
Indexable carbide-insert lathe tool set with 3 tool holders sharing common ISO inserts. Each tool comes pre-loaded with one carbide insert; replacement insert pack is order code L062. Supplied in a fitted case.
12mm Tool Height
3 Pieces
Carbide Insert Type
ISO Standard Inserts
Replacement: L062
Fitted Case

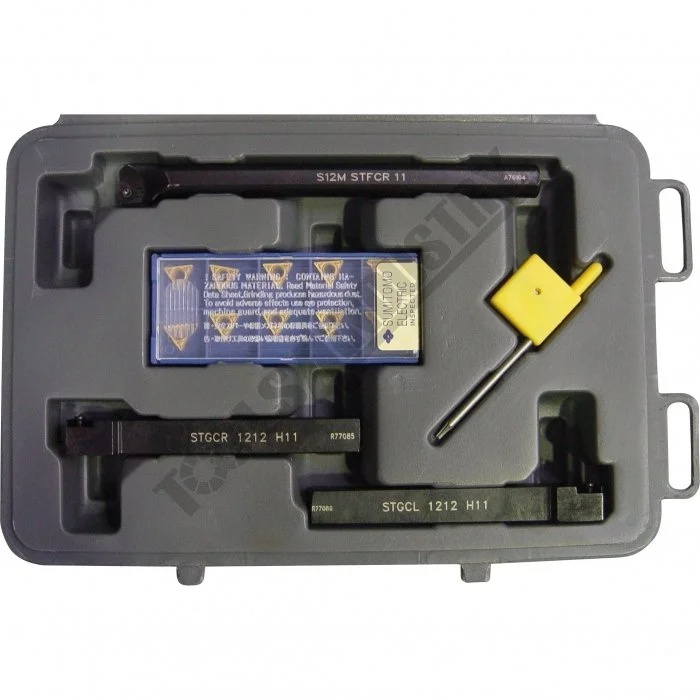

Set Contents
STGCR1212H11 RH Turning
STGCL1212H11 LH Turning
S12M-STFCR11 Boring Bar
10x TCMT110204 Inserts
Key Features & Benefits
- Indexable carbide inserts — rotate the insert when an edge dulls instead of regrinding HSS, saving setup time.
- Common insert across multiple holders — one box of replacements (L062) keeps the whole set running.
- ISO-standard inserts — substitute any major brand (Kyocera, Sandvik, Mitsubishi, Korloy) when stocking up.
- 12mm square shank — matched to the 12mm centre-height tool post on Hafco bench lathes.
- Fitted storage case — keeps tools paired with their dedicated insert seats for fast set changes.
When to Use This Set
Compact 3-piece kit — STGCR right-hand turning, STGCL left-hand turning, S12M-STFCR boring bar — sharing the TCMT110204 insert across all three tool holders. Match the tool height to your lathe’s tool post — a 12mm centre-height post needs a 12mm shank tool with no shimming. Reorder replacement inserts as L062.
Authorised Australian Dealer — This product is sourced through Australian distributor Hafco Australia (Hare & Forbes Machineryhouse) and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Order Code | Pieces | Tool Height | Replacement Insert |
|---|---|---|---|
| L0085 | 11pc | 8mm | Brazed Carbide (non-indexable) |
| L0055 | 5pc | 10mm | L0615 |
| L450 ★ | 3pc | 12mm | L062 |
| L451 | 3pc | 16mm | L0078 |
| L0077 | 7pc | 16mm | L0078 |
★ You are viewing the highlighted variant. Other tool-set sizes in the Hafco Metalmaster range are also available.
Browse our full range of metal lathes & tooling at Alltools Geelong.
