Description
Hafco Metalmaster
L0055 Lathe Turning Tool Kit — 10mm Tool Height, 5 Piece
Part No: L0055 | Barcode: 9344195009532 | Brand: Hafco Metalmaster
Indexable carbide-insert lathe tool set with 5 tool holders sharing common ISO inserts. Each tool comes pre-loaded with one carbide insert; replacement insert pack is order code L0615. Supplied in a fitted case.
10mm Tool Height
5 Pieces
Carbide Insert Type
ISO Standard Inserts
Replacement: L0615
Fitted Case

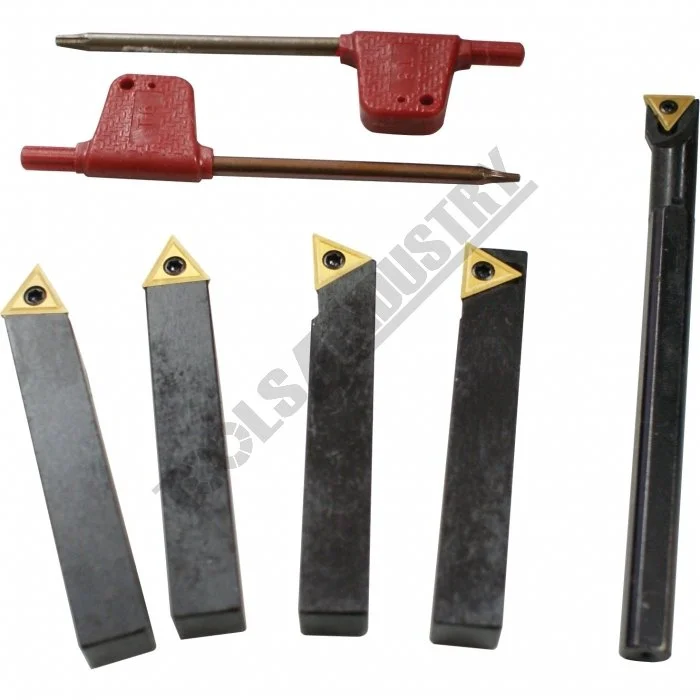

Set Contents
4 × Turning Tools
1 × Boring Bar
Deluxe Aluminium Case
TCMT110204 + TCMT090204 Inserts
Key Features & Benefits
- Indexable carbide inserts — rotate the insert when an edge dulls instead of regrinding HSS, saving setup time.
- Common insert across multiple holders — one box of replacements (L0615) keeps the whole set running.
- ISO-standard inserts — substitute any major brand (Kyocera, Sandvik, Mitsubishi, Korloy) when stocking up.
- 10mm square shank — matched to the 10mm centre-height tool post on Hafco bench lathes.
- Fitted storage case — keeps tools paired with their dedicated insert seats for fast set changes.
When to Use This Set
5-piece kit covering external turning, facing and internal boring on lathes with a 10mm centre-height tool post — a perfect match for the L687 TU-2004V mini-lathe. Match the tool height to your lathe’s tool post — a 10mm centre-height post needs a 10mm shank tool with no shimming. Reorder replacement inserts as L0615.
Authorised Australian Dealer — This product is sourced through Australian distributor Hafco Australia (Hare & Forbes Machineryhouse) and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Order Code | Pieces | Tool Height | Replacement Insert |
|---|---|---|---|
| L0085 | 11pc | 8mm | Brazed Carbide (non-indexable) |
| L0055 ★ | 5pc | 10mm | L0615 |
| L450 | 3pc | 12mm | L062 |
| L451 | 3pc | 16mm | L0078 |
| L0077 | 7pc | 16mm | L0078 |
★ You are viewing the highlighted variant. Other tool-set sizes in the Hafco Metalmaster range are also available.
Browse our full range of metal lathes & tooling at Alltools Geelong.
