Description
Hafco Metalmaster

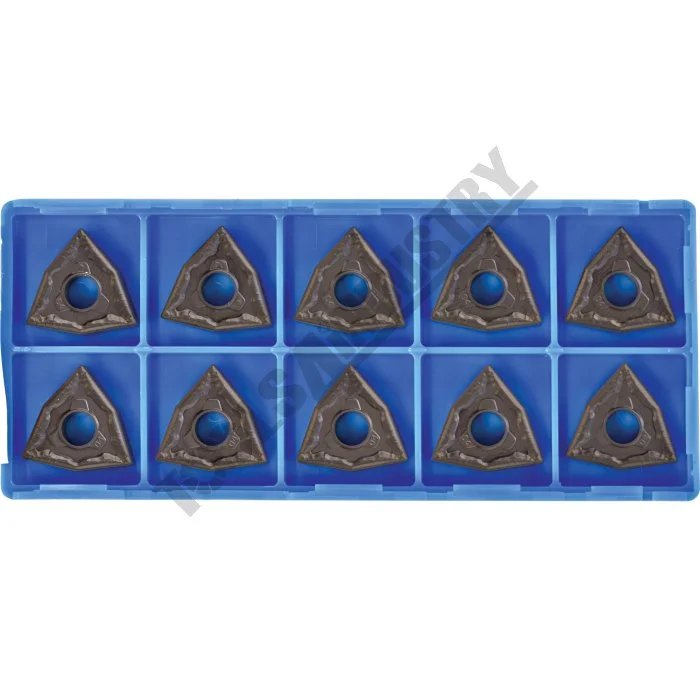

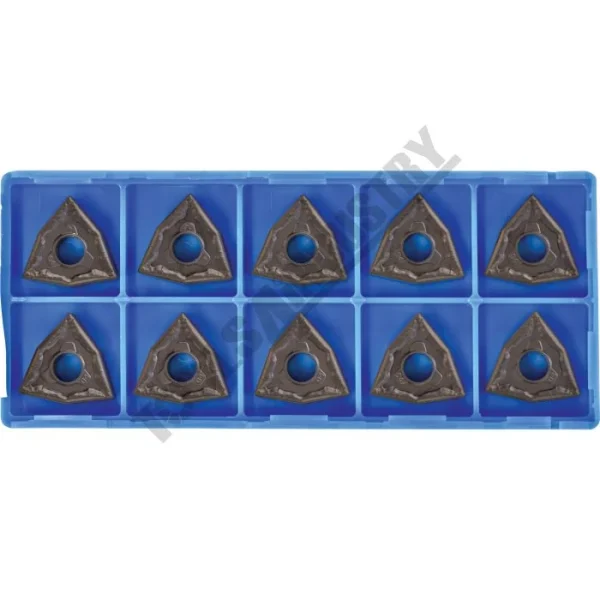

L0534 Carbide Insert WNMG 080404-HQ — 10 Pack
Part No: L0534 | Barcode: 4960664678648 | Brand: Hafco Metalmaster
Trigon (W-pattern) carbide turning insert — Kyocera WNMG 080404-HQ, grade CA515 for steel finishing. Six cutting corners per insert, 0.4mm corner radius, chipbreaker geometry for high-speed continuous to lightly interrupted cuts.
WNMG 080404-HQ
Grade CA515
10 Inserts
Steel Finishing
0.4mm Radius
Key Features & Benefits
- WNMG 080404-HQ insert — ISO-coded geometry, drop-in replacement from any major brand.
- CA515 carbide grade — coated CVD finish balances wear life with edge toughness on steel.
- Pack of 10 — enough indexable edges to keep a tool set running through a typical batch of work.
- Suits WNMG 080404 tool holders — direct replacement for the factory-fitted insert.
When to Use These Inserts
Reorder this pack as soon as you start seeing built-up edge or torn finish on the workpiece — a fresh insert costs less than the time spent fighting a dull one. Each insert has multiple cutting corners; rotate before discarding.
Authorised Australian Dealer — This product is sourced through Australian distributor Hafco Australia (Hare & Forbes Machineryhouse) and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Order Code | Insert | Grade | Pack Qty | Suits |
|---|---|---|---|---|
| L0615 | TCMT 090204-HQ | CA525 | 10 | L0055 boring bar |
| L062 | TCMT 110204-HQ | CA525 | 10 | L450 / L0055 turning |
| L0098 | Mixed (10pc) | General Purpose | 10 | L0099 12mm 7pc kit |
| L0078 | Mixed (10pc) | General Purpose | 10 | L0077 / L451 16mm kit |
| L0512 | Parting Insert | Carbide | 10 | L468 parting blade |
| L0534 ★ | WNMG 080404-HQ | CA515 | 10 | Finishing steel turning |
★ You are viewing the highlighted variant. Match the insert code to the tool holder it came with — don’t substitute geometry without checking your tool post seat.
Browse our full range of metal lathes & tooling at Alltools Geelong.
