Harlingen

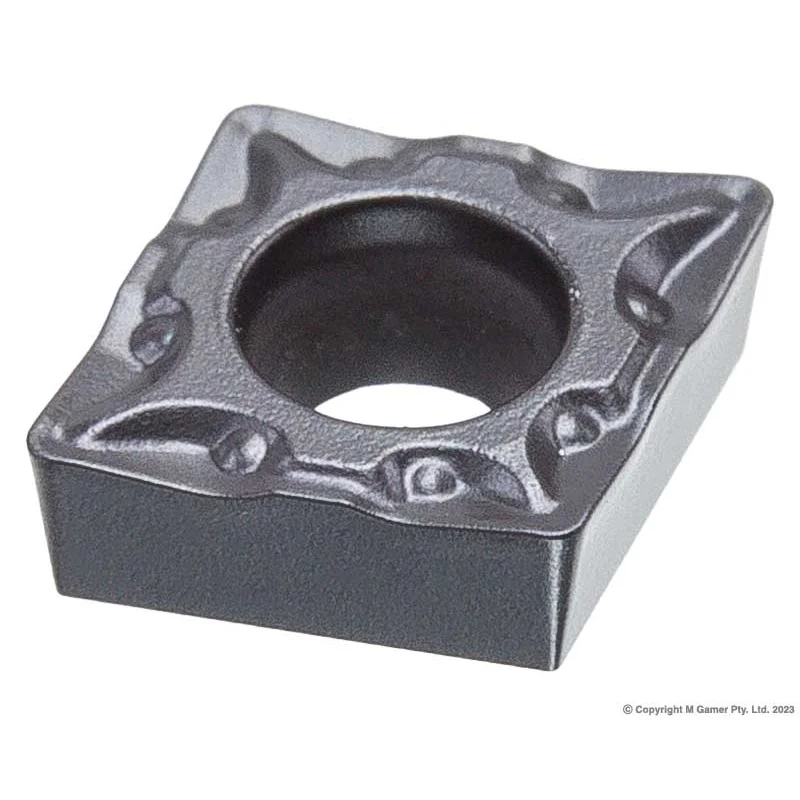

CCMT060204 Carbide Turning Insert — 80° Diamond, 6 mm, Pack of 10
Part No: CCMT060204 | Barcode: 9346967106692 | Pack: 10
The Harlingen CCMT060204 is a positive 80° diamond carbide insert for semi-finishing of general-purpose steel. The compact 6 mm size and 0.4 mm point radius suit smaller-diameter turning and finer finishing passes on CNC and manual lathes.
80° Diamond (C)
7° Clearance
0.4 mm Point Radius
2.36 mm Thick
6 mm Cutting Width
Pack of 10
Suitable For
General-Purpose Steel
Cast Iron
Free-Machining Alloys
Key Features & Benefits
- 80° diamond (C) form — a strong general-purpose corner that turns and faces in one setup.
- 0.4 mm point radius — a sharp, fine corner for accurate semi-finishing and smaller-diameter work.
- Compact 6 mm size — fits CCMT0602 holders for benchtop and smaller production lathes.
- Positive chipbreaker — low cutting forces and controlled chip flow for cleaner finishes.
When to Use This Insert
Pick the CCMT060204 for finer semi-finishing of steel on smaller-diameter components where a tight 0.4 mm corner improves accuracy. Suits holders using the CCMT0602 (C-type) pattern.
Authorised Australian Dealer — This Harlingen insert is sourced directly from Gamer Australia and is backed by full Australian supplier warranty and local support.
Product Specifications
| Part No. | Insert Shape | Cutting Width | Corner Radius | Pack Qty |
|---|---|---|---|---|
| TCMT110208 | 60° Triangle | 11 mm edge | 0.8 mm | 10 |
| WCMT050308 | 80° Trigon | 5 mm | 0.8 mm | 10 |
| CCMT060204 ★ | 80° Diamond | 6 mm | 0.4 mm | 10 |
| CCMT09T304 | 80° Diamond | 9 mm | 0.4 mm | 10 |
| MGMN200 | Parting / Grooving | 2.0 mm | — | 10 |
★ You are viewing the highlighted variant. Other inserts in this range are also available.
