Harlingen

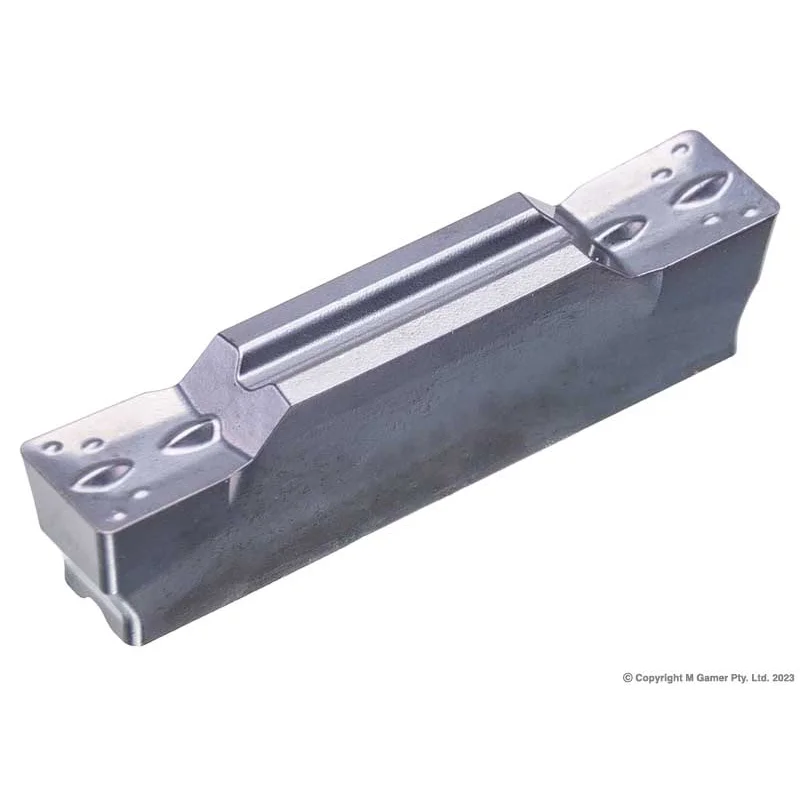

MGMN200 Carbide Parting & Grooving Insert — 2 mm Width, Pack of 10
Part No: MGMN200 | Barcode: 9346967107606 | Pack: 10
The Harlingen MGMN200 is a 2 mm-wide micro-grain carbide parting and grooving insert with a TiAlN coating. It is suited to parting off and grooving general-purpose steel and stainless steel, fitting standard MGMN/MGEHR style toolholders.
2.0 mm Width
Micro-Grain Carbide
TiAlN Coated
Parting & Grooving
80–160 m/min
Pack of 10
Suitable For
General-Purpose Steel
Stainless Steel
Key Features & Benefits
- 2 mm cutting width — a narrow kerf for efficient parting off with minimal material waste.
- TiAlN coating — a hard, heat-resistant coating that extends edge life in steel and stainless.
- Micro-grain carbide substrate — fine-grain carbide for a tougher, more wear-resistant cutting edge.
- MGMN profile — fits common MGEHR/MGIVR parting blades and grooving holders.
When to Use This Insert
Choose the MGMN200 for parting off and grooving steel and stainless on the lathe with a 2 mm groove width. Pair it with a matching MGEHR/MGIVR holder for rigid, chatter-free parting.
Pro Tip: Harlingen rates this insert at 80–160 m/min with a feed of 0.05–0.10 mm/rev — keep feeds steady and use coolant when parting deep to clear chips and prevent the insert pinching in the groove.
Authorised Australian Dealer — This Harlingen insert is sourced directly from Gamer Australia and is backed by full Australian supplier warranty and local support.
Product Specifications
| Part No. | Insert Shape | Cutting Width | Corner Radius | Pack Qty |
|---|---|---|---|---|
| TCMT110208 | 60° Triangle | 11 mm edge | 0.8 mm | 10 |
| WCMT050308 | 80° Trigon | 5 mm | 0.8 mm | 10 |
| CCMT060204 | 80° Diamond | 6 mm | 0.4 mm | 10 |
| CCMT09T304 | 80° Diamond | 9 mm | 0.4 mm | 10 |
| MGMN200 ★ | Parting / Grooving | 2.0 mm | — | 10 |
★ You are viewing the highlighted variant. Other inserts in this range are also available.
