TOOLMASTER

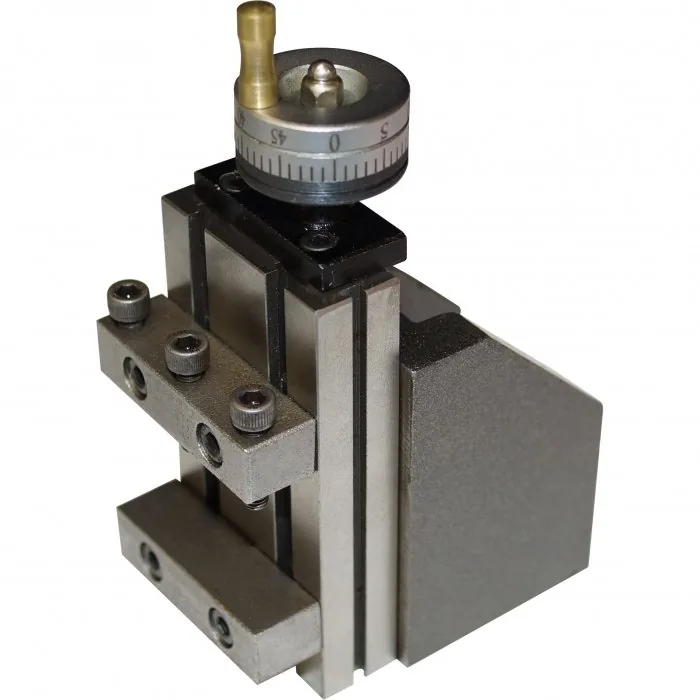

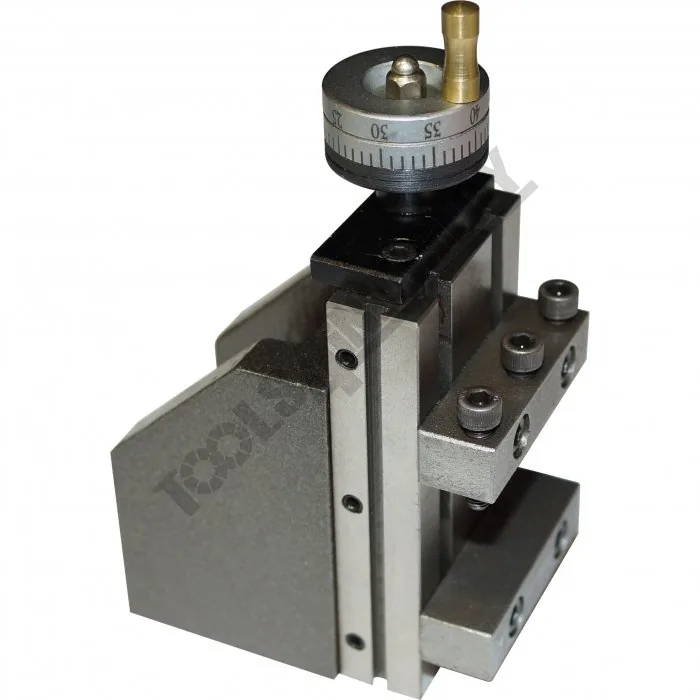

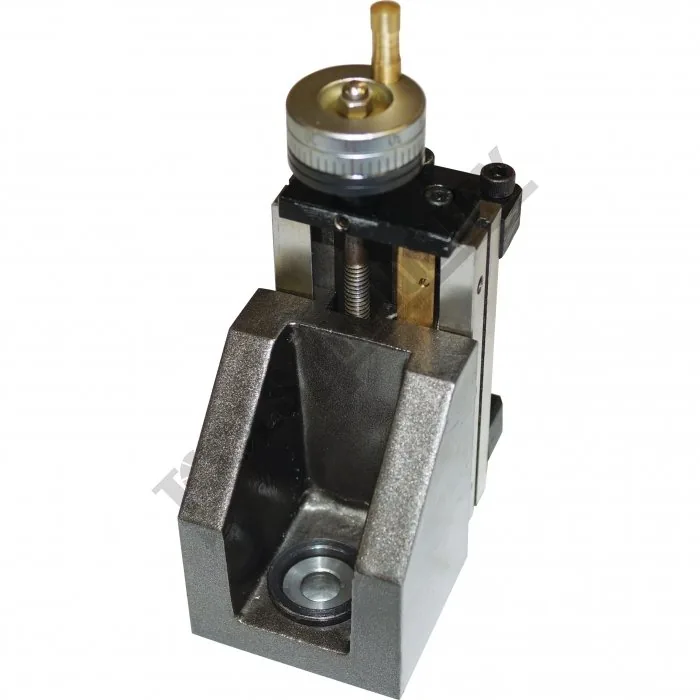

Mini Vertical Mill Slide — 50 x 90mm Ground Table
Part No: L276 | Barcode: 9344195019845

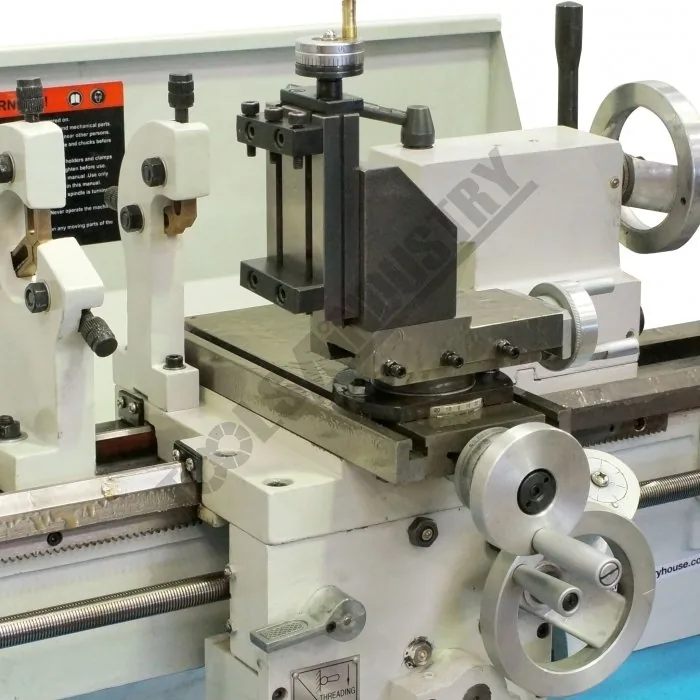

TOOLMASTER Mini Vertical Mill Slide (50 x 90mm Ground Table). To suit most bench lathes with approximately 150mm swing.
50 x 90mm Ground Table
Key Features & Benefits
- 40mm vertical travel
- 0.001″ increments
- 2 x 5mm T slots
- 50 x 55mm base
- 20mm locating spigot
- Adjustable material clamping – 65mm max.

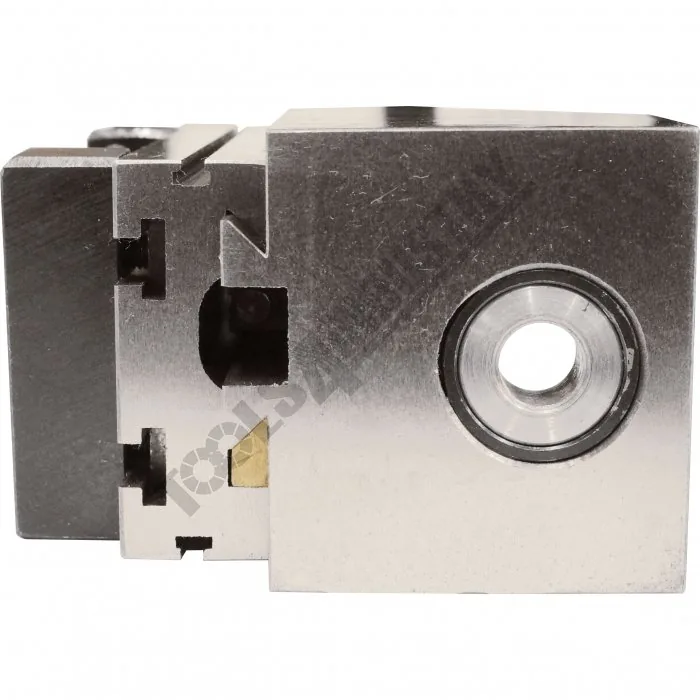

- Dovetail slides with brass gib key
About This Product
To suit most bench lathes with approximately 150mm swing. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L276) for collection in store.
In the Box
- 20 x 10mm reducing bush
Product Specifications
| Specification | Detail |
|---|---|
| Vertical Slide Travel (mm) | 40 |
| Nett Weight (kg) | 6 |
