HAFCO-METALMASTER

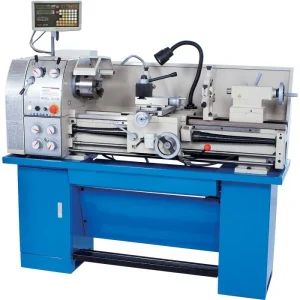

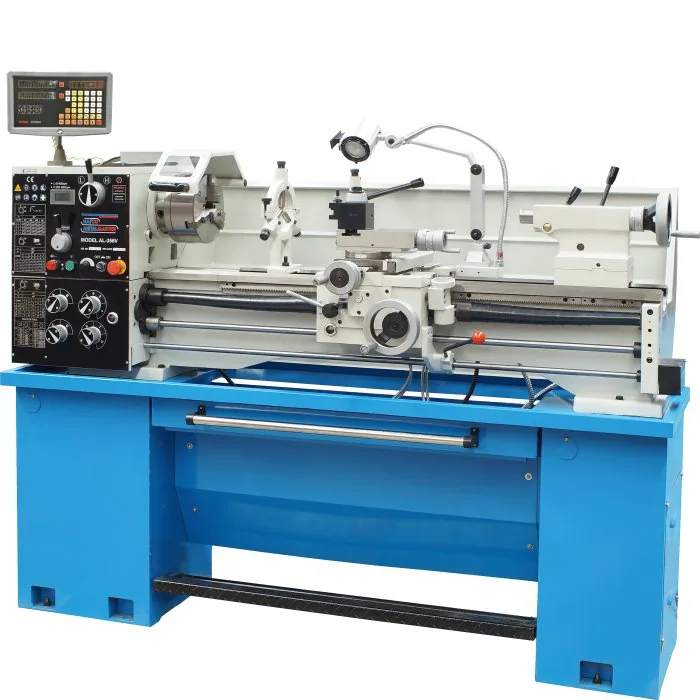

Centre Lathe — AL-356V, Ø356 x 1000mm Turning Capacity – Ø51mm Spindle Bore Includes Digital Readout System, Quick Change Toolpost & Electronic Variable Speed With Digital Readout
Part No: L565D | Barcode: 9344195026164 | Model: AL-356V
HAFCO-METALMASTER AL-356V Centre Lathe (Ø356 x 1000mm Turning Capacity – Ø51mm Spindle Bore Includes Digital Readout System, Quick Change Toolpost & Electronic Variable Speed With Digital Readout). Available to order through Alltools Geelong for collection in store.
Model AL-356V
Swing Over Bed: 356 mm

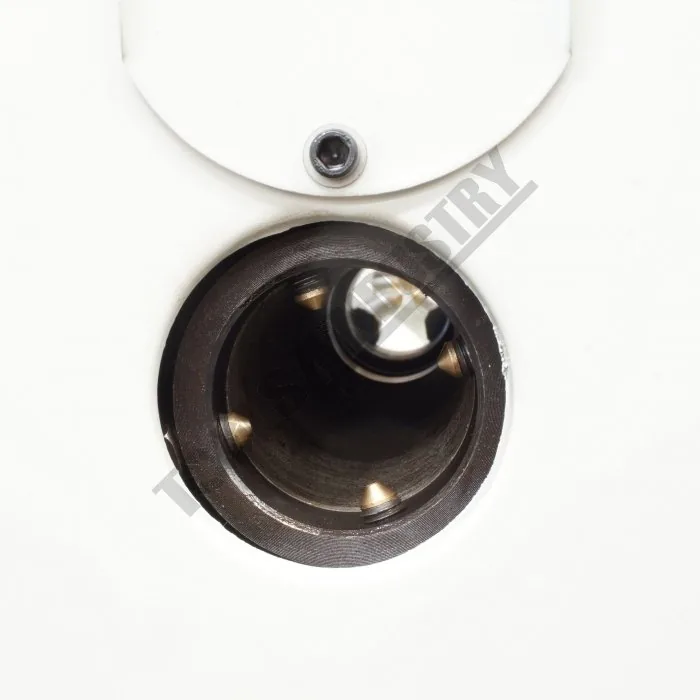

Spindle Bore: 51 mm
Swing In Gap: 476 mm
Swing Over Cross-slide: 224 mm
Spindle Nose Size or Type: D1-5 Camlock
Headstock Spindle Taper: 6 MT
Key Features & Benefits

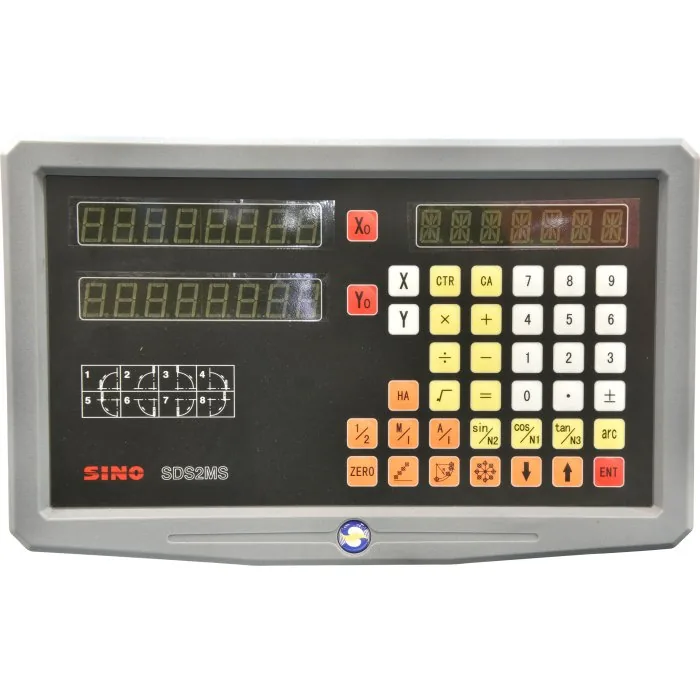

- 2 Axis digital readout system

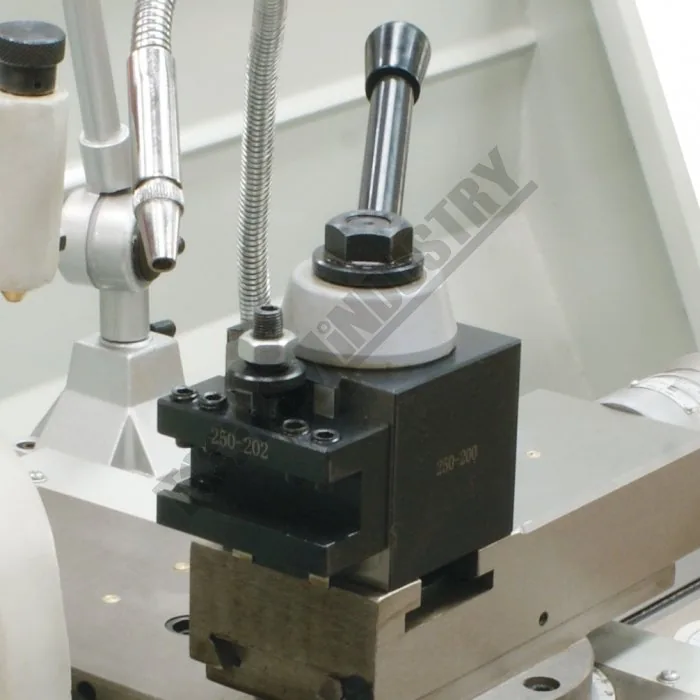

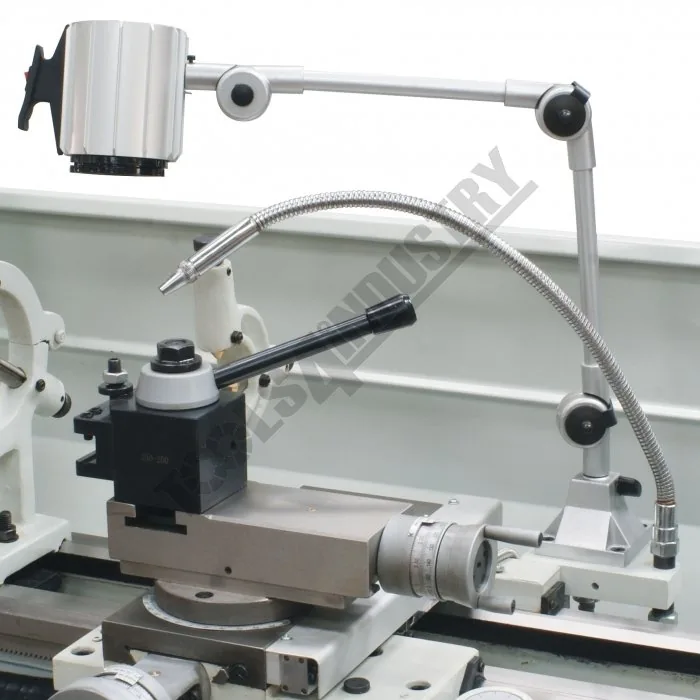

- Quick change toolpost with 4 holders

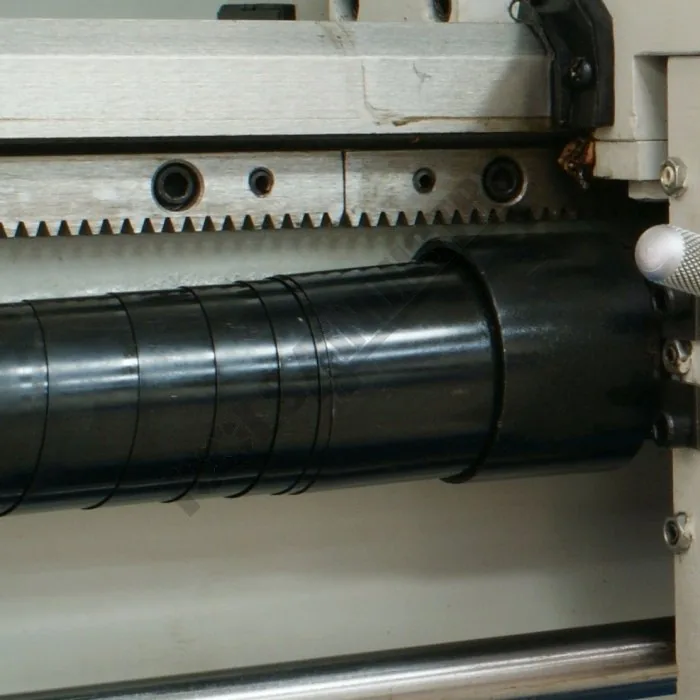

- Concertina leadscrew cover

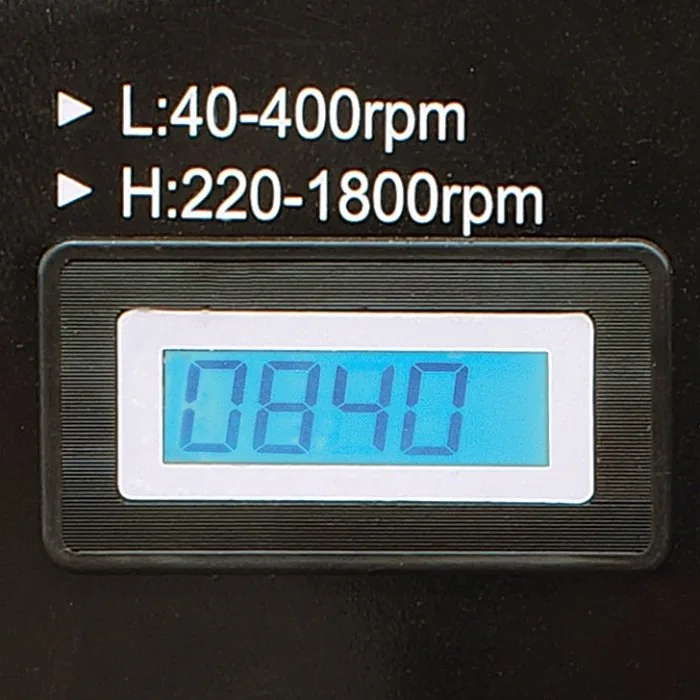

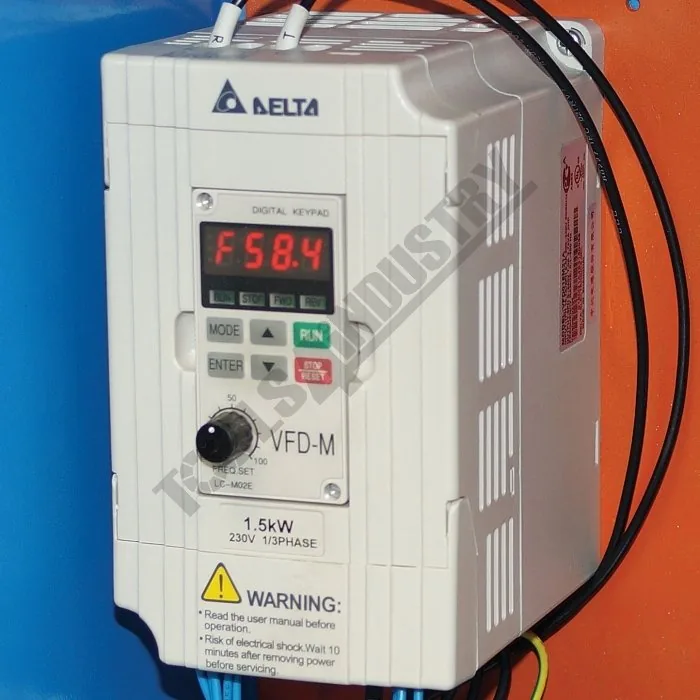

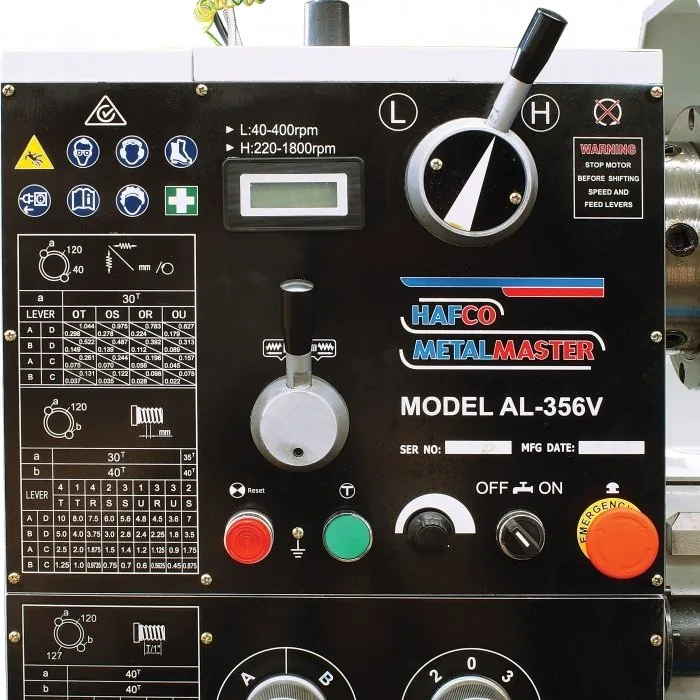

- Electronic infinitely variable inverter spindle speed with digital readout
- Gear drive headstock for quick change of spindle speeds

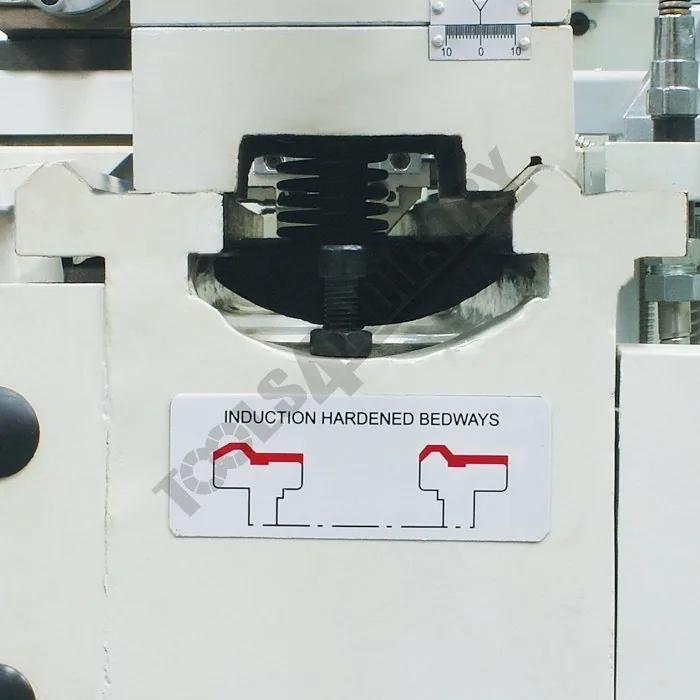

- Precision ‘V’-beds are hardened and ground, incorporating a rigid webbed casting

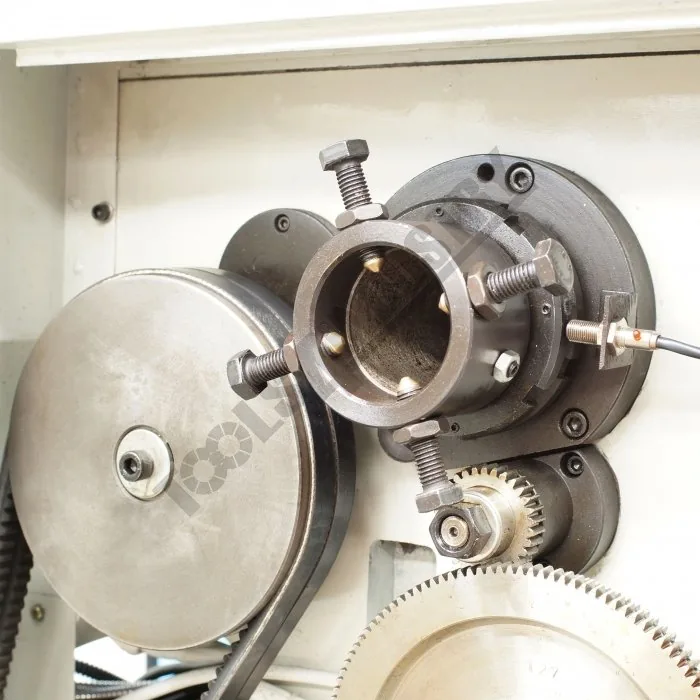

- Adjustable spindle bore bar support mechanism

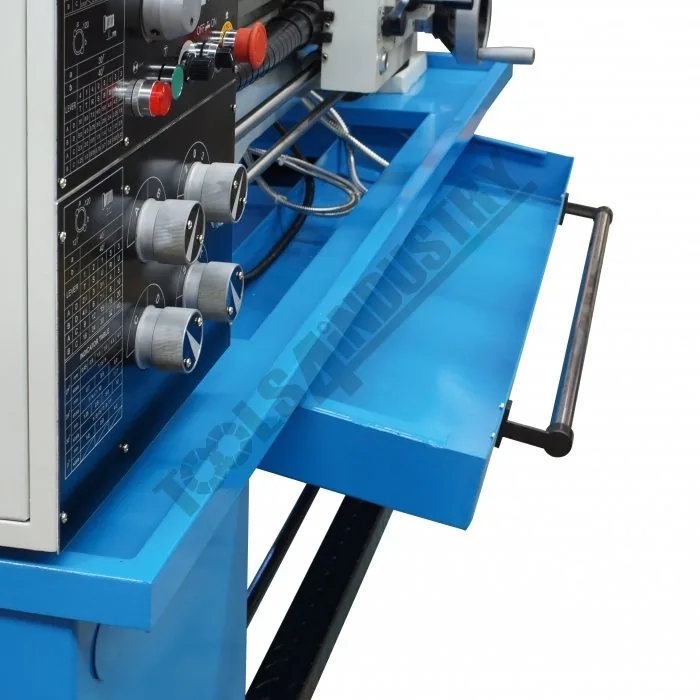

- Slide out swarf tray with handle

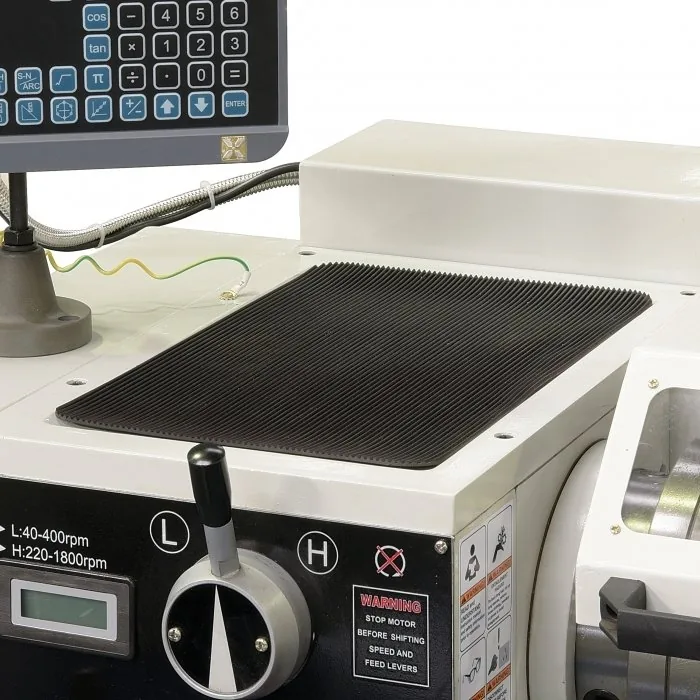

- Headstock protection rubber matt
- Foot operated cut out safety switch for electric motor
- Slide out front swarf tray for easy cleaning

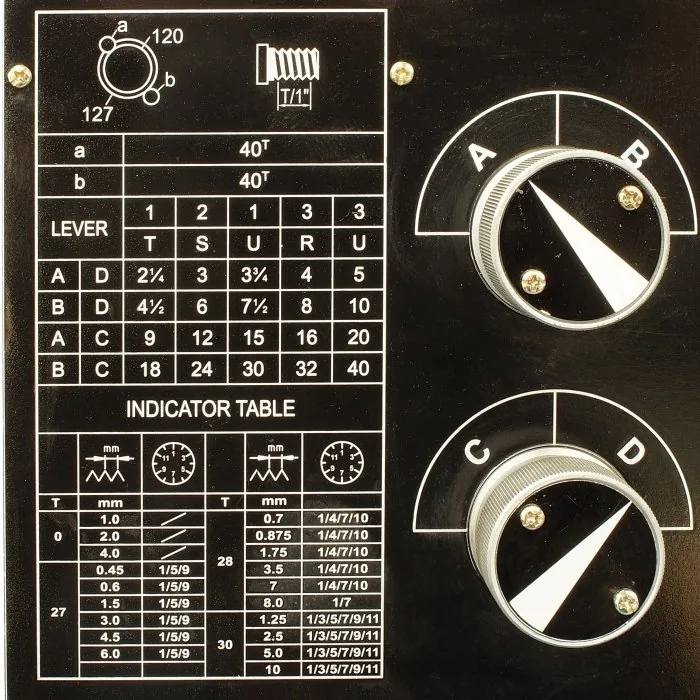

- Change gears for metric and imperial thread cutting
- Oil sight glass for head stock and gearbox
- Adjustable taper roller bearings support the spindle

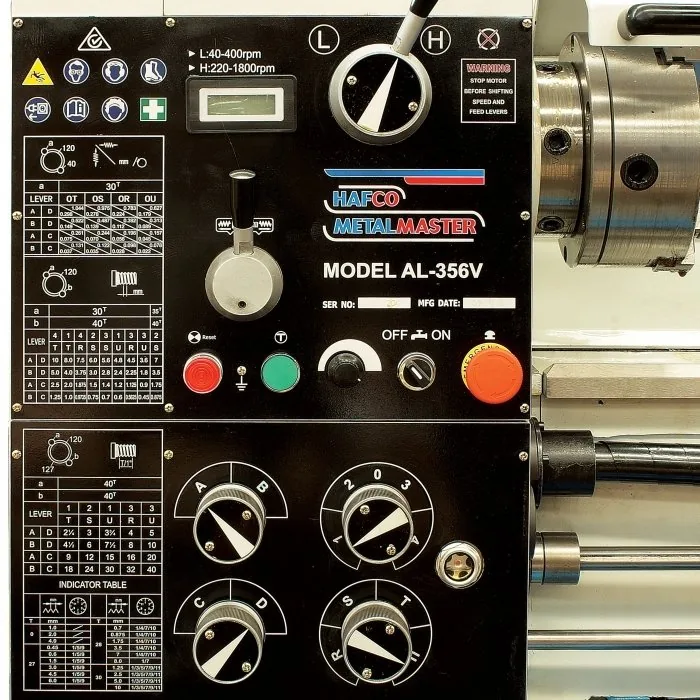

- Inching button is incorporated on the control panel for convenient spindle speed selection

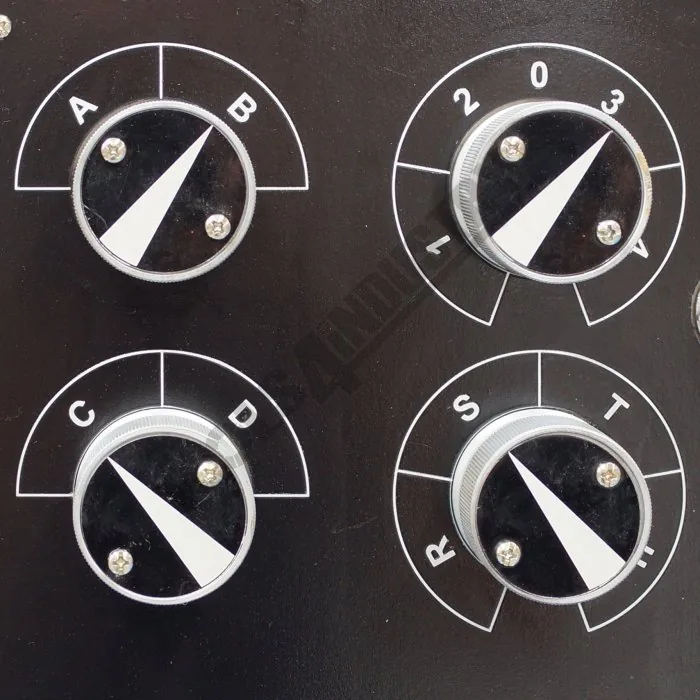

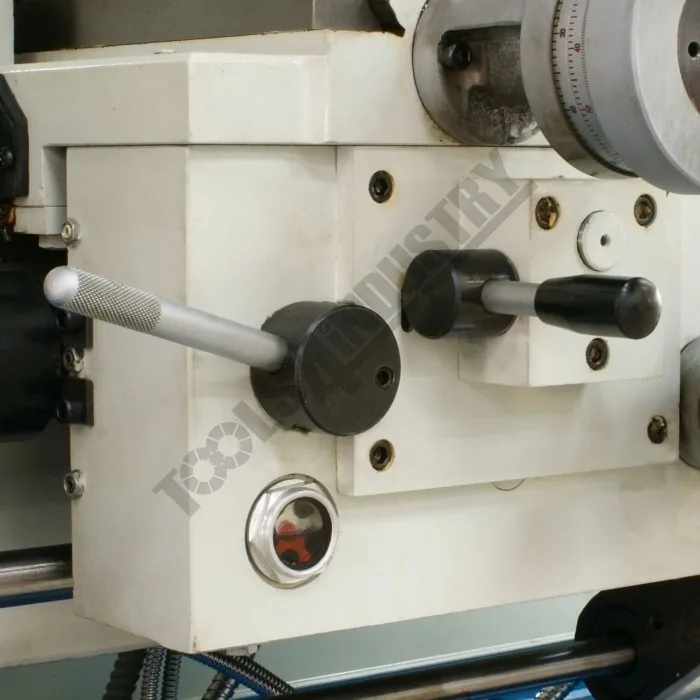

- Enclosed quick action gearbox for thread cutting and auto feeding
- Powered longitudinal and cross feeds
- D1-5 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
- Removable gap bed-way for larger diameter jobs

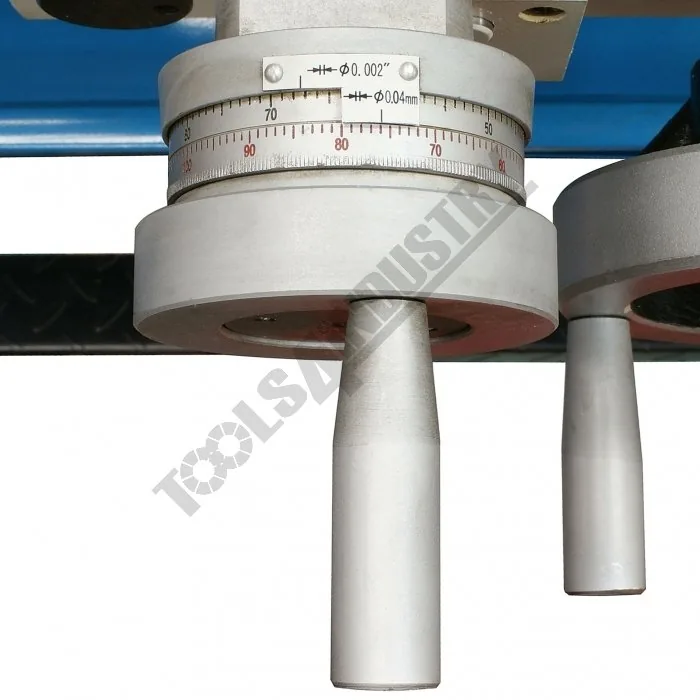

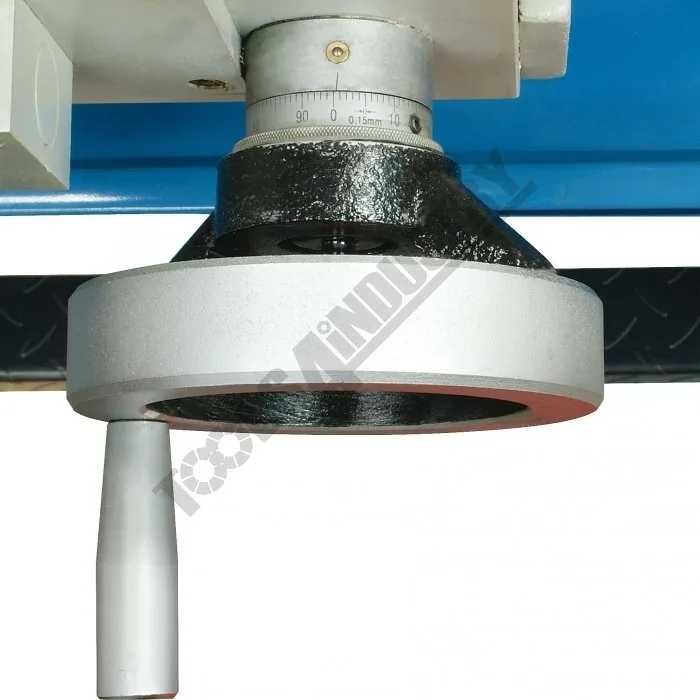

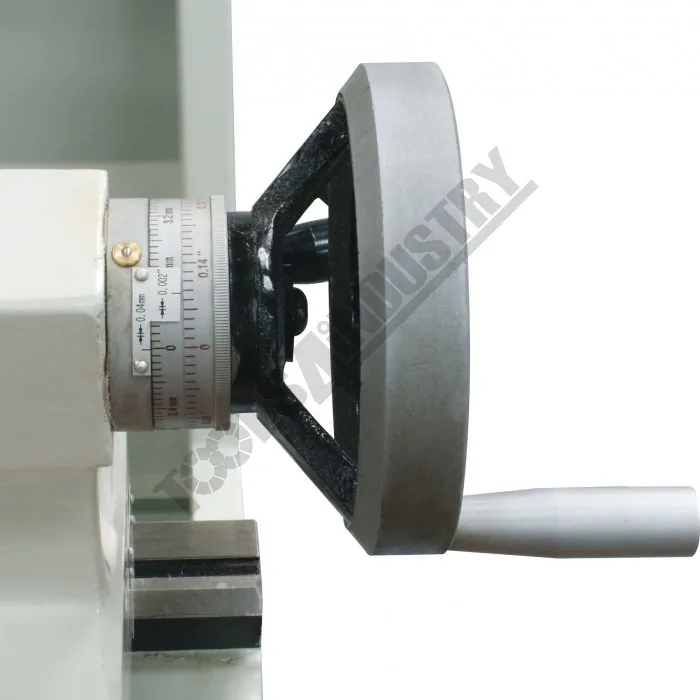

- Dual calibrated dials (except for saddle hand-wheel)

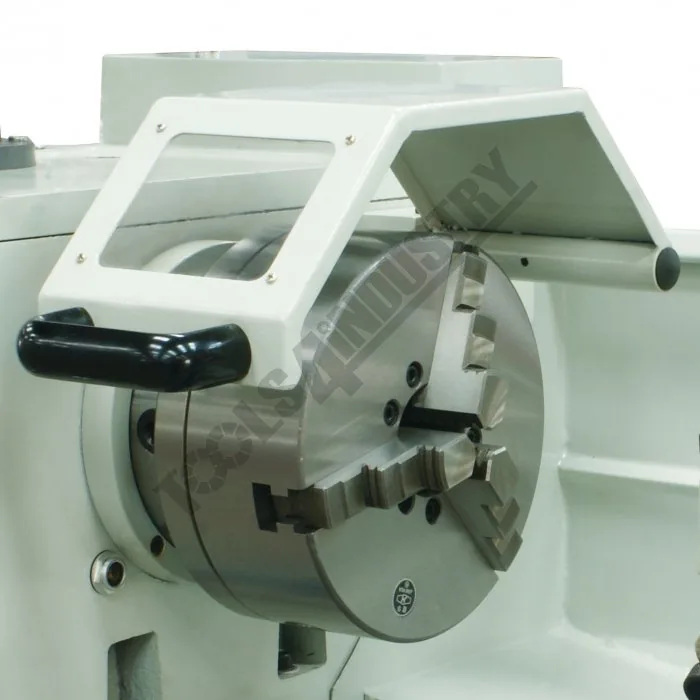

- Chuck & change gear guards are fitted with micro switches
- Coolant system with flexible hose
- Low voltage LED work light
- Slide out swarf tray
About This Product
Centre Lathe (Ø356 x 1000mm Turning Capacity – Ø51mm Spindle Bore Includes Digital Readout System, Quick Change Toolpost & Electronic Variable Speed With Digital Readout). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code L565D) for collection in store.
In the Box
- 2 Axis digital readout system
- Concertina leadscrew covers
- Slide out front swarf tray
- Quick change tool-post with 4 holders
- 200mm 3-jaw chuck with reverse jaws
- 200mm 4-jaw chuck
- Face plate

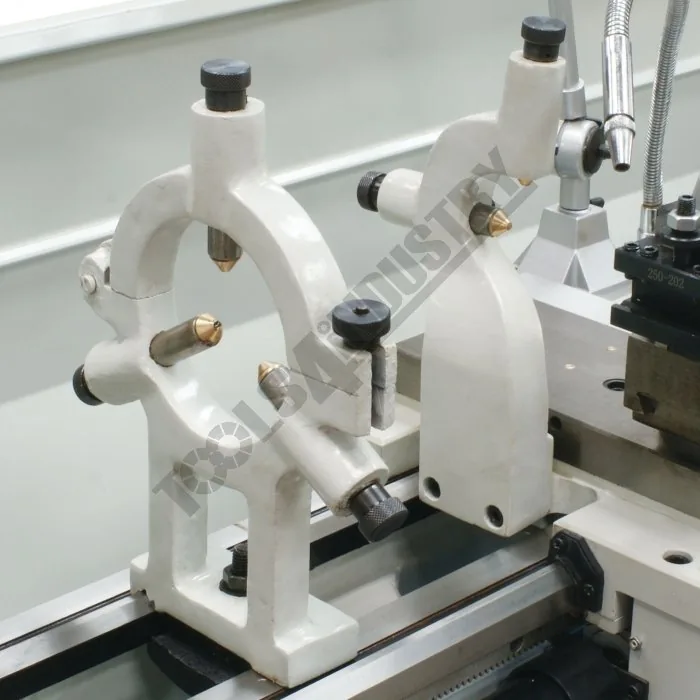

- Fixed steady
- Travelling steady
- Change gears
- Dead centres

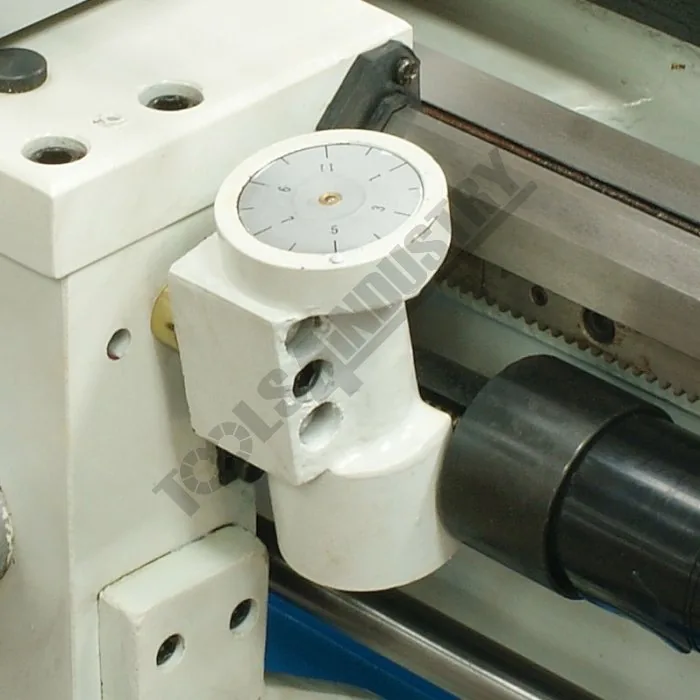

- Thread-chasing dial
- LED Work light
- Stand
- Rear splash guard & swarf tray
- Tool box
- Instruction booklet
Product Specifications
| Specification | Detail |
|---|---|
| Swing Over Bed (mm) | 356 |
| Distance Between Centres (mm) | 1000 |
| Spindle Bore (mm) | 51 |
| Swing In Gap (mm) | 476 |
| Swing Over Cross-slide (mm) | 224 |
| Digital Readout System Fitted | Yes |
| Quick Change Toolpost Fitted | Yes |
| Leadscrew Covers Fitted | Yes |
| Coolant System | Yes |
| Tool Height To Suit (mm) | 16 |
| Centre Height (mm) | 178 |
| Spindle Nose Size or Type | D1-5 Camlock |
| Bed Width (mm) | 187 |
| Headstock Spindle Taper (MT) | 6 |
| Tailstock Taper (MT) | 4 |
| Cross Slide Travel (mm) | 160 |
| Compound Slide Travel (mm) | 68 |
| Leadscrew Type | Metric |

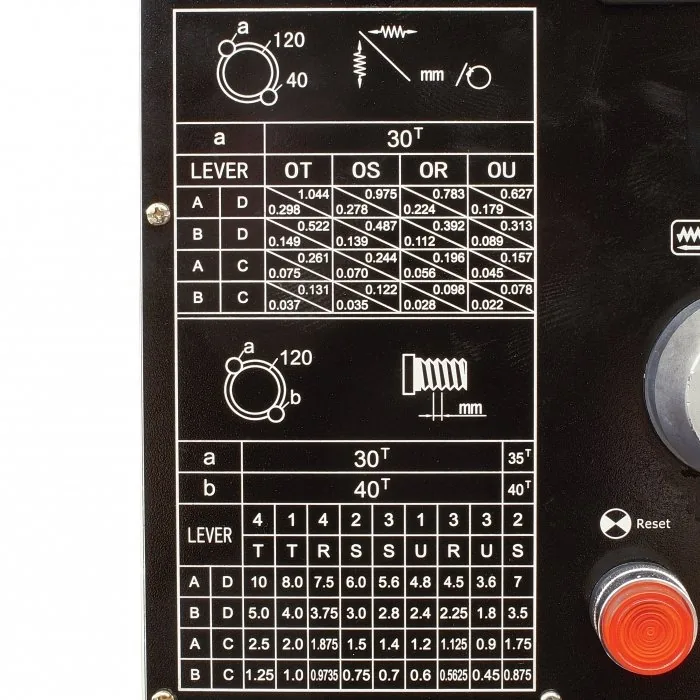

| Metric Cross Feed (X-Axis) (mm/rev) | 0.022 – 0.298 |
| Metric Longitudinal Feed (Z-Axis) (mm/rev) | 0.078 – 1.044 |
| Metric Thread Steps & Pitch (No. / mm) | 36 (0.45 – 10) |
| Imperial Thread Steps & TPI (No. / TPI) | 20 (2-1/4 – 40) |
| 3 Jaw Chuck Diameter (mm) | 200 |
| 4 Jaw Chuck Diameter (mm) | 200 |
| Spindle Steps / Speeds (No. / rpm) | Variable (40 – 1800) |
| Motor Power (kW / hp) | 1.5 / 2 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 650 |
