HAFCO-METALMASTER

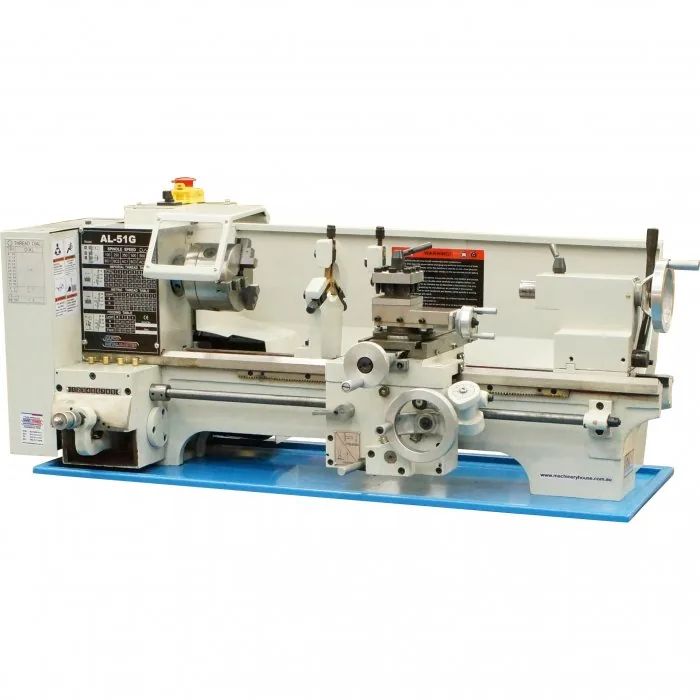

Bench Lathe — AL-51G, Ø230 x 500mm Turning Capacity – Ø20mm Spindle Bore 6 Speeds 100 ~ 1800rpm
Part No: L160 | Barcode: 9344195083488 | Model: AL-51G

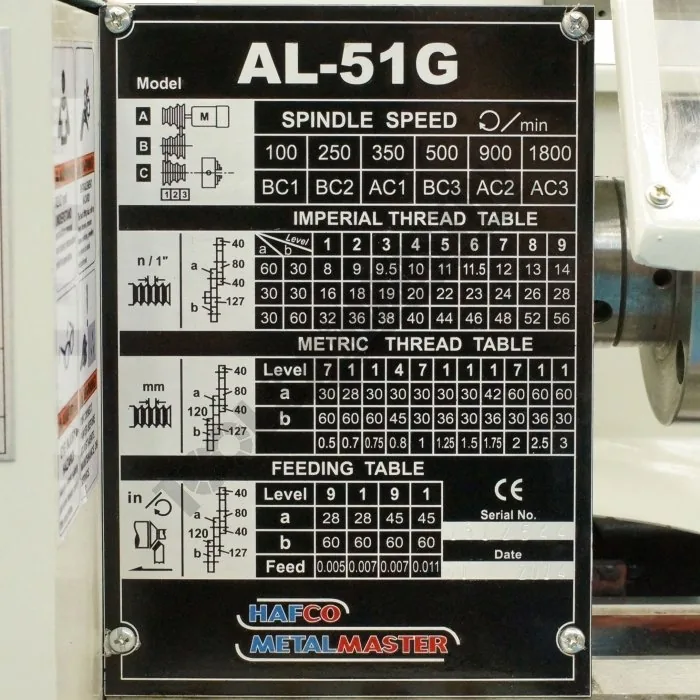

HAFCO-METALMASTER AL-51G Bench Lathe (Ø230 x 500mm Turning Capacity – Ø20mm Spindle Bore 6 Speeds 100 ~ 1800rpm). AL-51G has a quick-change gearbox for easy thread cutting operations Can also cut 9.5 and 11.5 threads per inch
Model AL-51G
6 Speeds 100 ~ 1800rpm
Swing Over Bed: 230 mm
Spindle Bore: 20 mm
Swing Over Cross-slide: 127 mm
Spindle Nose Size or Type: Threaded
Headstock Spindle Taper: 3 MT
Key Features & Benefits
- Perfect for the hobby machinist or auto electrician
- Precision ‘V’-beds are hardened and ground, encompassed on strong cast-iron rib webbing, with dovetail cross and compound slides
- Includes a full set of change gears for metric and imperial thread cutting

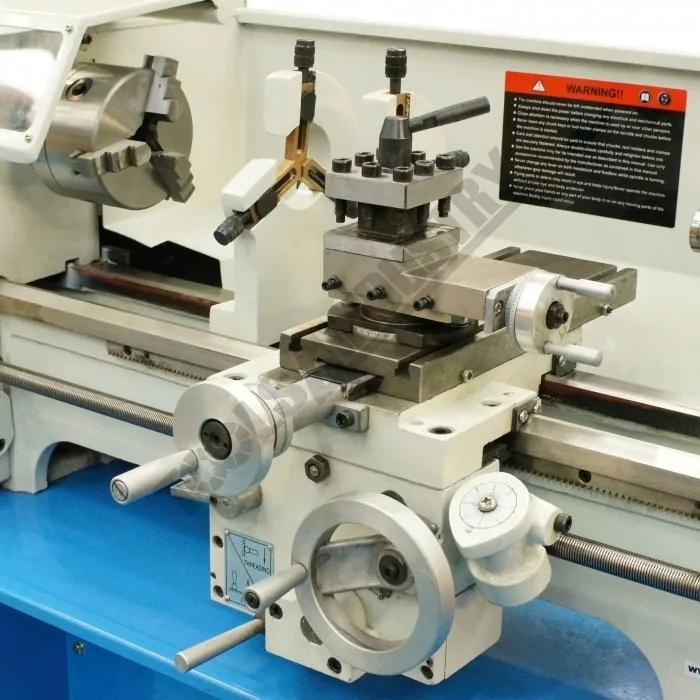

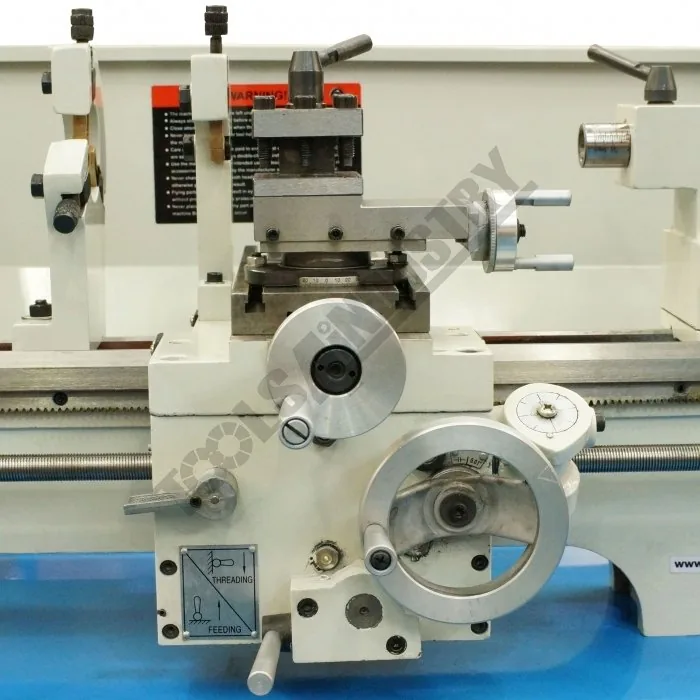

- Saddle handwheel mounted on right side of apron reducing swarf contacting the hand
- Induction hardened “V” beds

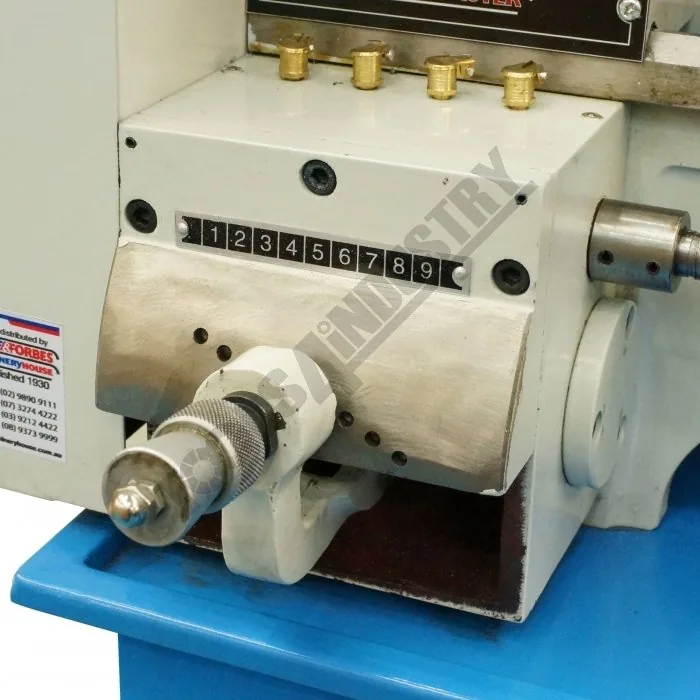

- Norton style quick change gearbox
- Adjustable ball bearings spindle support
- 4 x direct oiling points into gearbox

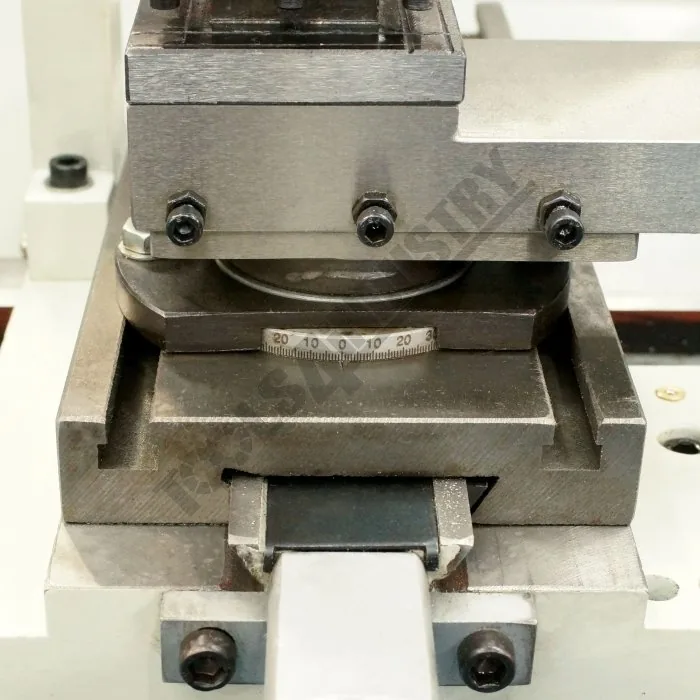

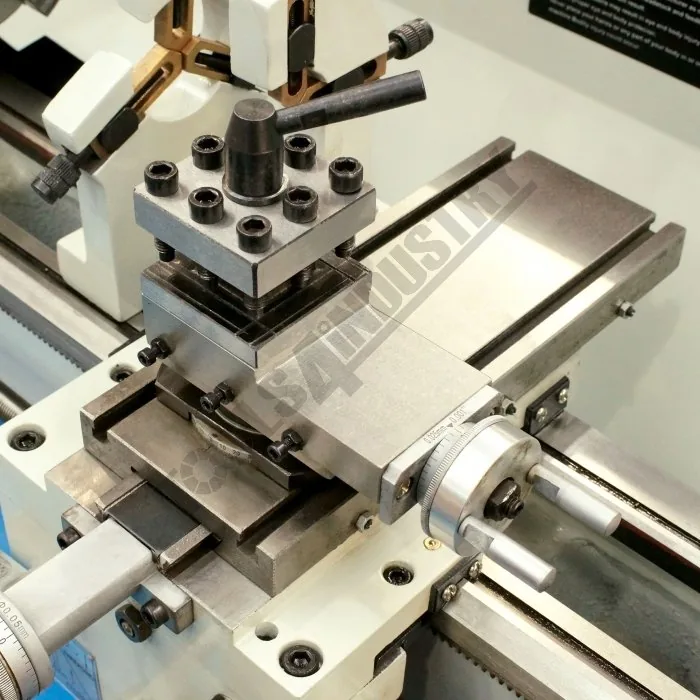

- T slotted cross slide

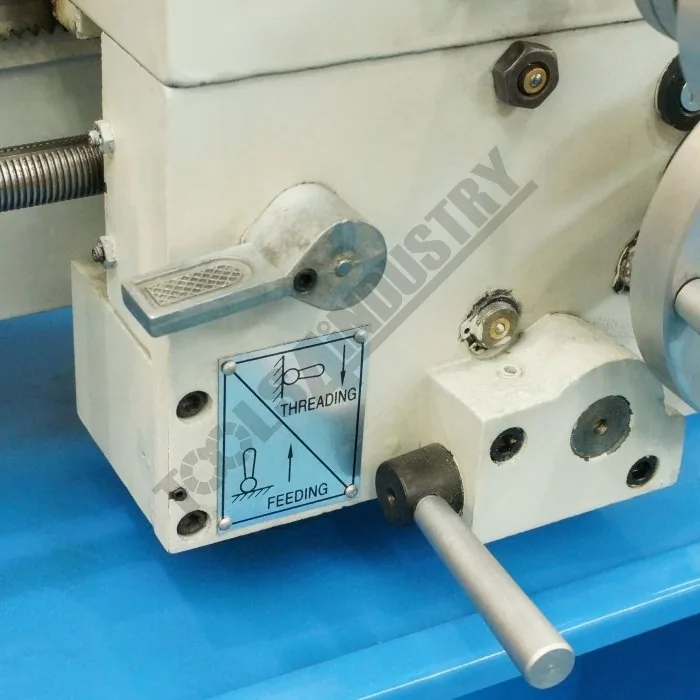

- Auto longitudinal feed

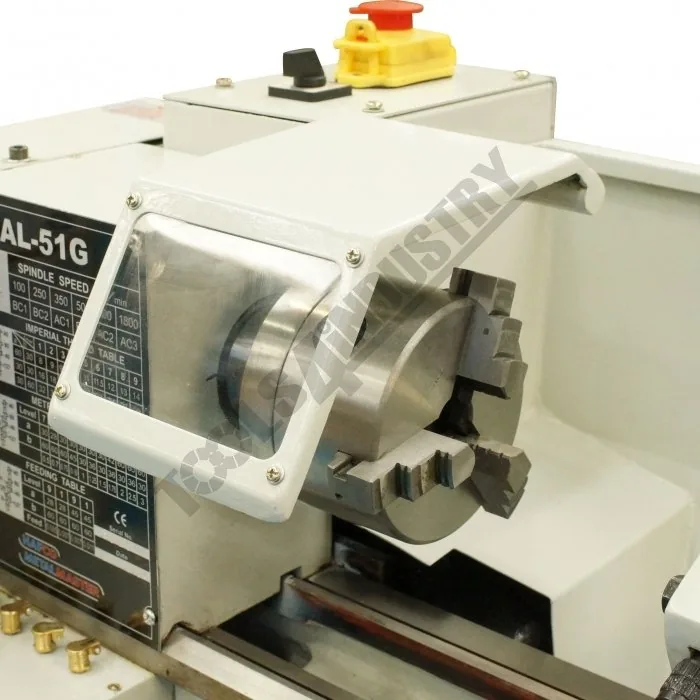

- Clear perspex chuck guard
- 6 spindle speeds from 100-1800rpm

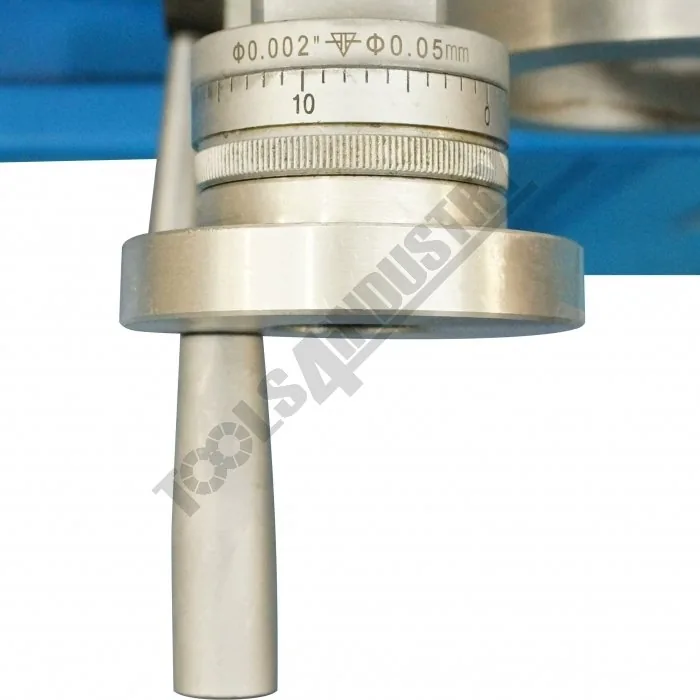

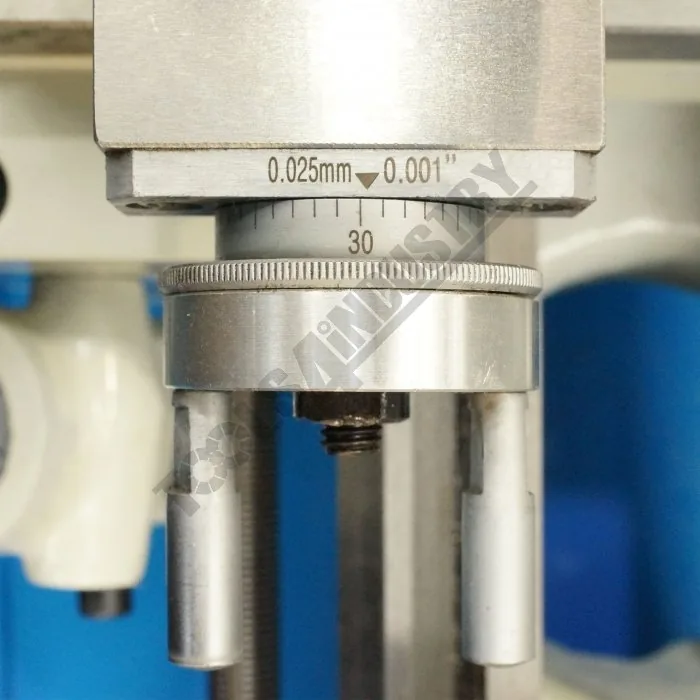

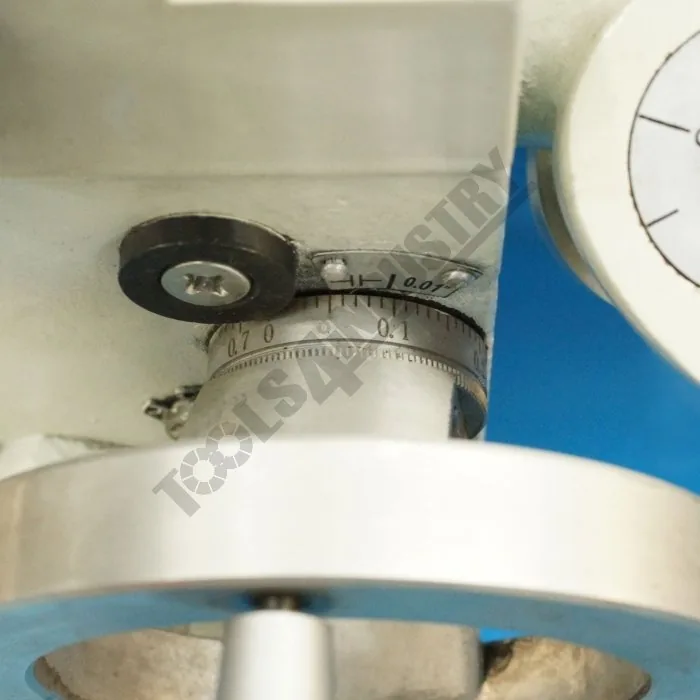

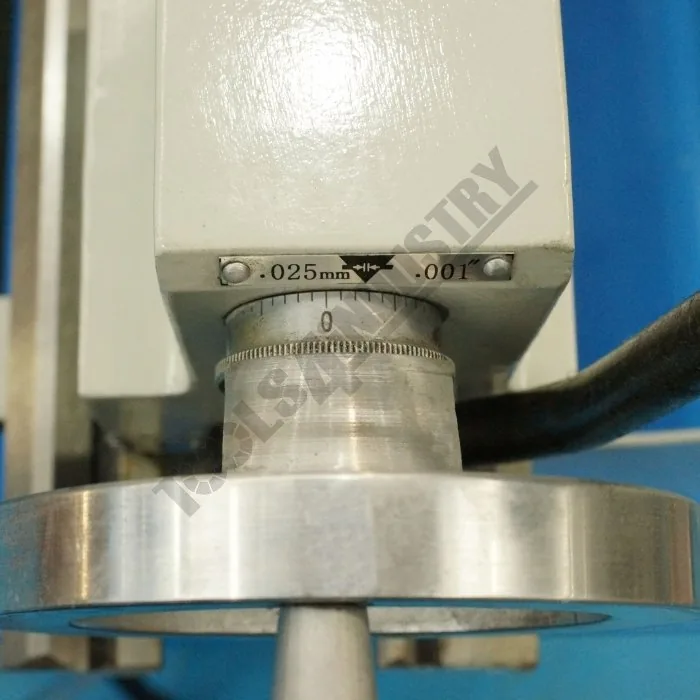

- Metric dial calibrations
About This Product
AL-51G has a quick-change gearbox for easy thread cutting operations Can also cut 9.5 and 11.5 threads per inch This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L160) for collection in store.
In the Box
- 3-jaw chuck with reverse jaws
- 4-jaw chuck
- Face plate

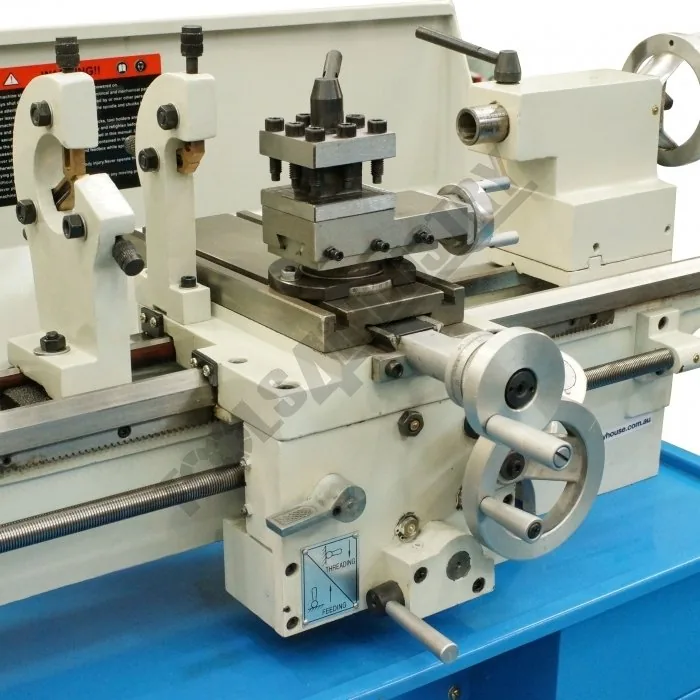

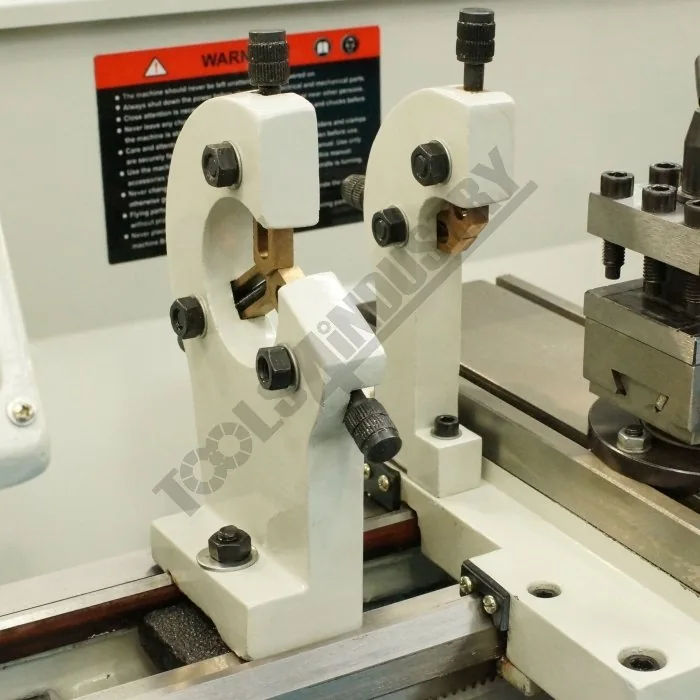

- Fixed and traveling steadies
- Change gears
- Dead centre

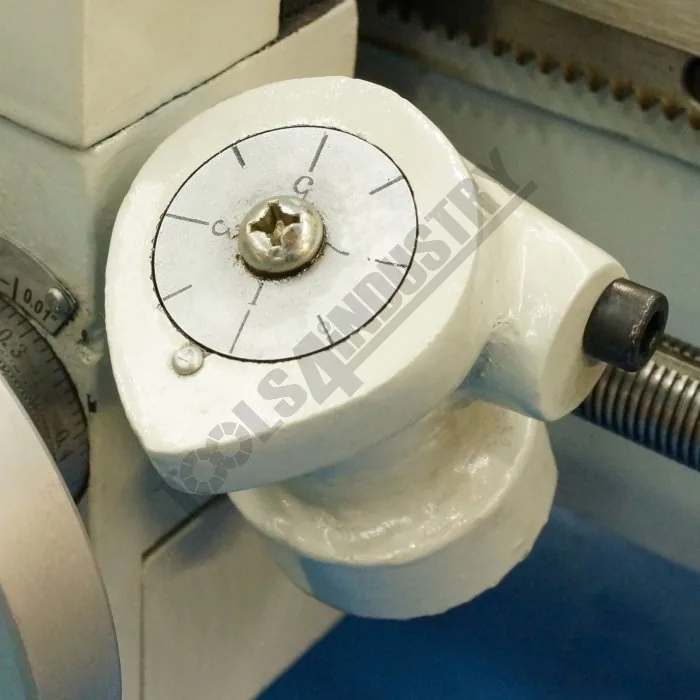

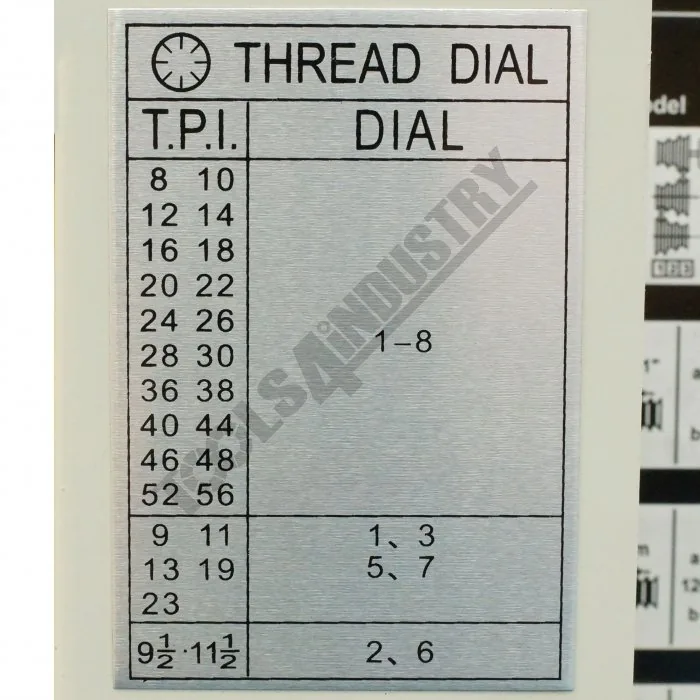

- Thread chasing dial
- Swarf tray
- Safety chuck guard
- Spanners, tool box, & instruction booklet
Product Specifications
| Specification | Detail |
|---|---|
| Swing Over Bed (mm) | 230 |
| Distance Between Centres (mm) | 500 |
| Spindle Bore (mm) | 20 |
| Swing Over Cross-slide (mm) | 127 |
| Digital Readout System Fitted | Optional |
| Quick Change Toolpost Fitted | Optional |
| Tool Height To Suit (mm) | 12 |
| Centre Height (mm) | 115 |
| Spindle Nose Size or Type | Threaded |
| Bed Width (mm) | 114 |
| Headstock Spindle Taper (MT) | 3 |

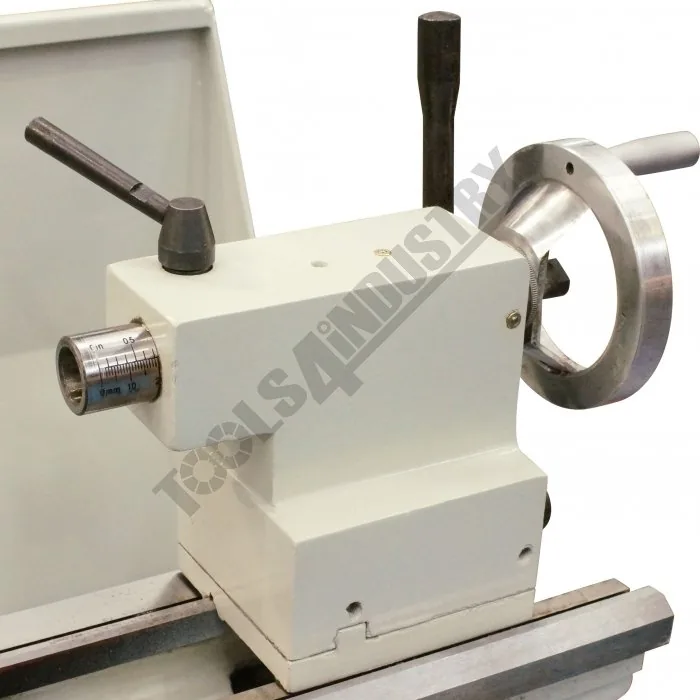

| Tailstock Taper (MT) | 2 |
| Cross Slide Travel (mm) | 108 |
| Compound Slide Travel (mm) | 48 |
| Leadscrew Type | Imperial |
| Imperial Longitudinal Feed (Z-Axis) (inch/rev) | 0.12 – 0.3 |
| Metric Thread Steps & Pitch (No. / mm) | 11 (0.5 – 3) |
| Imperial Thread Steps & TPI (No. / TPI) | 27 (8 – 56) |
| 3 Jaw Chuck Diameter (mm) | 100 |
| 4 Jaw Chuck Diameter (mm) | 190 |
| Spindle Steps / Speeds (No. / rpm) | 6 (100 – 1800) |
| Motor Power (kW / hp) | 0.55 / 0.75 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 129 |
