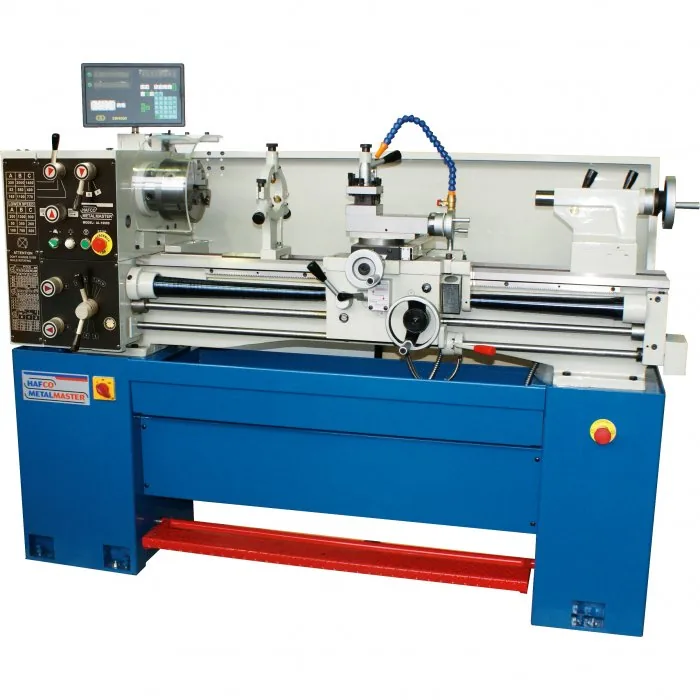

Centre Lathe — AL-1000D, Ø360 x 1000mm Turning Capacity – Ø40mm Spindle Bore Includes Digital Readout System
Part No: L242D | Barcode: 9344195026034 | Model: AL-1000D
HAFCO-METALMASTER AL-1000D Centre Lathe (Ø360 x 1000mm Turning Capacity – Ø40mm Spindle Bore Includes Digital Readout System). Tool room quality precision lathe and have been sold for over 20 years
Model AL-1000D
Includes Digital Readout System
Swing Over Bed: 360 mm
Spindle Bore: 40 mm
Swing In Gap: 516 mm
Swing Over Cross-slide: 225 mm
Spindle Nose Size or Type: D1-4 Camlock
Key Features & Benefits

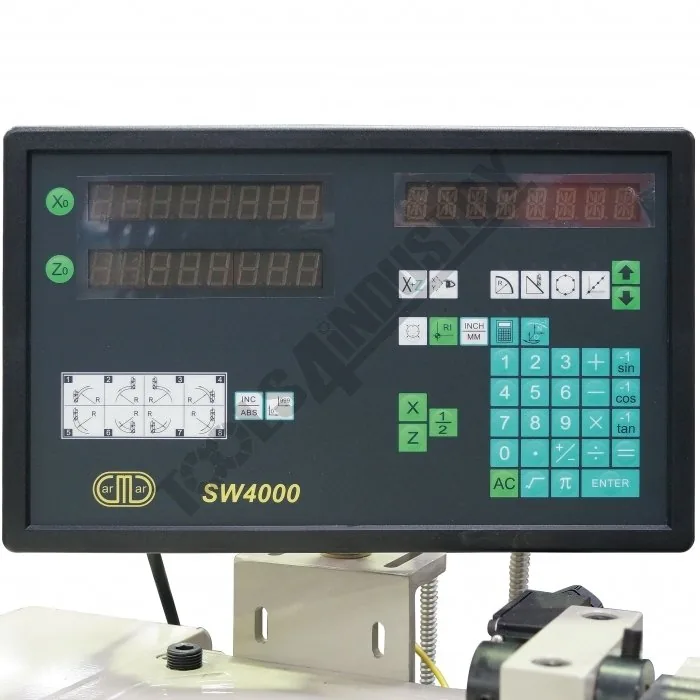

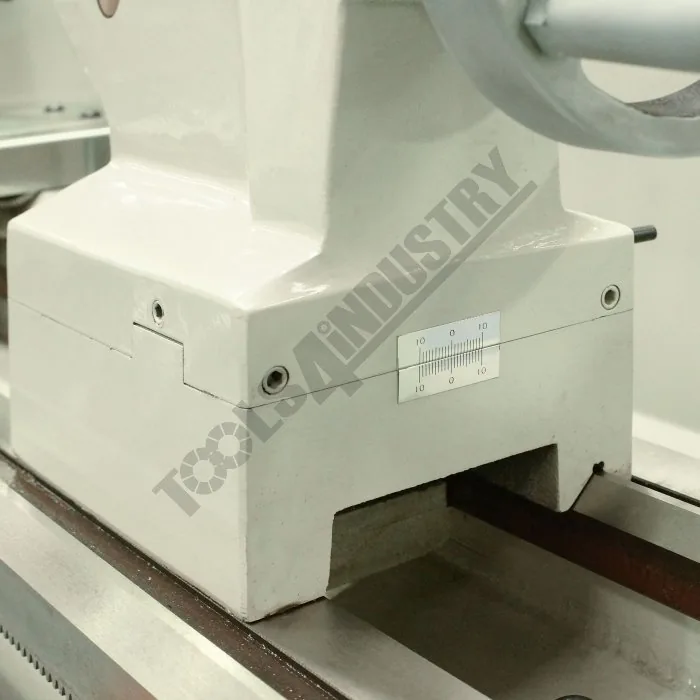

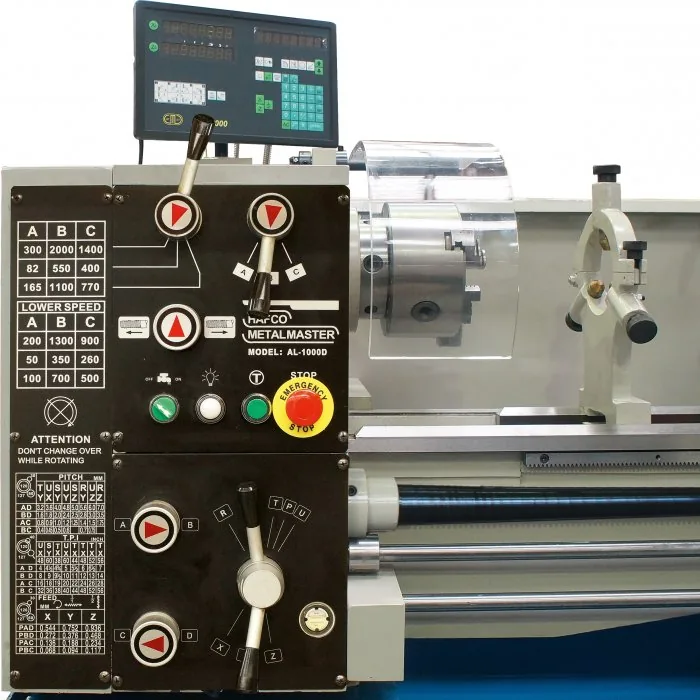

- 2 axis digital readout system

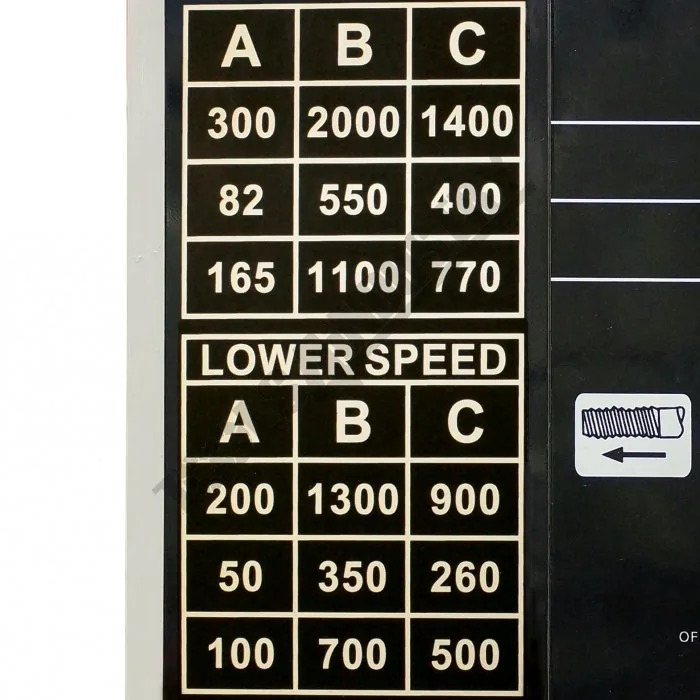

- Gear drive headstock for quick change of spindle speeds
- Nachi Japanese made bearings supporting headstock spindle
- Stand increasing rigidity and reducing vibration

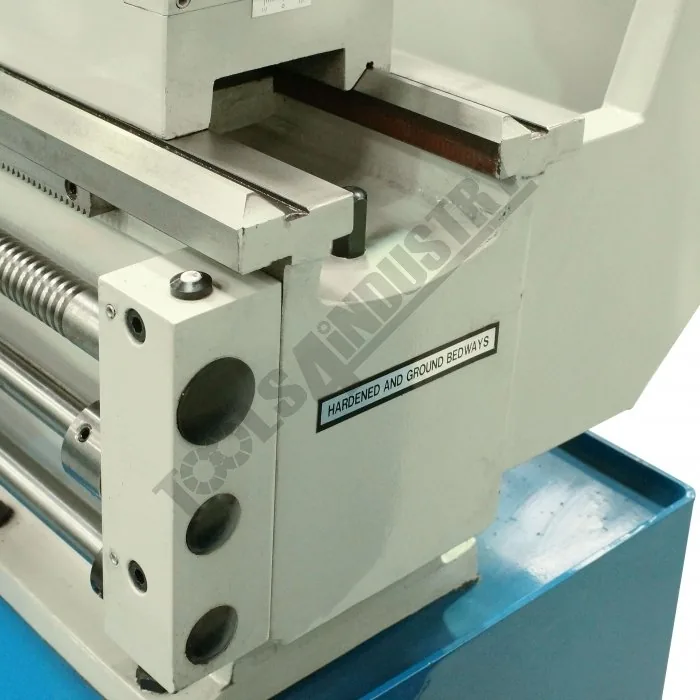

- Precision ‘V’-beds are hardened and ground, incorporating a rigid webbed casting

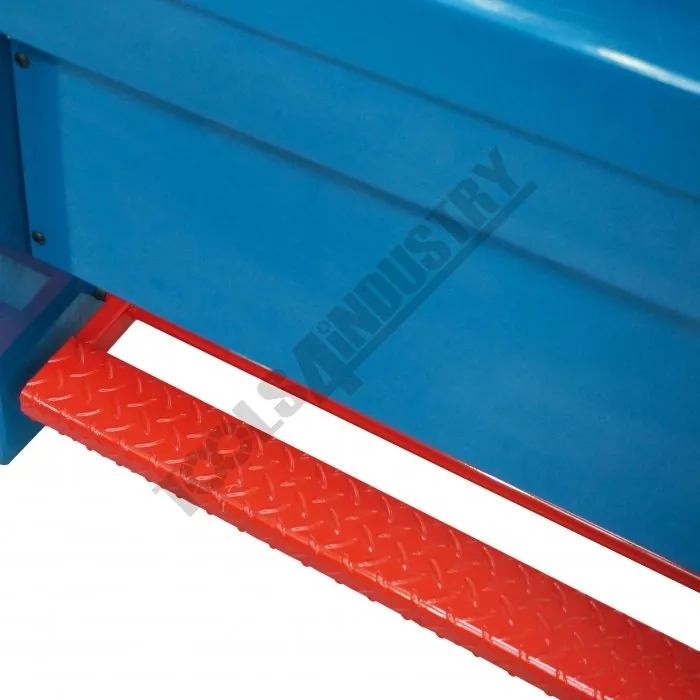

- Foot operated spindle brake with safety cut out switch

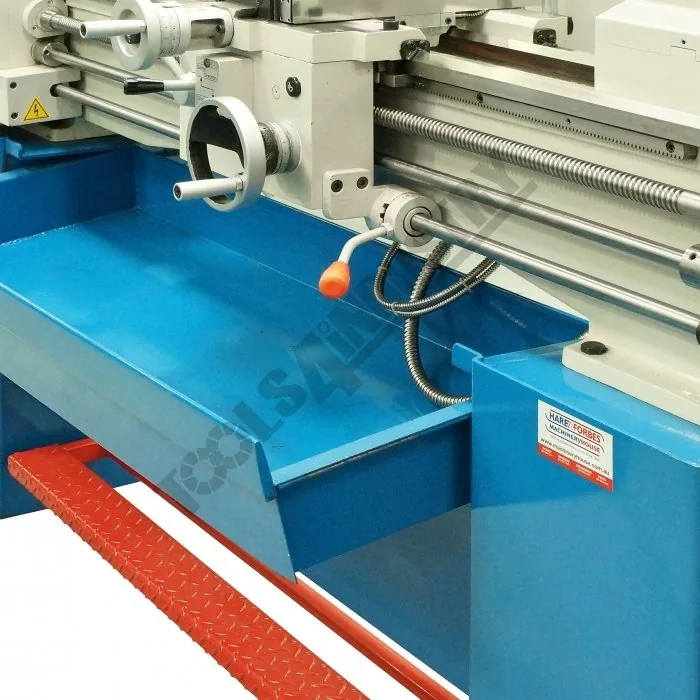

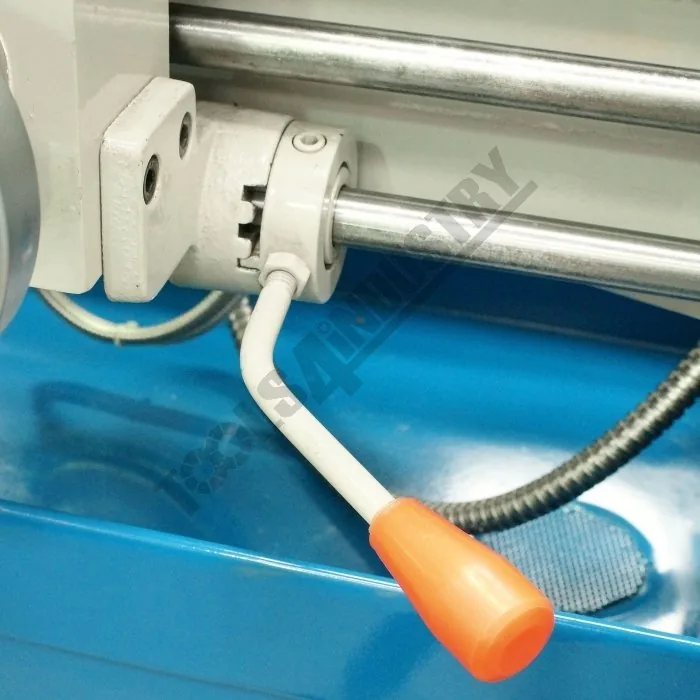

- Slide out front swarf tray for easy cleaning
- Change gears for metric and imperial thread cutting
- Oil sight glass for head stock and gearbox
- Adjustable taper roller bearings support the spindle
- Overload clutch mechanism on auto power feed
- Overload protection on drive motor and coolant system
- 3hp 415V motor, 18-speed (50 – 2000rpm)

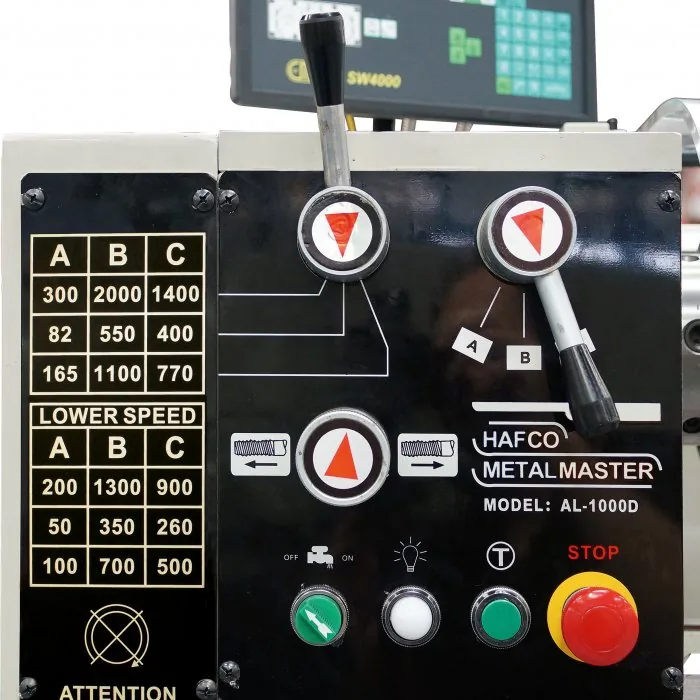

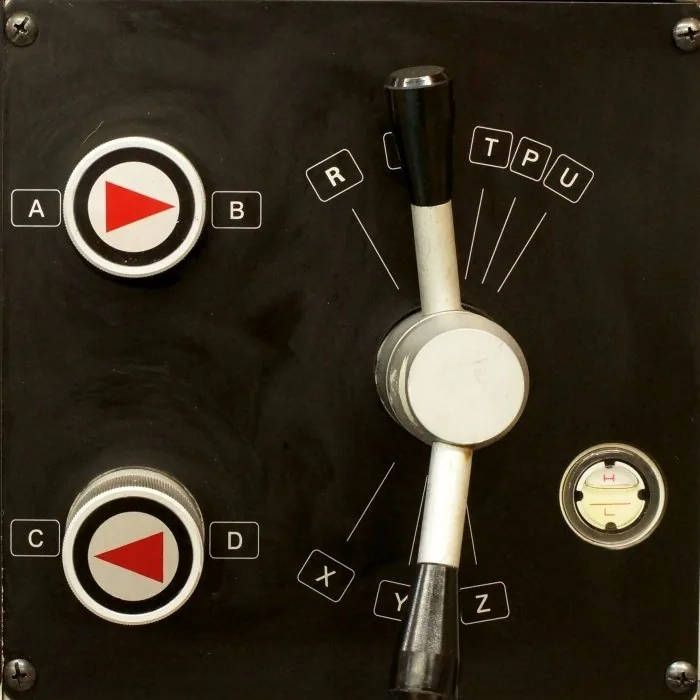

- Inching button is incorporated on the control panel for convenient spindle speed selection
- Enclosed quick action gearbox for thread cutting and auto feeding

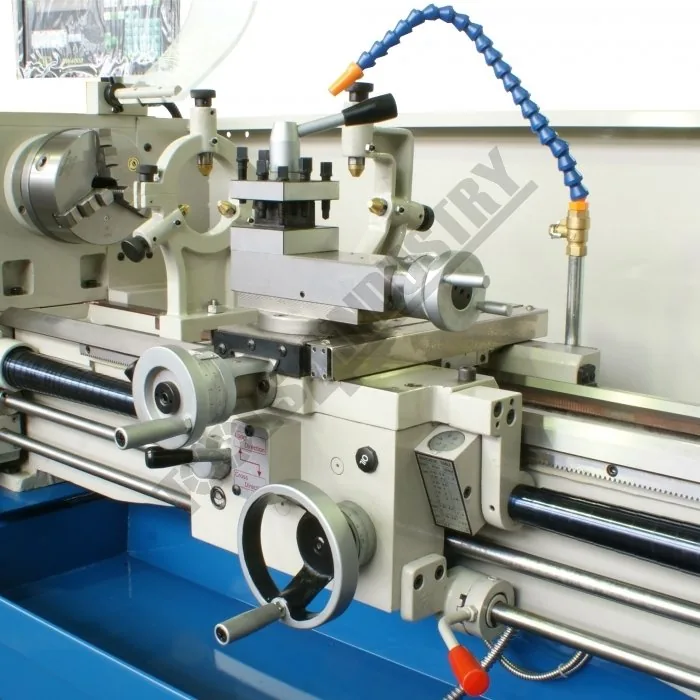

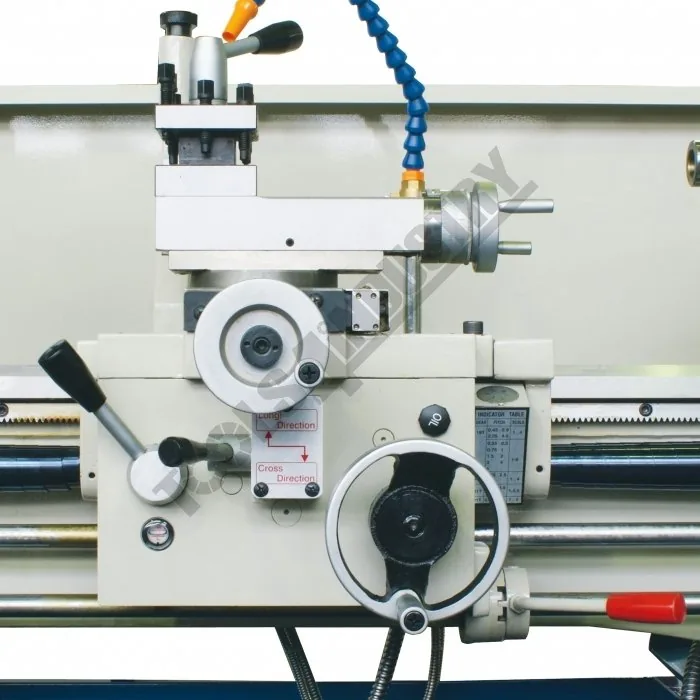

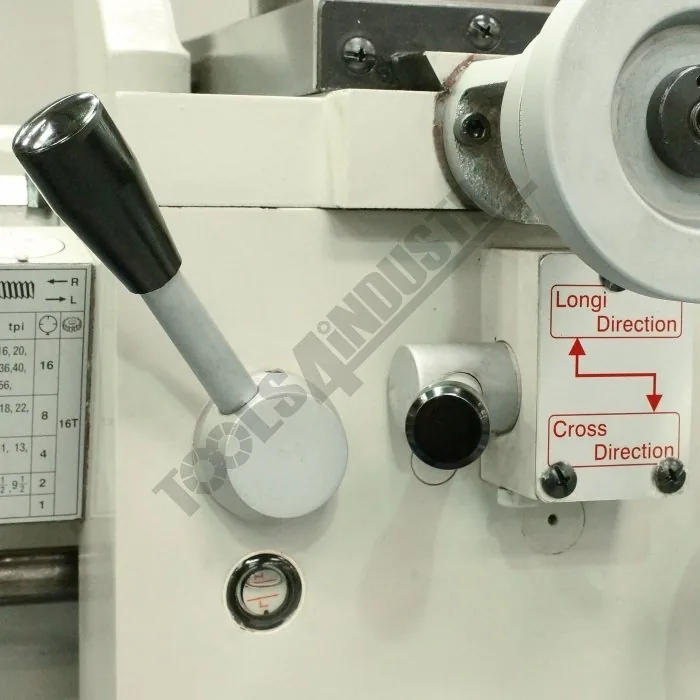

- Powered longitudinal and cross feeds
- D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard
- Removable gap bed-way for larger diameter jobs

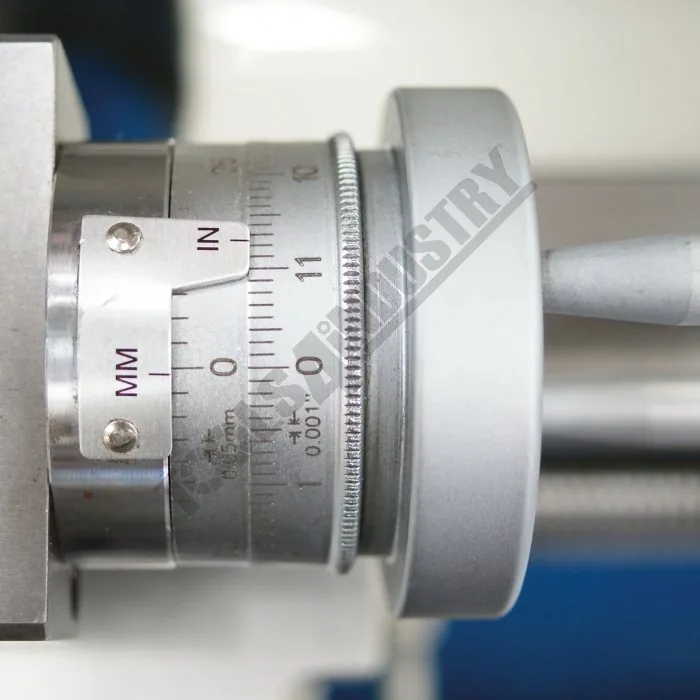

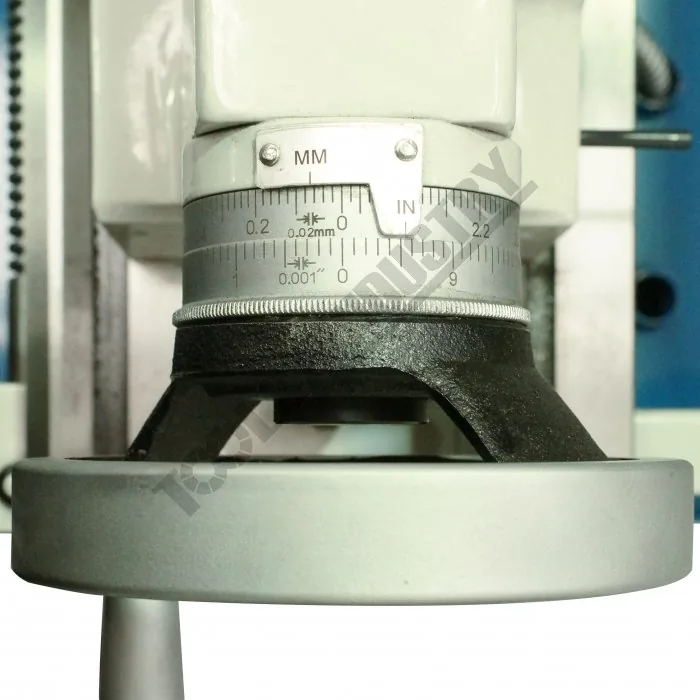

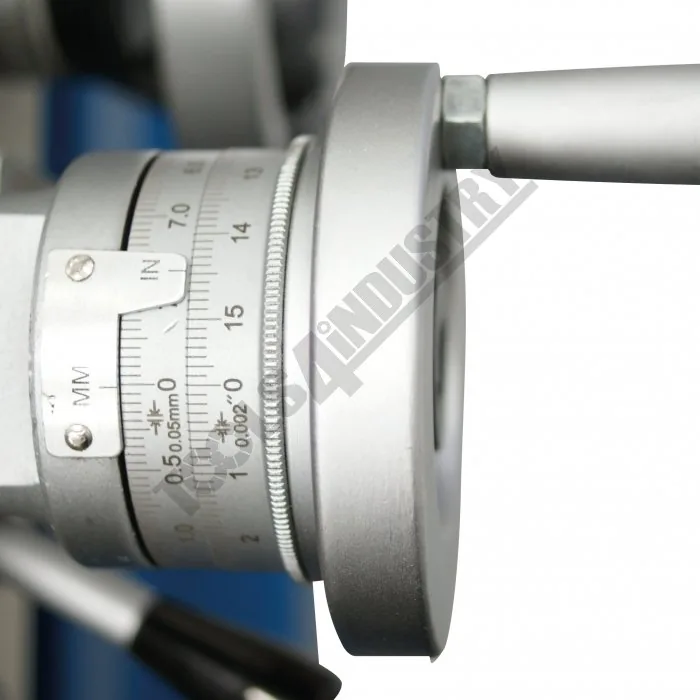

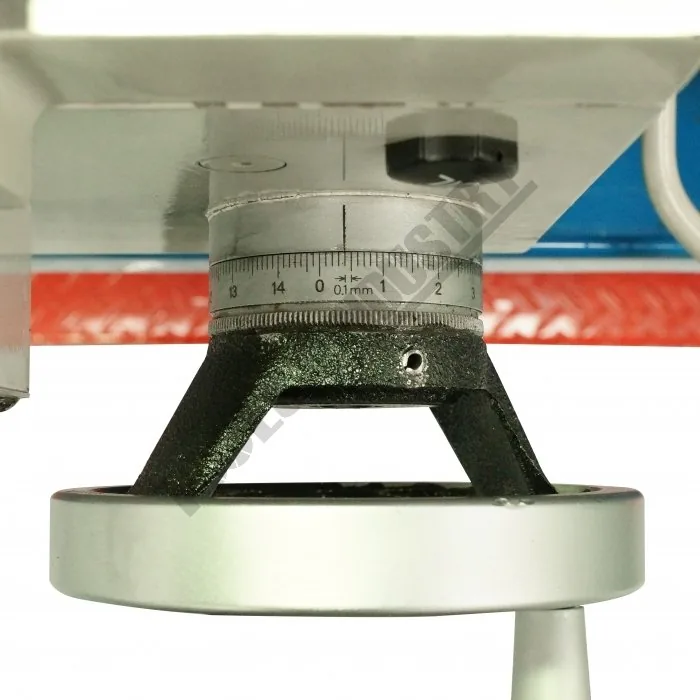

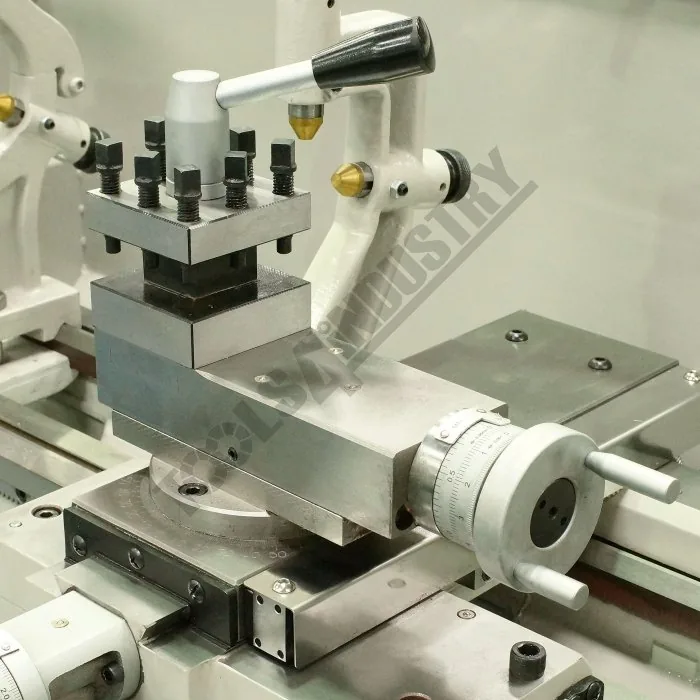

- Dual calibrated dials (except for saddle hand wheel)

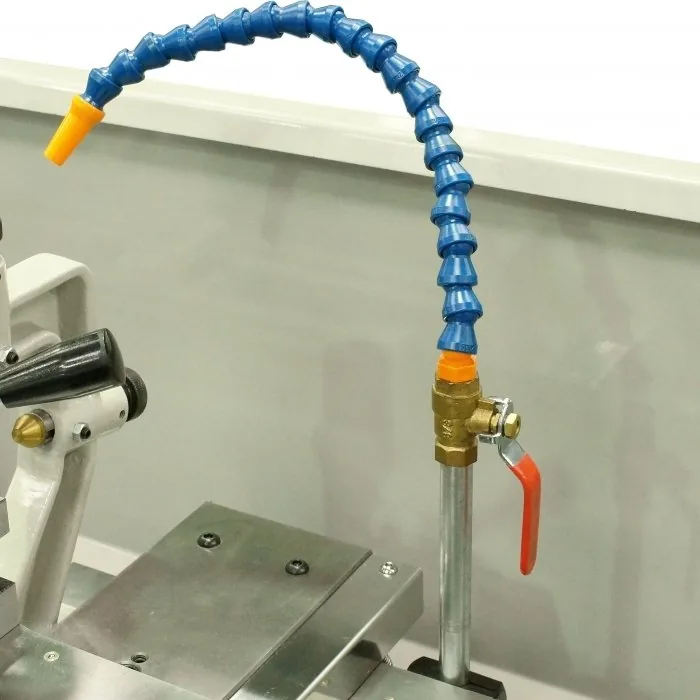

- Coolant system with flexible hose
- Slide out swarf tray
About This Product
Tool room quality precision lathe and have been sold for over 20 years This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L242D) for collection in store.
In the Box
- 2 axis digital readout system
- Concertina leadscrew cover
- Slide out front swarf tray
- 160mm 3-jaw chuck with reverse jaws
- 200mm 4-jaw chuck
- Face plate

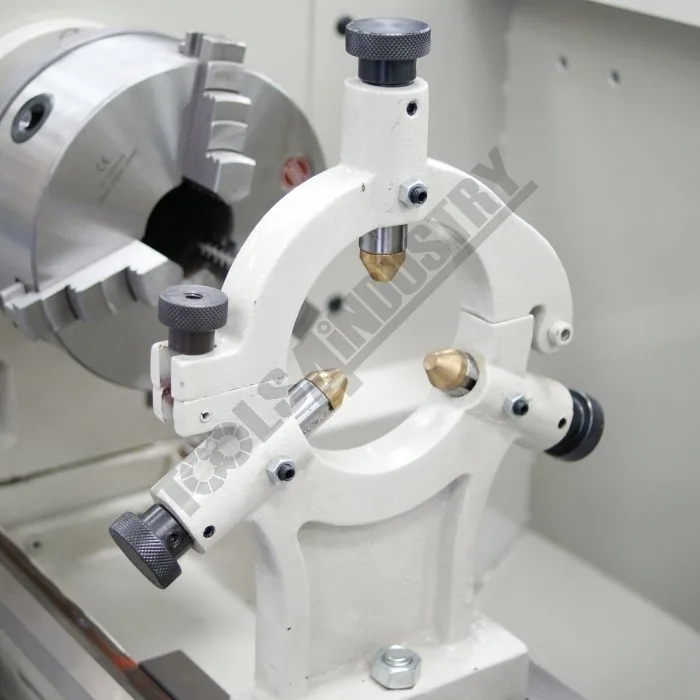

- Fixed steady

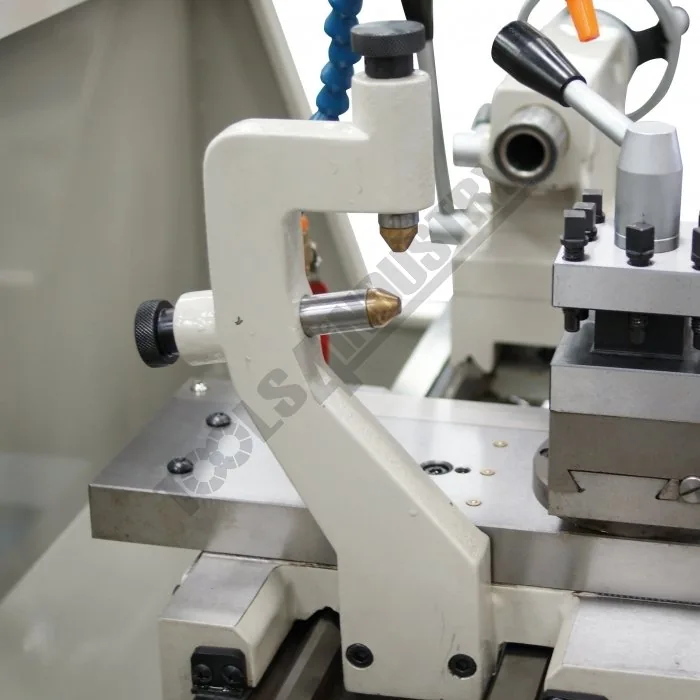

- Travelling steady
- Change gears
- Dead centres

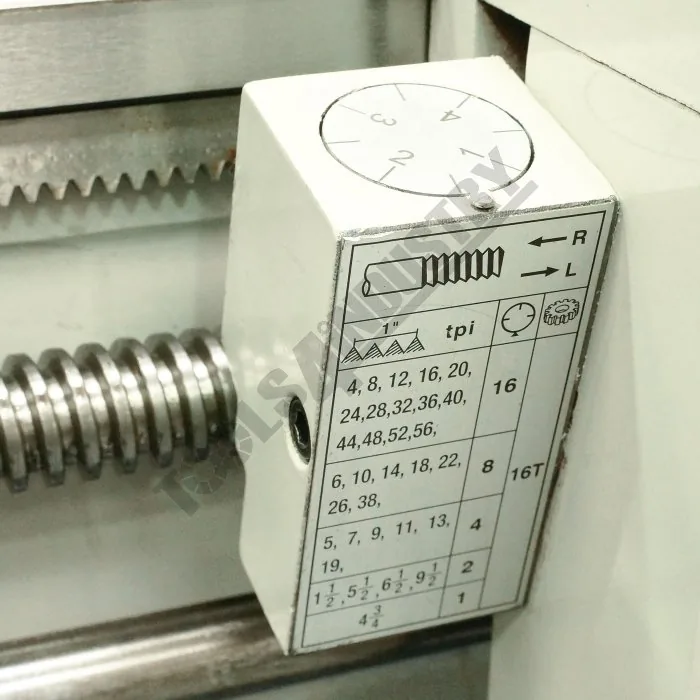

- Thread-chasing dial

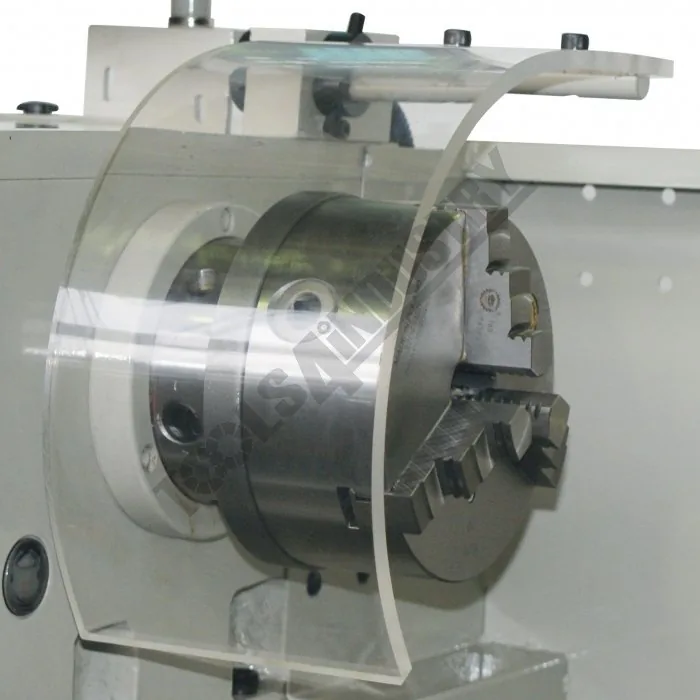

- Safety chuck guard
- Stand
- Foot brake
- Rear splash guard & swarf tray
- Tool box
- Instruction booklet
Product Specifications

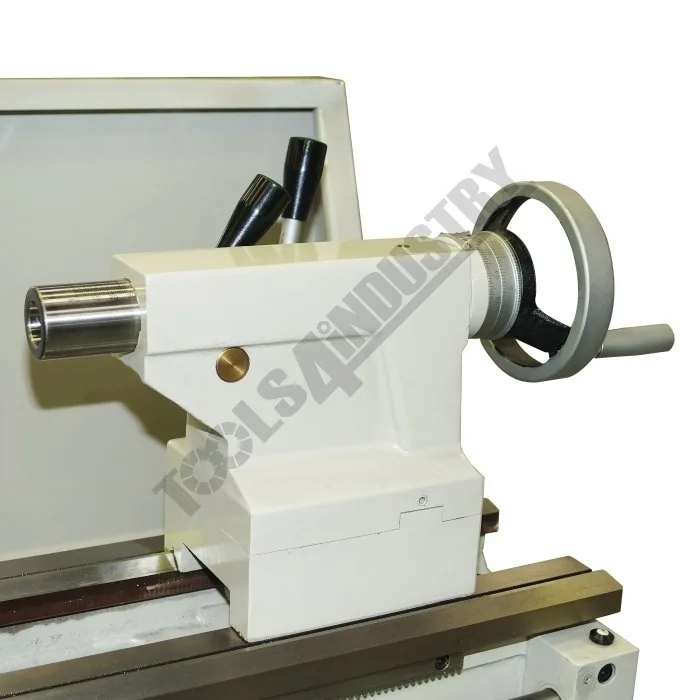

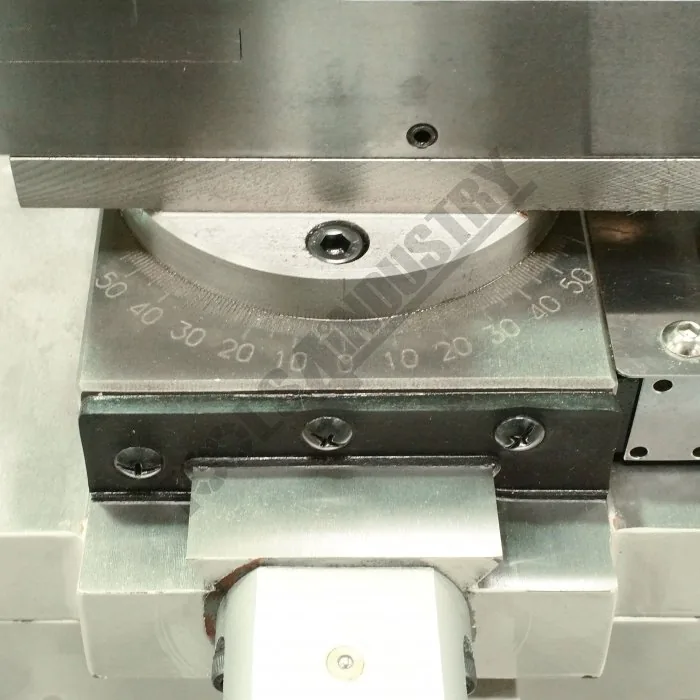

| Specification | Detail |
|---|---|
| Swing Over Bed (mm) | 360 |
| Distance Between Centres (mm) | 1000 |
| Spindle Bore (mm) | 40 |
| Swing In Gap (mm) | 516 |
| Swing Over Cross-slide (mm) | 225 |
| Digital Readout System Fitted | Yes |
| Quick Change Toolpost Fitted | Optional |
| Leadscrew Covers Fitted | Yes |
| Taper Turning Attachment | Optional |
| Coolant System | Yes |
| Tool Height To Suit (mm) | 16 |
| Centre Height (mm) | 178 |
| Spindle Nose Size or Type | D1-4 Camlock |
| Bed Width (mm) | 190 |
| Headstock Spindle Taper (MT) | 5 |
| Tailstock Taper (MT) | 3 |
| Cross Slide Travel (mm) | 175 |
| Compound Slide Travel (mm) | 100 |
| Leadscrew Type | Metric |
| Metric Cross Feed (X-Axis) (mm/rev) | 0.034 – 0.468 |
| Metric Longitudinal Feed (Z-Axis) (mm/rev) | 0.068 – 0.936 |

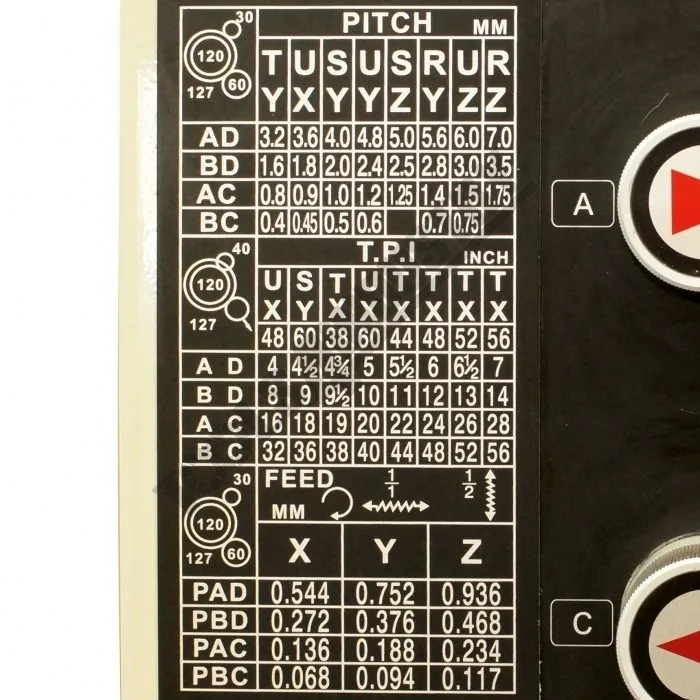

| Metric Thread Steps & Pitch (No. / mm) | 30 (0.4 – 7.0) |
| Imperial Thread Steps & TPI (No. / TPI) | 32 (4 – 56) |
| 3 Jaw Chuck Diameter (mm) | 160 |
| 4 Jaw Chuck Diameter (mm) | 200 |
| Spindle Steps / Speeds (No. / rpm) | 18 (50 – 2000) |
| Motor Power (kW / hp) | 2.25 / 3 |
| Voltage / Amperage (V / amp) | 415 |
| Nett Weight (kg) | 700 |
