HAFCO-METALMASTER

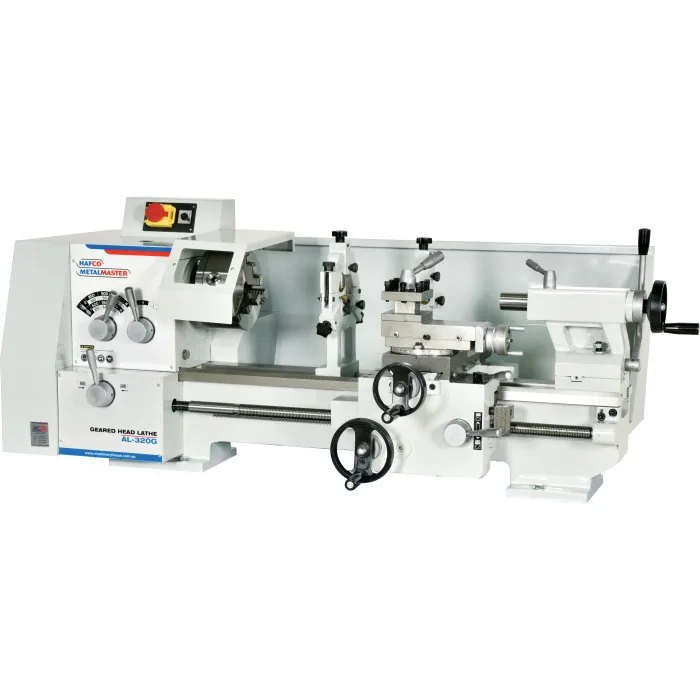

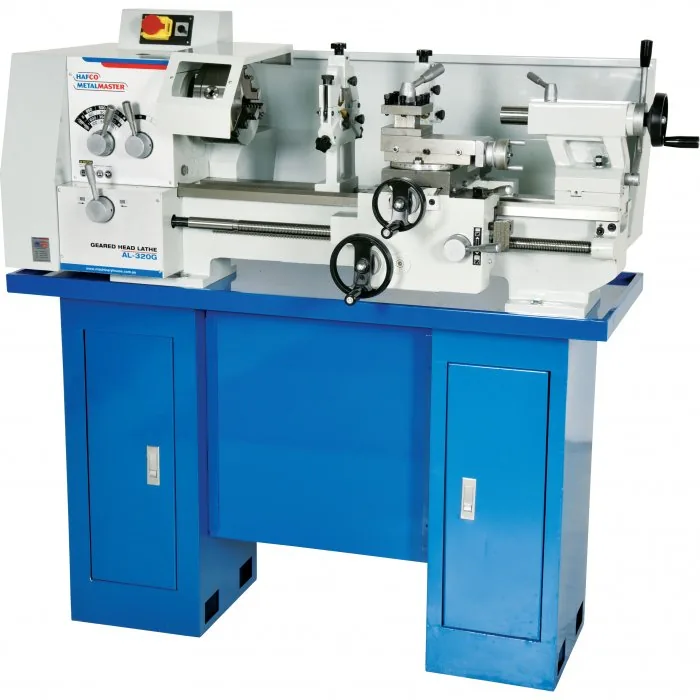

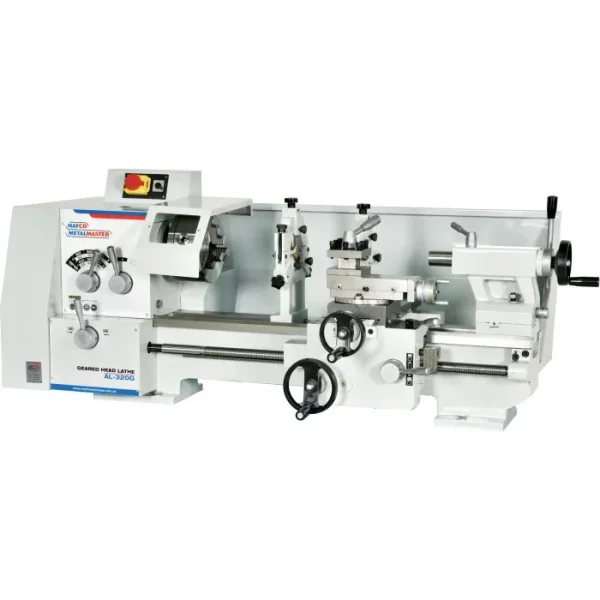

Bench Lathe — AL-320G, Ø320 x 600mm Turning Capacity – Ø38mm Spindle Bore
12 Geared Head Speeds 60 ~ 1600rpm Includes Fixed & Travelling Steadies and 4 Jaw Chuck
Part No: L141 | Barcode: 9344195025808 | Model: AL-320G
HAFCO-METALMASTER AL-320G Bench Lathe (Ø320 x 600mm Turning Capacity – Ø38mm Spindle Bore 12 Geared Head Speeds 60 ~ 1600rpm Includes Fixed & Travelling Steadies and 4 Jaw Chuck). Available to order through Alltools Geelong for collection in store.
Model AL-320G
Swing Over Bed: 320 mm
Spindle Bore: 38 mm
Swing Over Cross-slide: 210 mm
Spindle Nose Size or Type: Fixed
Headstock Spindle Taper: 5 MT
Spindle Steps / Speeds: 12 (60 – 1600)
Key Features & Benefits

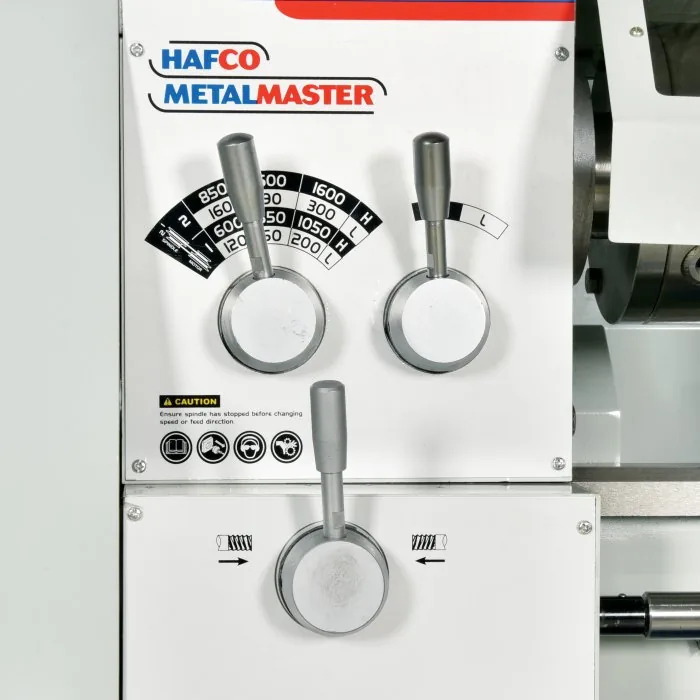

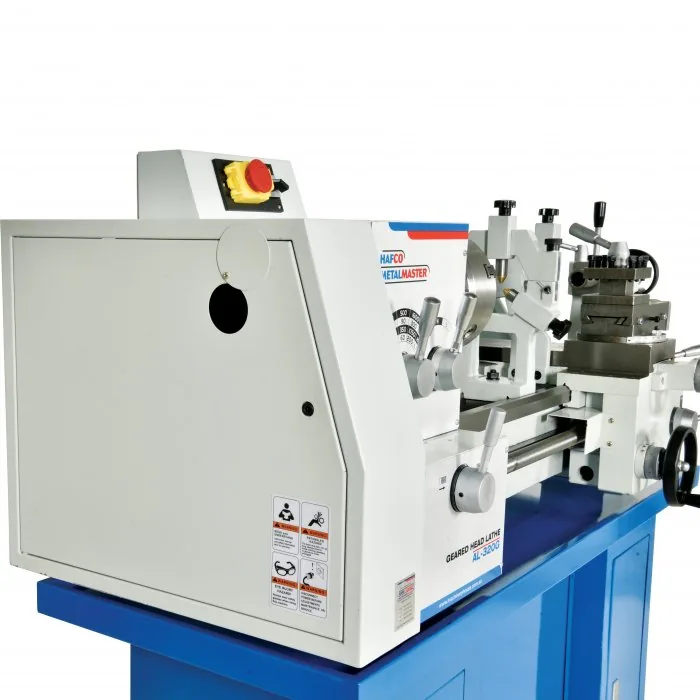

- Geared headstock for quick change of spindle speeds
- 38mm spindle bore

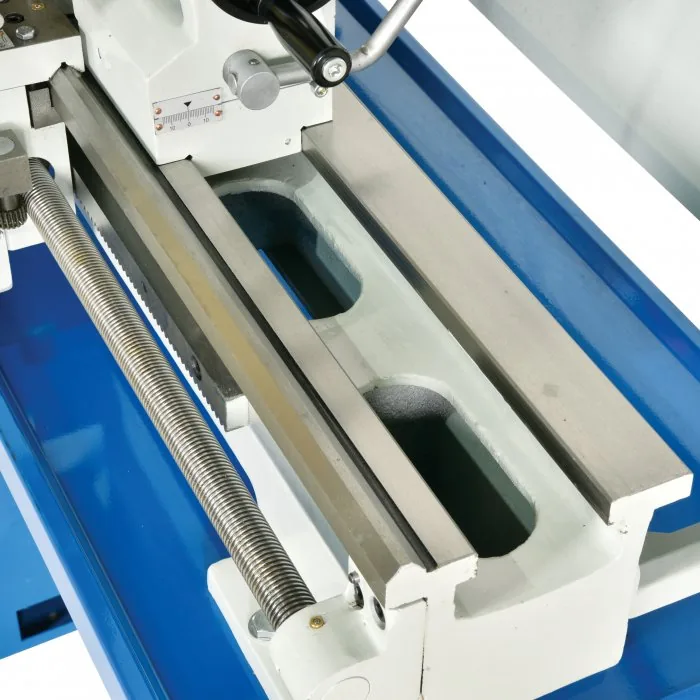

- Hardened and ground bed
- Adjustable taper roller spindle bearings
- Metric & imperial thread cutting

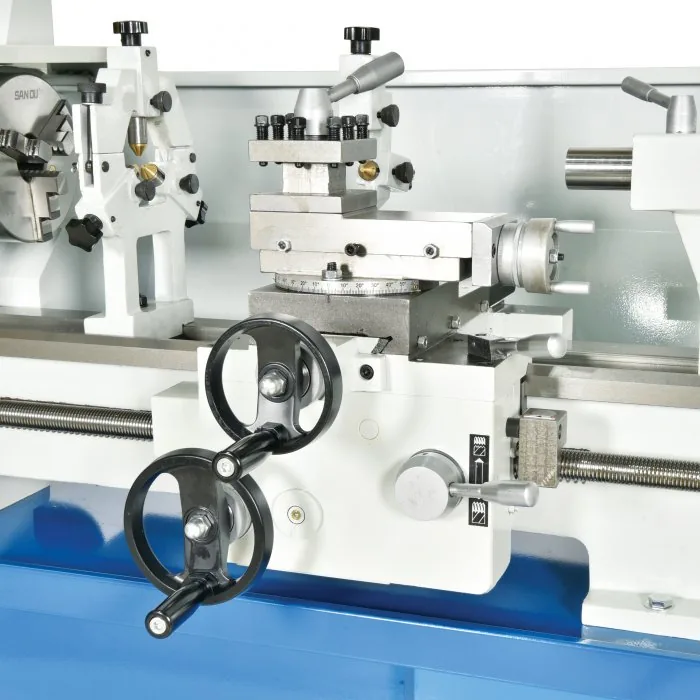

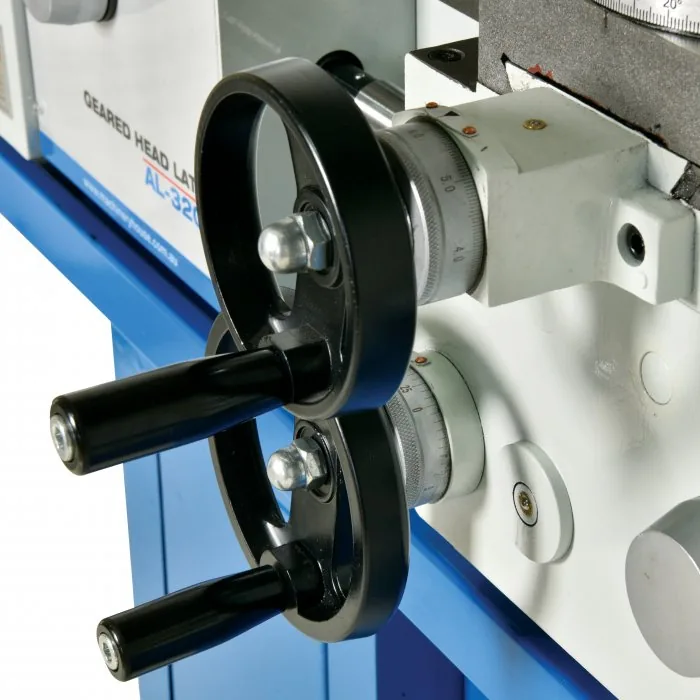

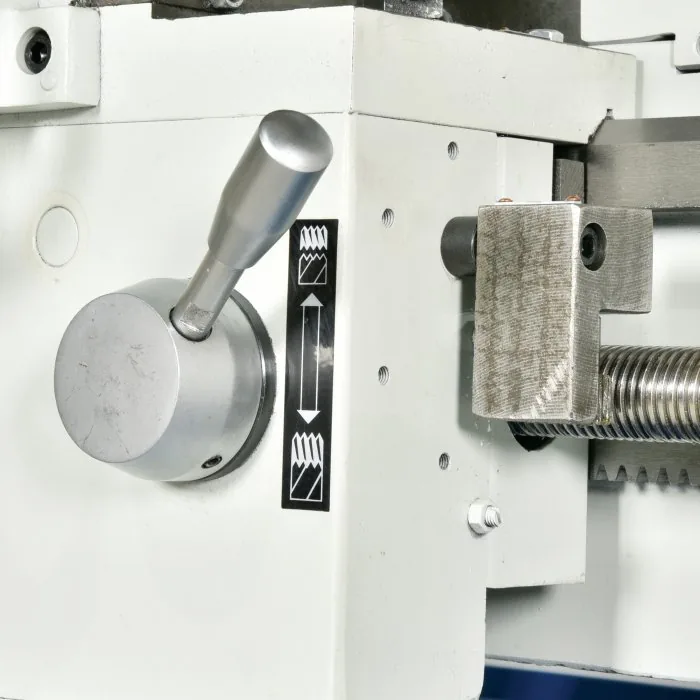

- Powered longitudinal and cross feed
- Head stock oil sight glass

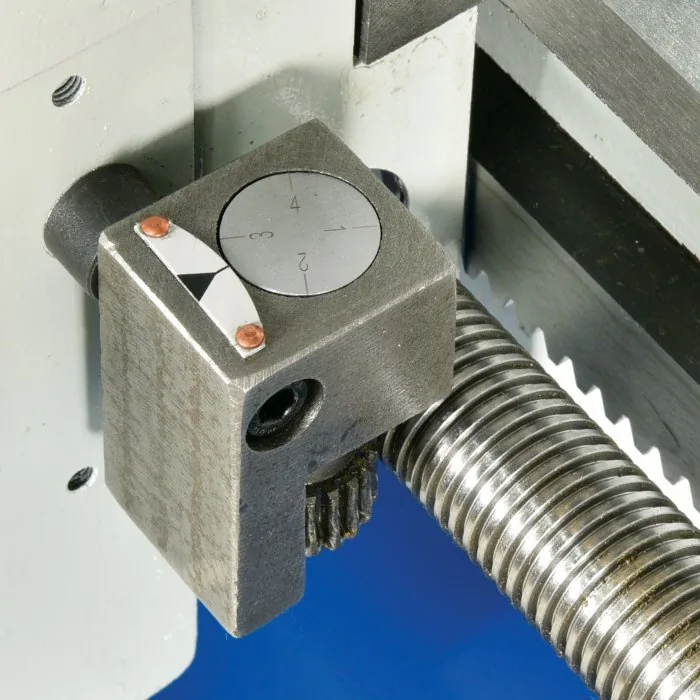

- Thread chasing dial

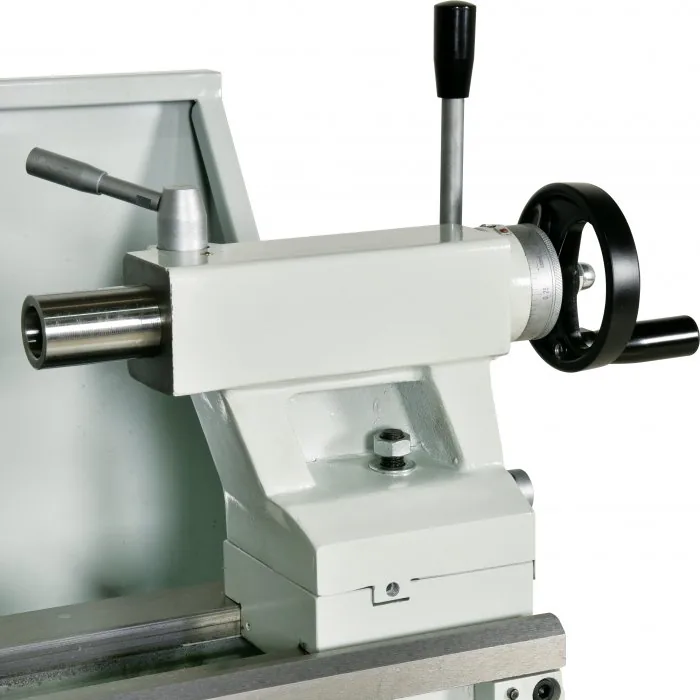

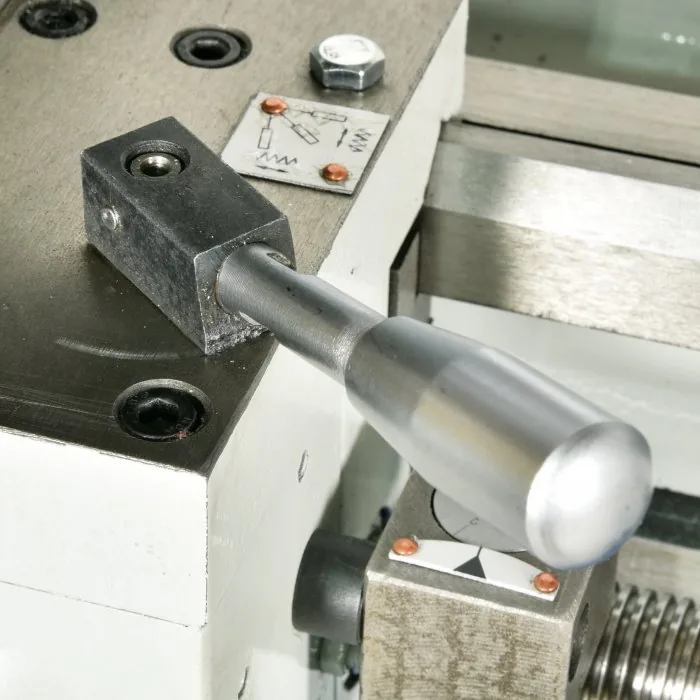

- Quick action tailstock locking lever
- Forward/reverse spindle switch
About This Product
Bench Lathe (Ø320 x 600mm Turning Capacity – Ø38mm Spindle Bore
12 Geared Head Speeds 60 ~ 1600rpm Includes Fixed & Travelling Steadies and 4 Jaw Chuck). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code L141) for collection in store.
12 Geared Head Speeds 60 ~ 1600rpm Includes Fixed & Travelling Steadies and 4 Jaw Chuck). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code L141) for collection in store.
In the Box

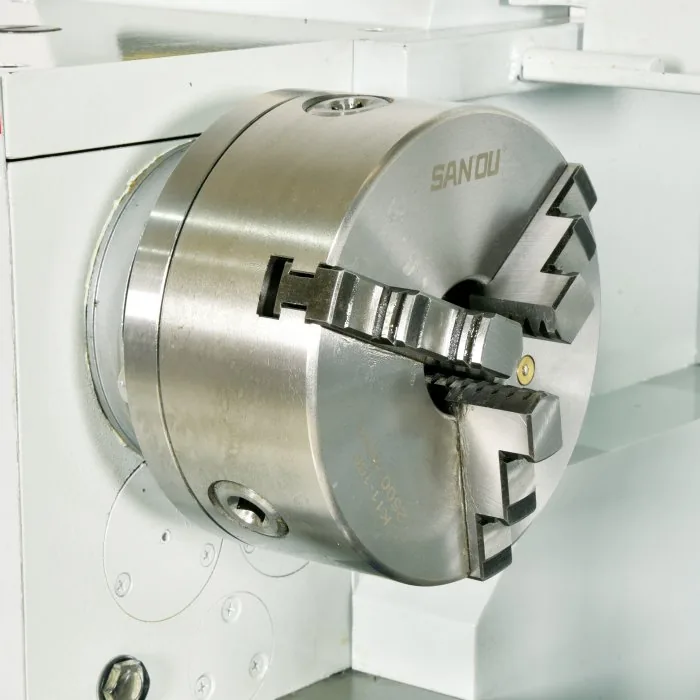

- 160mm 3-jaw chuck with reverse jaws
- 200mm 4-jaw chuck
- Face plate

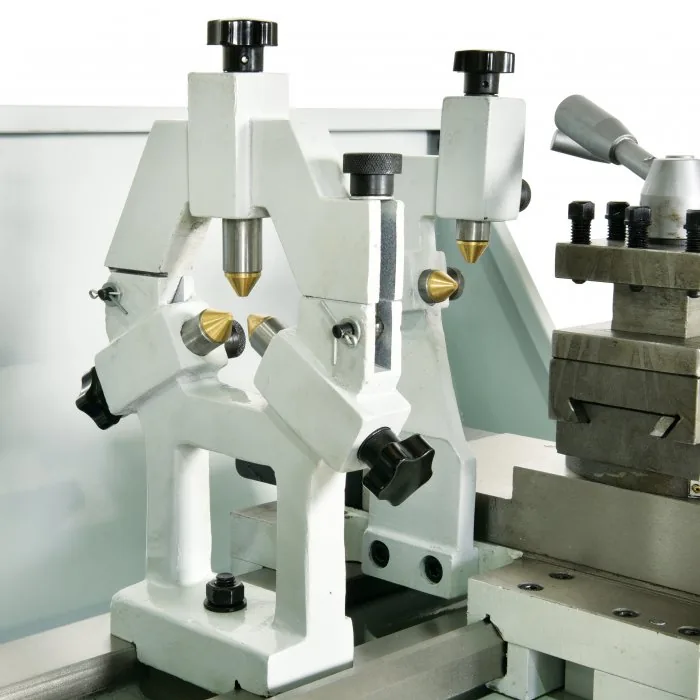

- Fixed steady
- Travelling steady
- Change gears
- Dead centre
- Rear splash guard & swarf tray
- Spanners

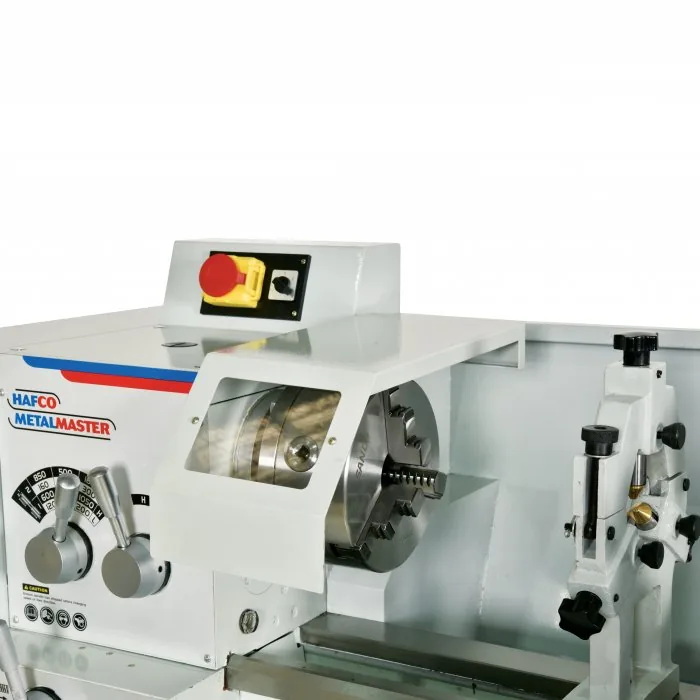

- Safety chuck guard
- Instruction booklet
Product Specifications
| Specification | Detail |
|---|---|
| Swing Over Bed (mm) | 320 |
| Distance Between Centres (mm) | 600 |
| Spindle Bore (mm) | 38 |
| Swing Over Cross-slide (mm) | 210 |
| Digital Readout System Fitted | Optional |

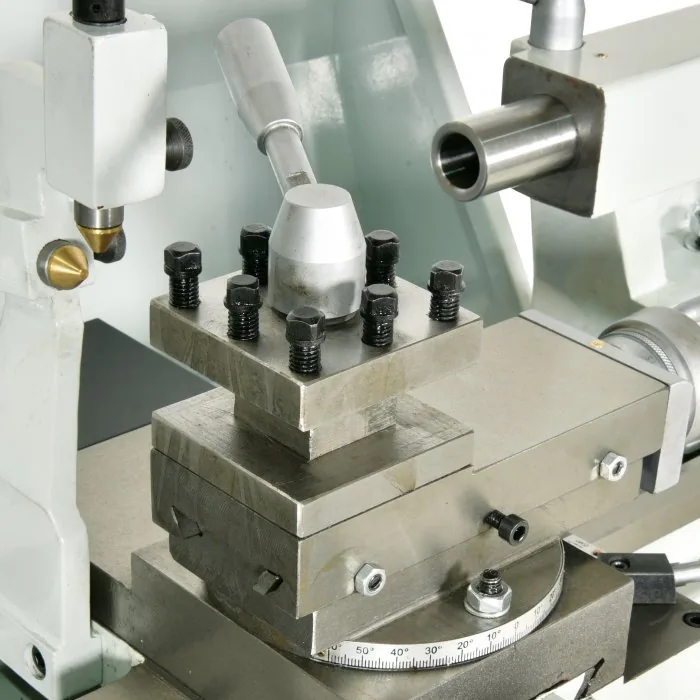

| Quick Change Toolpost Fitted | Optional |
| Tool Height To Suit (mm) | 12 |
| Centre Height (mm) | 160 |
| Spindle Nose Size or Type | Fixed |
| Bed Width (mm) | 160 |
| Headstock Spindle Taper (MT) | 5 |

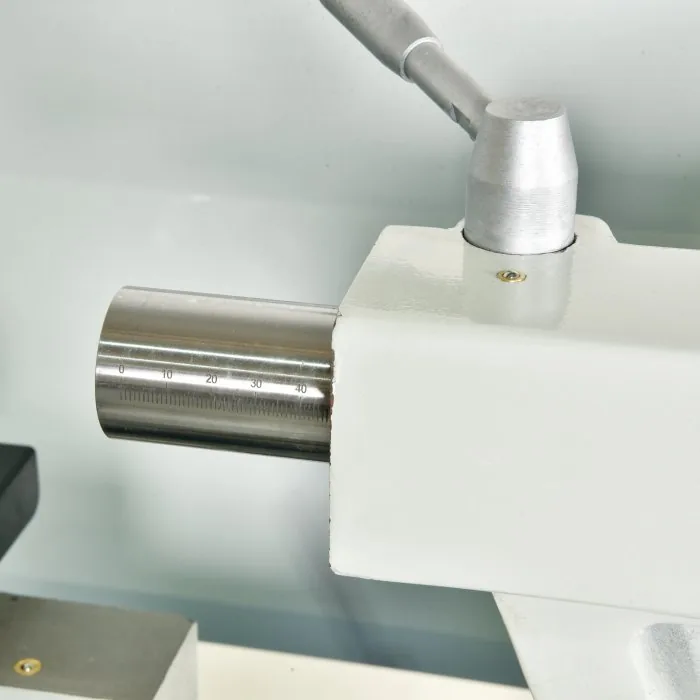

| Tailstock Taper (MT) | 3 |
| Cross Slide Travel (mm) | 150 |

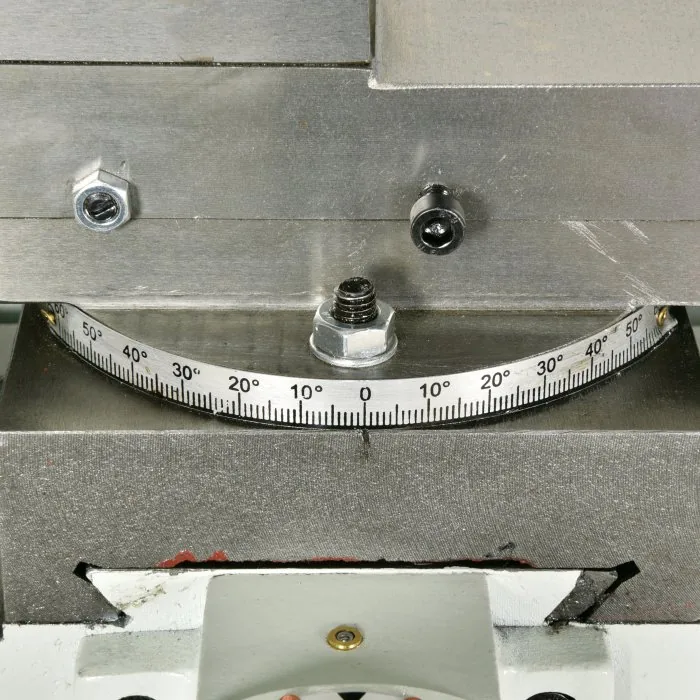

| Compound Slide Travel (mm) | 100 |
| Leadscrew Type | Metric |
| Metric Cross Feed (X-Axis) (mm/rev) | 0.022 – 0.15 |
| Metric Longitudinal Feed (Z-Axis) (mm/rev) | 0.1 – 1.4 |
| Metric Thread Steps & Pitch (No. / mm) | 11 (0.5 – 4) |
| Imperial Thread Steps & TPI (No. / TPI) | 27 (9 – 48) |
| 3 Jaw Chuck Diameter (mm) | 160 |
| 4 Jaw Chuck Diameter (mm) | 200 |
| Spindle Steps / Speeds (No. / rpm) | 12 (60 – 1600) |
| Motor Power (kW / hp) | 0.75 / 1 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 280 |
