HAFCO-METALMASTER

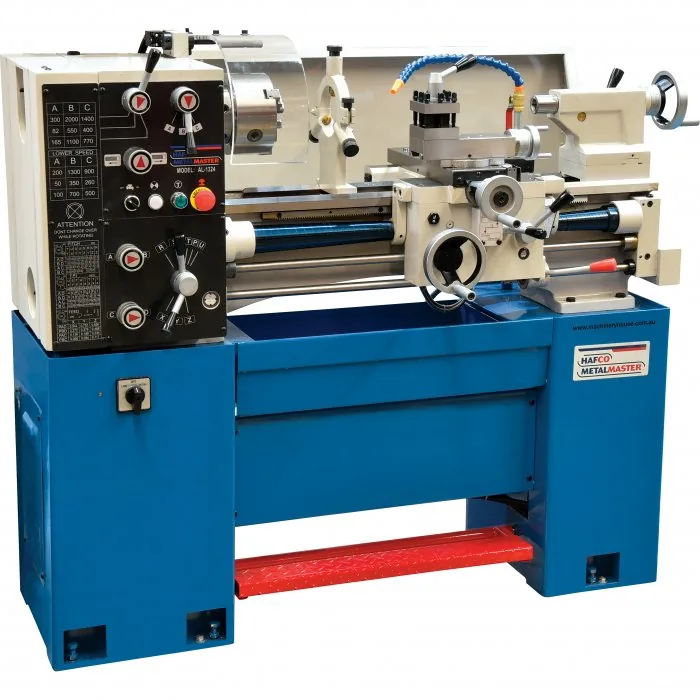

Centre Lathe — AL-1324, Ø330 x 600mm Turning Capacity – Ø40mm Spindle Bore
Part No: L201 | Barcode: 9344195025976 | Model: AL-1324

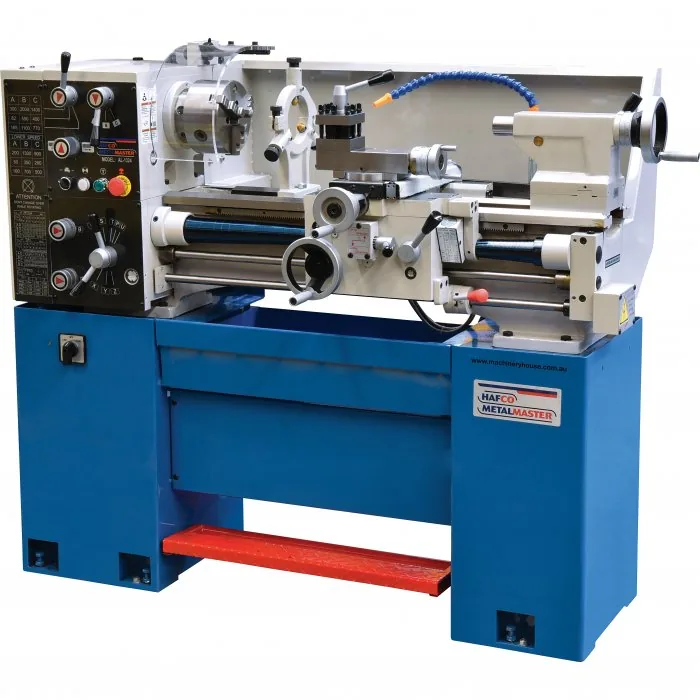

HAFCO-METALMASTER AL-1324 Centre Lathe (Ø330 x 600mm Turning Capacity – Ø40mm Spindle Bore). Available to order through Alltools Geelong for collection in store.
Model AL-1324
Swing Over Bed: 330 mm
Spindle Bore: 40 mm
Swing Over Cross-slide: 200 mm
Spindle Nose Size or Type: D1-4 Camlock
Headstock Spindle Taper: 5 MT

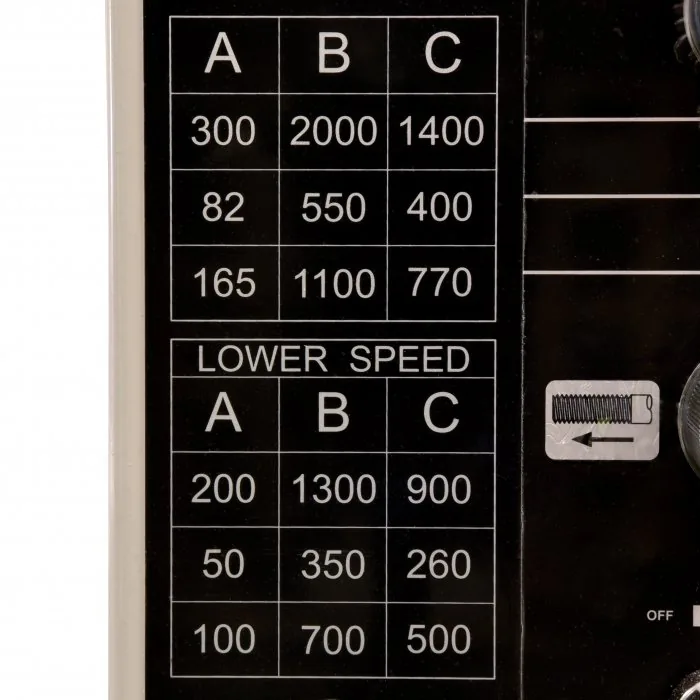

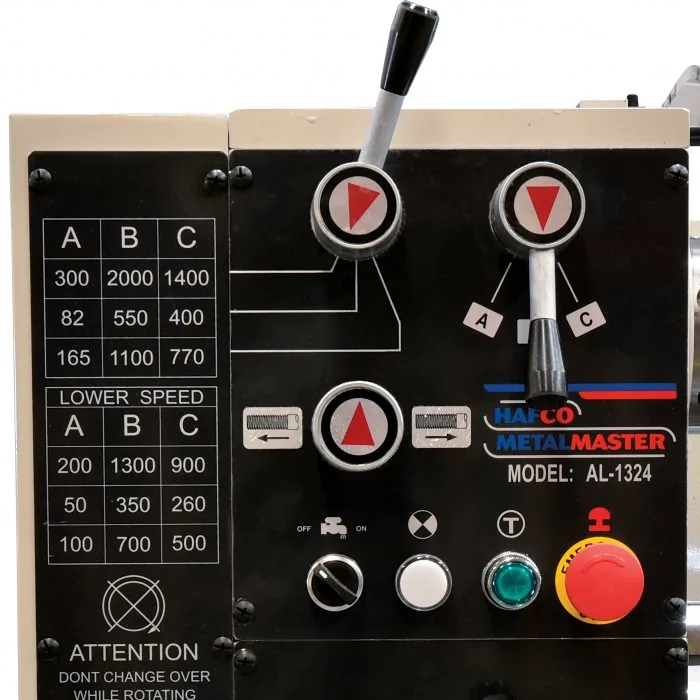

Spindle Steps / Speeds: 18 (50 – 2000)
Key Features & Benefits
- Tool room quality precision lathe, Made in Taiwan and have been sold for over 20 years
- Gear drive headstock for quick change of spindle speeds
- Nachi Japanese made bearings supporting headstock spindle
- Stand increasing rigidity and reducing vibration

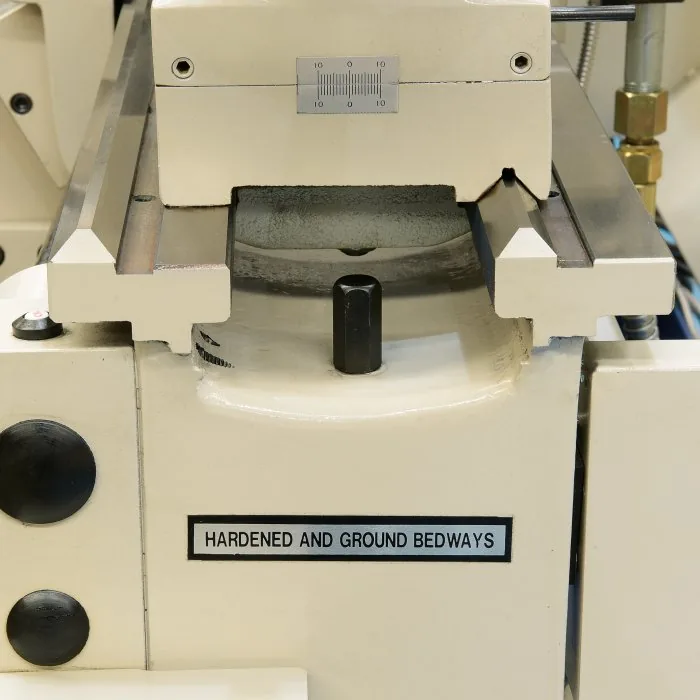

- Precision ‘V’-beds are hardened and ground, incorporating a rigid webbed casting

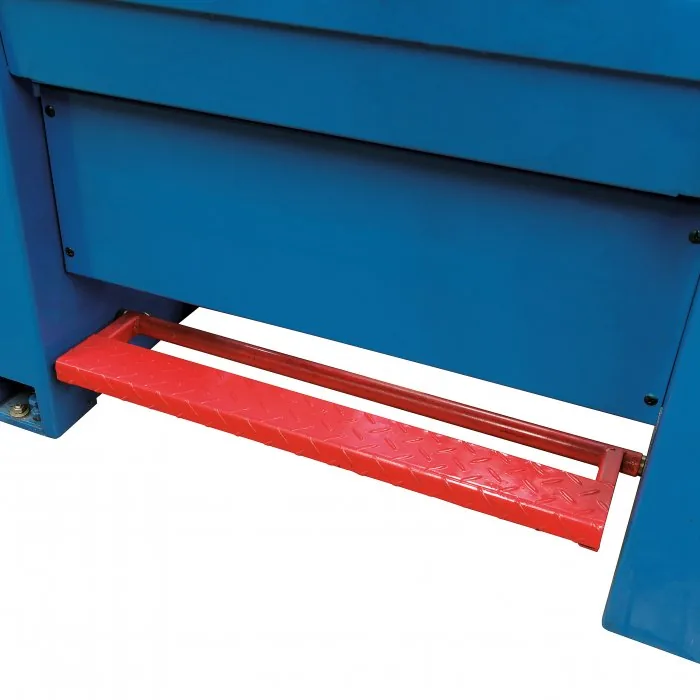

- Foot operated spindle brake with safety cut out switch

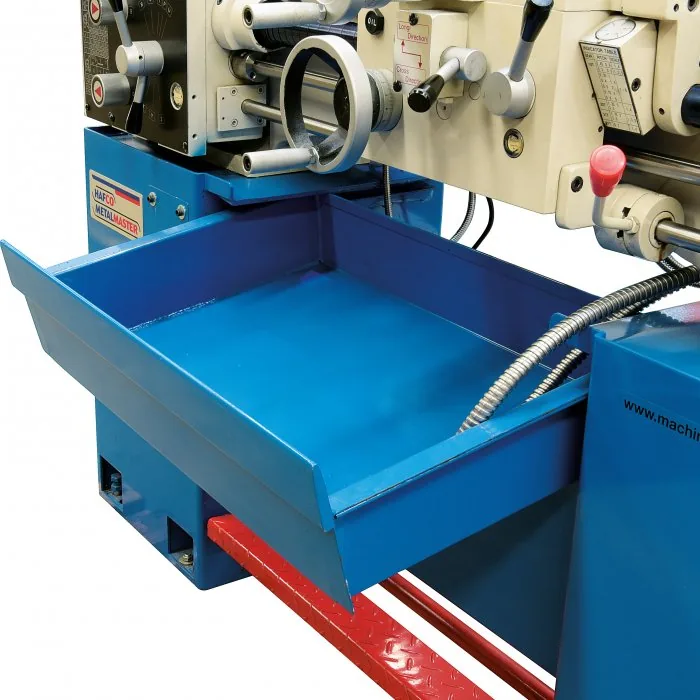

- Slide out front swarf tray for easy cleaning

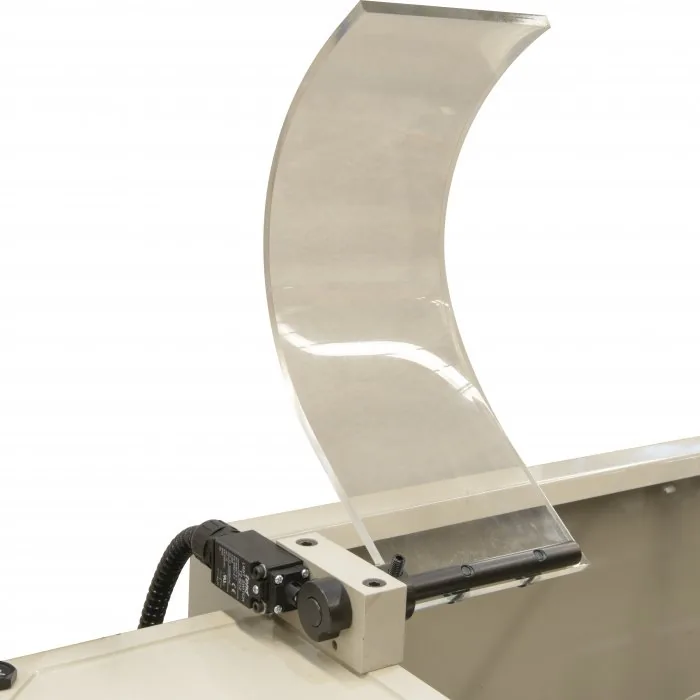

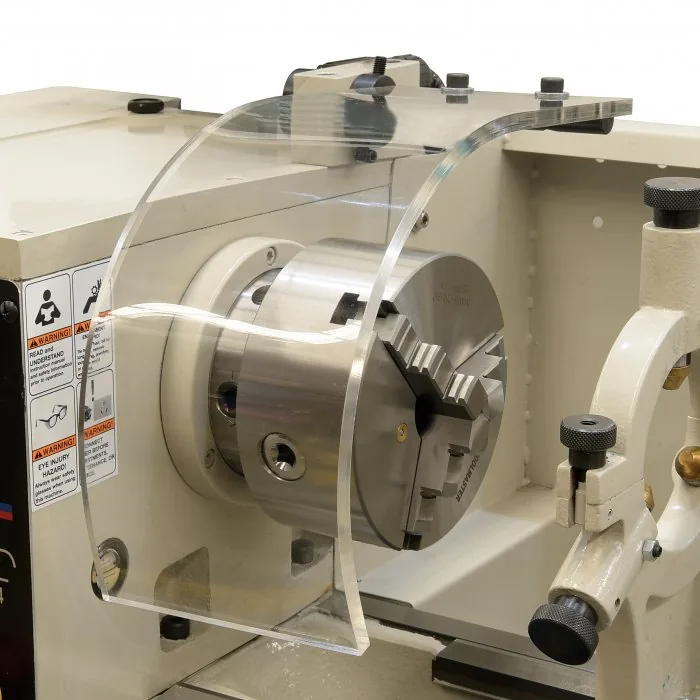

- Chuck guard fitted fitted with micro switch

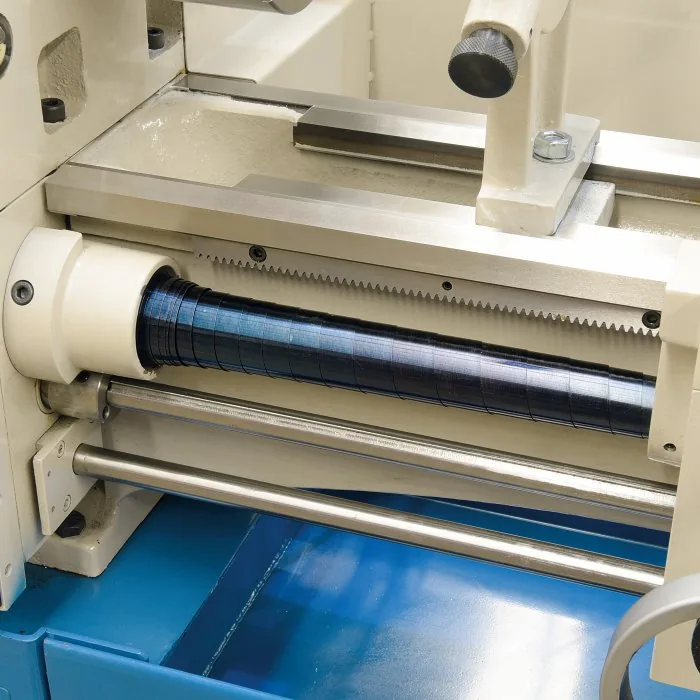

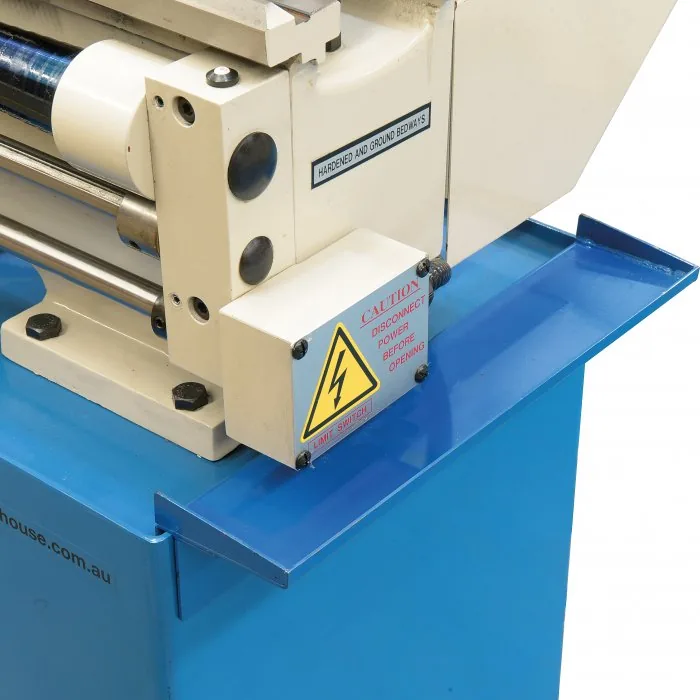

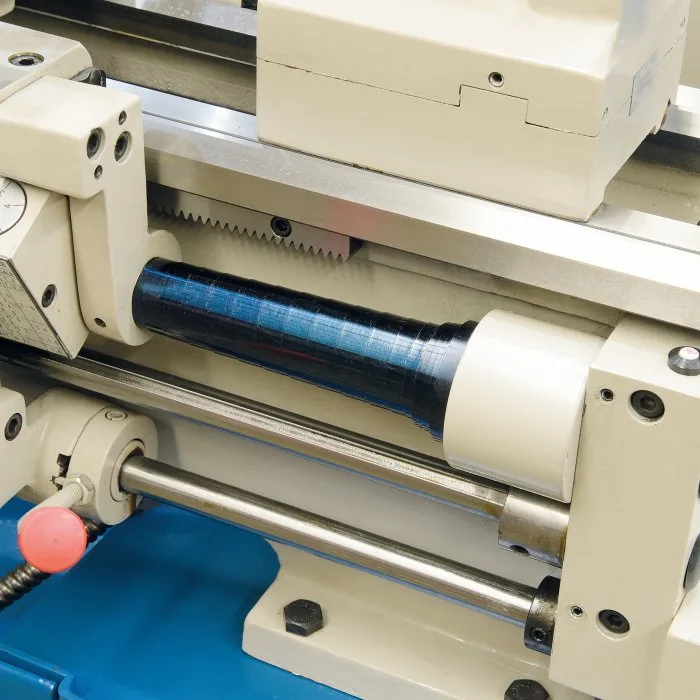

- Leadscrew cover ensures swarf not reaching clasp nut
- Change gears for metric and imperial thread cutting
- Oil sight glass for head stock and gearbox
- Adjustable taper roller bearings support the spindle

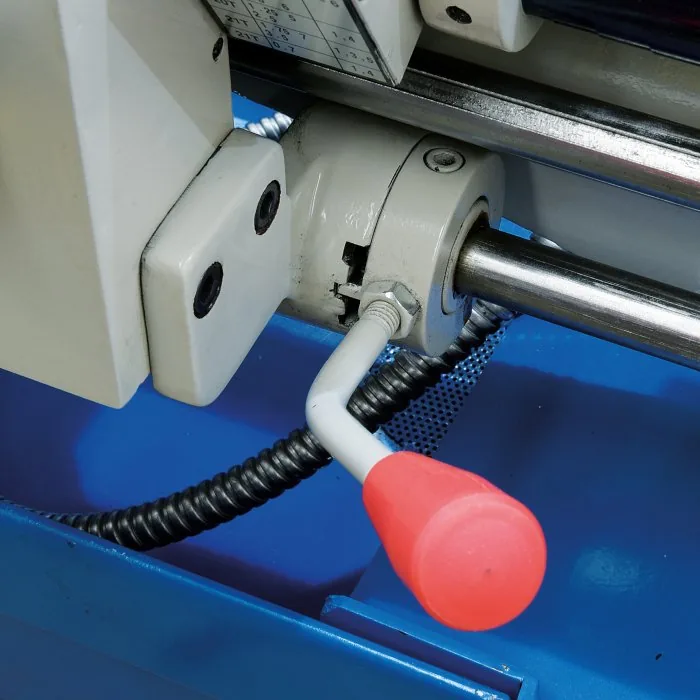

- Overload clutch mechanism on auto power feed
- Overload protection on drive motor and coolant system

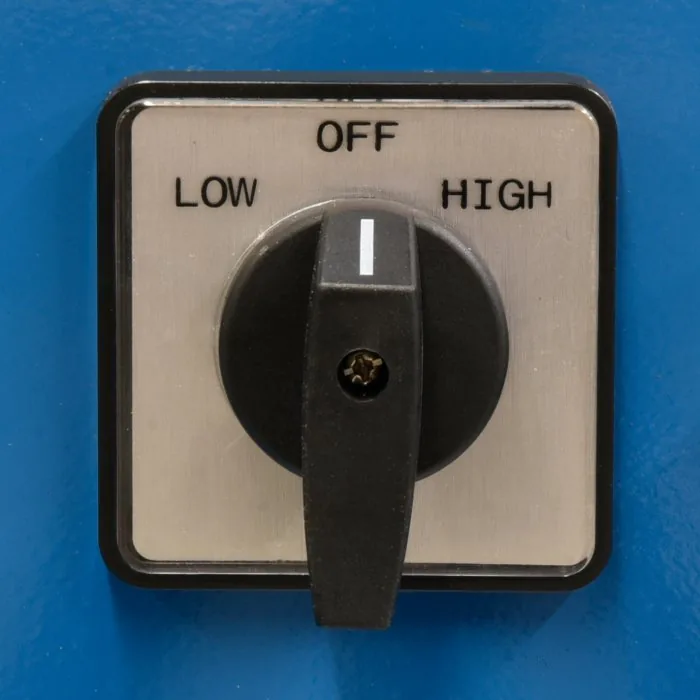

- 3HP/415V motor, 18-speed (50 – 2000rpm)

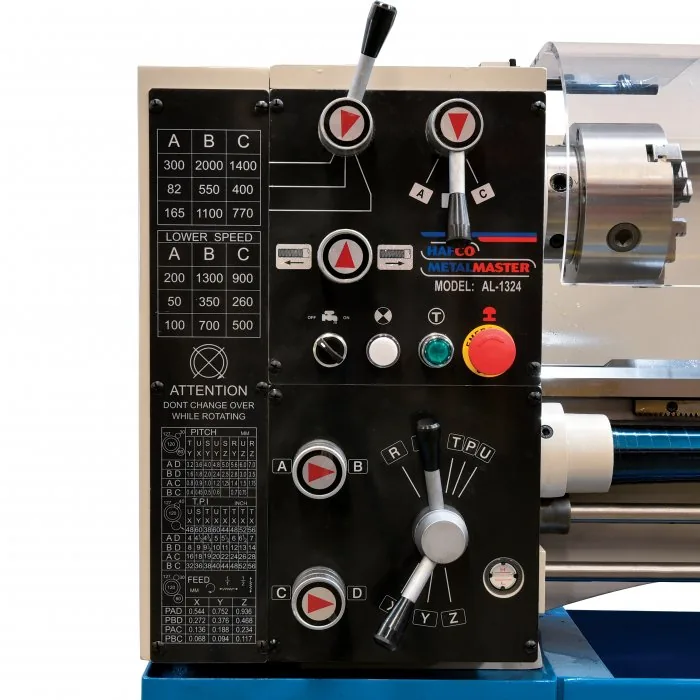

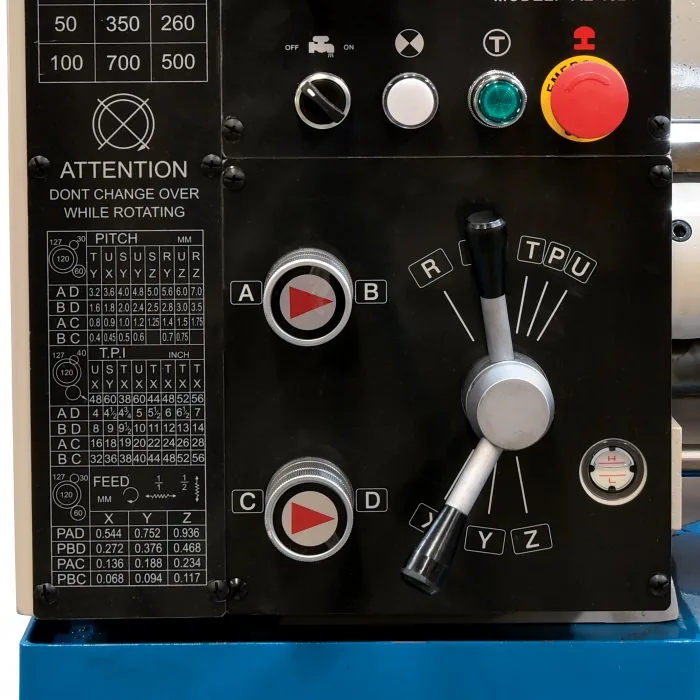

- Enclosed quick action gearbox for thread cutting and auto feeding

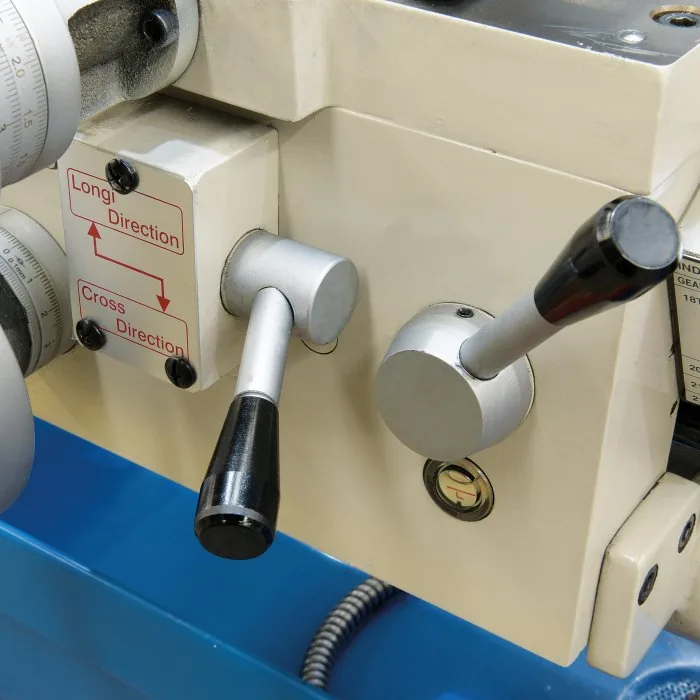

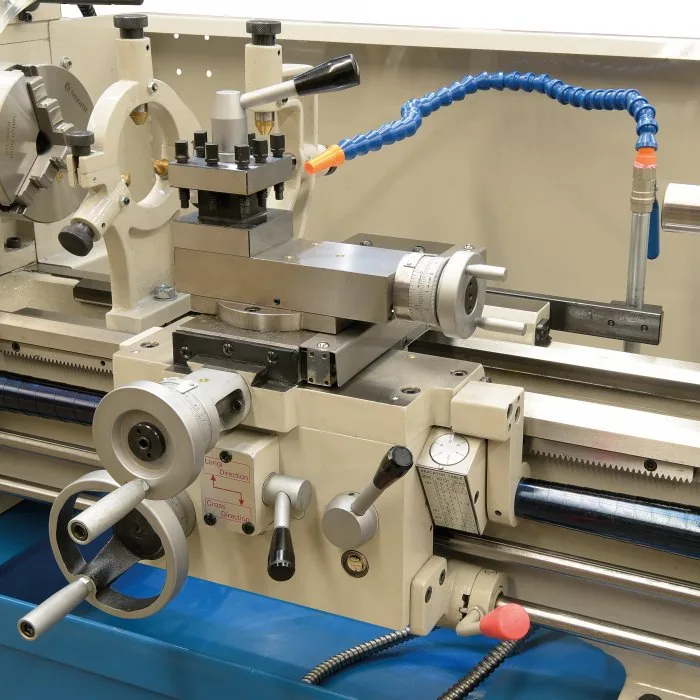

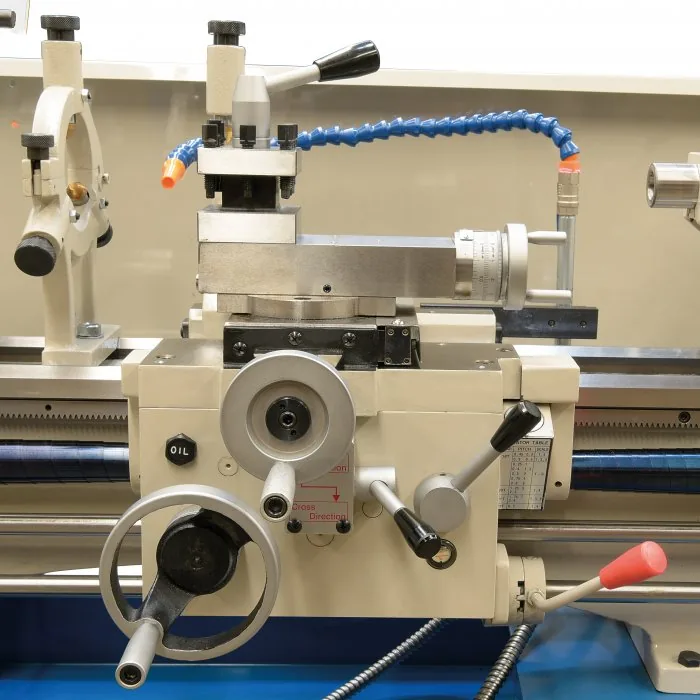

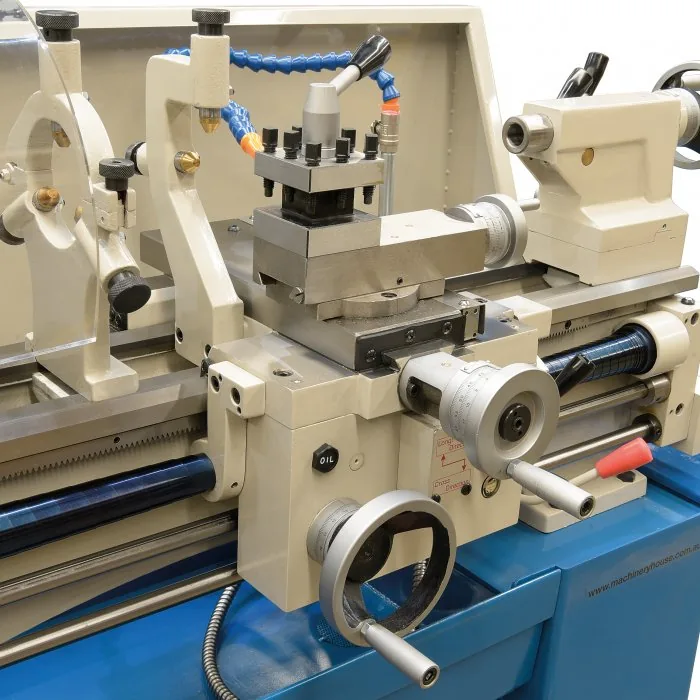

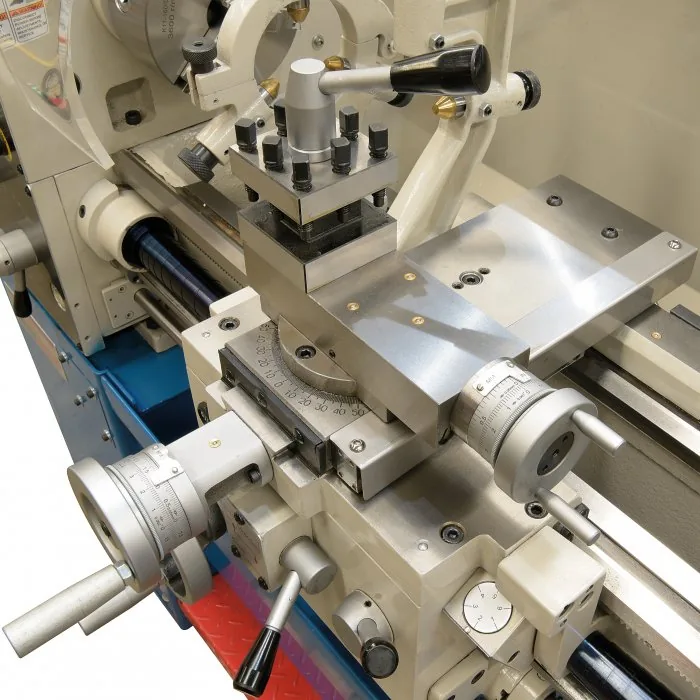

- Powered longitudinal and cross feeds
- D1-4 camlock spindle for quick chuck changes and safe reverse-direction turning. ISO standard

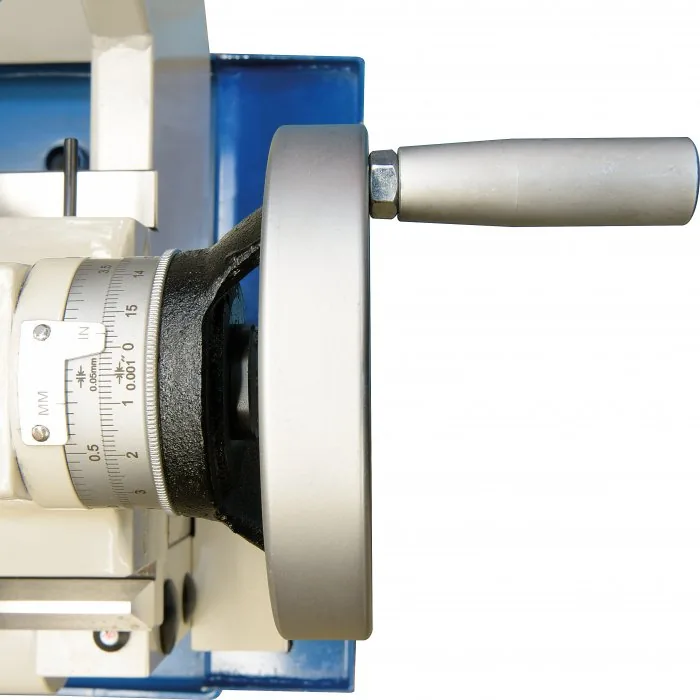

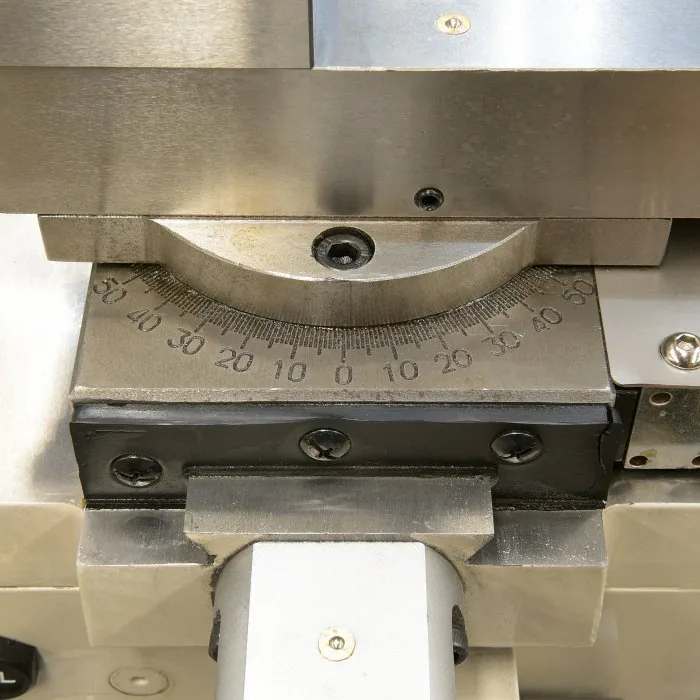

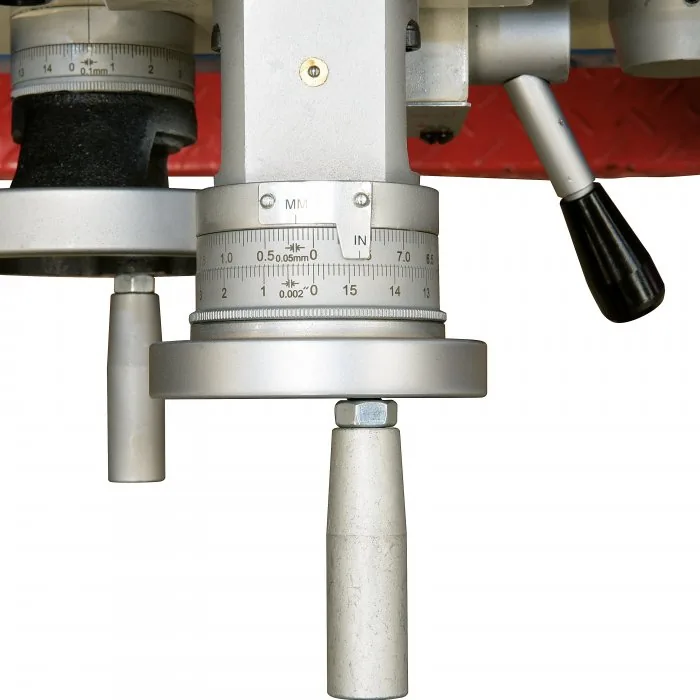

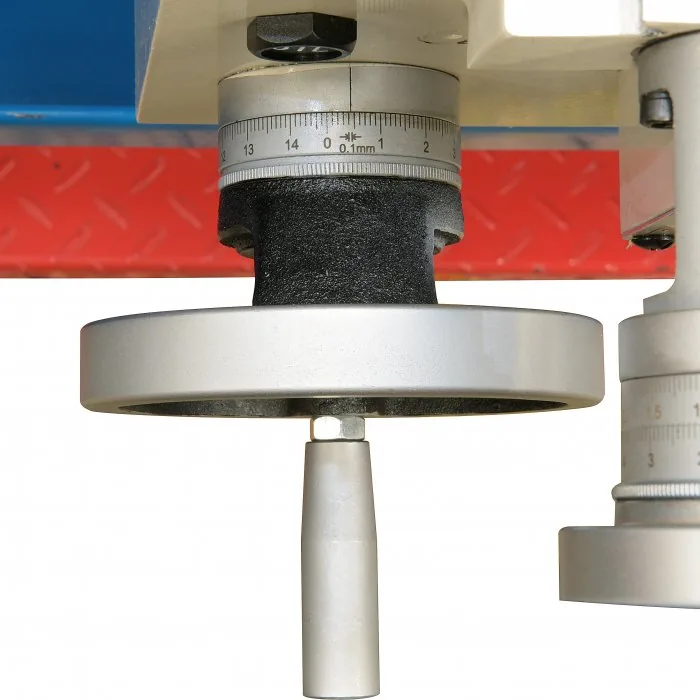

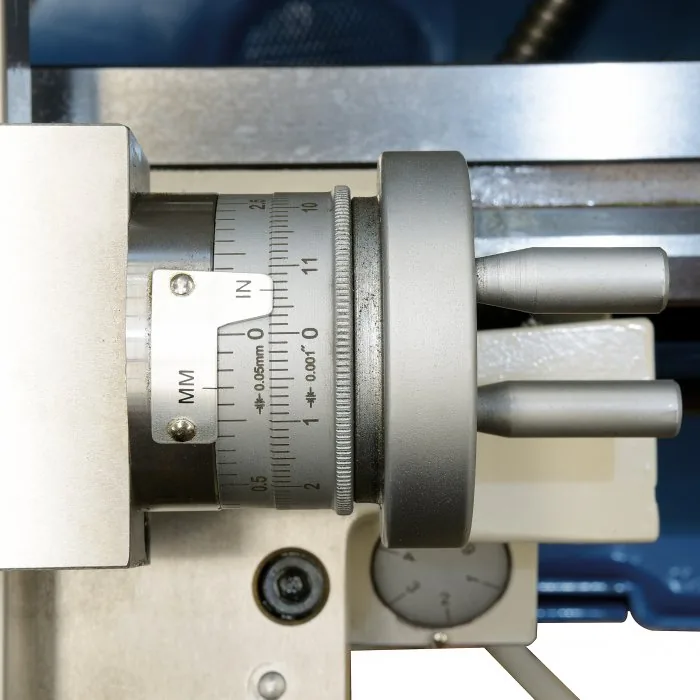

- Dual calibrated dials

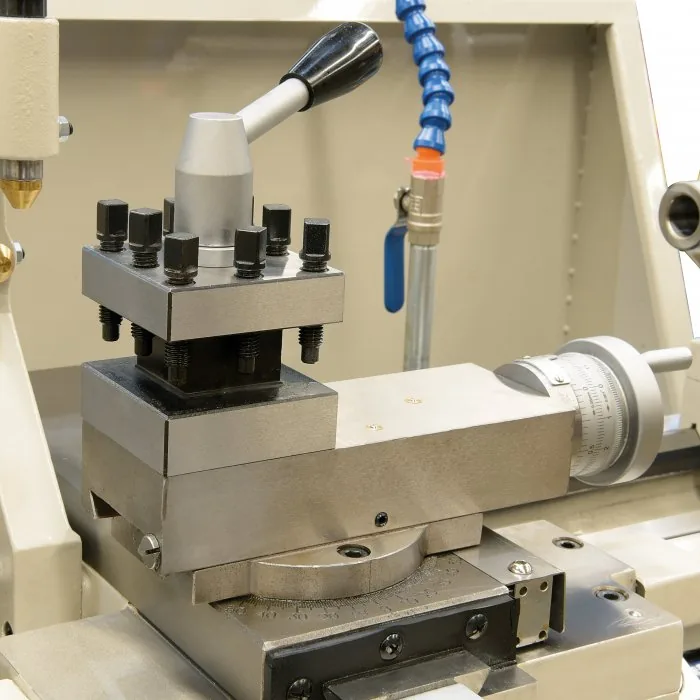

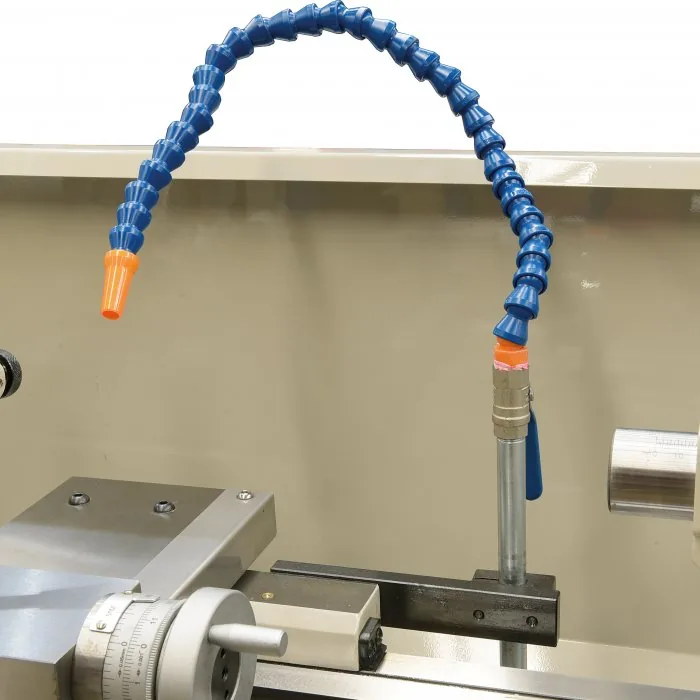

- Coolant system with flexible hose
- Slide out swarf tray
About This Product
Centre Lathe (Ø330 x 600mm Turning Capacity – Ø40mm Spindle Bore). A Hare & Forbes special-order item, available to order through Alltools Geelong (order code L201) for collection in store.
In the Box

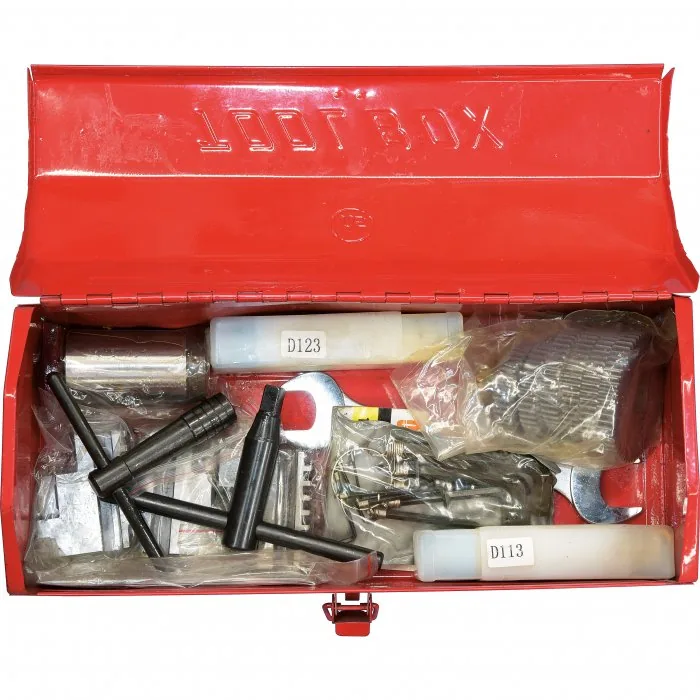

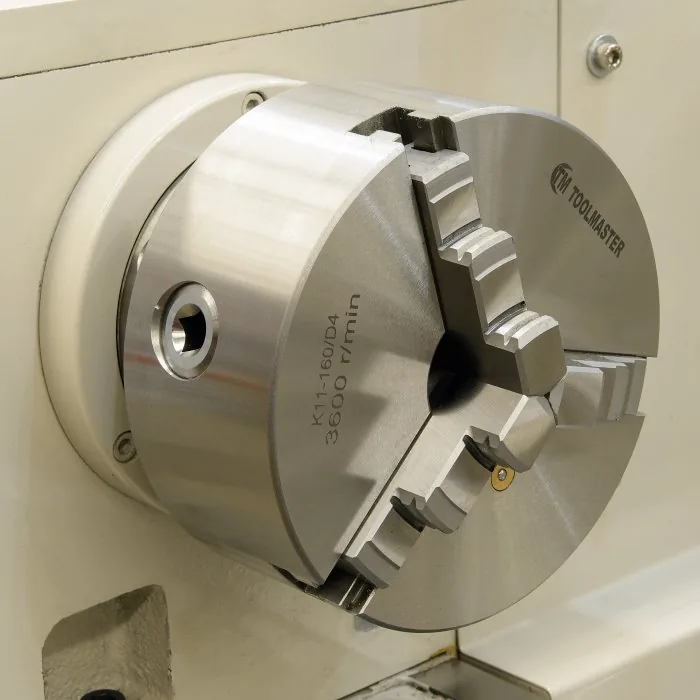

- 3-jaw chuck with reverse jaws
- 4-jaw chuck
- Faceplate

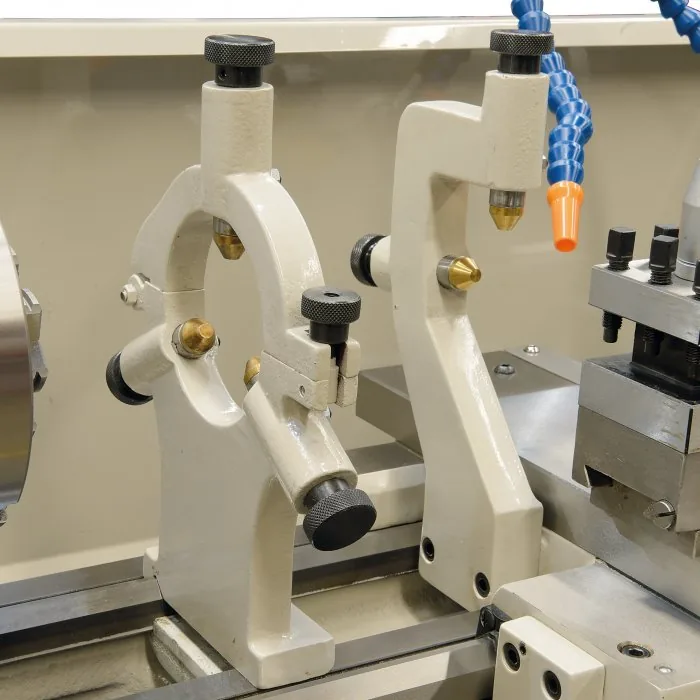

- Fixed Steady
- Travelling steady
- Chuck guard
- Concertina leadscrew covers
- Slide out front swarf tray
- Dead centre

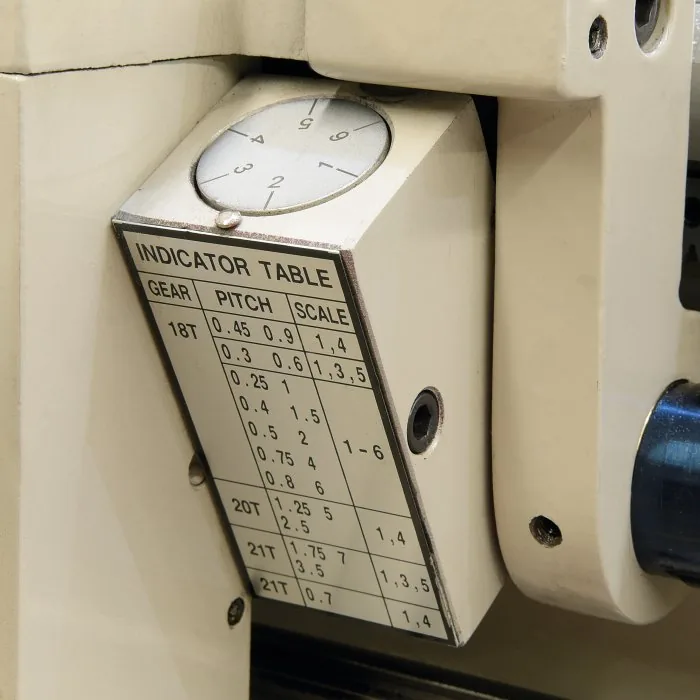

- Thread chasing dial
- Foot brake
- Coolant system
- Rear splash guard
- Instruction booklet
Product Specifications

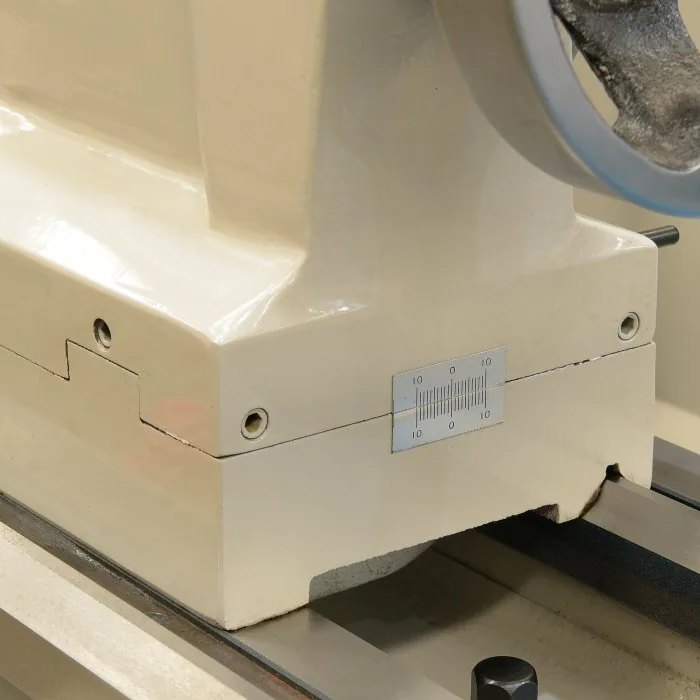

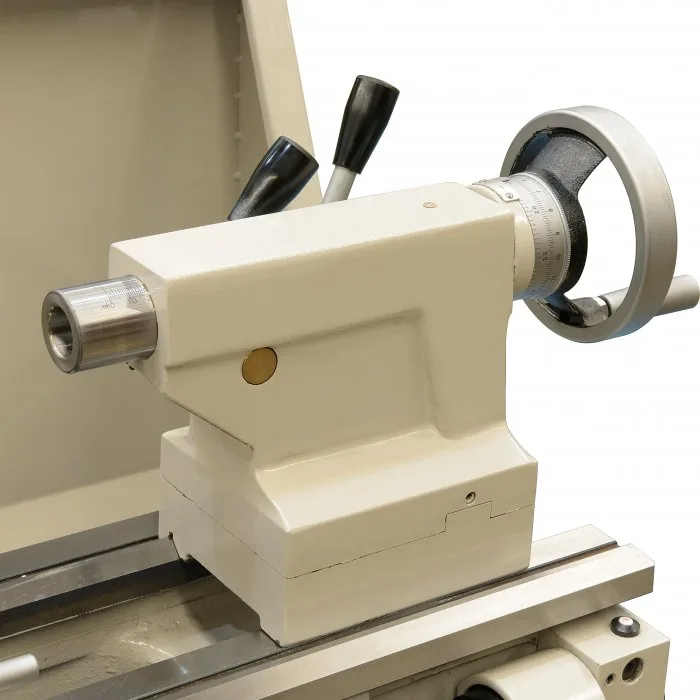

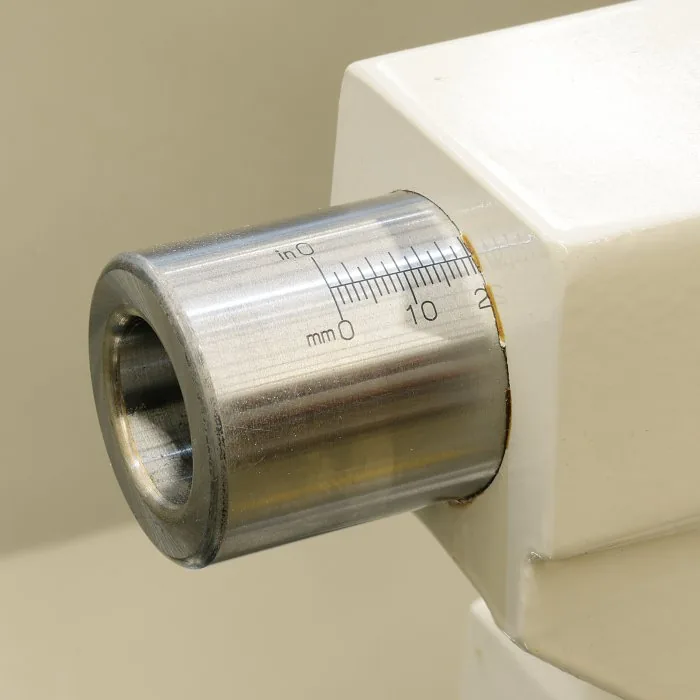

| Specification | Detail |
|---|---|
| Swing Over Bed (mm) | 330 |
| Distance Between Centres (mm) | 600 |
| Spindle Bore (mm) | 40 |
| Swing Over Cross-slide (mm) | 200 |
| Digital Readout System Fitted | Optional |
| Quick Change Toolpost Fitted | Optional |
| Leadscrew Covers Fitted | Yes |
| Taper Turning Attachment | Optional |
| Coolant System | Yes |
| Tool Height To Suit (mm) | 16 |
| Centre Height (mm) | 165 |
| Spindle Nose Size or Type | D1-4 Camlock |
| Bed Width (mm) | 190 |
| Headstock Spindle Taper (MT) | 5 |
| Tailstock Taper (MT) | 3 |
| Cross Slide Travel (mm) | 175 |
| Compound Slide Travel (mm) | 100 |
| Leadscrew Type | Metric |
| Metric Cross Feed (X-Axis) (mm/rev) | 0.034 – 0.468 |
| Metric Longitudinal Feed (Z-Axis) (mm/rev) | 0.068 – 0.936 |

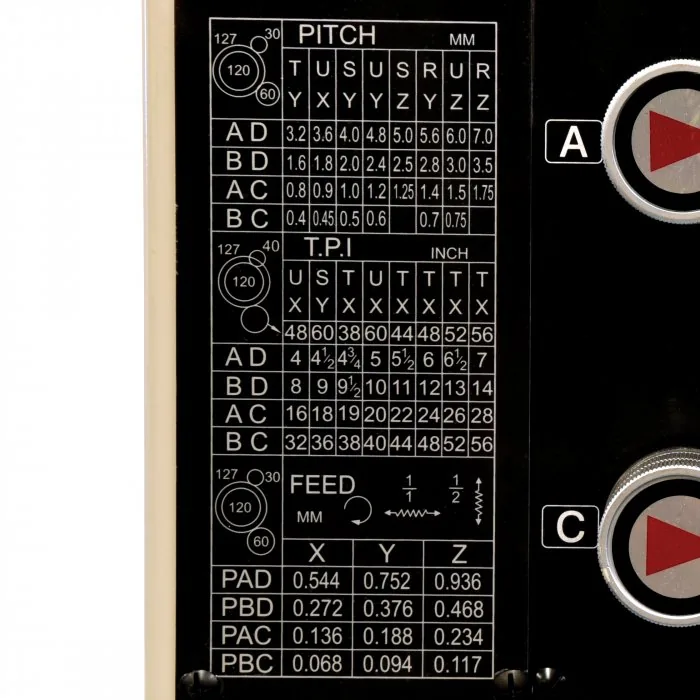

| Metric Thread Steps & Pitch (No. / mm) | 30(0.4 – 7.0) |
| Imperial Thread Steps & TPI (No. / TPI) | 32(4 – 56) |
| 3 Jaw Chuck Diameter (mm) | 160 |
| 4 Jaw Chuck Diameter (mm) | 200 |
| Spindle Steps / Speeds (No. / rpm) | 18 (50 – 2000) |
| Motor Power (kW / hp) | 2.25 / 3 |
| Voltage / Amperage (V / amp) | 415 |
| Nett Weight (kg) | 580 |
