Milwaukee

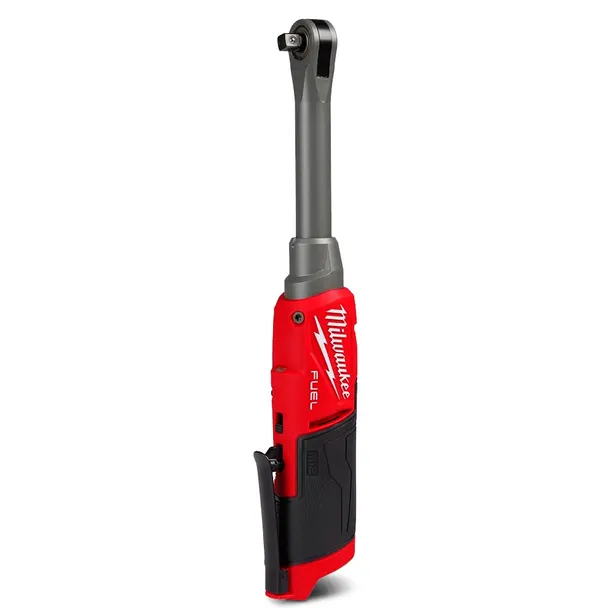

M12FHIR38LR0 FUEL High Speed Extended Reach Ratchet 3/8in 12V
Part No: M12FHIR38LR0 | Barcode: 4892210223722
M12 FUEL brushless high-speed extended reach ratchet with 3/8-inch drive. Delivers 47.5Nm of torque at 450 RPM — over twice the free speed of the standard extended reach ratchet. The 19mm low-profile head and extended neck reach behind panels and into engine bays. Recessed forward/reverse shift knob prevents accidental direction changes.
M12 FUEL
Brushless
3/8″ Drive
450 RPM
Extended Reach
19 mm Head
Suitable For
Automotive
Production Lines
Engine Bays
Deep Recesses
Key Features & Benefits
- 450 RPM high speed — more than double the 200 RPM of the standard extended reach ratchet, drastically reducing run-down time on long-thread fasteners and repetitive bolt sequences.

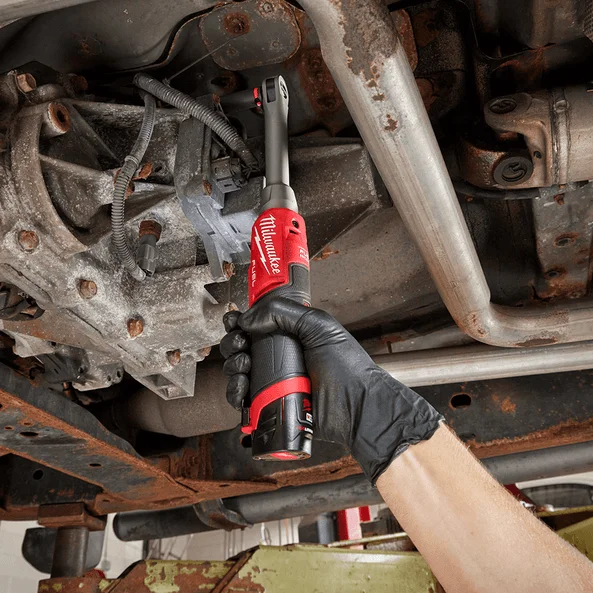

- Extended reach neck — gets past engine covers, intake manifolds, and body panels without extension bars that introduce wobble and reduce torque transfer.
- 47.5Nm torque — enough to break free most automotive service fasteners while remaining controllable for trim and electrical panel screws.
- 19mm low-profile head — fits into clearances under 20mm between components, hoses, and wiring looms where conventional ratchet heads would not pass.
- Recessed F/R shift knob — sits below the profile of the tool body so it cannot be bumped into reverse accidentally when working in tight spaces.
- FUEL brushless motor — delivers consistent speed and torque throughout the battery charge cycle without the gradual slowdown of brushed motors.
Speed Where It Counts
The high-speed variant is built for technicians who run down dozens or hundreds of fasteners per shift — production line assembly, fleet servicing, or heavy equipment maintenance. The 450 RPM free speed cuts run-down time in half compared to the standard 200 RPM extended reach ratchet, while the extended neck still reaches the fasteners that compact ratchets cannot.
Authorised Australian Dealer — This product is sourced directly from Milwaukee Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Type | Drive | Torque | Speed | Head Profile | Length |
|---|---|---|---|---|---|---|
| M12IR-0 | Impact Ratchet | 3/8″ | 47 Nm | 250 RPM | — | Standard |
| M12FIR12-0 | FUEL Impact Ratchet | 1/2″ | 81 Nm | 200 RPM | — | Standard |
| M12FIR38-0 | FUEL Impact Ratchet | 3/8″ | 75 Nm | 200 RPM | 19 mm | 281 mm |
| M12FIR38LR-O | FUEL Extended Ratchet | 3/8″ | 75 Nm | 200 RPM | 19.3 mm | 363 mm |
| M12FHIR38LR0 ★ | FUEL High Speed Ext. | 3/8″ | 47.5 Nm | 450 RPM | 19 mm | Extended |
| M12FPTR-0 | FUEL Pass-Through | 3/8″ + 1/2″ + 1/4″ | 81 Nm | 350 RPM | 21.45 mm | 386 mm |
