Milwaukee

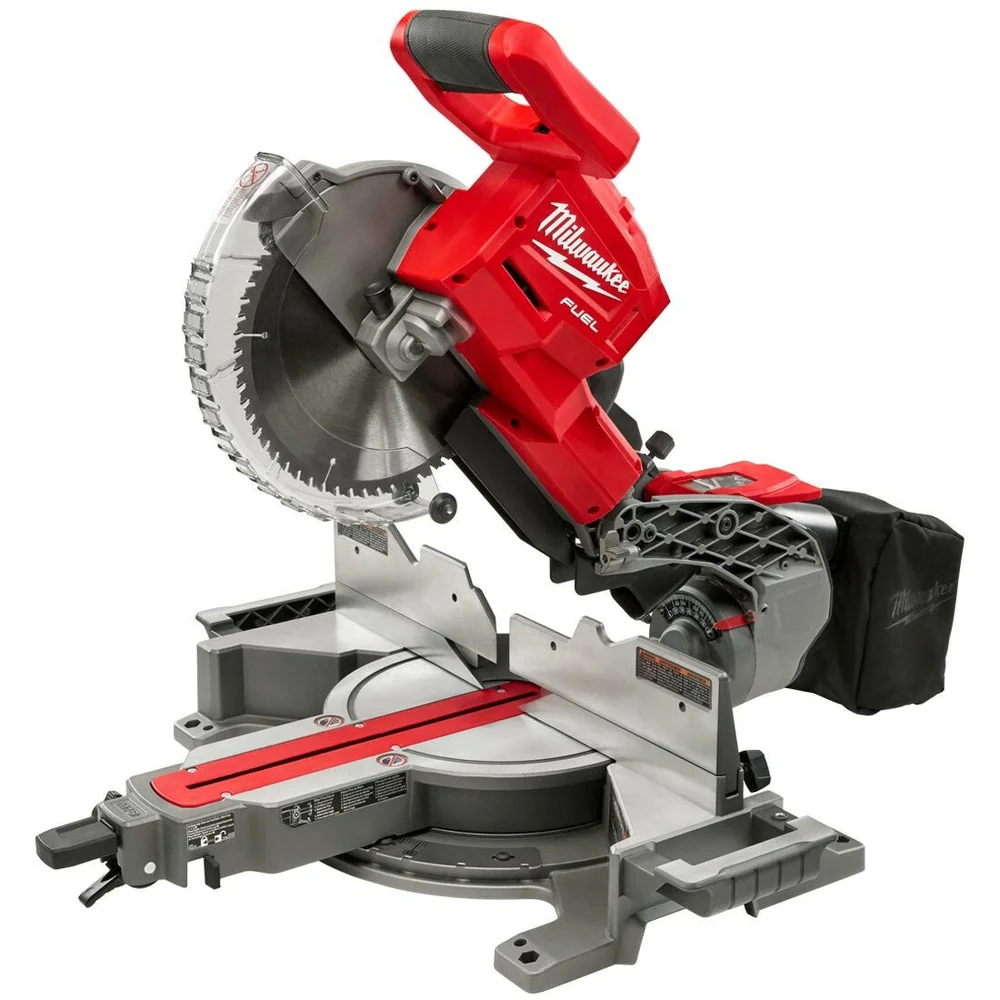

M18FMS254-0 M18 FUEL 254mm Dual Bevel Sliding Compound Mitre Saw
Part No: M18FMS254-0 | Barcode: 4892210149138
Full-size M18 FUEL brushless 254mm sliding compound mitre saw with dual bevel capability and 91mm vertical cutting capacity. The POWERSTATE motor delivers 4,000 RPM with up to 430 cuts per charge on a 12.0 Ah battery. Handles 90×140 framing timber and 76x305mm boards flat.
M18 FUEL
254mm Blade
Dual Bevel 48°/48°
4,000 RPM
91mm Cut Depth
430+ Cuts/Charge
Suitable For
Timber Framing
Decking
Crown Moulding
Rafters
Structural Carpentry
Key Features & Benefits
- 254mm blade with 91mm vertical cut — handles full-size framing timber including 90×140 studs standing against the fence, covering the widest range of carpentry cuts.
- 76x305mm horizontal capacity — cuts wide boards and decking planks flat on the table without repositioning, reducing setup time on repetitive deck cuts.
- Dual bevel 48°/48° — bevel both directions for compound angle cuts on rafters and crown moulding without flipping the workpiece.
- POWERSTATE brushless motor — delivers 2x longer motor life and 25% more power than brushed equivalents with consistent cutting performance through hardwoods.
- REDLINK PLUS intelligence — digital overload protection prevents motor damage in demanding cuts, extending tool life on heavy framing jobs.
- 430+ cuts per charge — a 12.0 Ah battery handles a full day of framing without battery swaps for true corded-replacement performance.
When to Use This Saw
The M18FMS254-0 is the full-size option for structural carpentry and framing where the 184mm M18FMS184-0 lacks the cutting capacity. Choose this model when regularly cutting 90×140 or wider framing timber, full-width decking boards, and compound angle rafters. At 21.3 kg it is heavier than the 184mm model but delivers the cutting capacity of a corded 254mm saw with cordless mobility for site work.
Authorised Australian Dealer — This product is sourced directly from Milwaukee Tool Australia and is backed by full Australian manufacturer warranty and local support.
Product Specifications
| Part No. | Blade Size | Vertical Cap. | Horizontal Cap. | Bevel | Speed | Weight |
|---|---|---|---|---|---|---|
| M18FMS184-0 | 184mm | 89mm | 50x203mm | 48°/48° | 5,000 RPM | 11.74 kg |
| M18FMS254-0 ★ | 254mm | 91mm | 76x305mm | 48°/48° | 4,000 RPM | 21.3 kg |
★ You are viewing the highlighted variant. Other models in this series are also available.
