Description

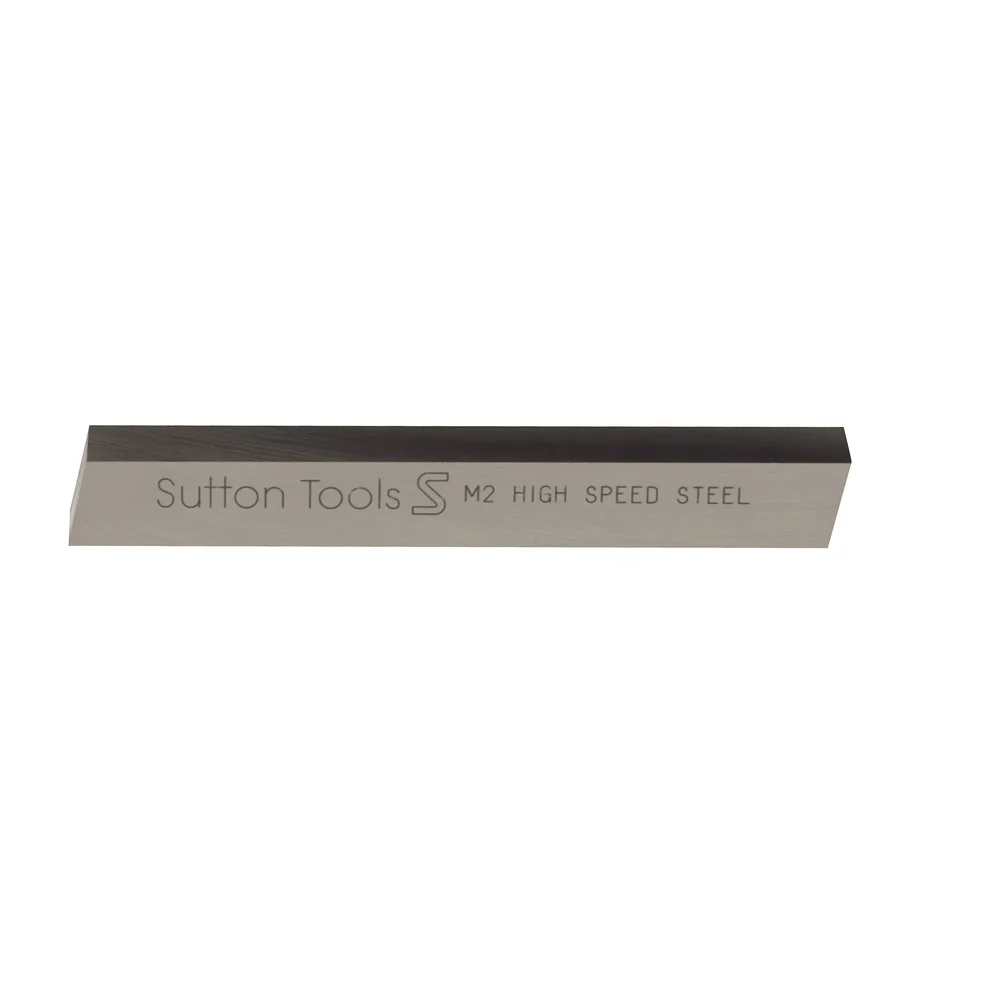

Sutton Tecmax M2 HSS Square Tool Bit — 1/4″ Square, 63mm
Part No: M3010632 | Barcode: 9311963121314 | Series: M301 Tecmax
Sutton Tools M301 tecmax m2 hss square tool bit blank in 1/4″ square section, 63mm long. Made in Australia from M2 HSS, ground square and ready to grind to your preferred turning, facing or parting profile.
63mm long
M2 HSS
Series M301
Made in Australia
For Manual Lathes
Key Features & Benefits
- Australian-made HSS blank. Manufactured at Sutton’s Thomastown facility — consistent quality and dimensional accuracy across the run.
- M2 HSS body. M2 high-speed steel for proven turning performance on common workpieces — grinds to a clean cutting edge and holds it through long production runs.
- Precision-ground square section. Square-ground 1/4″ blank seats flat in any matching tool holder for repeatable centre-height setup.
- Grind-to-suit blank. Supplied unground so you can shape it for turning, facing, parting, threading or form work as the job demands.
- 63mm working length. Enough material for repeated regrinds without becoming too short to clamp securely.
When to Use This Tool Bit
Reach for this 1/4″ square blank when you need to grind a custom turning, facing or parting tool for your engineering or hobby lathe. Best matched to a tool holder accepting 1/4″ square shanks. The M2 grade suits the everyday metalworking jobs typical of a manual lathe — free-machining and low-alloy steels, brass, aluminium, cast iron and most non-ferrous metals.
Product Specifications
| Part No. | Shape | Size | Length | Grade | Series |
|---|---|---|---|---|---|
| M3000273 | Round | 1/16″ | 50mm | M2 HSS | M300 Tecmax |
| M3000313 | Round | 1/8″ | 75mm | M2 HSS | M300 Tecmax |
| M3000353 | Round | 5/32″ | 75mm | M2 HSS | M300 Tecmax |
| M3000474 | Round | 3/16″ | 100mm | M2 HSS | M300 Tecmax |
| M3000632 | Round | 1/4″ | 100mm | M2 HSS | M300 Tecmax |
| M3000793 | Round | 5/16″ | 100mm | M2 HSS | M300 Tecmax |
| M3000953 | Round | 3/8″ | 100mm | M2 HSS | M300 Tecmax |
| M3001274 | Round | 1/2″ | 100mm | M2 HSS | M300 Tecmax |
| M3010472 | Square | 3/16″ | 63mm | M2 HSS | M301 Tecmax |
| M3010632 ★ | Square | 1/4″ | 63mm | M2 HSS | M301 Tecmax |
| M3010793 | Square | 5/16″ | 63mm | M2 HSS | M301 Tecmax |
| M3010953 | Square | 3/8″ | 75mm | M2 HSS | M301 Tecmax |
| M3011114 | Square | 7/16″ | 100mm | M2 HSS | M301 Tecmax |
| M3011274 | Square | 1/2″ | 100mm | M2 HSS | M301 Tecmax |
| M3011593 | Square | 5/8″ | 100mm | M2 HSS | M301 Tecmax |
| M3011913 | Square | 3/4″ | 150mm | M2 HSS | M301 Tecmax |
| M3020472 | Square | 3/16″ | 63mm | M42 HSS-Co | M302 Supermax |
| M3020632 | Square | 1/4″ | 63mm | M42 HSS-Co | M302 Supermax |
| M3020793 | Square | 5/16″ | 75mm | M42 HSS-Co | M302 Supermax |
| M3020953 | Square | 3/8″ | 75mm | M42 HSS-Co | M302 Supermax |
| M3021274 | Square | 1/2″ | 100mm | M42 HSS-Co | M302 Supermax |
★ You are viewing the highlighted variant. Note: M300 series is round, M301 is square M2 HSS, M302 is square M42 HSS-Cobalt for harder workpieces.
Browse our full range of tool steel and lathe tool bits at Alltools Geelong.
