Description

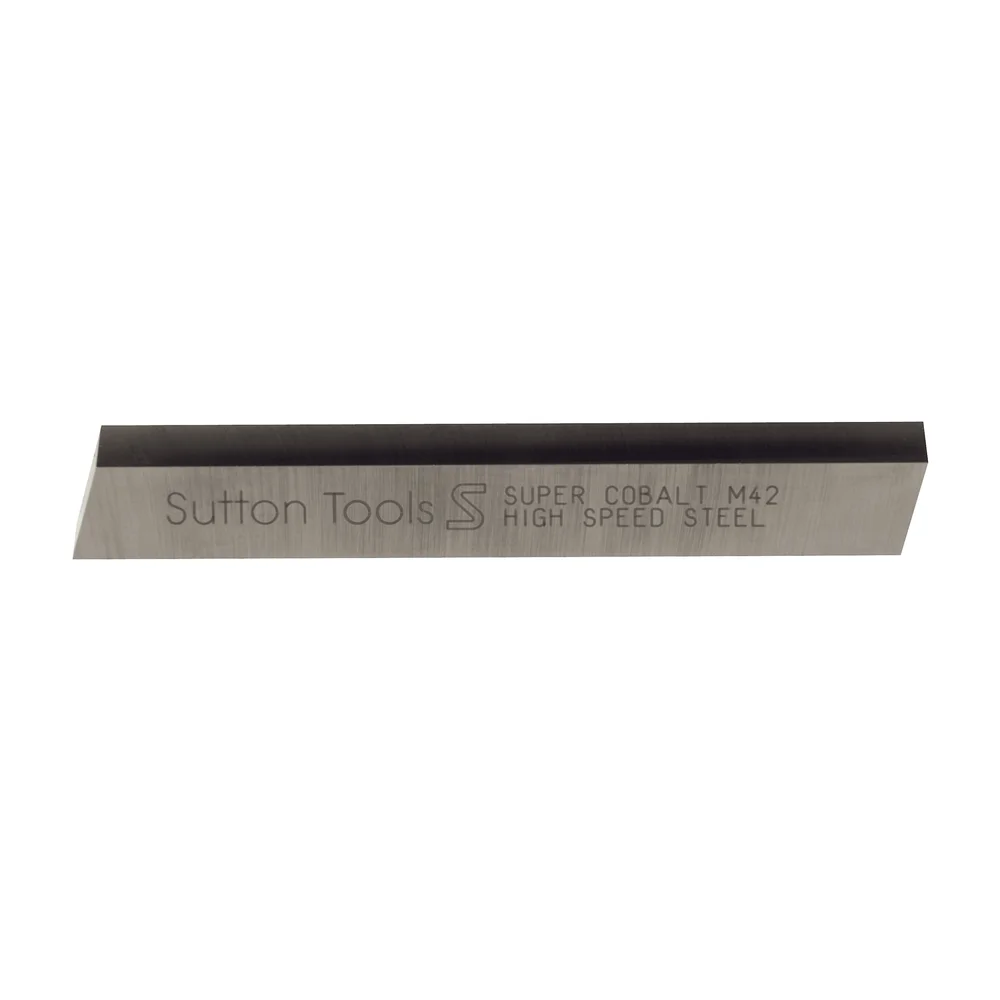

Sutton Supermax M42 HSS-Cobalt Square Tool Bit — 5/16″ Square, 75mm
Part No: M3020793 | Barcode: 9311963121116 | Series: M302 Supermax
Sutton Tools M302 supermax m42 hss-cobalt square tool bit blank in 5/16″ square section, 75mm long. Made in Australia from M42 HSS-Co, ground square and ready to grind to your preferred turning, facing or parting profile.
75mm long
M42 HSS-Co
Series M302
Made in Australia
For Manual Lathes
Key Features & Benefits
- Australian-made HSS blank. Manufactured at Sutton’s Thomastown facility — consistent quality and dimensional accuracy across the run.
- M42 HSS-Co body. M42 HSS-Cobalt for higher heat resistance and tougher workpieces — grinds to a clean cutting edge and holds it through long production runs.
- Precision-ground square section. Square-ground 5/16″ blank seats flat in any matching tool holder for repeatable centre-height setup.
- Grind-to-suit blank. Supplied unground so you can shape it for turning, facing, parting, threading or form work as the job demands.
- 75mm working length. Enough material for repeated regrinds without becoming too short to clamp securely.
When to Use This Tool Bit
Reach for this 5/16″ square blank when you need to grind a custom turning, facing or parting tool for your engineering or hobby lathe. Best matched to a tool holder accepting 5/16″ square shanks. The M42 cobalt grade is the right pick when cutting stainless, tool steels, or any workpiece that runs hot or work-hardens — it holds its edge where plain HSS would burn out.
Product Specifications
| Part No. | Shape | Size | Length | Grade | Series |
|---|---|---|---|---|---|
| M3000273 | Round | 1/16″ | 50mm | M2 HSS | M300 Tecmax |
| M3000313 | Round | 1/8″ | 75mm | M2 HSS | M300 Tecmax |
| M3000353 | Round | 5/32″ | 75mm | M2 HSS | M300 Tecmax |
| M3000474 | Round | 3/16″ | 100mm | M2 HSS | M300 Tecmax |
| M3000632 | Round | 1/4″ | 100mm | M2 HSS | M300 Tecmax |
| M3000793 | Round | 5/16″ | 100mm | M2 HSS | M300 Tecmax |
| M3000953 | Round | 3/8″ | 100mm | M2 HSS | M300 Tecmax |
| M3001274 | Round | 1/2″ | 100mm | M2 HSS | M300 Tecmax |
| M3010472 | Square | 3/16″ | 63mm | M2 HSS | M301 Tecmax |
| M3010632 | Square | 1/4″ | 63mm | M2 HSS | M301 Tecmax |
| M3010793 | Square | 5/16″ | 63mm | M2 HSS | M301 Tecmax |
| M3010953 | Square | 3/8″ | 75mm | M2 HSS | M301 Tecmax |
| M3011114 | Square | 7/16″ | 100mm | M2 HSS | M301 Tecmax |
| M3011274 | Square | 1/2″ | 100mm | M2 HSS | M301 Tecmax |
| M3011593 | Square | 5/8″ | 100mm | M2 HSS | M301 Tecmax |
| M3011913 | Square | 3/4″ | 150mm | M2 HSS | M301 Tecmax |
| M3020472 | Square | 3/16″ | 63mm | M42 HSS-Co | M302 Supermax |
| M3020632 | Square | 1/4″ | 63mm | M42 HSS-Co | M302 Supermax |
| M3020793 ★ | Square | 5/16″ | 75mm | M42 HSS-Co | M302 Supermax |
| M3020953 | Square | 3/8″ | 75mm | M42 HSS-Co | M302 Supermax |
| M3021274 | Square | 1/2″ | 100mm | M42 HSS-Co | M302 Supermax |
★ You are viewing the highlighted variant. Note: M300 series is round, M301 is square M2 HSS, M302 is square M42 HSS-Cobalt for harder workpieces.
