Description
TOOLMASTER

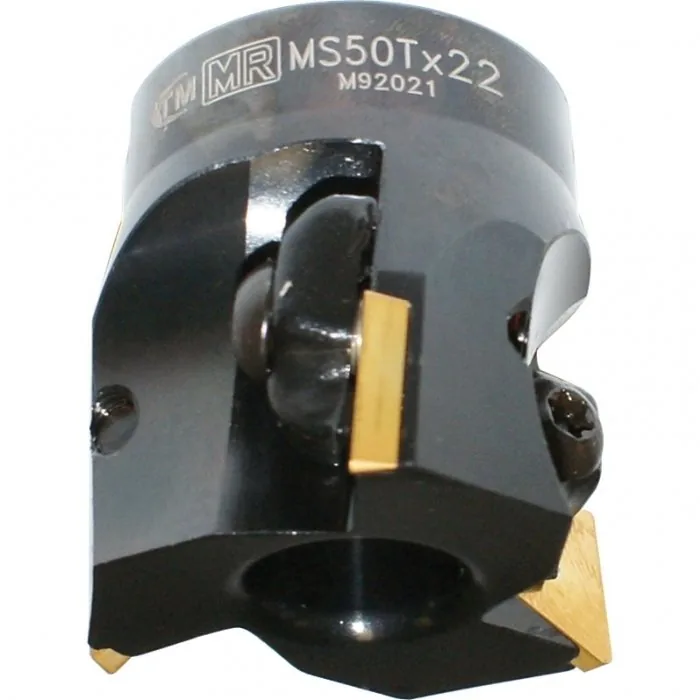

Face Mill 90º – Positive Rake — MS50T, Ø50mm Insert tip not included
Part No: M510 | Barcode: 9344195013478 | Model: MS50T
TOOLMASTER MS50T Face Mill 90º – Positive Rake (Ø50mm Insert tip not included). POSITIVE RAKE FACE MILL – 50mm x 90º Use carbide inserts (ISO) TPKN1603 (L0661) or TPMN1603 (L066) NOTE: Carbide Inserts not included
Model MS50T
Ø50mm
Insert tip not included
Key Features & Benefits
- Suitable for steel, cast iron and non-ferrous metals
- True shoulder 90º cutter
- General purpose cutter
- Positive rake
About This Product
POSITIVE RAKE FACE MILL – 50mm x 90º Use carbide inserts (ISO) TPKN1603 (L0661) or TPMN1603 (L066) NOTE: Carbide Inserts not included This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code M510) for collection in store.
In the Box
- Lock key for insert
Product Specifications
| Specification | Detail |
|---|---|
| Cutter Approach Angle (deg) | 90º |
| D (mm) | 50 |
| H (mm) | 46 |
| d (lowercase) | 22mm |
| Number of Inserts (No.) | 3 |
| Replacement Insert Tips | (L066) |
| Nett Weight (kg) | 0.40 |
