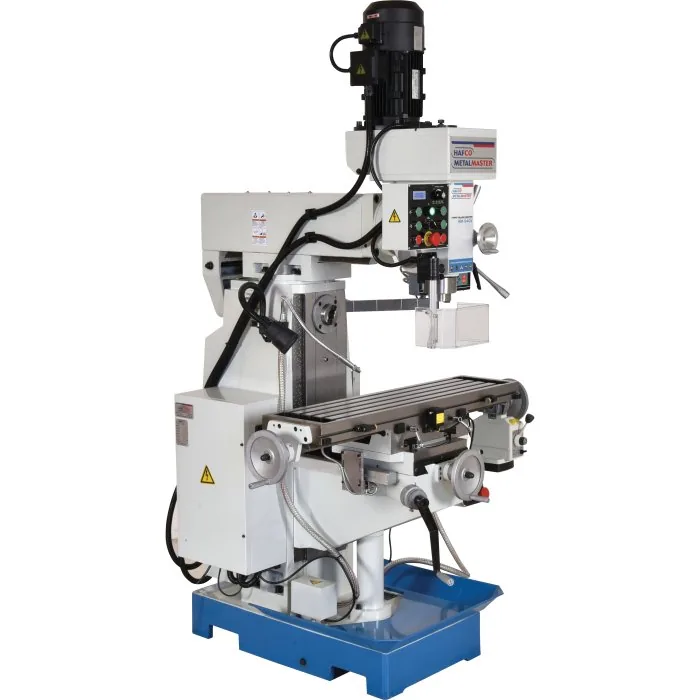

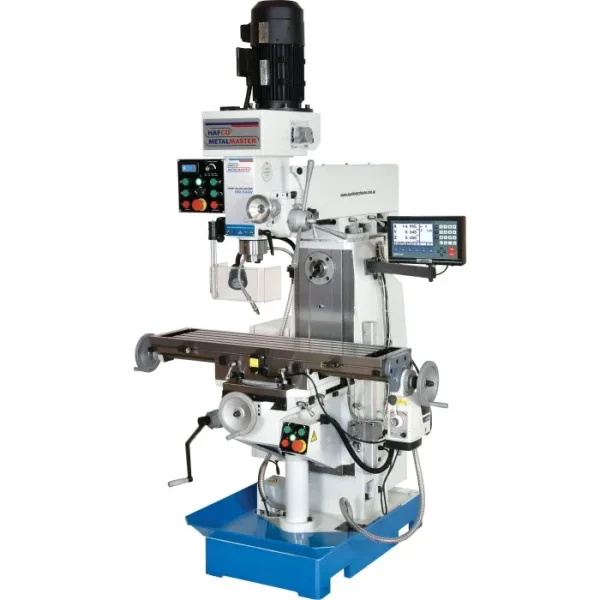

Workshop Turret Milling Machine Inverter Variable Speed, Geared Head – Horizontal & Vertical — HM-54GV, Table Travel: (X) – 600mm (Y) – 200mm (Z) – 340mm Includes Digital Readout System & Swivel Table
Part No: M579 | Barcode: 9344195171819 | Model: HM-54GV
HAFCO-METALMASTER HM-54GV Workshop Turret Milling Machine Inverter Variable Speed, Geared Head – Horizontal & Vertical (Table Travel: (X) – 600mm (Y) – 200mm (Z) – 340mm Includes Digital Readout System & Swivel Table). This HM-54GV geared head vertical and horizontal turret milling machine now includes a inverter…
Model HM-54GV
Table Size: 1000 x 240 mm
Spindle Taper – Vertical: NT30
Spindle Taper – Horizontal: NT30
Spindle to Table: 375 mm
Spindle Travel / Diameter: 120 / 90 mm
Throat Depth (max.): 640 mm
Key Features & Benefits

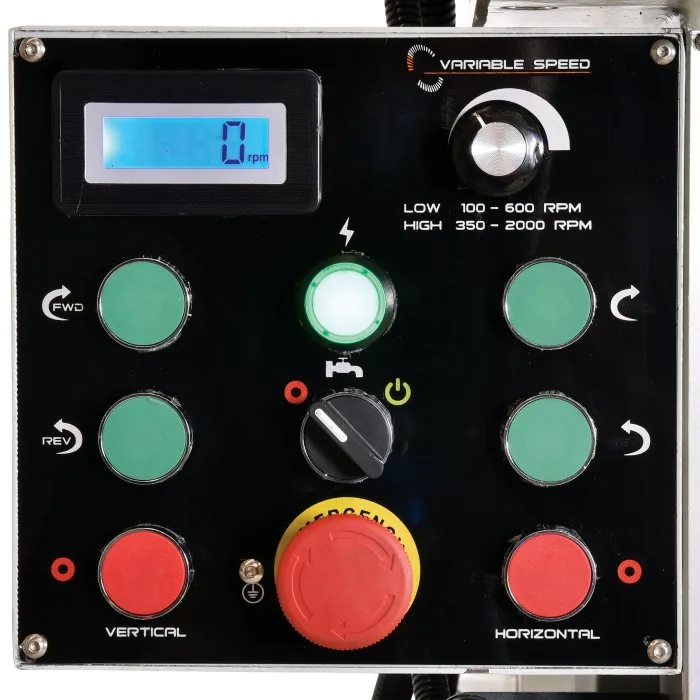

- Electronic inverter variable spindle speeds
- 3 Axis digital readout system

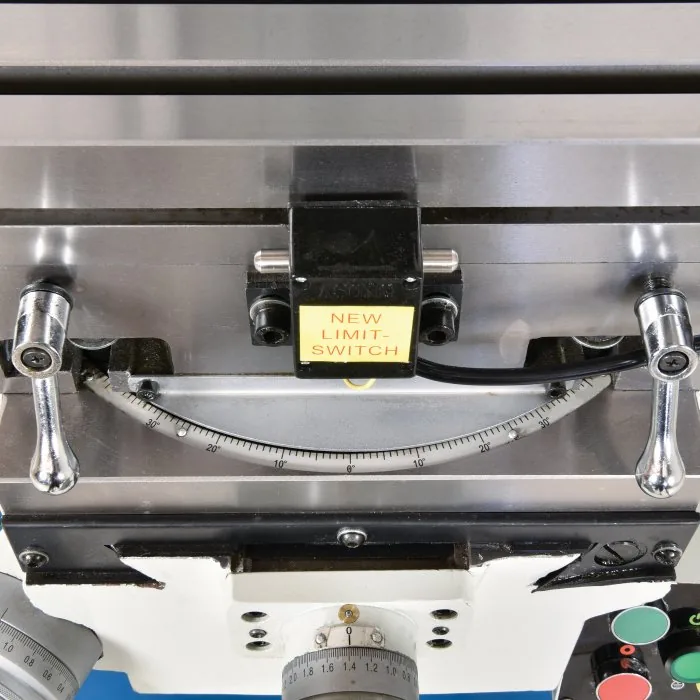

- Swivel table left & right with graduated scale

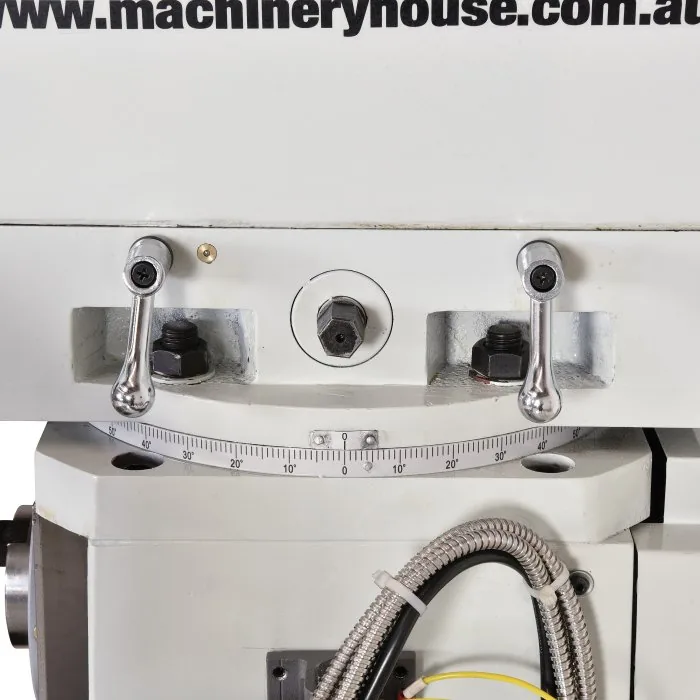

- Mill head tilts to ±45º left to right

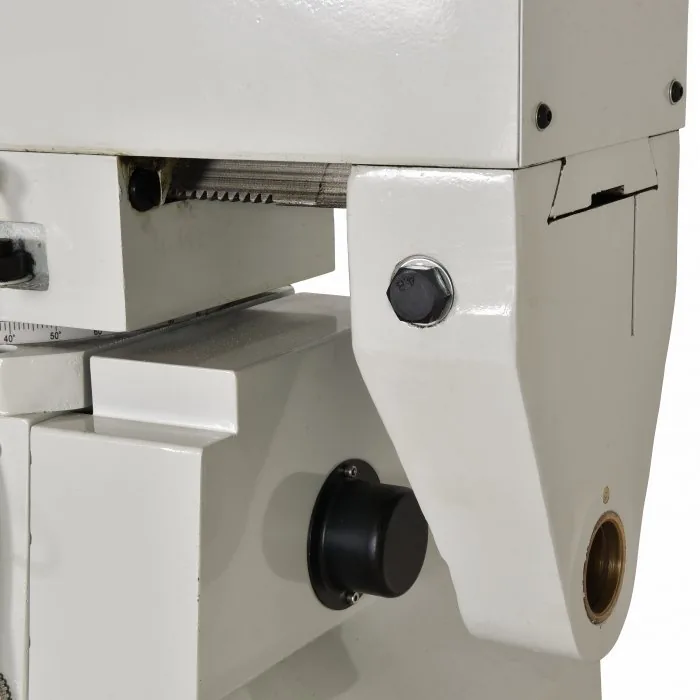

- 450mm horizontally sliding and rotating ram

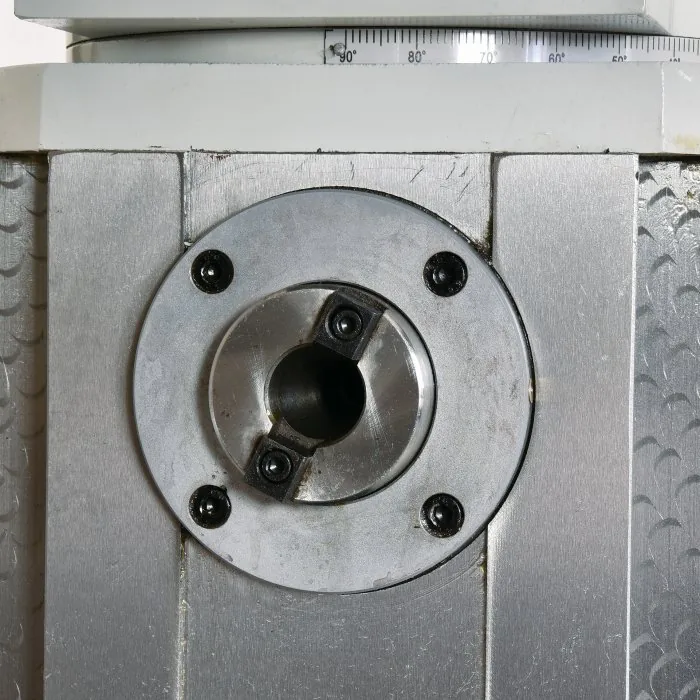

- NT30 Horizontal and vertical spindles that are hardened and ground
- Precision-ground dovetail slide-ways and table

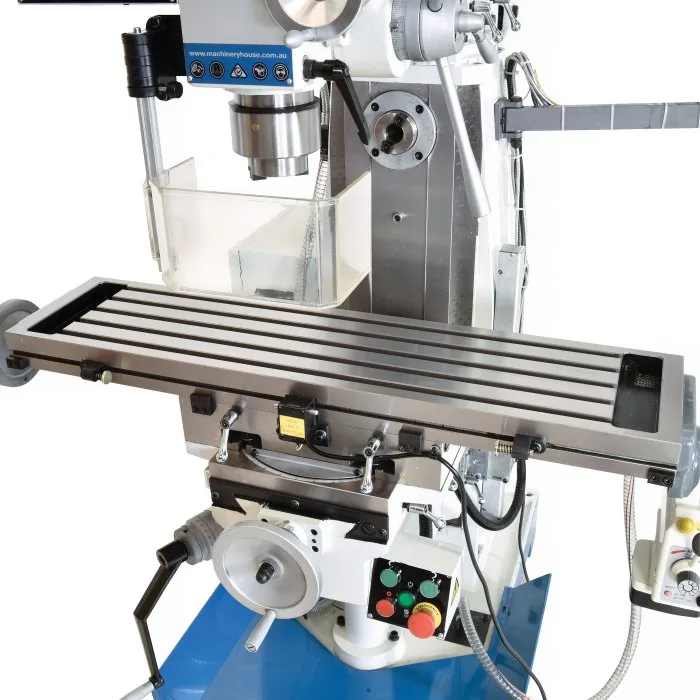

- Precision milling table incorporating machined T slots

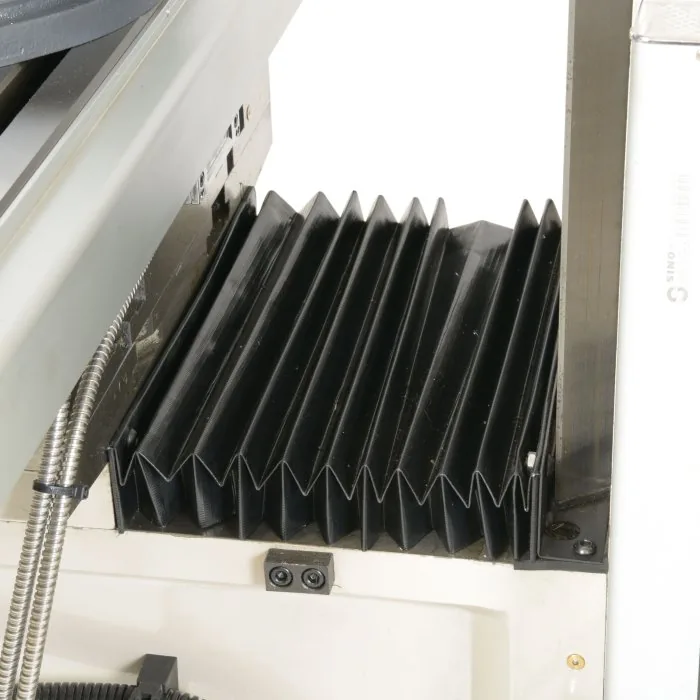

- Rear concertina slide-way cover

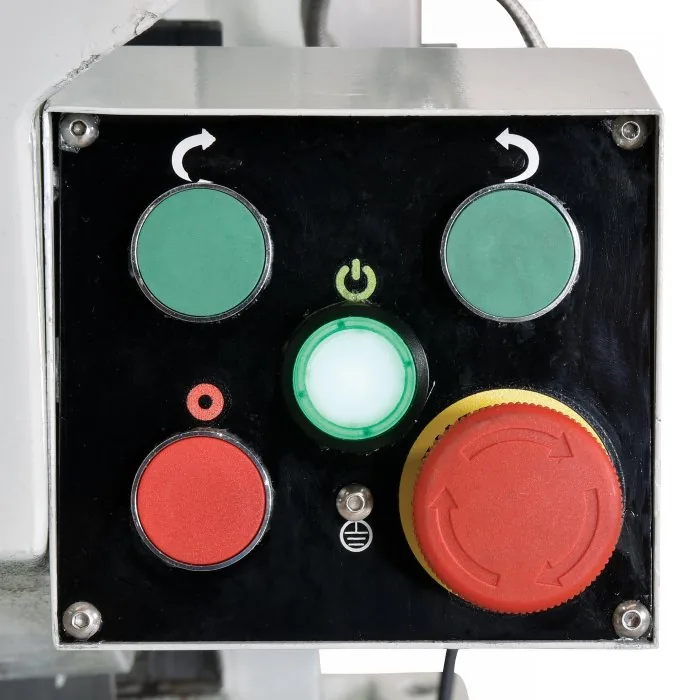

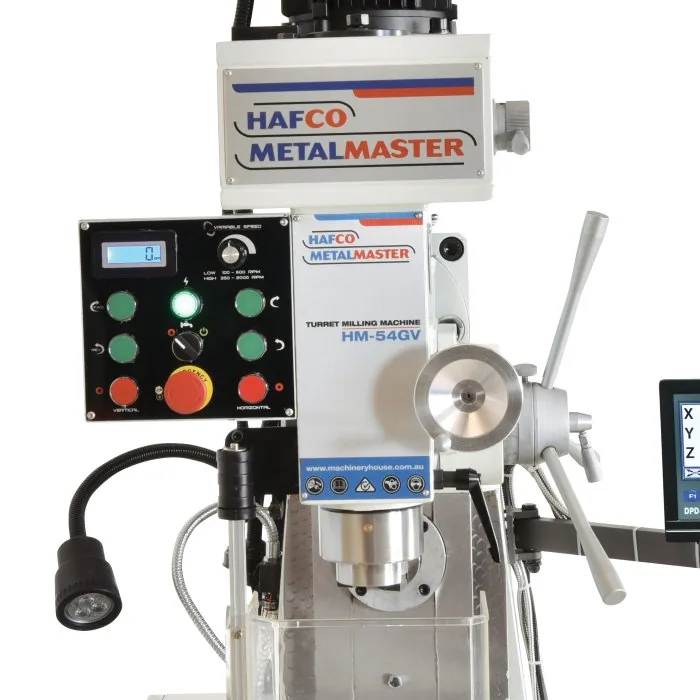

- Forward and reverse button switch

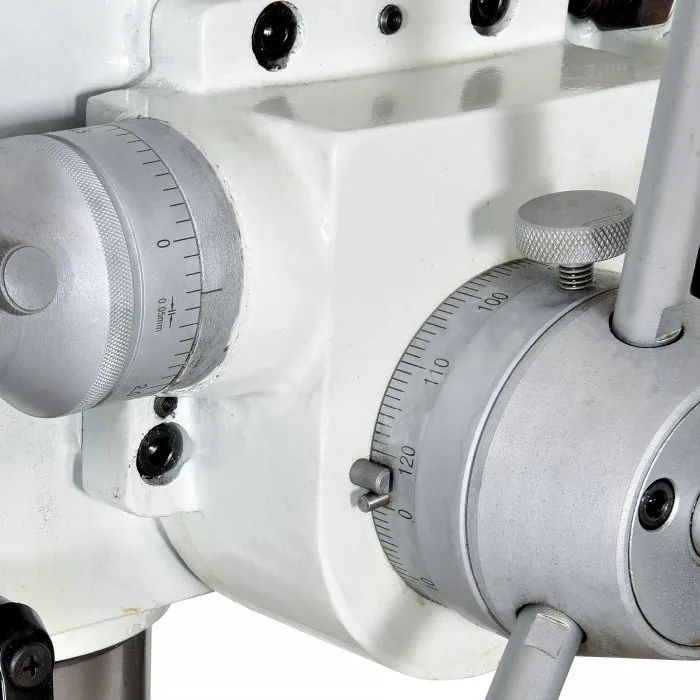

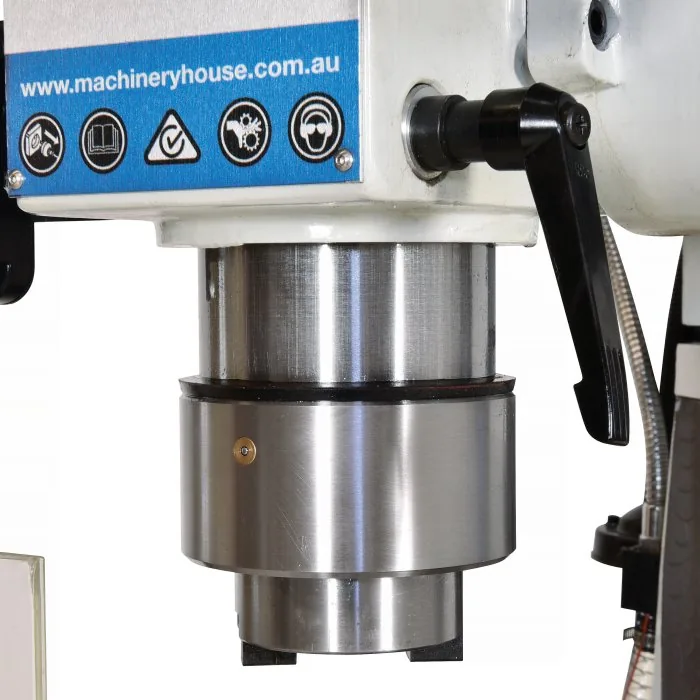

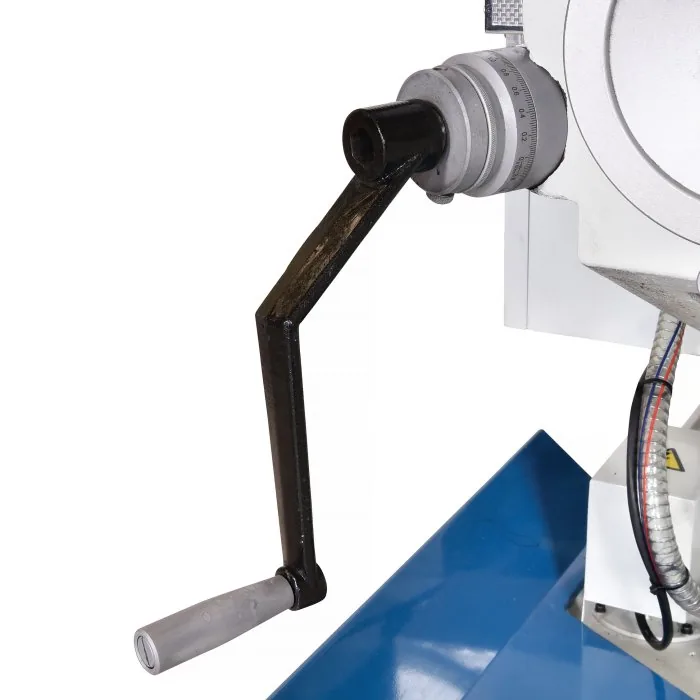

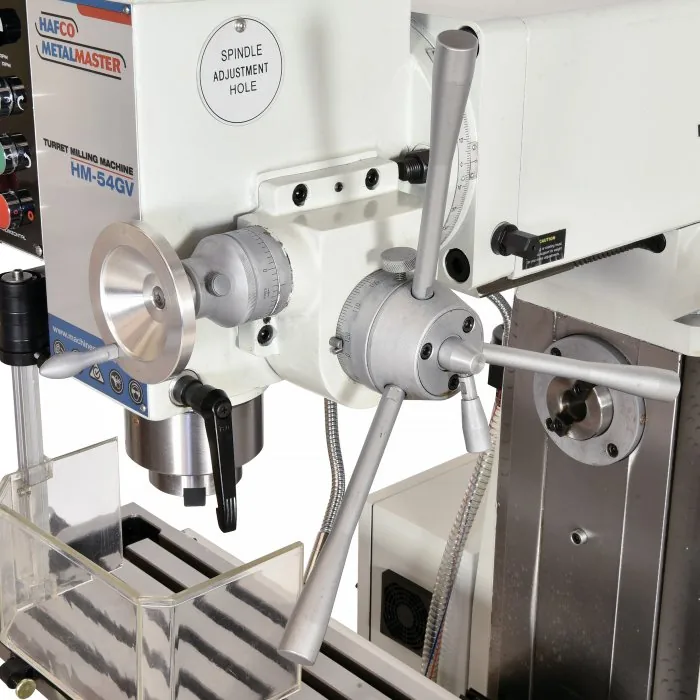

- Fine hand wheel operated quill feed
- Swarf & splash tray
- Spindle lock for quill

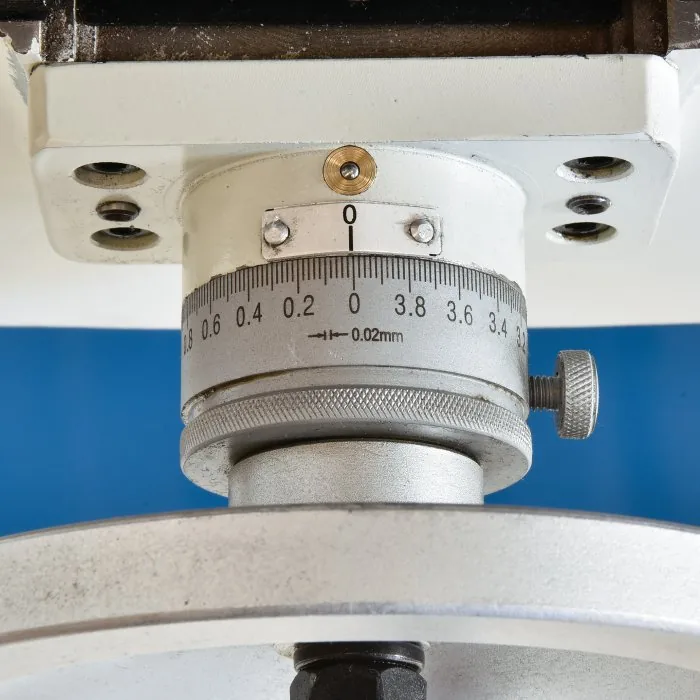

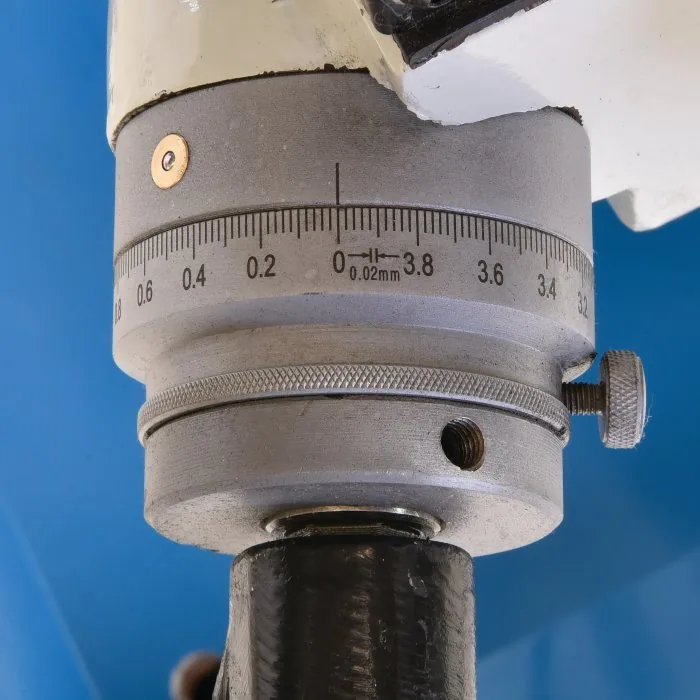

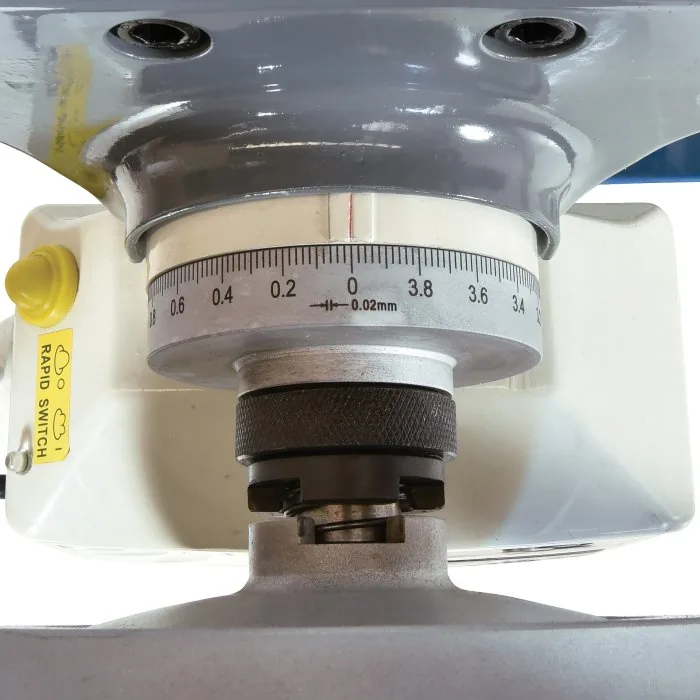

- Metric dial graduations @ 0.02mm for X , Y & Z-Axis

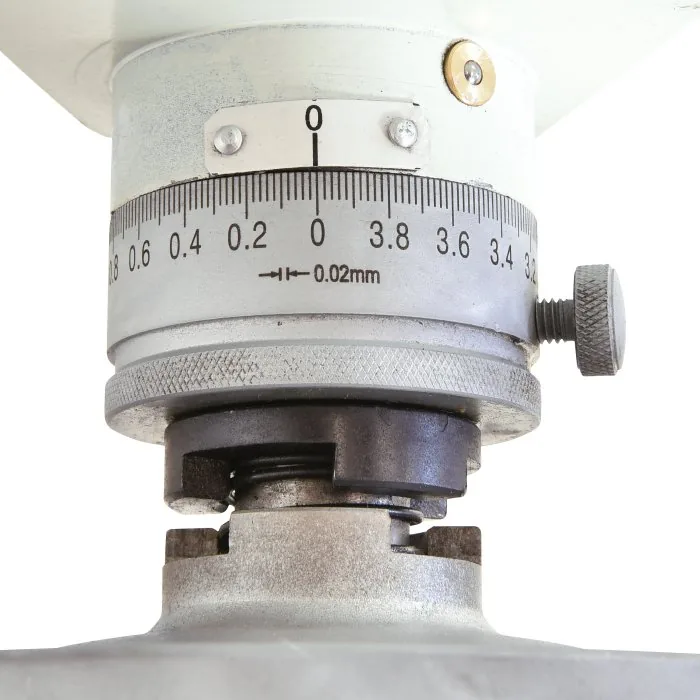

- Vertical quill hand-wheel dial graduations @ 0.05mm
- All slides utilise dovetail construction for maximum rigidity
- Includes 1″ & 1-1/4″ arbors for the horizontal spindle

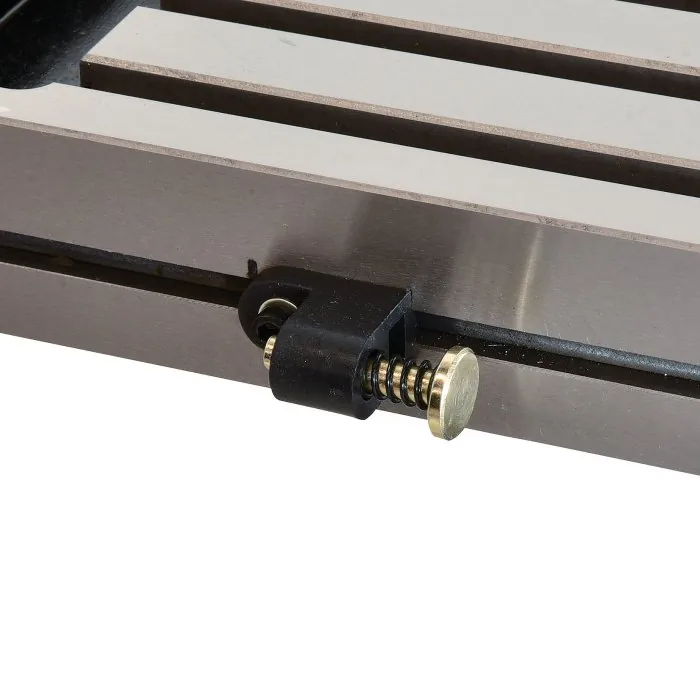

- * Note: X travel maybe reduced due to digital readout scales and safety stops
About This Product

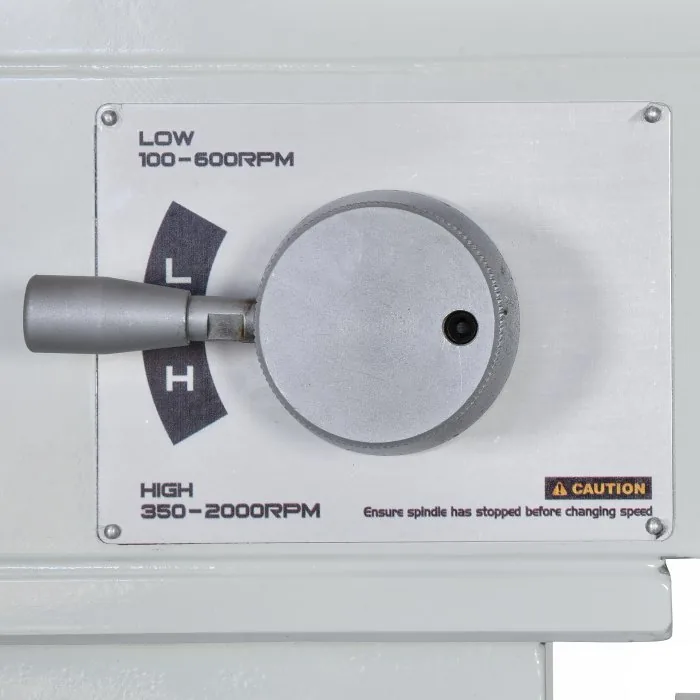

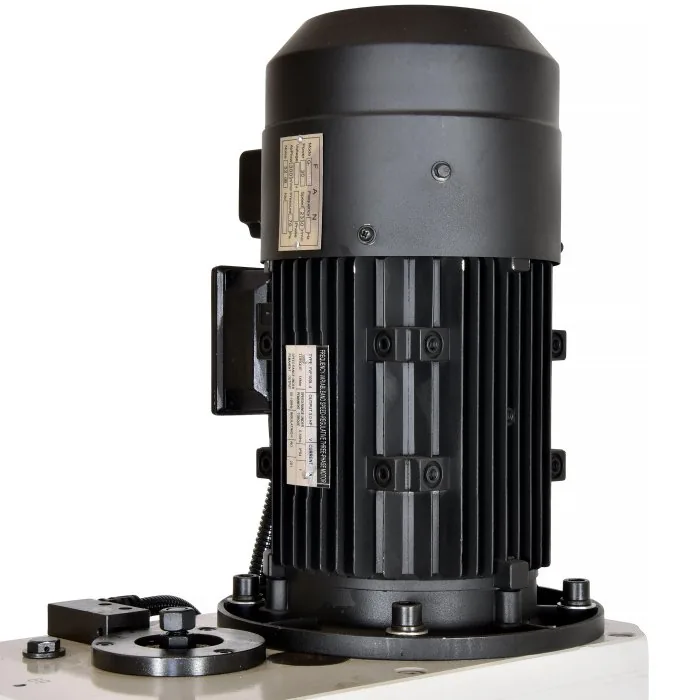

This HM-54GV geared head vertical and horizontal turret milling machine now includes a inverter variable speed drive on the vertical spindle, with a powerful continuous-load 2.2kW / 3hp vertical motor and a 2hp motor for the horizontal spindle, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 600mm X axis by 200mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. The hi-low geared head selector lever mounted on right side of milling head allows for quick change off speed range. Other features include 3-Axis digital readout system, taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage LED work light, coolant system, X axis power feed unit, drill chuck, 1″ & 1-1/4″ horizontal arbors, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation. Extra Features: Swivel table 1″ & 1-1/4″ horizontal arbors This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code M579) for collection in store.
In the Box
- Electronic inverter variable spindle speeds
- 3 Axis digital readout system

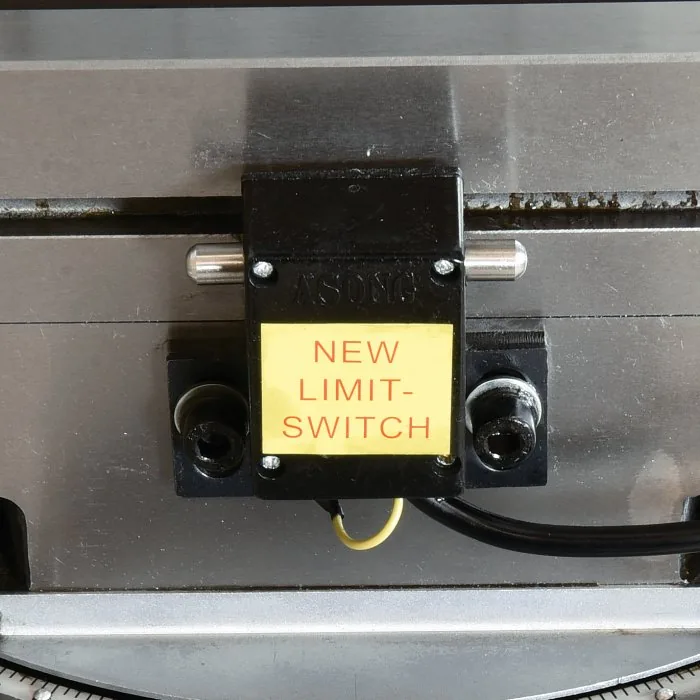

- X-Axis power-feed

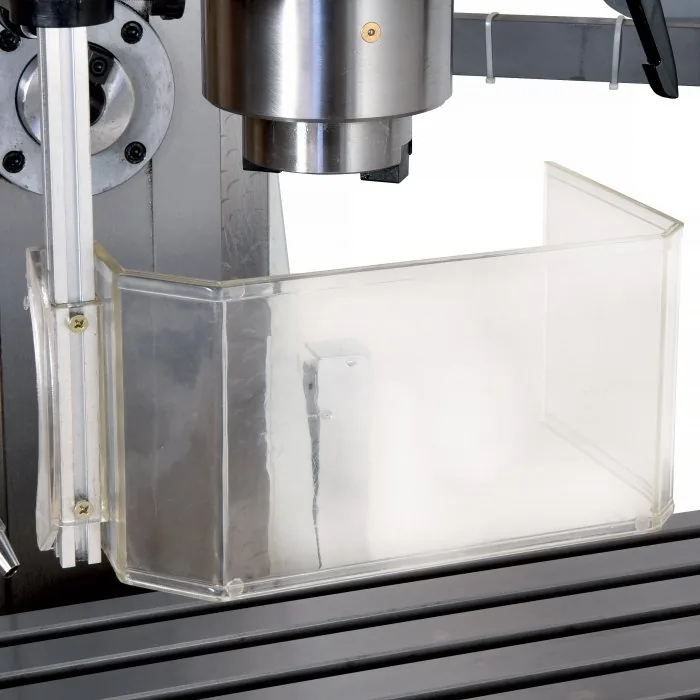

- Safety cutter guard
- Swarf tray

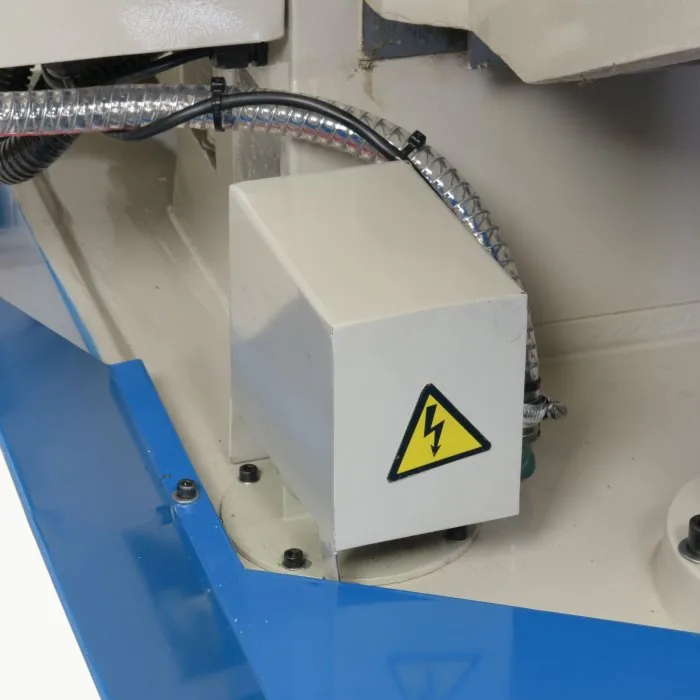

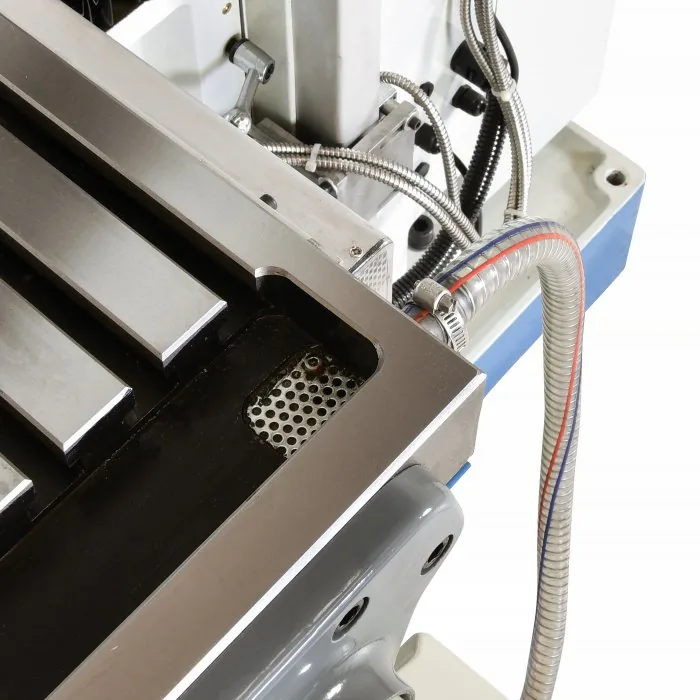

- Coolant system

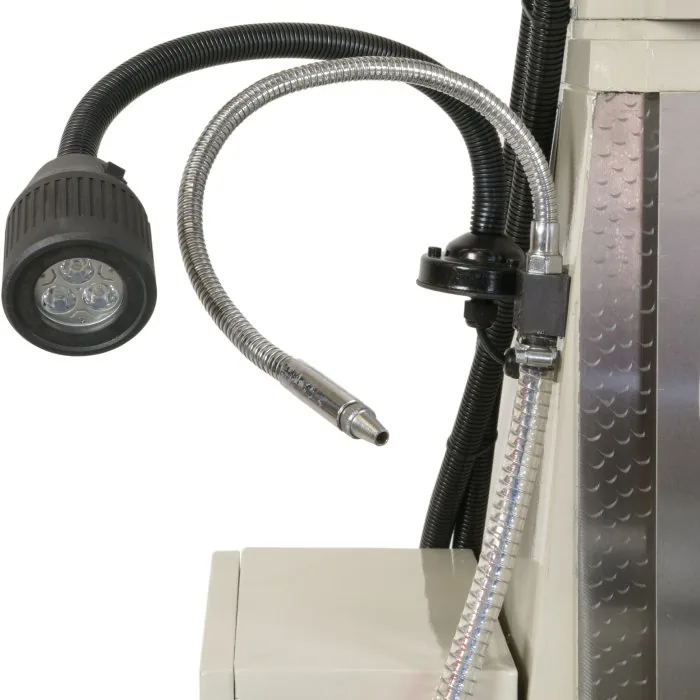

- LED work light

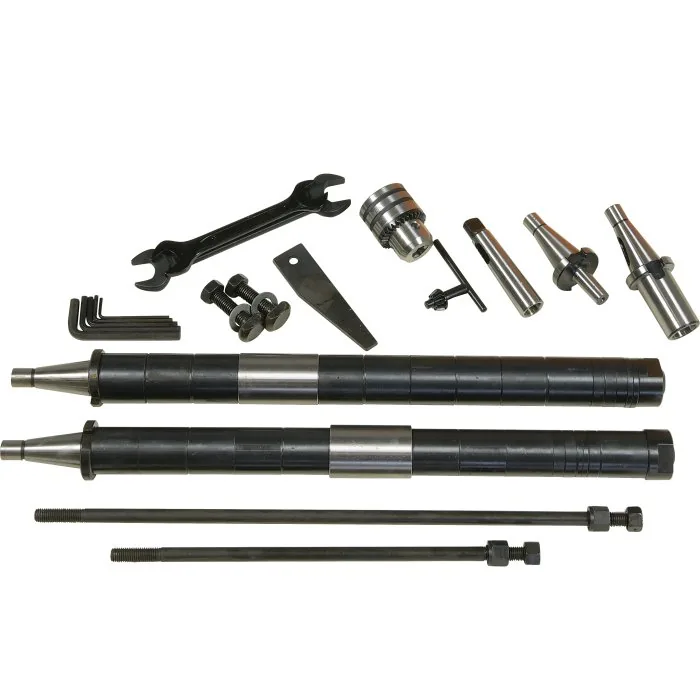

- Drill chuck & arbor
- NT30 to 3MT adaptor
- 2MT & 3MT adaptors
- M12 x 1.75mm Drawbar
Product Specifications
| Specification | Detail |
|---|---|
| Digital Readout | 3-Axis Digital Readout |
| Type | Vertical & Horizontal |
| Table Size (mm) | 1000 x 240 |
| Spindle Taper – Vertical | NT30 |
| Spindle Taper – Horizontal | NT30 |
| Longitudinal Travel (X-Axis) (mm) | 600* |
| Cross Travel (Y-Axis) (mm) | 200* |
| Vertical Travel (Z-Axis) (mm) | 340 |
| Type of Slides | Dovetail |
| Ram Travel (mm) | 450 |
| Spindle to Table (mm) | 375 |
| Spindle Travel / Diameter (mm) | 120 / 90 |
| Throat Depth (max.) (mm) | 640 |
| Tilting Head (Left ~ Right) | ±45º |
| Tilting Head (Forward ~ Back) | Fixed |
| Drilling Capacity (mm) | 40 |
| End Milling Capacity (mm) | 25 |
| Face Milling Capacity (mm) | 80 |
| Power Feed – Quill (mm/rev) | Manual |

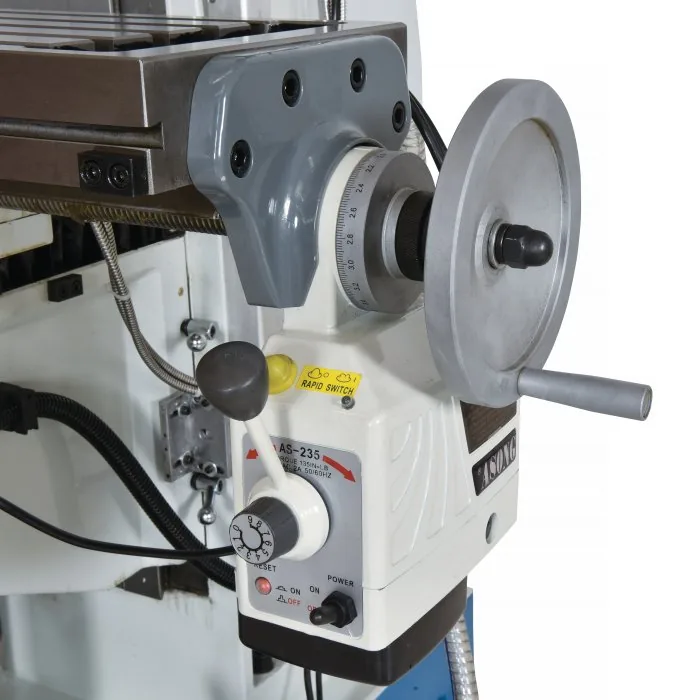

| Power Feed – Longitudinal (X-Axis) (mm/min) | 20 – 2000 |
| Table T-Slot Size (inch / mm) | 14 |
| Work Table Load Capacity (kg) | 160 |
| Spindle Speeds Vertical (No./ rpm) | Variable (100 – 2000) |

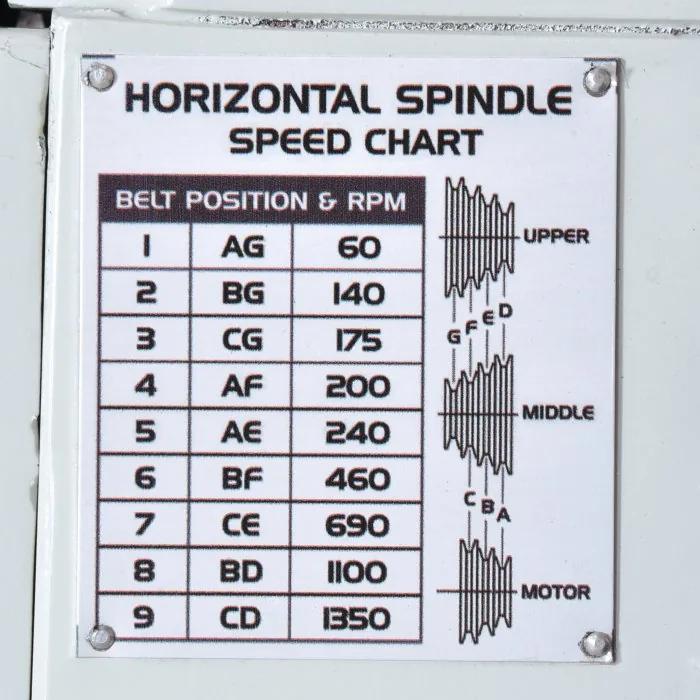

| Spindle Speeds Horizontal (No./ rpm) | 9 (60 – 1350) |
| Motor Power – Vertical Spindle (kW / hp) | 2.2 / 3 |
| Motor Power – Horizontal Spindle (kW / hp) | 1.5 / 2 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 900 |
