OPTIMUM
Opti-Mill Head Attachment – Geared & Tilting Head — BF-20V, Electronic Variable Speeds & Dovetail Column
Part No: M647 | Barcode: 9344195083303 | Model: BF-20V

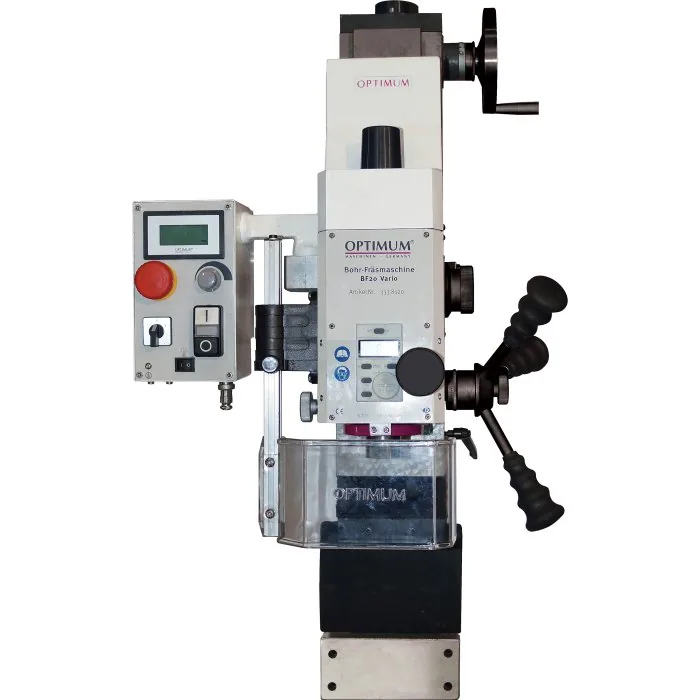

OPTIMUM BF-20V Opti-Mill Head Attachment – Geared & Tilting Head (Electronic Variable Speeds & Dovetail Column). The BF-20V mill head attachment has more throat & height capacity than the the BF-16AV and allows for larger work to be machined, it also is specifically designed to suit the TU-2506V & TU-3008G Optimum…
Model BF-20V
Spindle Taper – Vertical: 3MT
Spindle Travel / Diameter: 50 / 60 mm
Throat Depth (max.): 185 mm
Drilling Capacity: 16 mm
End Milling Capacity: 20 mm
Face Milling Capacity: 63 mm
Key Features & Benefits
- Electronic infinitely variable speed
- 3MT spindle taper
- Dovetail vertical Z-Axis

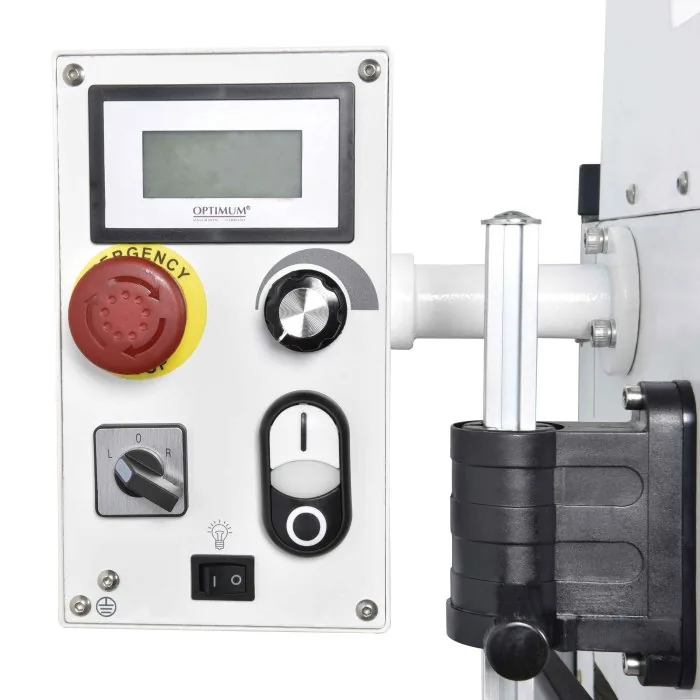

- Digital readout speed display

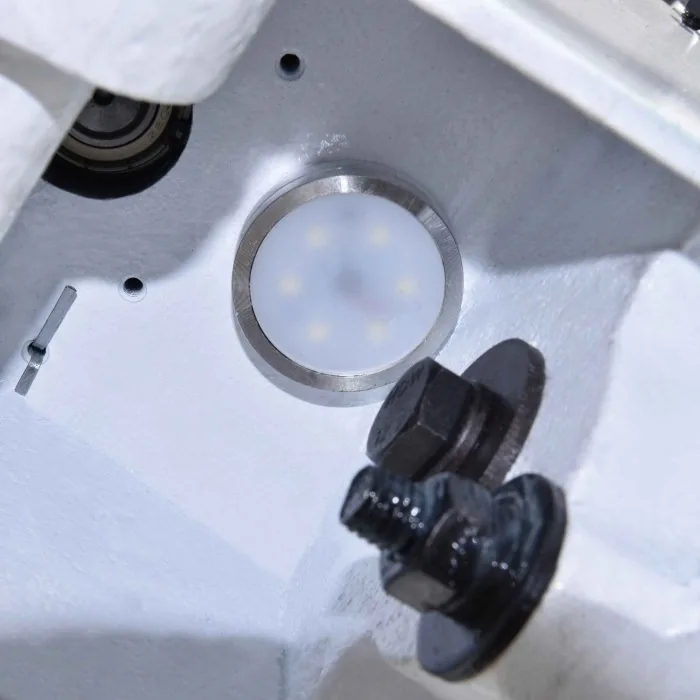

- Work light mounted underneath mill head

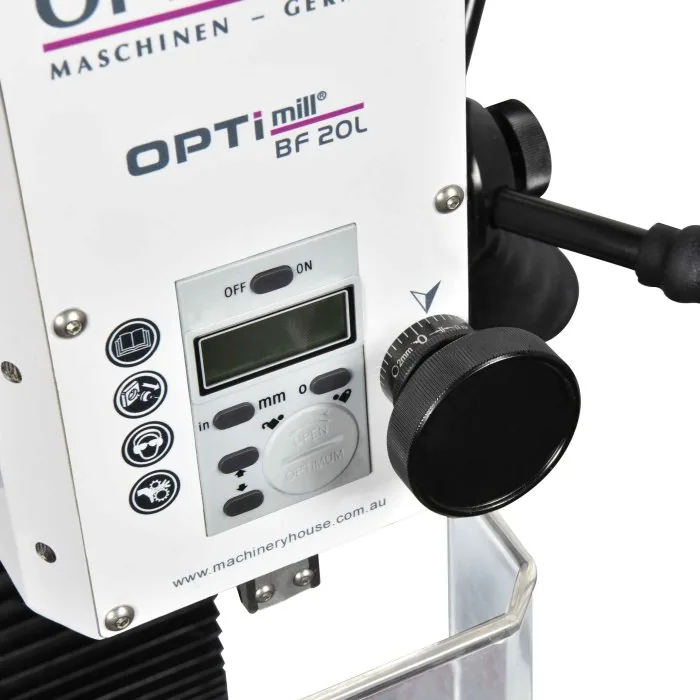

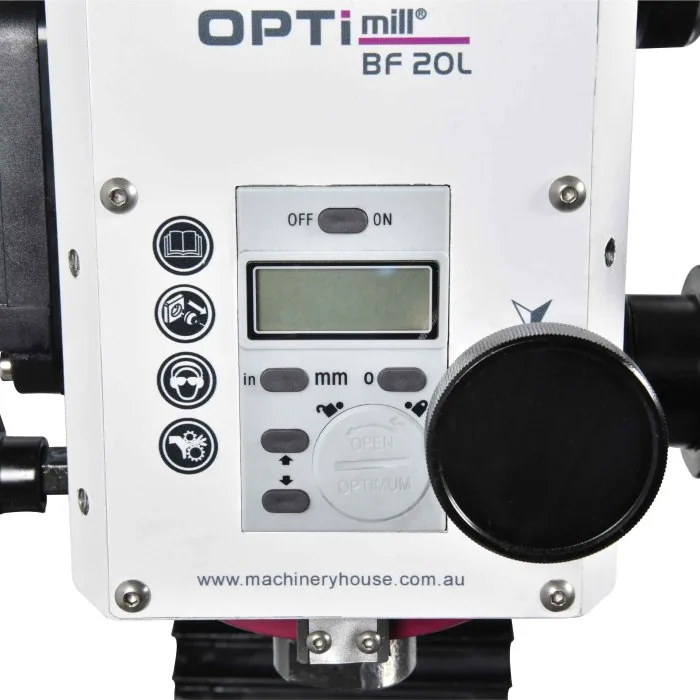

- Digital depth display with zero reset for quill
- Tilting head to ± 90° from vertical

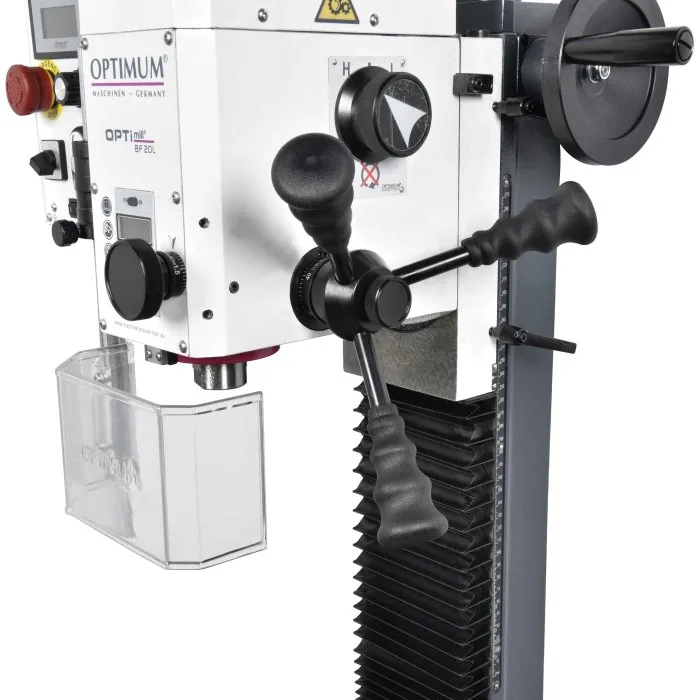

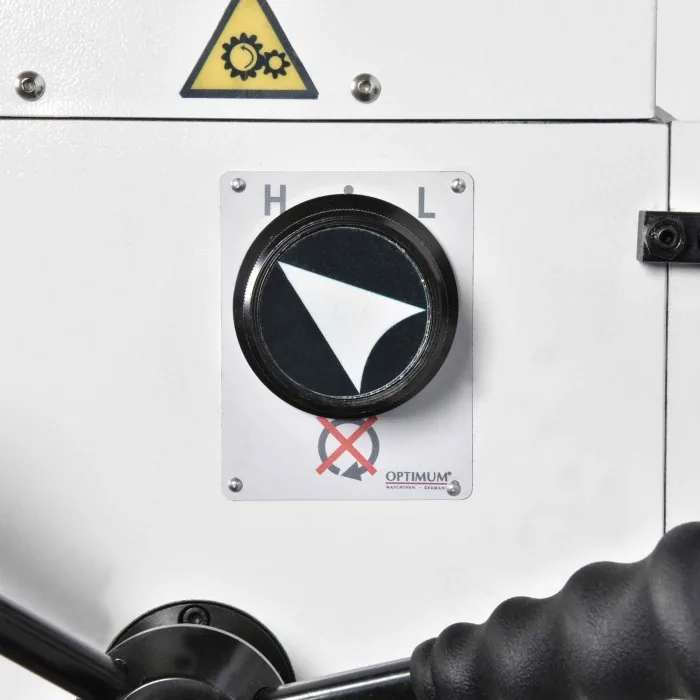

- 2 speed gearbox (high / low) drive
- Forward and reverse spindle switch
- Scale collars for all Axis are adjustable
- Adjustable dovetail slideway on Z-Axis
- Adjustable drill length stop
- Metric dial graduations
- Note: The lathe rear splash tray is required to be removed to fit Mill Head Attachment
About This Product
The BF-20V mill head attachment has more throat & height capacity than the the BF-16AV and allows for larger work to be machined, it also is specifically designed to suit the TU-2506V & TU-3008G Optimum bench lathes; converting them into a universal combination lathe/mill when mounted together. In addition this compact setup has the advantage of that it requires less valuable floor space then the two separate conventional machines. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code M647) for collection in store.
In the Box
- 3MT x JT6 drill chuck arbor

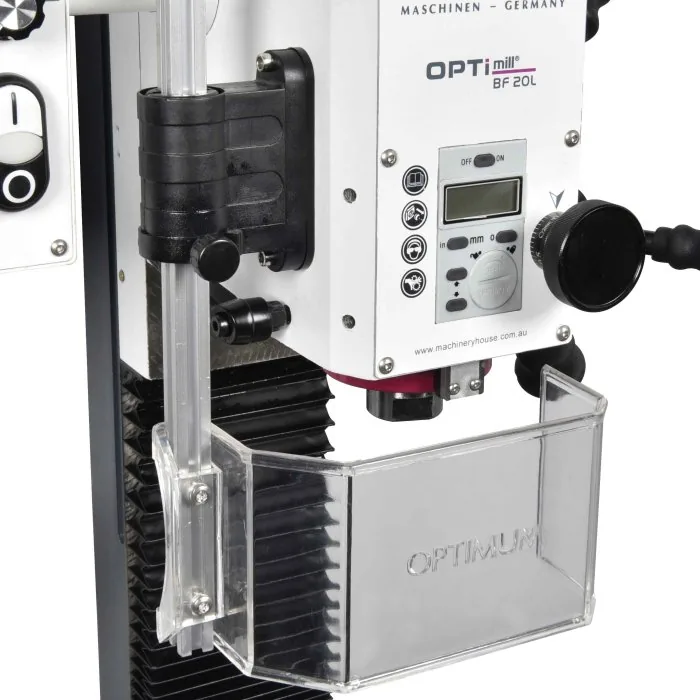

- Safety cutter guard
- Bracket kit for optional digital readout
- 1/2″ x 12tpi whitworth drawbar
Product Specifications
| Specification | Detail |
|---|---|
| Digital Readout | Optional |
| Type | Vertical |
| Column Type | Dovetail |
| Spindle Taper – Vertical | 3MT |
| Vertical Travel (Z-Axis) (mm) | 280 |
| Type of Slides | Dovetail |
| Spindle Travel / Diameter (mm) | 50 / 60 |
| Throat Depth (max.) (mm) | 185 |
| Tilting Head (Left ~ Right) | ±90º |
| Tilting Head (Forward ~ Back) | Fixed |
| Drilling Capacity (mm) | 16 |
| End Milling Capacity (mm) | 20 |
| Face Milling Capacity (mm) | 63 |
| Spindle Speeds Vertical (No./ rpm) | Variable (90 – 3000) |
| Motor Power – Vertical Spindle (kW / hp) | 0.85 / 1.13 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 103 |
