HAFCO-METALMASTER

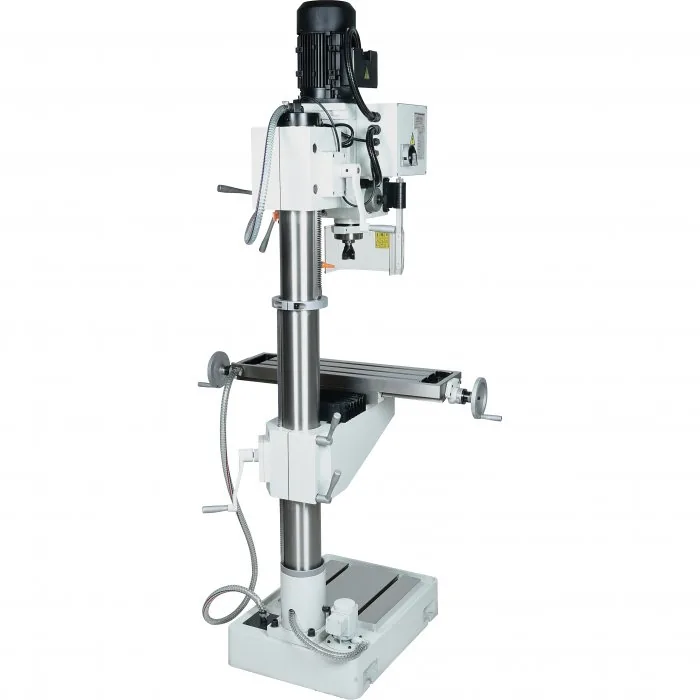

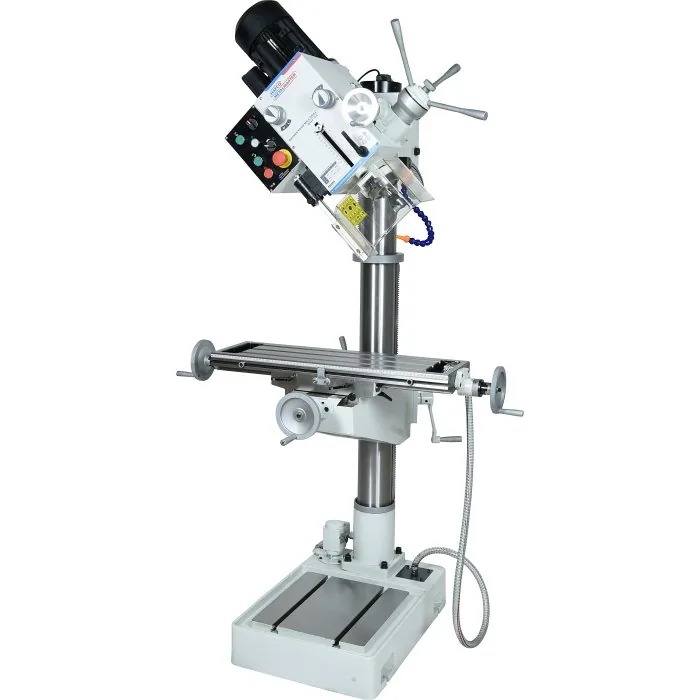

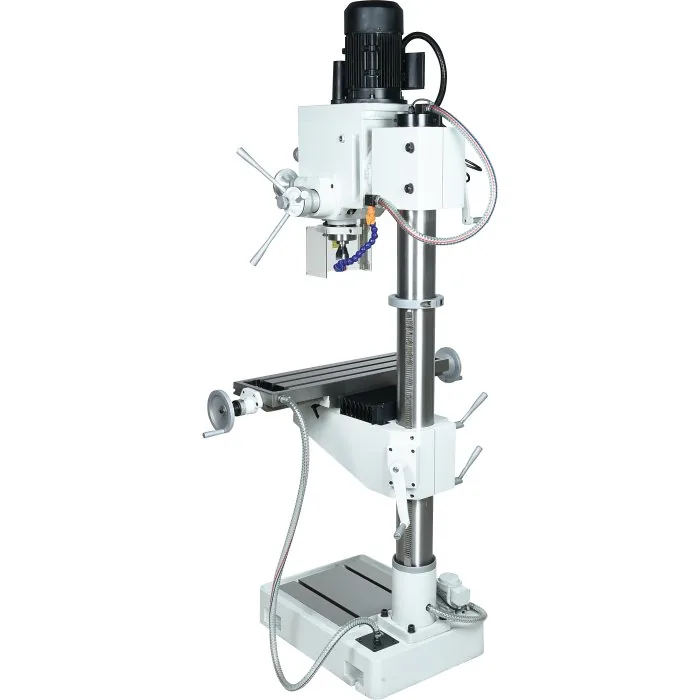

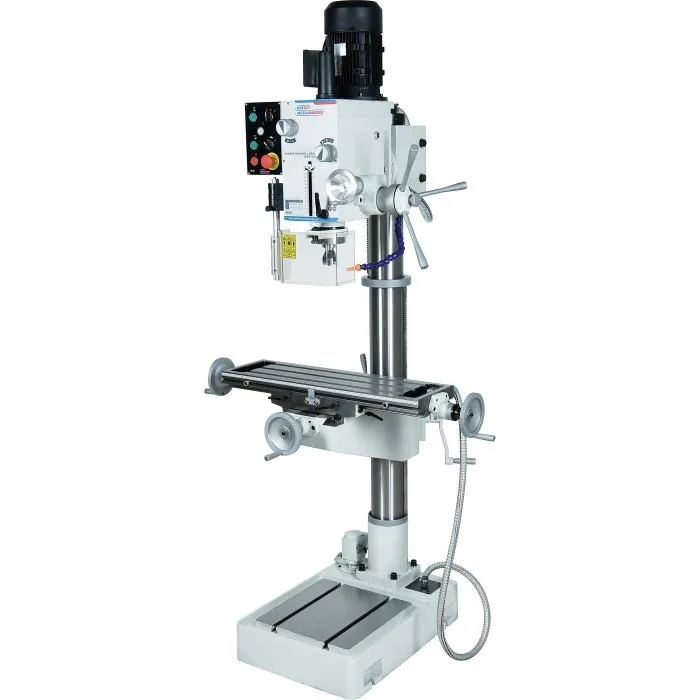

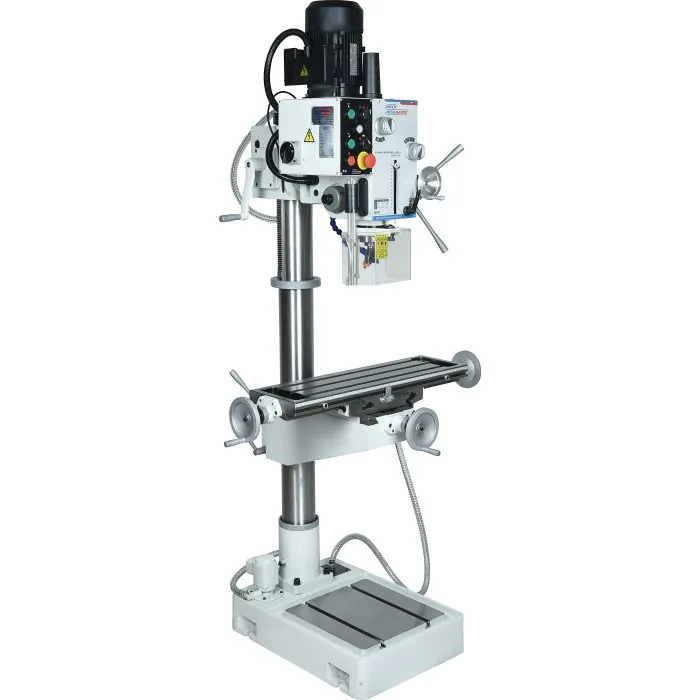

Pedestal Mill Drill – Geared & Tilting Head — DMF-44, Table Travel: (X) – 480mm (Y) – 200mm (Z) – 850mm 31.5mm Drilling Capacity, Includes Coolant System & Thread Tapping Function
Part No: D185 | Barcode: 9344195230714 | Model: DMF-44
HAFCO-METALMASTER DMF-44 Pedestal Mill Drill – Geared & Tilting Head (Table Travel: (X) – 480mm (Y) – 200mm (Z) – 850mm 31.5mm Drilling Capacity, Includes Coolant System & Thread Tapping Function). The DMF-44 pedestal milling & drilling machine offers a new dimension of milling capabilities compared to the standard…
Model DMF-44
Table Size: 730 x 210 mm
Spindle Taper – Vertical: 3MT
Spindle to Table: 630 mm
Spindle Travel / Diameter: 120 / 75 mm
Throat Depth (max.): 280 mm
Drilling Capacity: 31.5 mm
Key Features & Benefits
- Ideal for home or light industrial workshop use

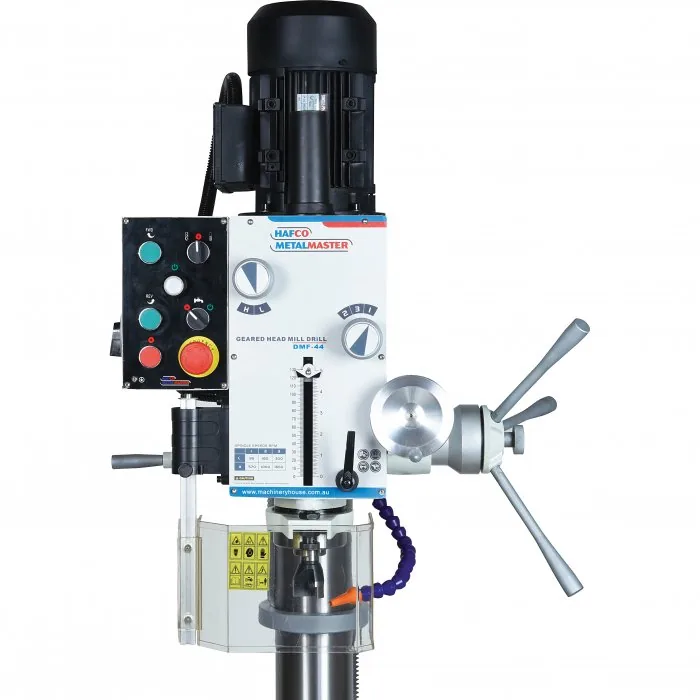

- Geared head drill & mill machine with 3 morse taper spindle

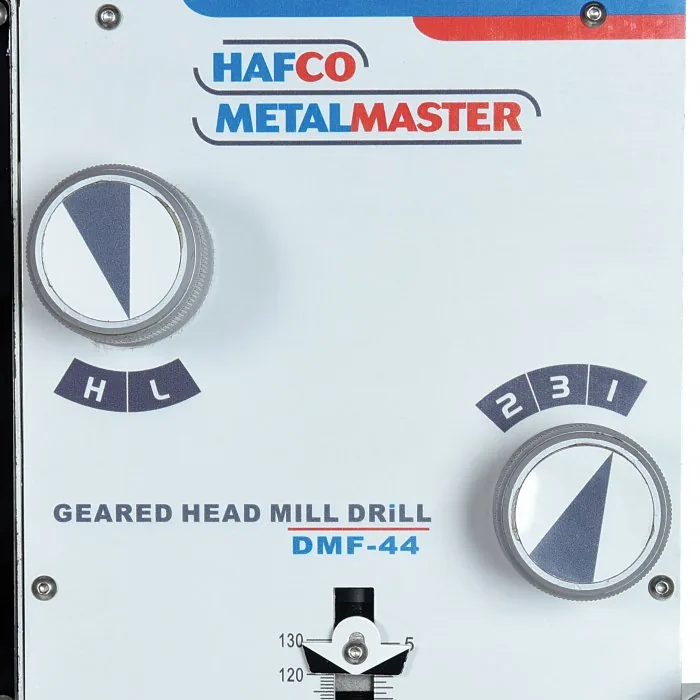

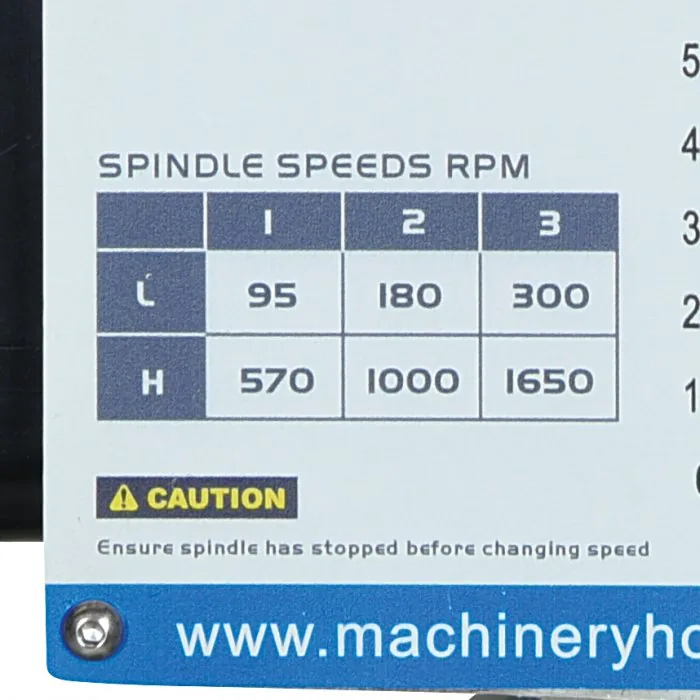

- 6 drilling speeds from 95-1650rpm

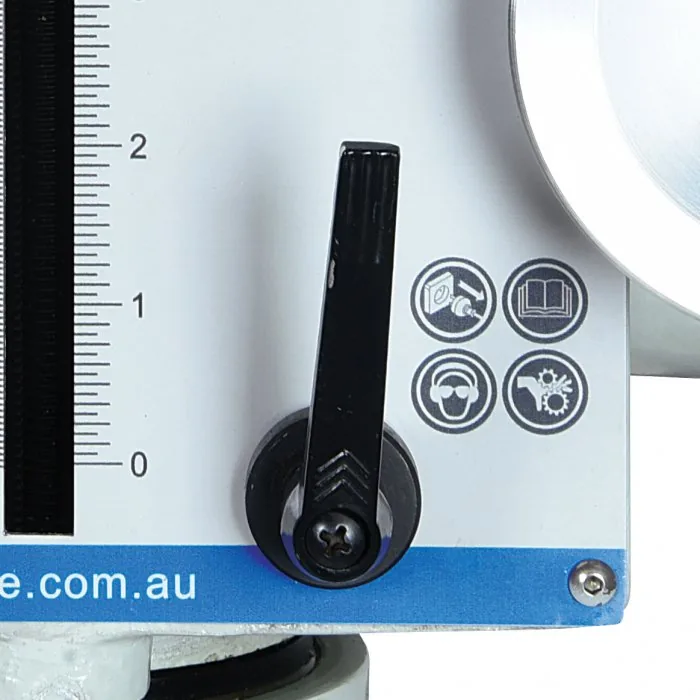

- Thread tapping function

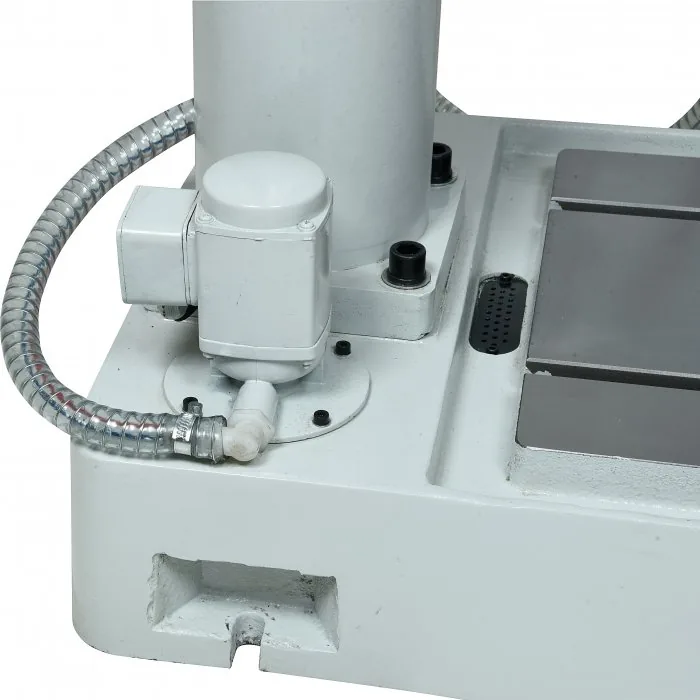

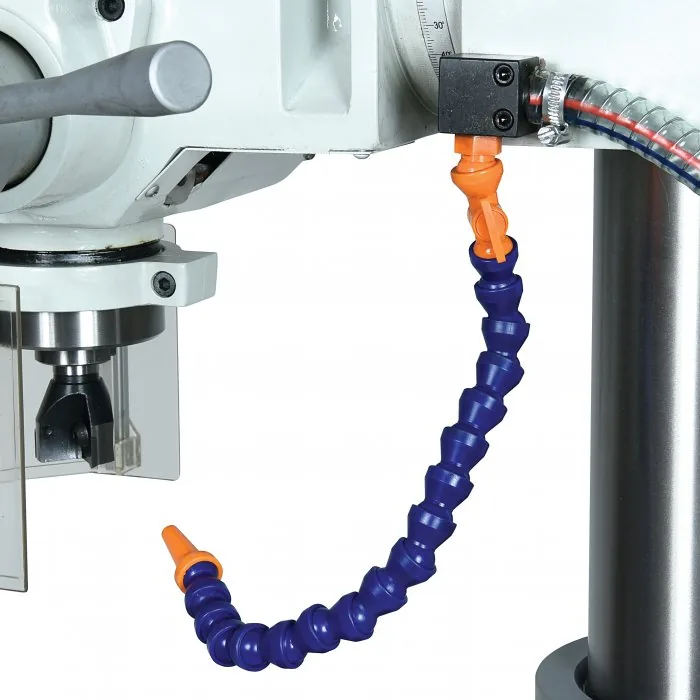

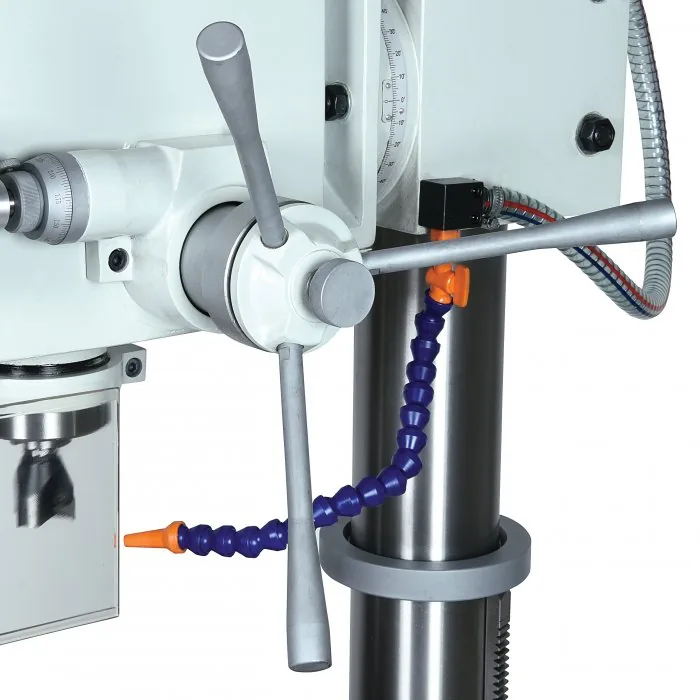

- Coolant pump system with flexible hose

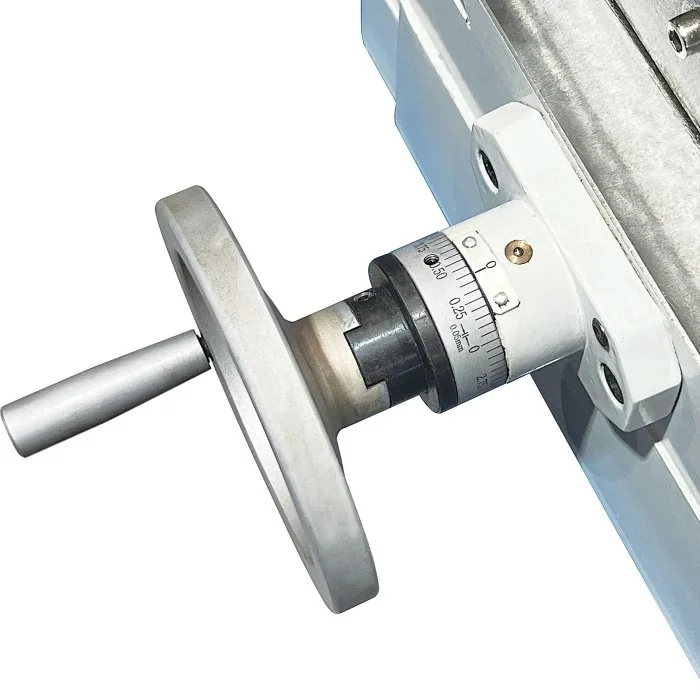

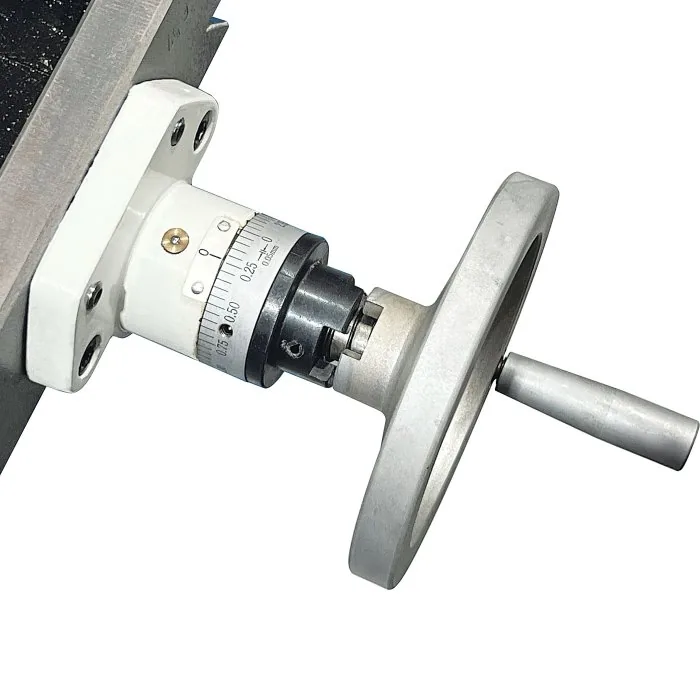

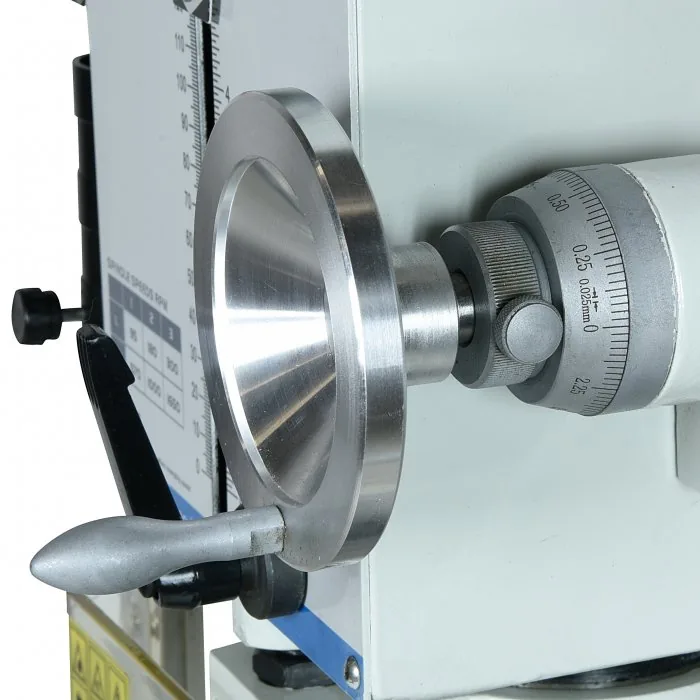

- Micro down feed adjustment

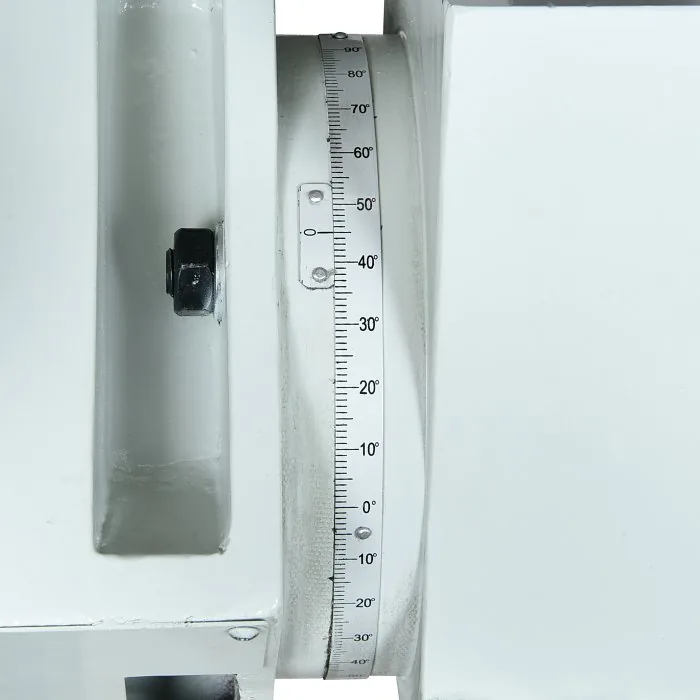

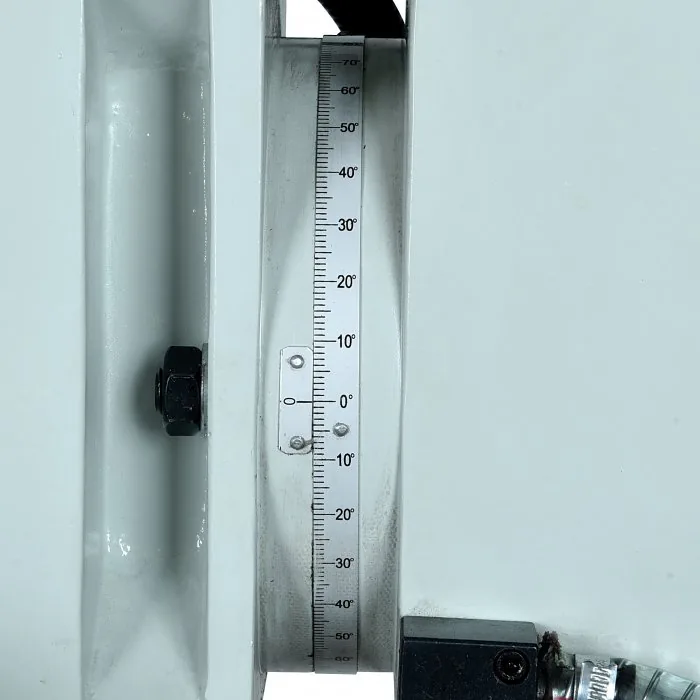

- Mill head tilts to ±90º

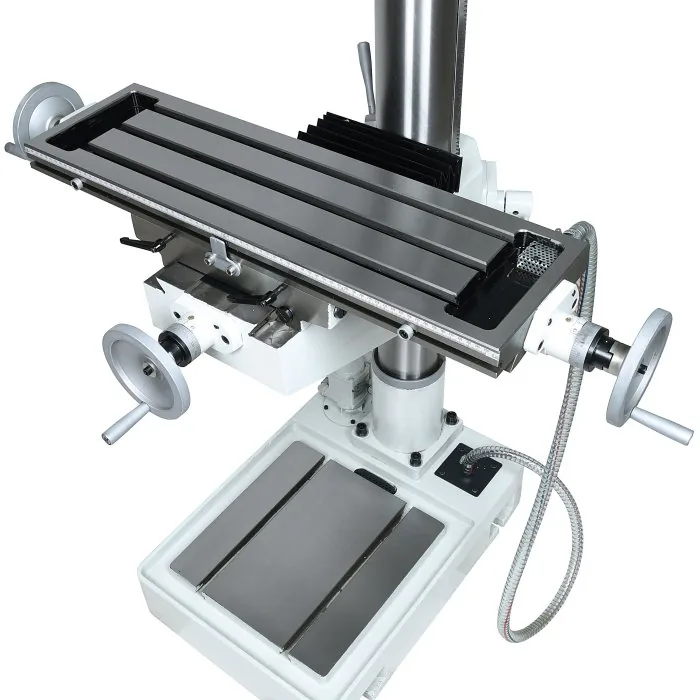

- Milling table travels 480 x 200mm

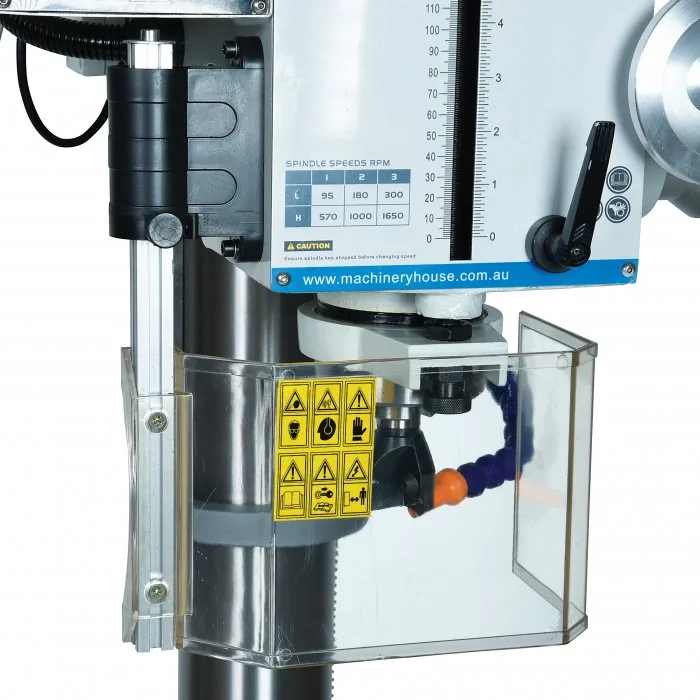

- Interlocked spindle safety guard

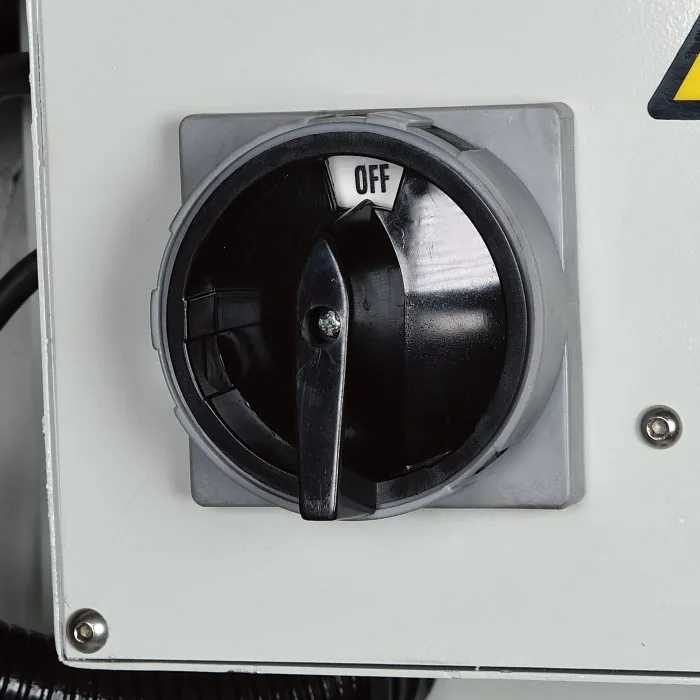

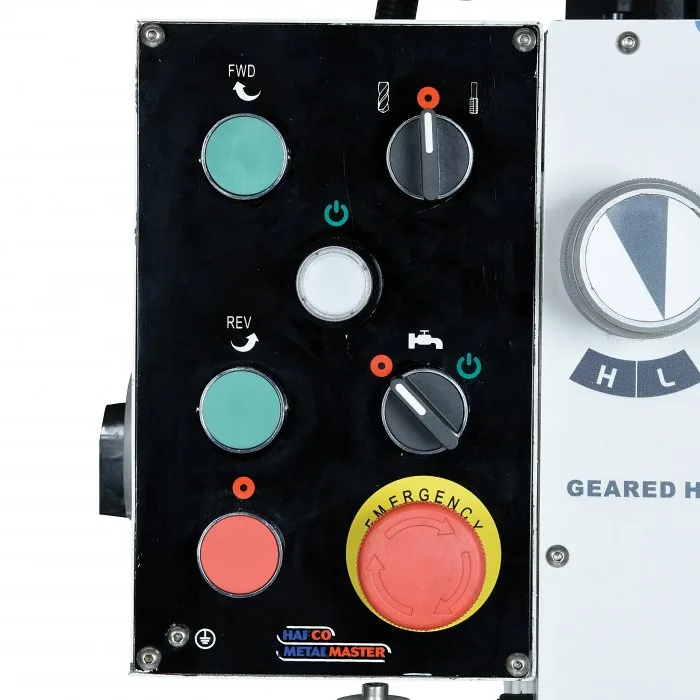

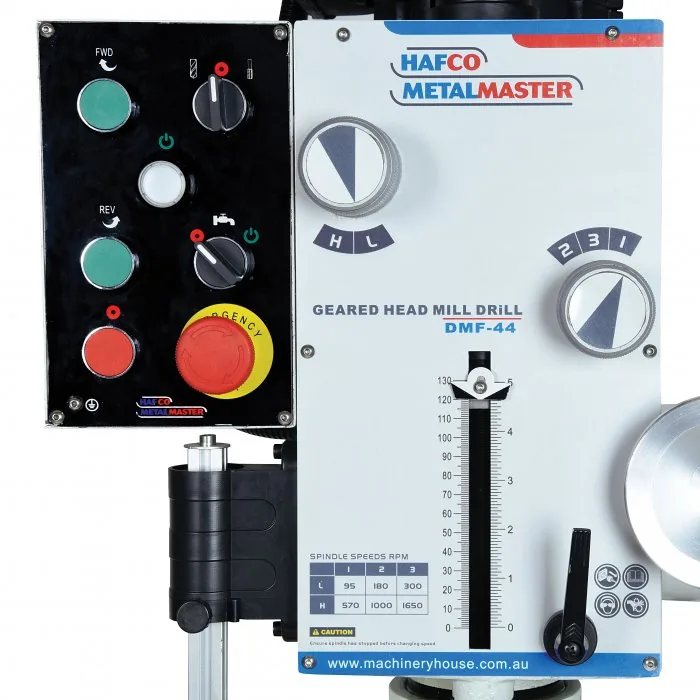

- Emergency stop switch and overload protection

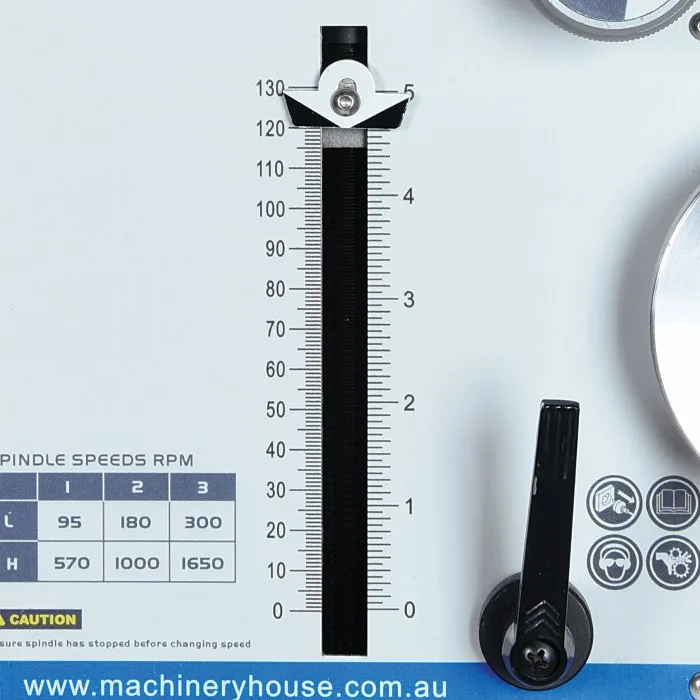

- Adjustable accurate depth setting for increased productivity

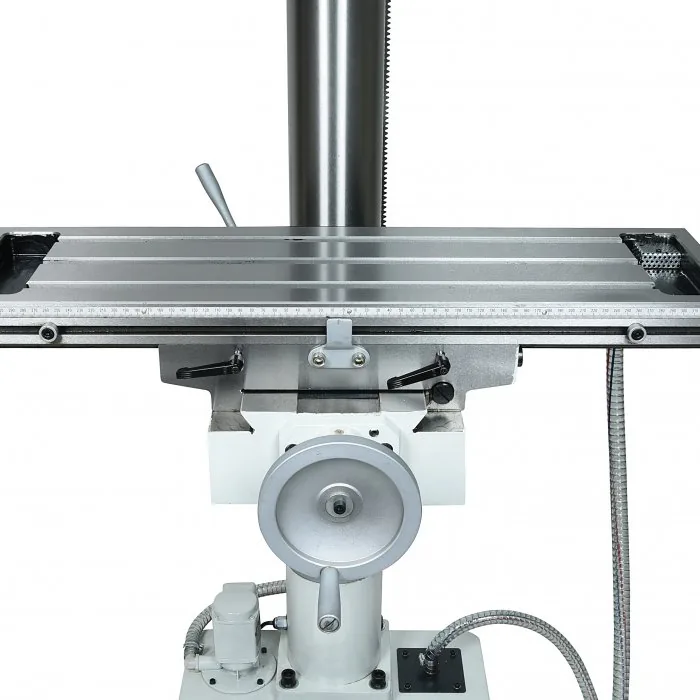

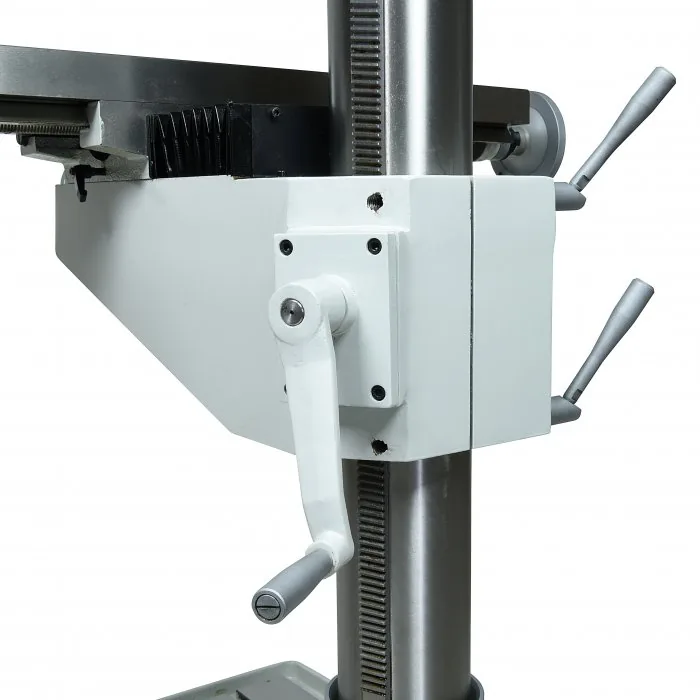

- Rack and pinion wind-up table

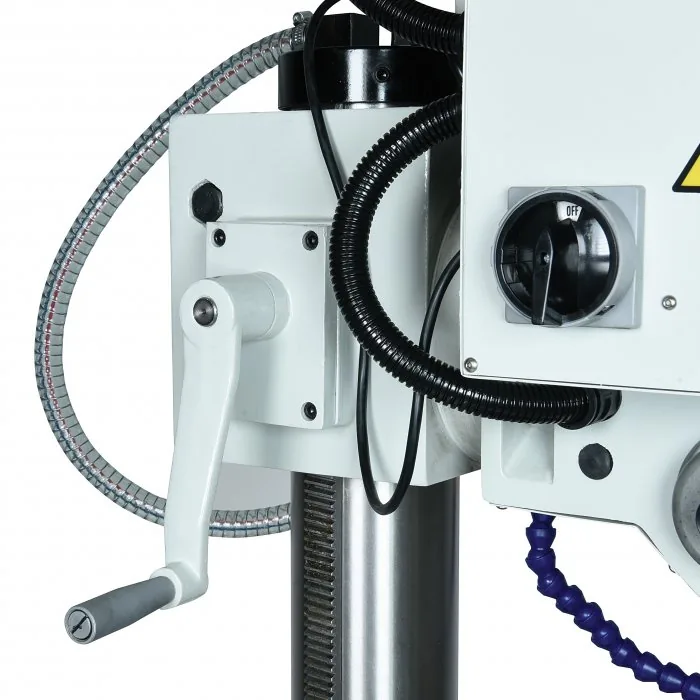

- Rack and pinion wind-up drill head
- Thick walled column ensuring greater rigidity

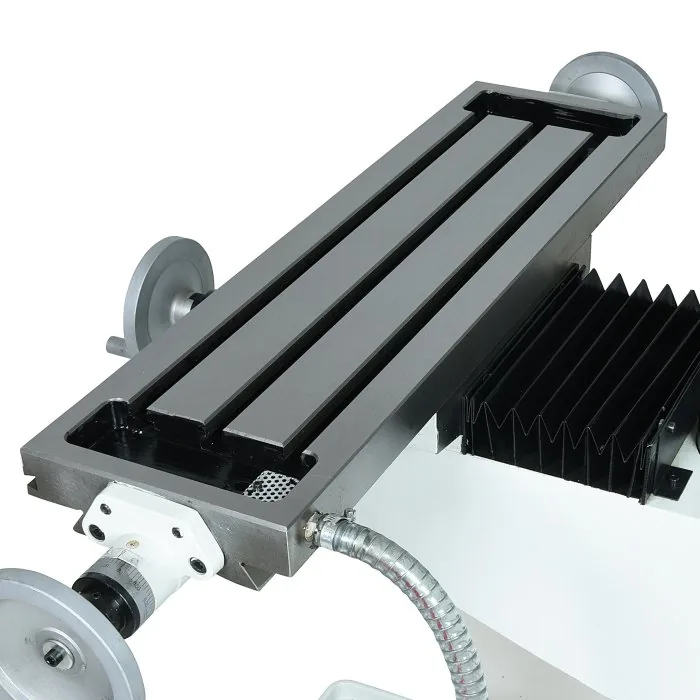

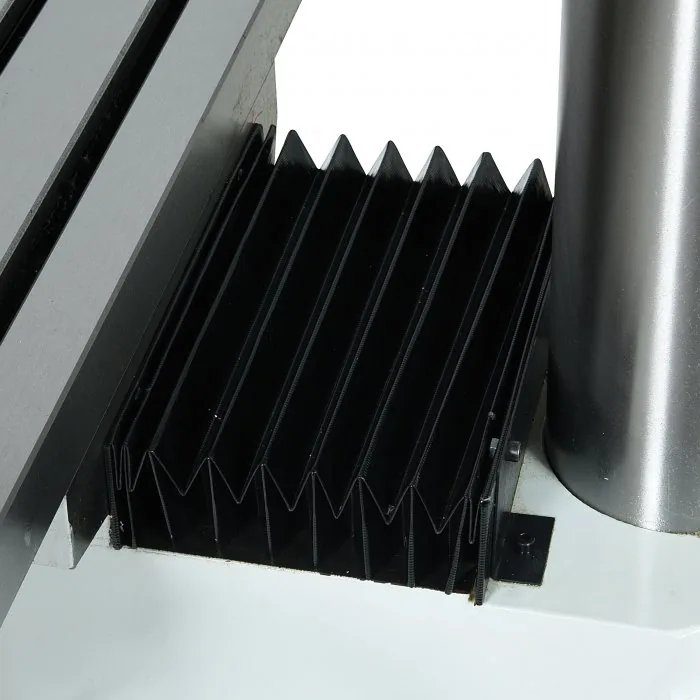

- Concertina slide way cover on y axis
- Adjustable gibs on table

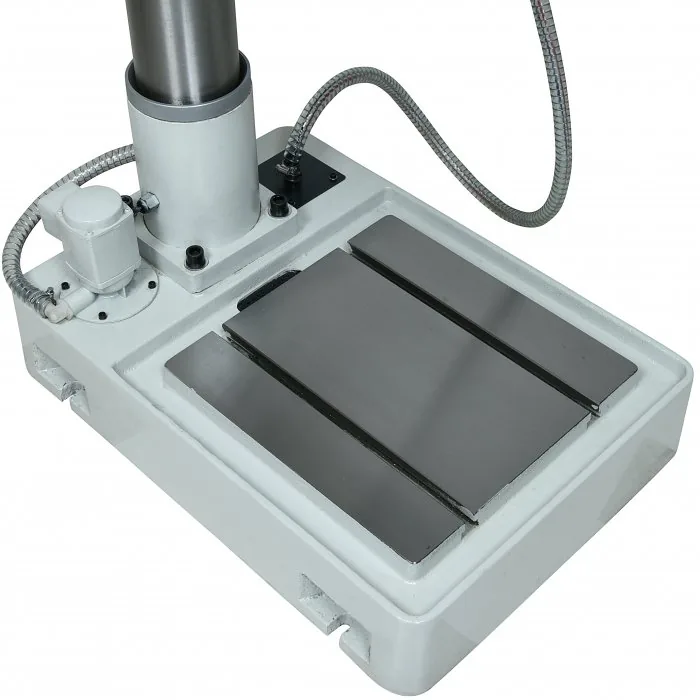

- 14mm T slotted work table and base

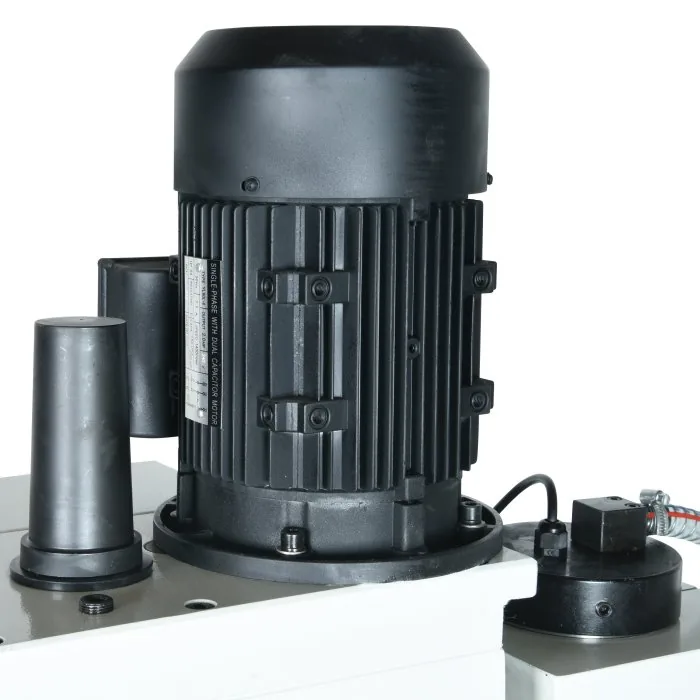

- 1.5kW 240V motor
About This Product

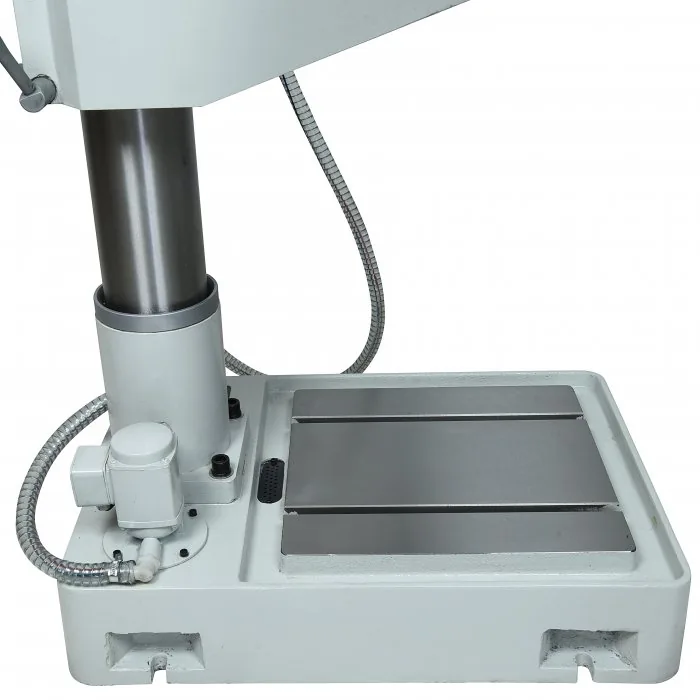

The DMF-44 pedestal milling & drilling machine offers a new dimension of milling capabilities compared to the standard conventional mill drills, as this machine allows you to have a longer job to fit onto the table or even mount your work directly to the machine base for maximum height clearance. This machine has a tapping function switch to allow you to control the required depth when tapping holes. The milling head also has provisions to adjust up and down in addition to the worktable movement up & down as well, given you the optimum options to best suit your requirements. The spindle on this machine is a 3 morse taper that is driven by a 2hp, 240V motor via gears in the head to ensure maximum drive without any slippage that can occur & generally inherited with belt drive heads. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code D185) for collection in store.

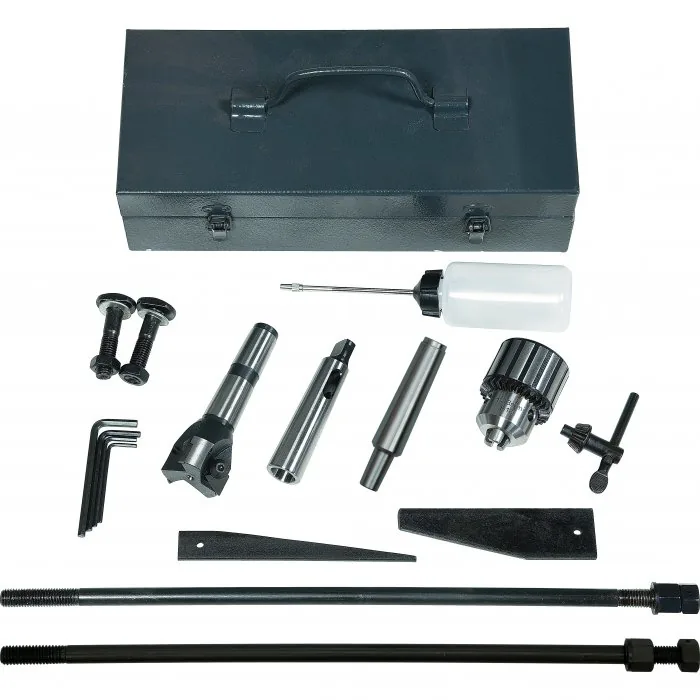

In the Box
- Interlocked spindle safety guard

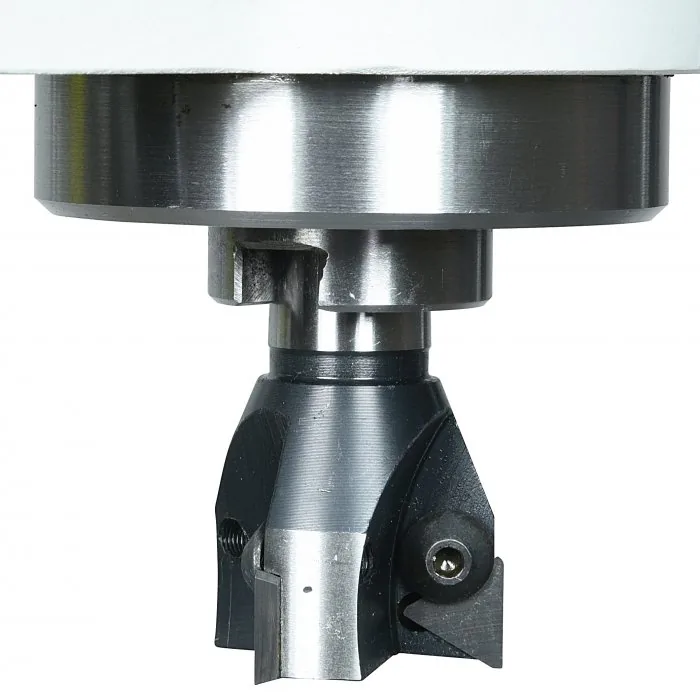

- Face milling cutter with inserts
- 13mm keyed drill chuck and arbor
- Chuck key to suit
- MT3 to MT2 drill sleeve adapter
- Drill drift tool to remove drill chuck or taper shank drills
- M12 x 1.75mm drawbar
- 1/2″ x 12TPI drawbar
Product Specifications
| Specification | Detail |
|---|---|
| Digital Readout | Optional |
| Type | Vertical |
| Table Size (mm) | 730 x 210 |
| Column Type | Ø125mm |
| Spindle Taper – Vertical | 3MT |
| Longitudinal Travel (X-Axis) (mm) | 480 |
| Cross Travel (Y-Axis) (mm) | 200 |
| Vertical Travel (Z-Axis) (mm) | 850 |
| Type of Slides | Dovetail |
| Spindle to Table (mm) | 630 |
| Spindle Travel / Diameter (mm) | 120 / 75 |
| Throat Depth (max.) (mm) | 280 |
| Tilting Head (Left ~ Right) | ±90º |
| Tilting Head (Forward ~ Back) | Fixed |
| Drilling Capacity (mm) | 31.5 |
| End Milling Capacity (mm) | 28 |
| Face Milling Capacity (mm) | 80 |
| Power Feed – Longitudinal (X-Axis) (mm/min) | Optional |
| Table T-Slot Size (inch / mm) | 14 |
| Work Table Load Capacity (kg) | 55 |
| Spindle Speeds Vertical (No./ rpm) | 6 (95 – 1650) |
| Motor Power – Vertical Spindle (kW / hp) | 1.5 / 2 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 390 |
