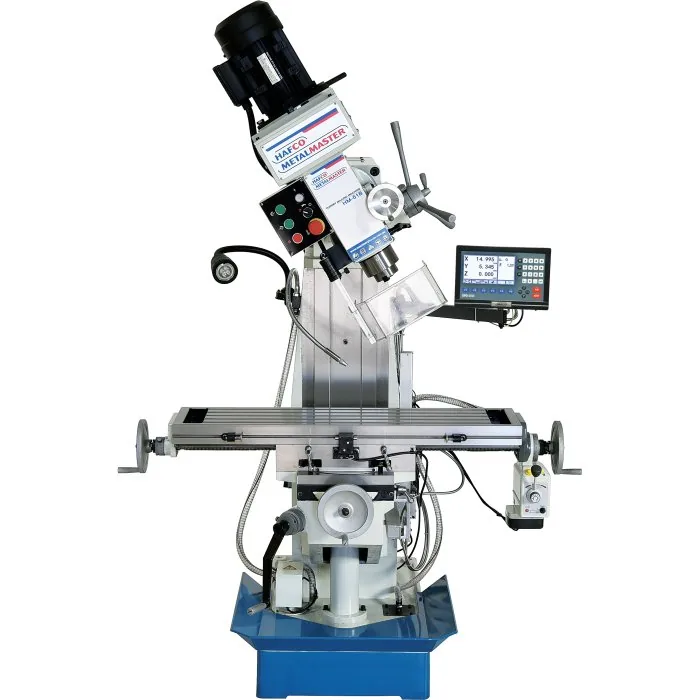

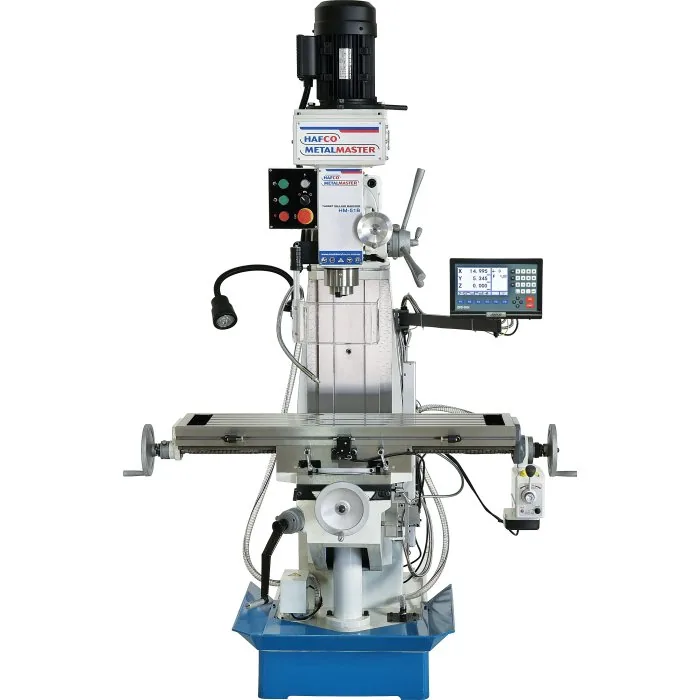

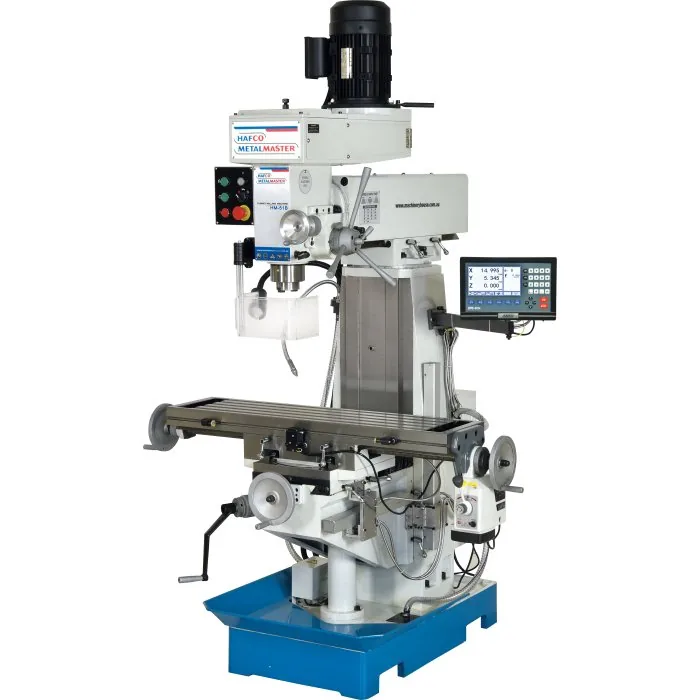

Workshop Turret Milling Machine — HM-51B, Table Travel: (X) – 580mm (Y) – 190mm (Z) – 350mm Includes Digital Readout System & Swivel Table
Part No: M577 | Barcode: 9344195204326 | Model: HM-51B

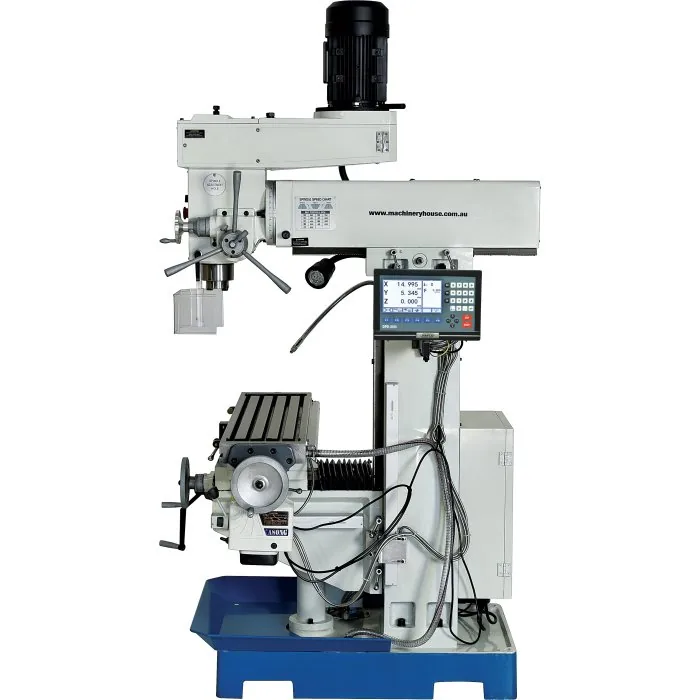

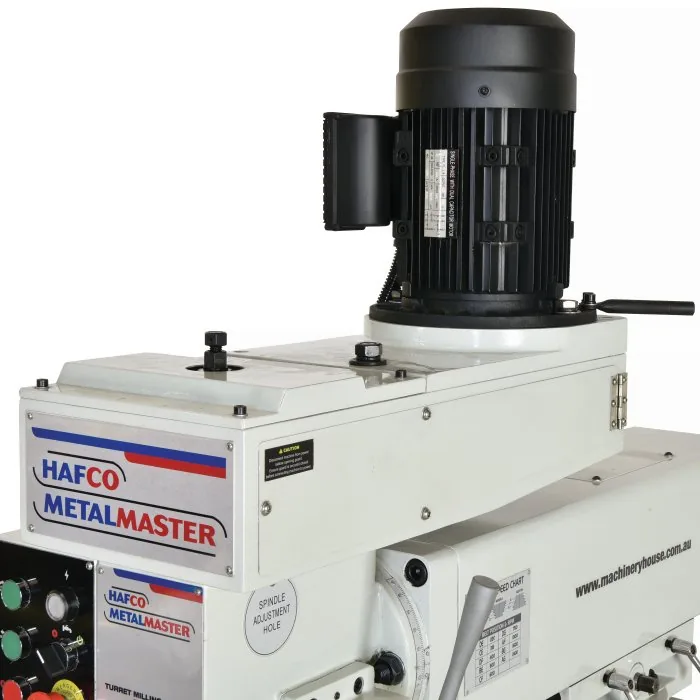

HAFCO-METALMASTER HM-51B Workshop Turret Milling Machine (Table Travel: (X) – 580mm (Y) – 190mm (Z) – 350mm Includes Digital Readout System & Swivel Table). A well-built entry level turret milling / drilling machine with a powerful continuous-load 2.2kW / 3hp motor, intended for trade use. The work table is…
Model HM-51B
Table Size: 1000 x 240 mm
Spindle Taper – Vertical: NT30
Spindle to Table: 390 mm
Spindle Travel / Diameter: 125 / 90 mm
Throat Depth (max.): 550 mm
Drilling Capacity: 30 mm
Key Features & Benefits

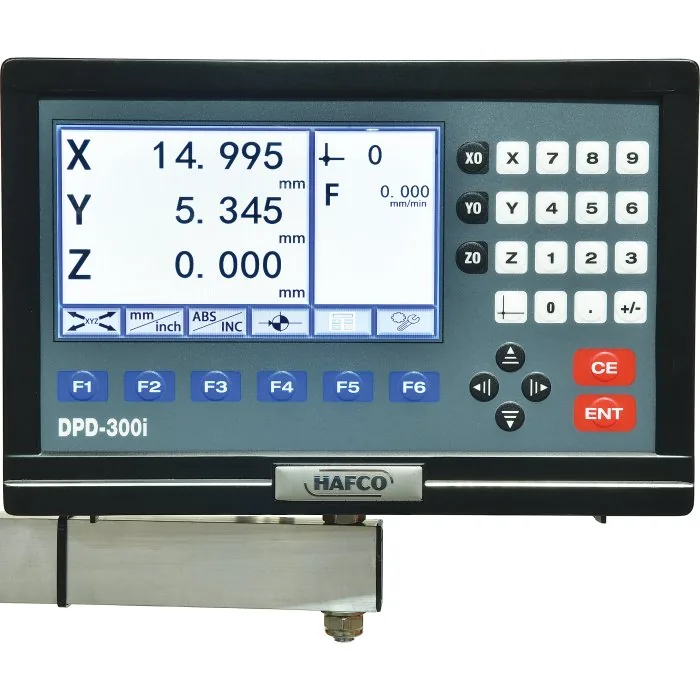

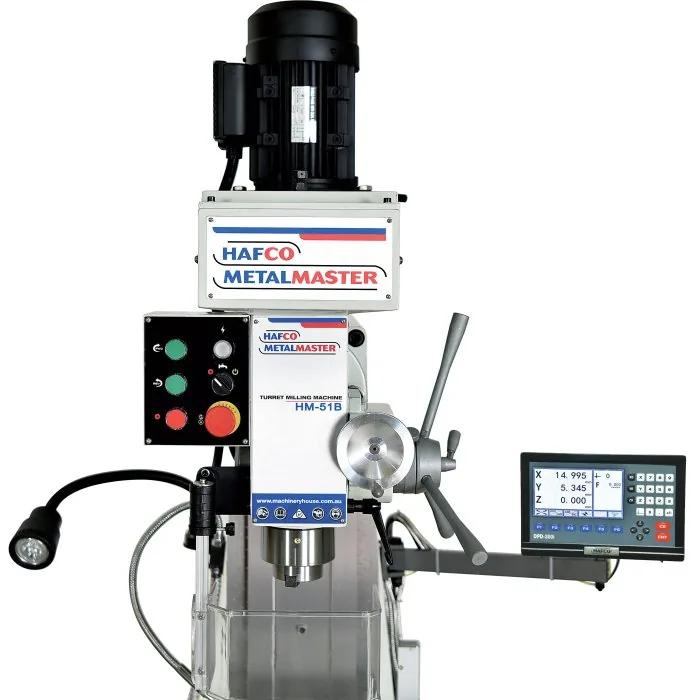

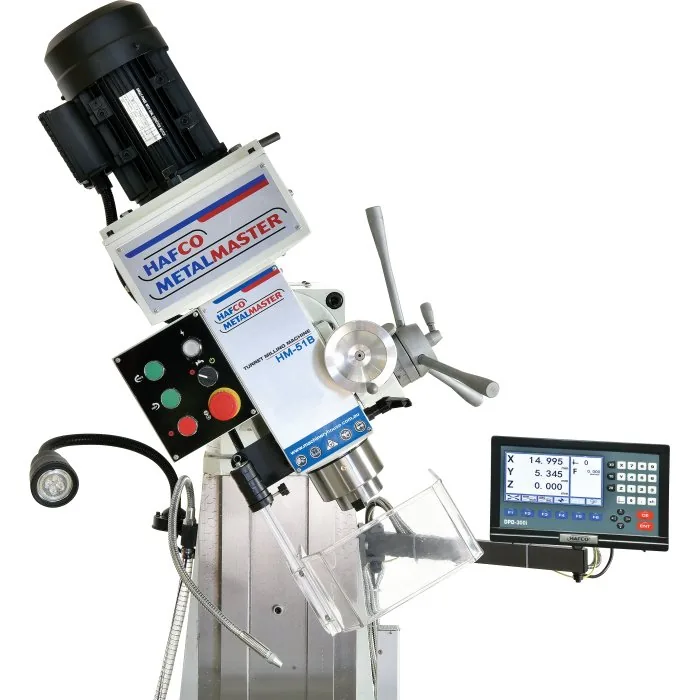

- 3 Axis digital readout system

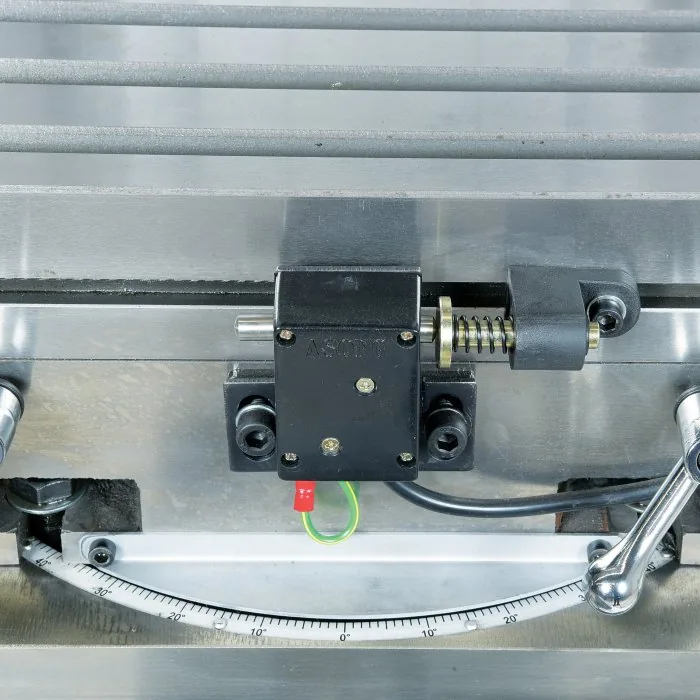

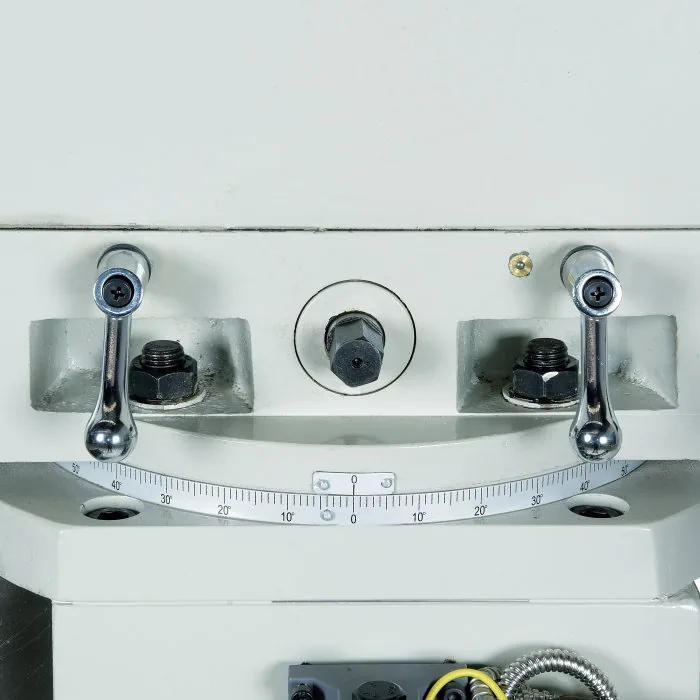

- Swivel table left & right with graduated scale

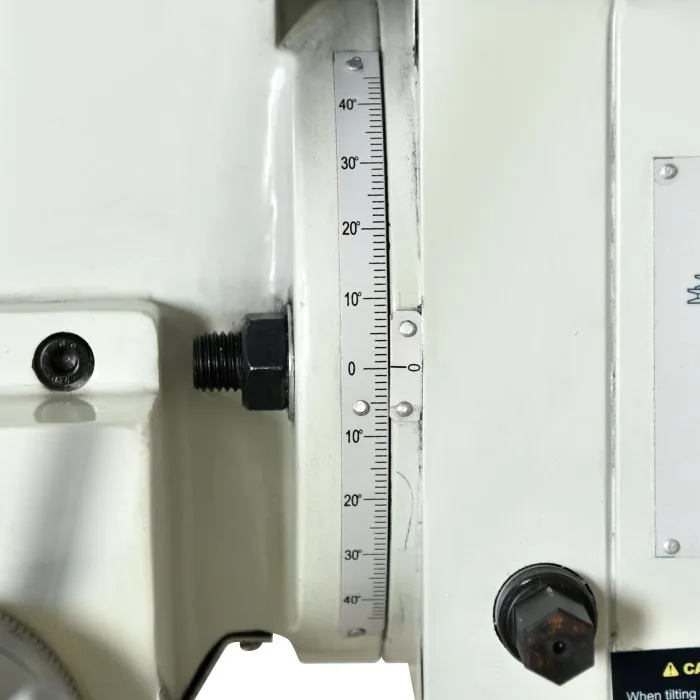

- Mill head tilts to ±45º left to right
- 300mm horizontally sliding and rotating ram
- NT30 vertical spindle is hardened and ground
- Precision-ground dovetail slide-ways and table
- Precision milling table incorporating machined T-slots

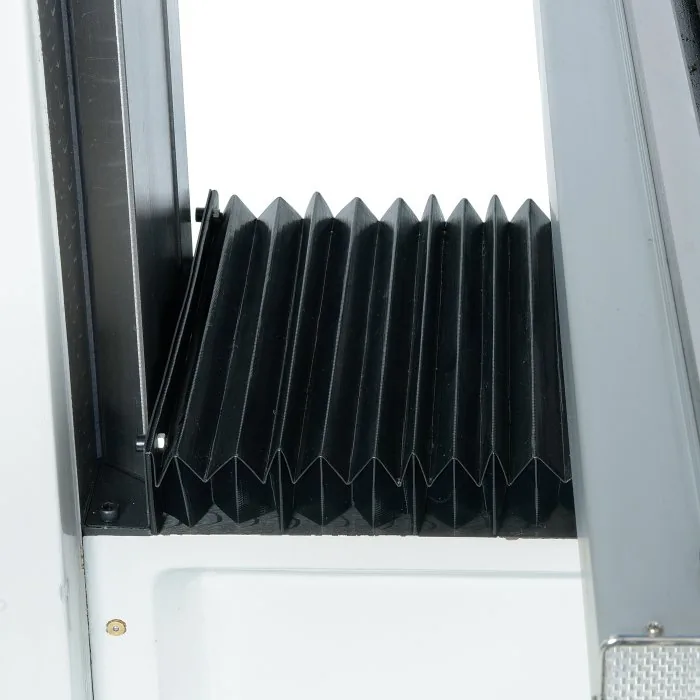

- Rear concertina slide-way cover

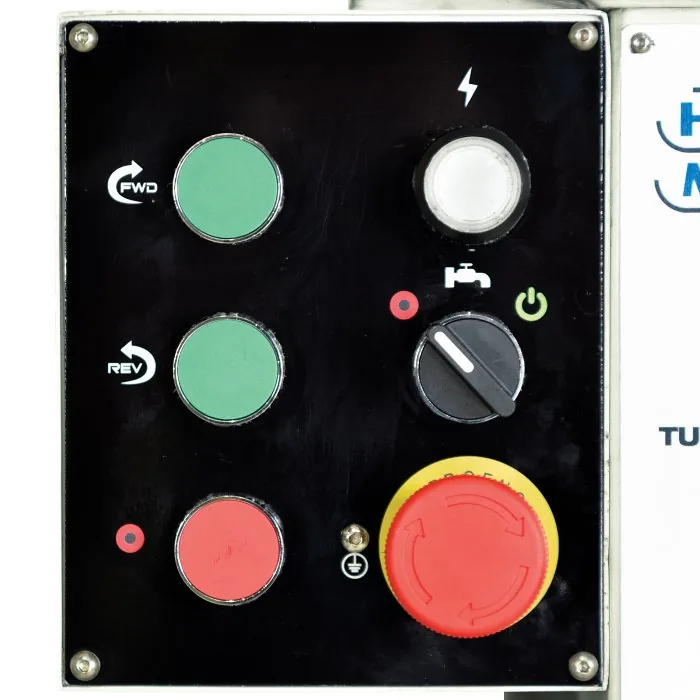

- Forward and reverse on/off switch
- Fine hand wheel operated quill feed
- Swarf & splash tray
- Spindle lock for quill

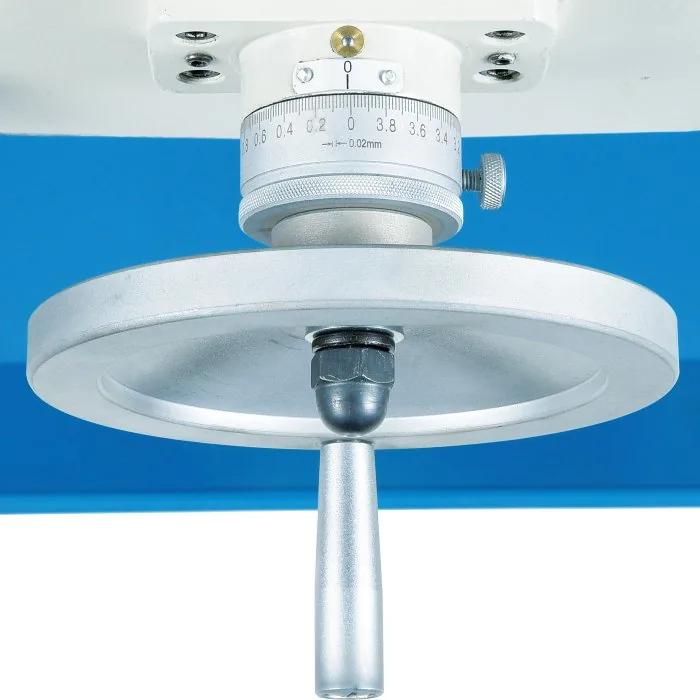

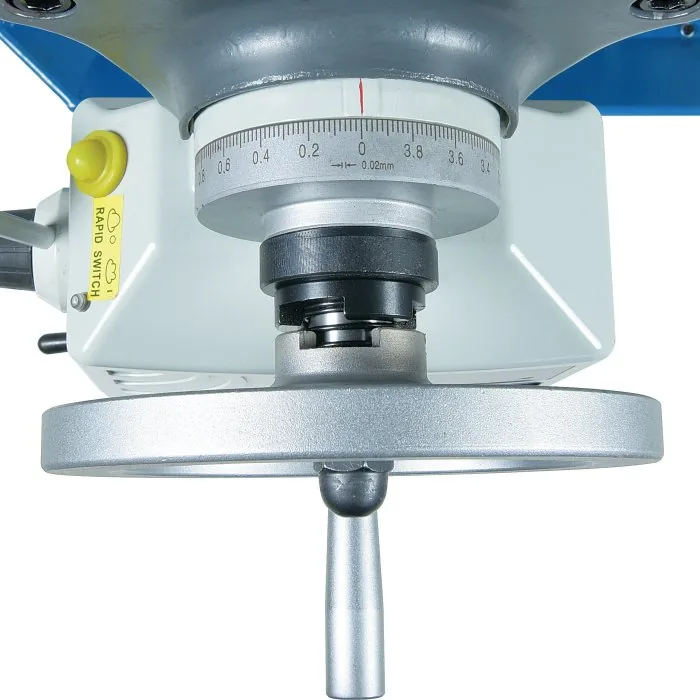

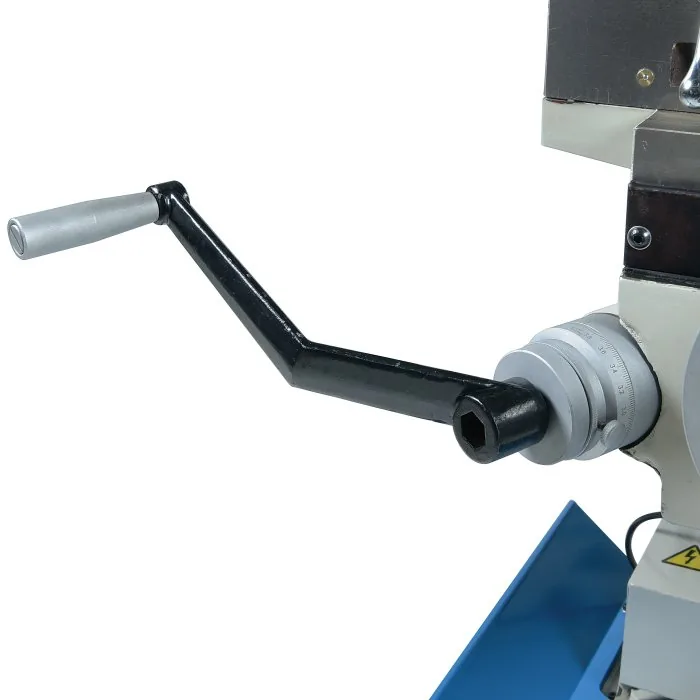

- Metric dial graduations @ 0.02mm for X , Y & Z-Axis

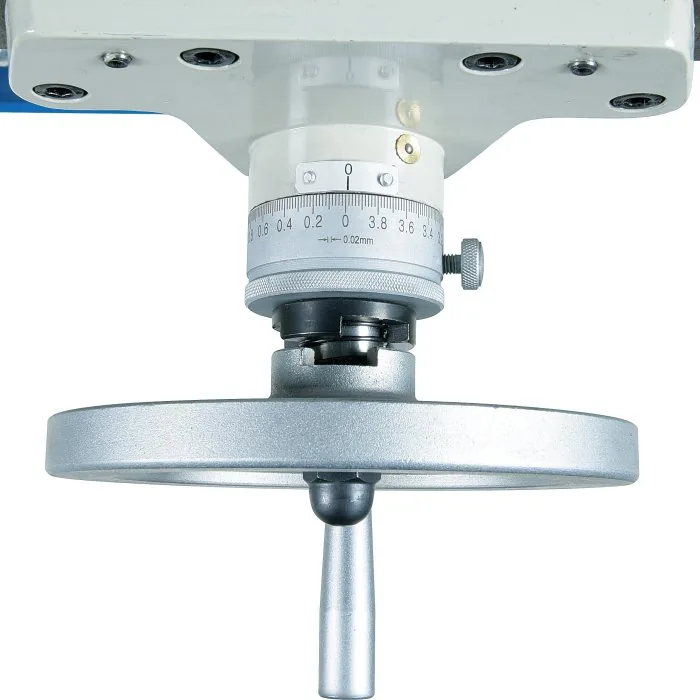

- Vertical quill hand-wheel dial graduations @ 0.05mm
- All slides utilise dovetail construction for maximum rigidity

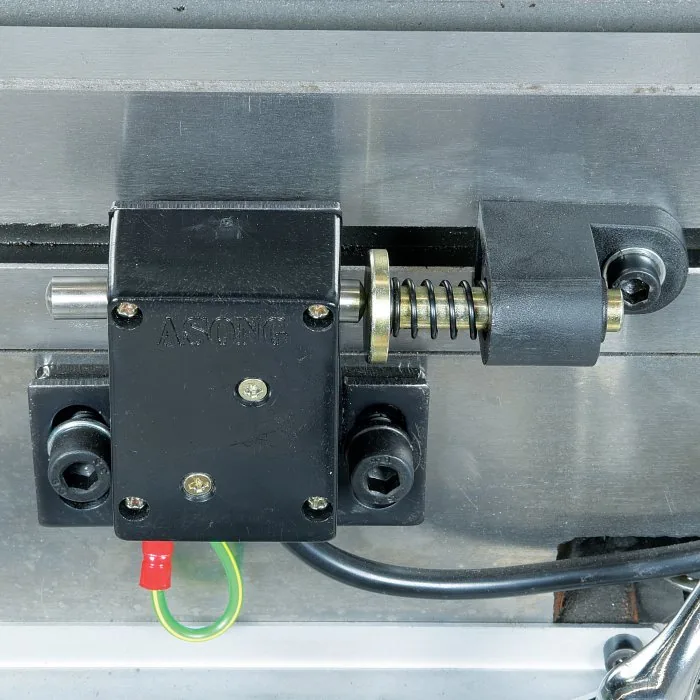

- * Note: X travel maybe reduced due to digital readout scales and safety stops
About This Product

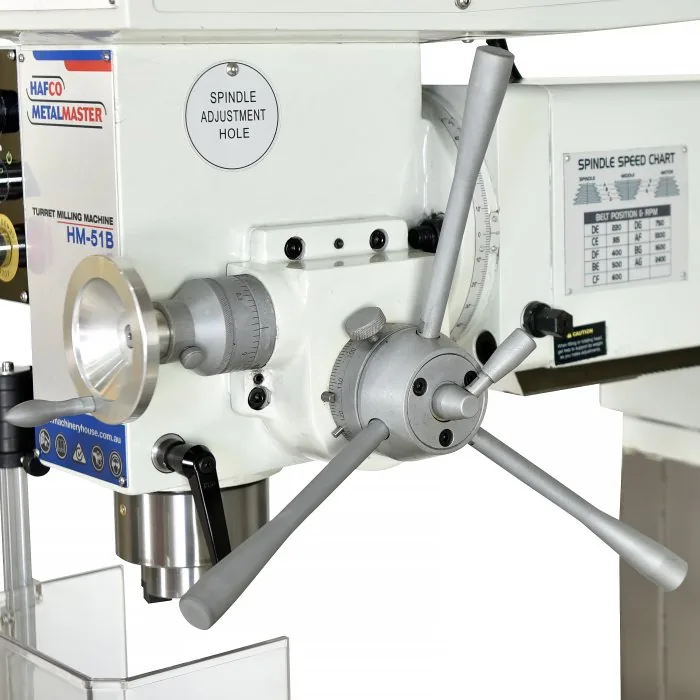

A well-built entry level turret milling / drilling machine with a powerful continuous-load 2.2kW / 3hp motor, intended for trade use. The work table is precision made with adjustable dovetail guides and is recognised for its 580mm X axis by 190mm Y axis travel. There is a three armed handle on the side for drilling also incorporating a fine feed control hand wheel on the front for milling. The screwed belt guard covers on each side of the head offer secure safety whilst providing easy access to the belts and pulleys for speed changing. Other features include 3 axis digital readout system, taper roller bearing support for the spindle, easy-to-read drilling depth stop, low voltage work light, coolant system, X axis power feed unit, drill chuck, 2 & 3 morse taper adaptors. The combination of generous sized vertical support and rugged cast iron construction throughout reduces vibration and guarantees accurate and chatter-free operation. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code M577) for collection in store.
In the Box
- 3 Axis digital readout system

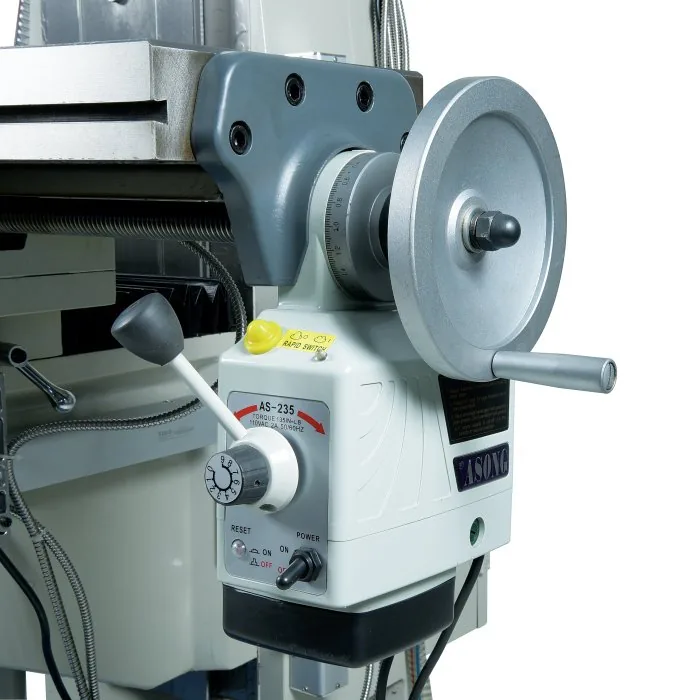

- X-Axis power feed

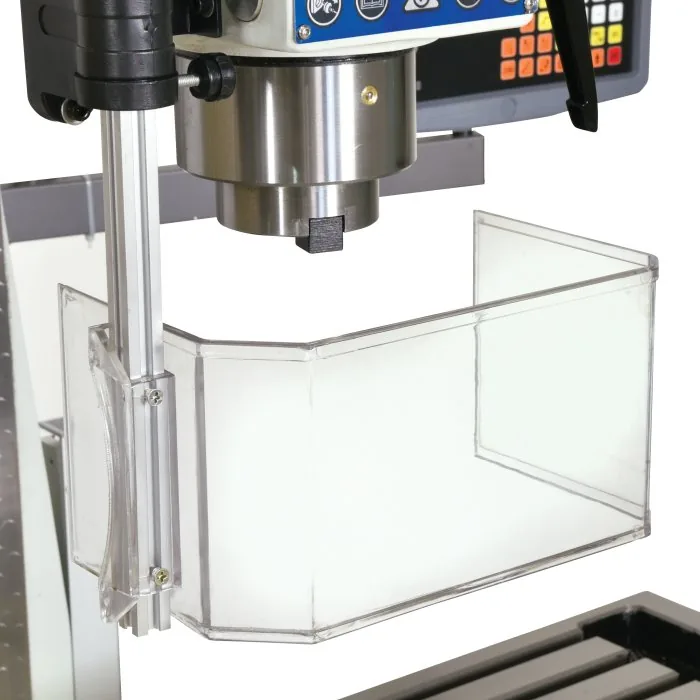

- Safety cutter guard
- Swarf tray

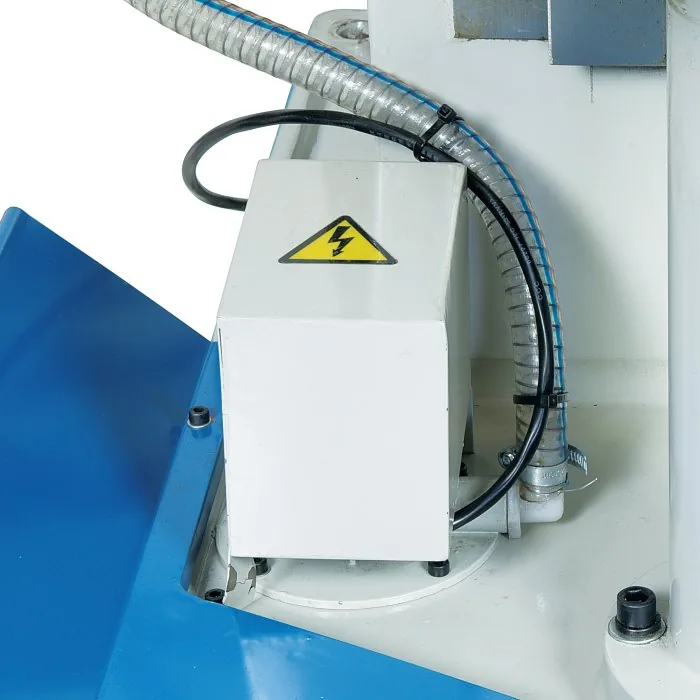

- Coolant system

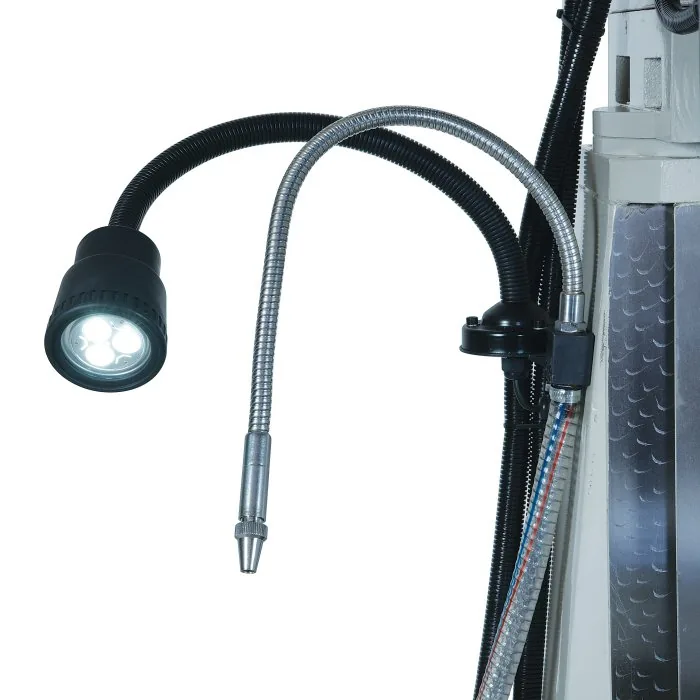

- Halogen lamp

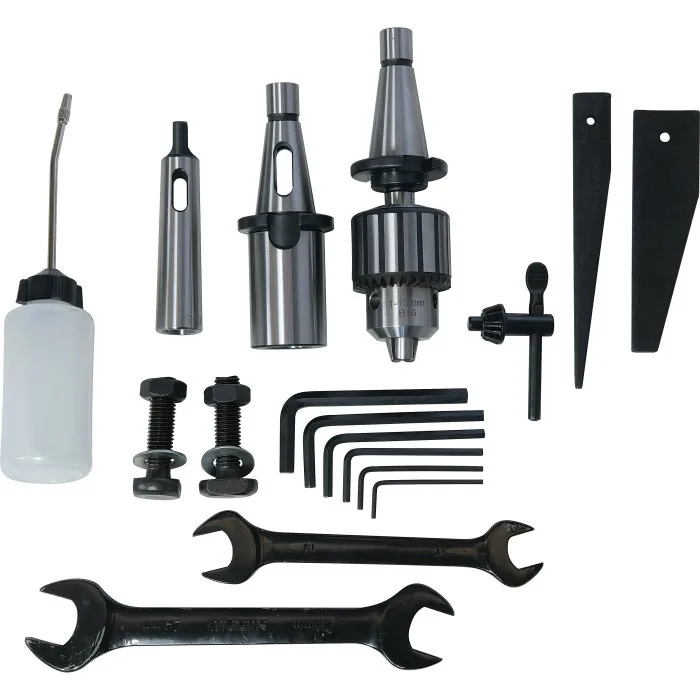

- Drill chuck & arbor
- NT30 to 3MT adaptor
- 2MT & 3MT adaptors
- M12 x 1.75mm Drawbar
Product Specifications

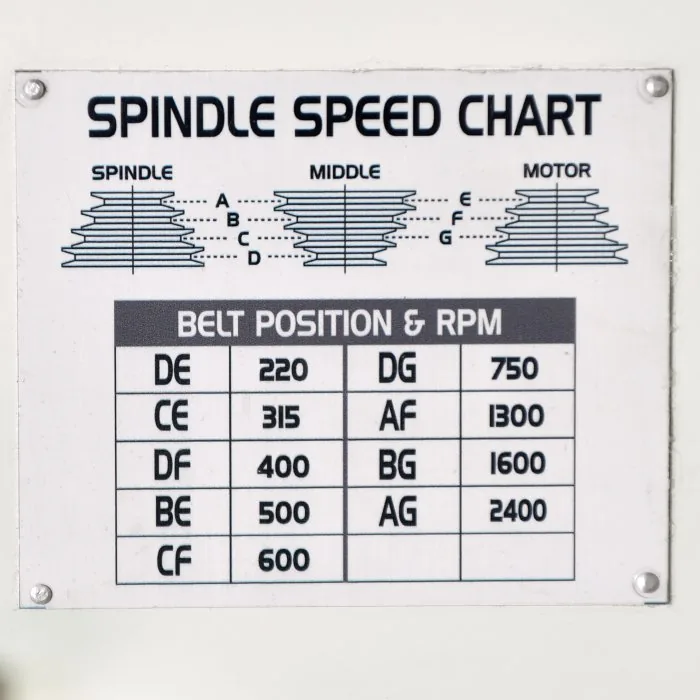

| Specification | Detail |
|---|---|
| Digital Readout | 3-Axis Digital Readout |
| Type | Vertical |
| Table Size (mm) | 1000 x 240 |
| Spindle Taper – Vertical | NT30 |
| Longitudinal Travel (X-Axis) (mm) | 580* |
| Cross Travel (Y-Axis) (mm) | 190* |
| Vertical Travel (Z-Axis) (mm) | 350 |
| Type of Slides | Dovetail |
| Ram Travel (mm) | 350 |
| Spindle to Table (mm) | 390 |
| Spindle Travel / Diameter (mm) | 125 / 90 |
| Throat Depth (max.) (mm) | 550 |
| Tilting Head (Left ~ Right) | ±45º |
| Tilting Head (Forward ~ Back) | Fixed |
| Drilling Capacity (mm) | 30 |
| End Milling Capacity (mm) | 25 |
| Face Milling Capacity (mm) | 80 |
| Power Feed – Quill (mm/rev) | Manual |
| Power Feed – Longitudinal (X-Axis) (mm/min) | 20 – 2000 |
| Table T-Slot Size (inch / mm) | 14 |
| Work Table Load Capacity (kg) | 175 |
| Spindle Speeds Vertical (No./ rpm) | 9 (220 – 2400) |
| Motor Power – Vertical Spindle (kW / hp) | 2.2 / 3 |
| Voltage / Amperage (V / amp) | 240 / 15 |
| Nett Weight (kg) | 850 |
