METALMASTER
Pipe & Tube Notcher — PNM-3, 12.7 – 76.2mm OD Tube and ½” – 2-1/2” NB schedule 40 pipe
Part No: P094 | Barcode: 9344195272899 | Model: PNM-3

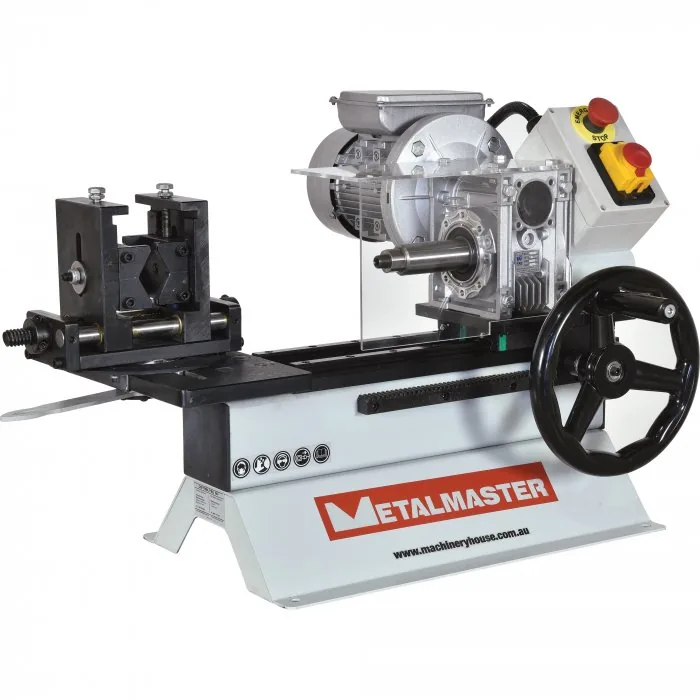

METALMASTER PNM-3 Pipe & Tube Notcher (12.7 – 76.2mm OD Tube and ½” – 2-1/2” NB schedule 40 pipe). Bench mounted precision motorised notcher suitable for pipe & tube up to 76mm OD, it includes a 240-volt motor with a right-angle reduction box to ensure the cutter speed is running at the optimum speed for accurate…
Model PNM-3
Cutting Speed: 200 rpm
Motor Power: 0.375 / 0.5
Voltage: 240V V
Key Features & Benefits
- Notches 12.7 – 76.2mm OD Tube and ½” – 2-1/2” NB schedule 40 pipe
- Double linear guide ways for smooth trouble-free operation.
- Adjustable notch angle up to 220 degrees with the ability to offset the height of the notch + 35mm
- Quick action angle adjustment handle with easy to see degree markings
- Self-centring vice with double V-Shaped jaws to securely clamp the material
About This Product
Bench mounted precision motorised notcher suitable for pipe & tube up to 76mm OD, it includes a 240-volt motor with a right-angle reduction box to ensure the cutter speed is running at the optimum speed for accurate notches as well as long cutter life. The double linear guideways ensure smooth operation whilst providing a solid base for minimal vibration. The material clamp offers quick & easy adjustment for both angle & offset height to give you a professional finish every time This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code P094) for collection in store.
Product Specifications
| Specification | Detail |
|---|---|
| Machine (Type) | Pipe & Tube Notcher Bench Mount |
| Notching Cutter (Type) | Hole Saw (Optional) |
| Tube Capacity (OD) – Mild Steel (mm) | Ø12.7 – Ø76.2 |
| Pipe Capacity (NB) – Mild Steel (inch / mm) | Ø1/2″ – Ø2-1/2″ |
| Angle Adjustment (Degree) | 0 – 60° |
| Cutting Speed (rpm) | 200 |
| Motor Power (kW / hp) | 0.375 / 0.5 |
| Voltage (V) | 240V |
| Dimensions ((mm)) | – |
| Nett Weight (kg) | 87 |
