HAFCO-METALMASTER

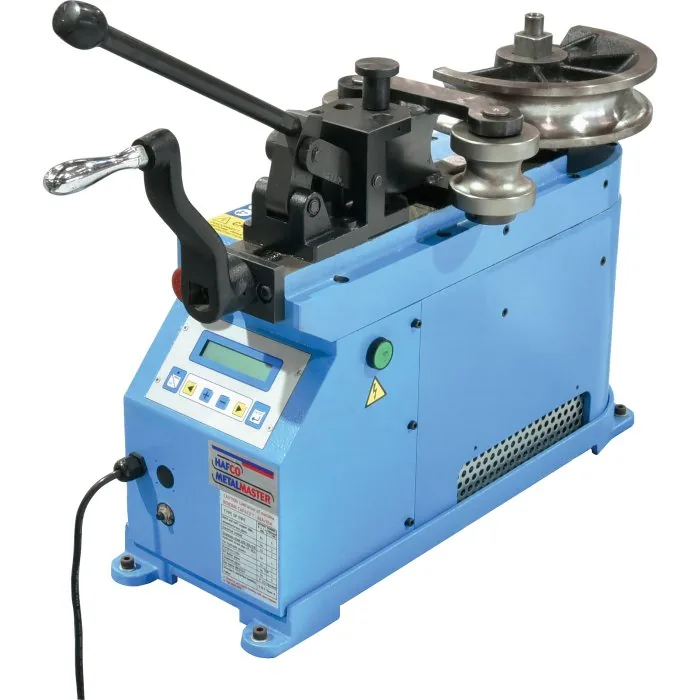

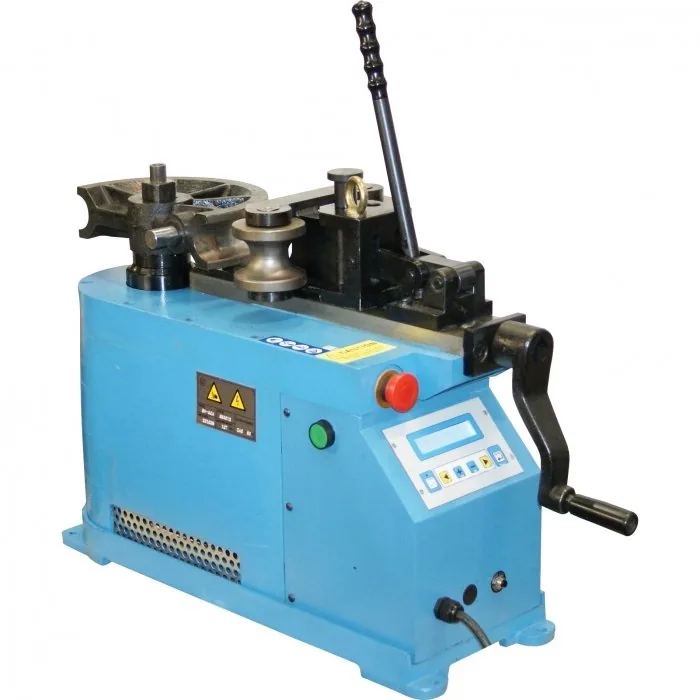

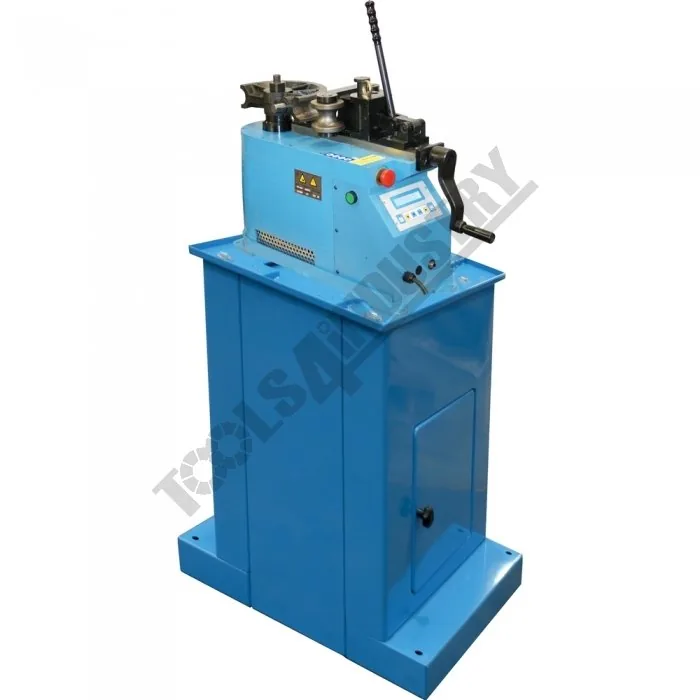

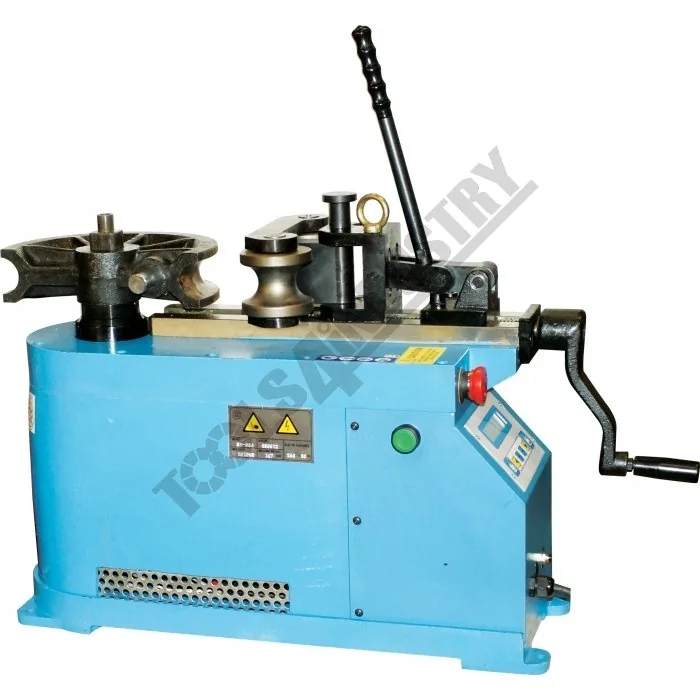

Electric Pipe & Tube Bender – Digital Control — TB-60, Ø1/2″ – Ø1-1/4″ NB Pipe Capacity, 25.4 – 51mm OD Round Tube Capacity Includes Ø1/2″, Ø3/4″, Ø1″ & Ø1-1/4″ NB Pipe Formers
Part No: T606 | Barcode: 9344195015847 | Model: TB-60
HAFCO-METALMASTER TB-60 Electric Pipe & Tube Bender – Digital Control (Ø1/2″ – Ø1-1/4″ NB Pipe Capacity, 25.4 – 51mm OD Round Tube Capacity Includes Ø1/2″, Ø3/4″, Ø1″ & Ø1-1/4″ NB Pipe Formers). TB-60 is an accurate and powerful electric bending machine able to bend large diameter pipes & tubes in medium to thin…
Model TB-60
Angle Capacity: 0 – 210º deg
Motor Power: 1.1 / 1.5
Voltage / Amperage: 240 / 10
Key Features & Benefits
- Cast iron body tube bender
- 1.1kW 240V motor

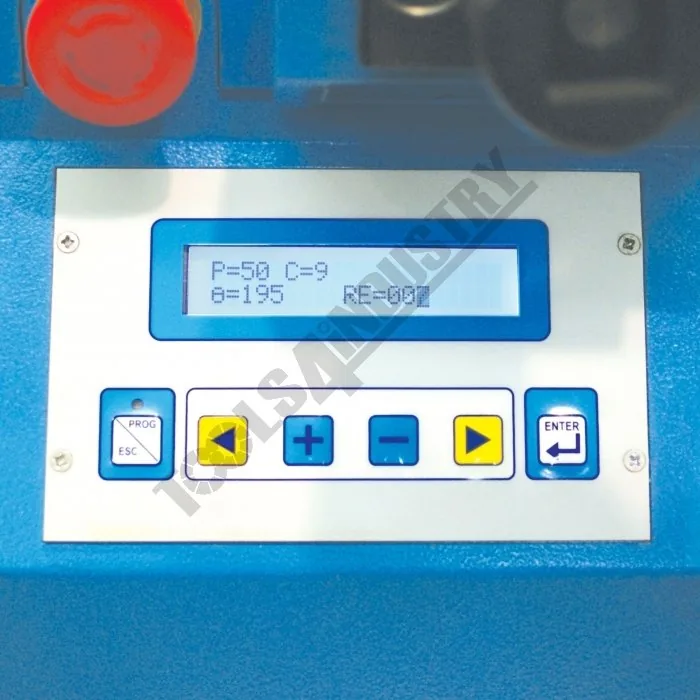

- User friendly digital control panel with microprocessor, allowing users to set the required bending angles.
- Capable of storing 50 programs with 9 bends per program

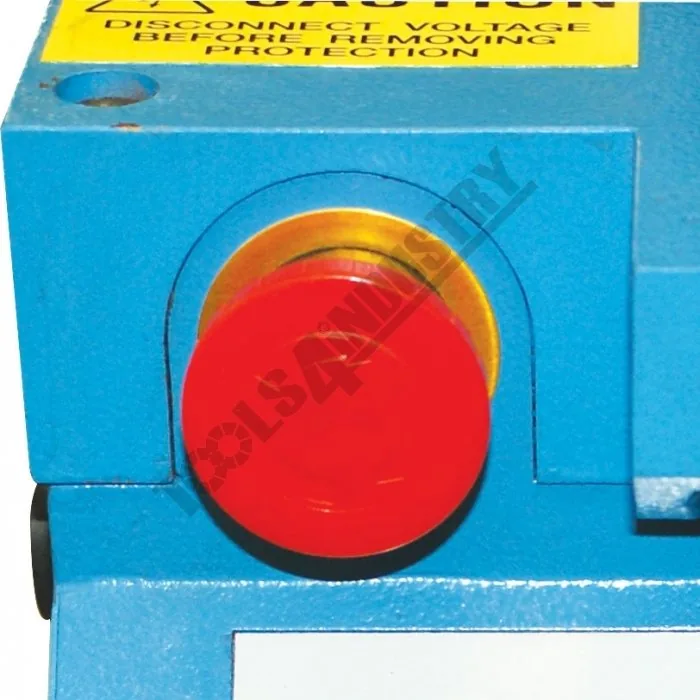

- Electric brake and automatic return to stop

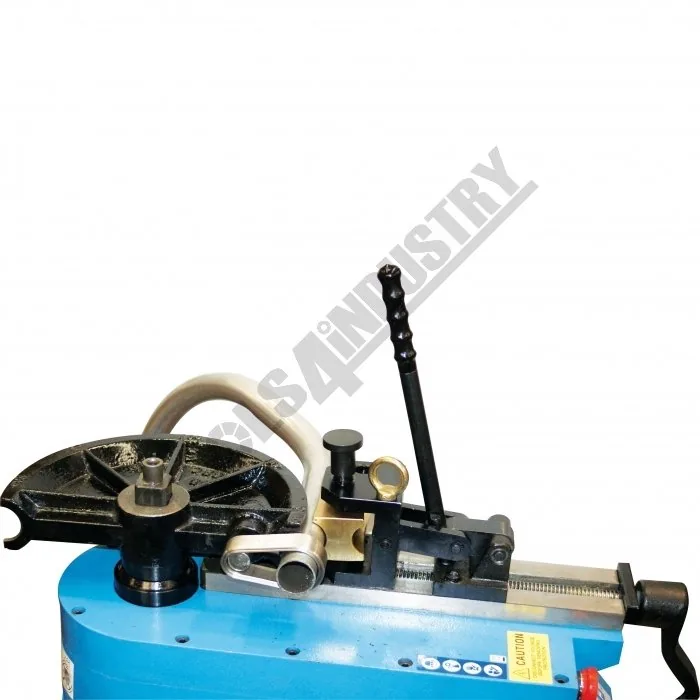

- Designed to bend tube and pipe with constant bending radius without deformation

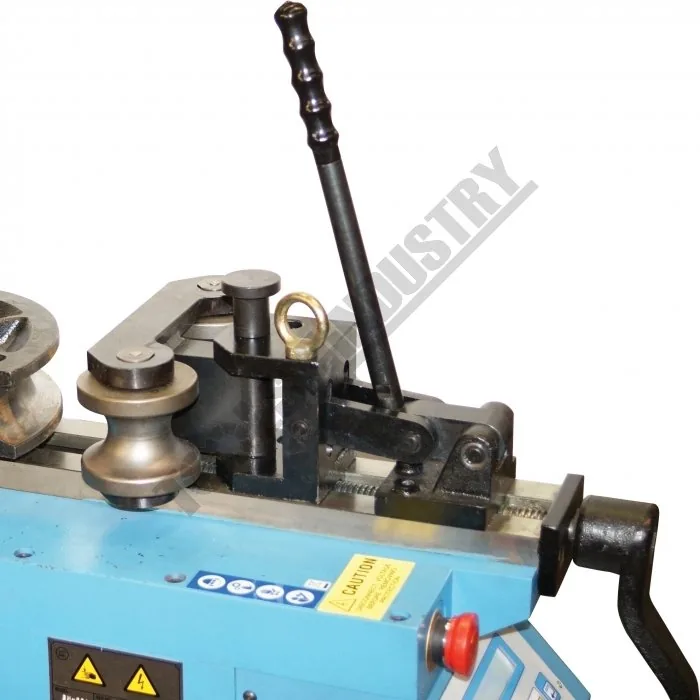

- Each pipe former consists of a die former and a follow rollers to suit each size
- 210º maximum bending angle
- Includes pipe formers: Ø1/2″, Ø3/4″, Ø1″ & Ø1-1/4″ NB
About This Product
TB-60 is an accurate and powerful electric bending machine able to bend large diameter pipes & tubes in medium to thin wall with optimum and constant bending radii. This compact & versatile pipe & tube bender incorporates a digital control key pad to accurately bend to your requirements. This compact & versatile pipe and tube bending unit represents great value for a minimal investment This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code T606) for collection in store.
In the Box

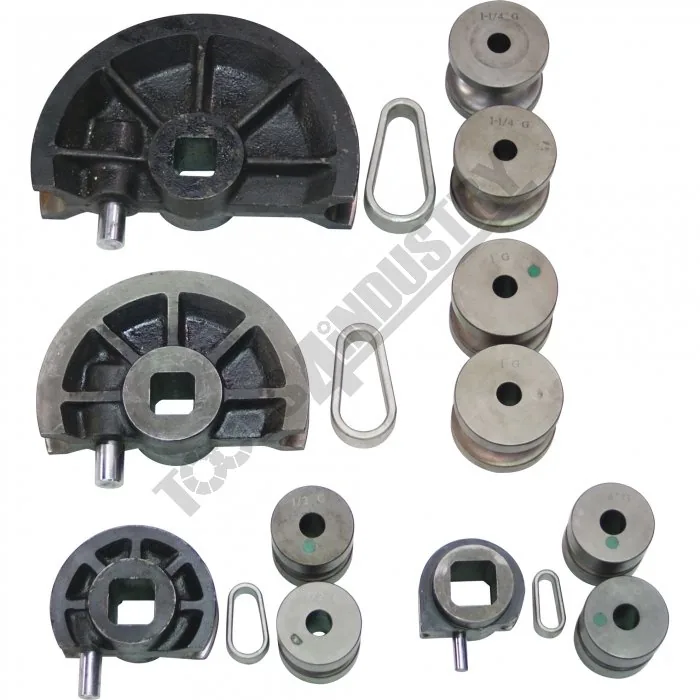

- Pipe Formers:
- Ø1/2″ NB x 59.2mm Centreline radius
- Ø3/4″ NB x 80mm Centreline radius
- Ø1″ NB x 100.1mm Centreline radius
- Ø1-1/4″ NB x 127.4mm Centreline radius
Product Specifications
| Specification | Detail |
|---|---|
| Material (Type) | Pipe & Tube |
| Material Section (Type) | Round |
| Machine (Type) | Electric |
| Round Pipe Range (NB) – Mild Steel (inch / mm) | Ø1/2″ – Ø1-1/4″ |
| Round Tube Range (OD) – Mild Steel (inch / mm) | Ø25.4 – Ø51 |
| Round Pipe (NB) x Wall Capacity – Mild Steel (inch) | Ø1-1/4″ x 1/8″ |
| Round Tube (OD) x Wall Capacity – Mild Steel (inch / mm) | Ø51 x 2 |
| Round Tube (OD) x Wall Capacity – Aluminium (inch / mm) | Ø51 x 3 |
| Round Tube (OD) x Wall Capacity – Copper, Brass (inch / mm) | Ø51 x 2 |
| Round Tube (OD) x Wall Capacity – Stainless Steel (inch / mm) | Ø38 x 1.6 |
| Centre Line Radius – Maximum (CLR) (inch / mm) | 4 x Former Diameter |
| Centre Line Radius – Minimum (CLR) (inch / mm) | 3 x Former Diameter |
| Pipe Formers Included (inch / mm) | 1/2″, 3/4″, 1″ & 1-1/4″ NB Pipe |
| Angle Capacity (deg) | 0 – 210º |
| Motor Power (kW / hp) | 1.1 / 1.5 |
| Voltage / Amperage (V / amp) | 240 / 10 |
| Nett Weight (kg) | 140 |
