HAFCO
Manual Tube Bender – Round & Square — TBRS-25, Ø9.52 – Ø22.22mm Round Tube Capacity, 19.05 & 25.4mm Square Tube Capacity Includes Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05, Ø22.22mm Round & 19.05 & 25.4mm Square Formers
Part No: T055 | Barcode: 9344195007040 | Model: TBRS-25
HAFCO TBRS-25 Manual Tube Bender – Round & Square (Ø9.52 – Ø22.22mm Round Tube Capacity, 19.05 & 25.4mm Square Tube Capacity Includes Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05, Ø22.22mm Round & 19.05 & 25.4mm Square Formers). This Hafco TBRS-25 tube bending kit has everything that you need to make smooth bends in round…
Model TBRS-25
Angle Capacity: 0 – 180º deg
Key Features & Benefits
- Suitable for 1.2mm wall thickness in mild steel
- Cast Steel Round formers included: Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05, Ø22.22mm
- Cast Steel Square formers included: 19.05 & 25.4mm
About This Product

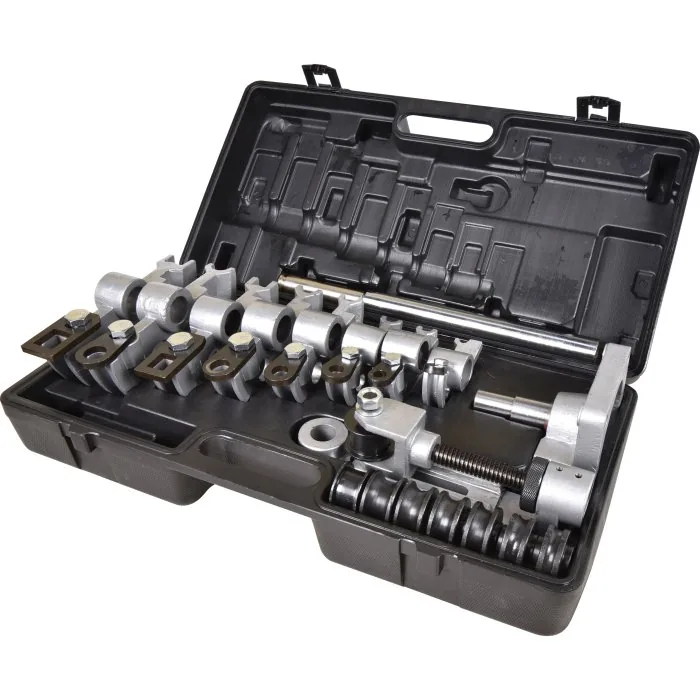

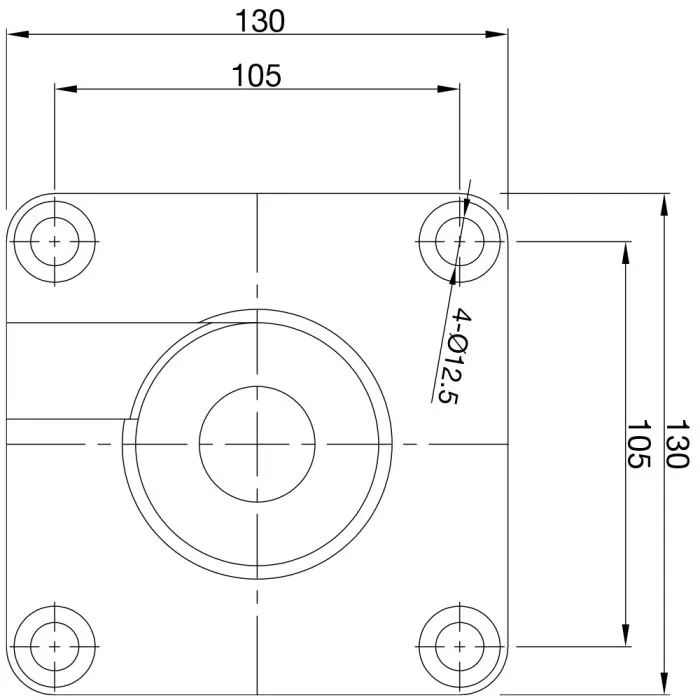

This Hafco TBRS-25 tube bending kit has everything that you need to make smooth bends in round & Square tubes up to 1.2mm maximum wall thickness. Firstly, mount the cast iron base securely onto your work bench top or clamp it into a bench vice, then you are ready to begin your bend. This great package is capable of bending round tubes from Ø9.52, Ø12.7, Ø14.29, Ø15.87, Ø19.05 & Ø22.22mm, and square tube from 19.05 & 25.4mm. Everything is all neatly packed into a handy storage carry case for your convenience, This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code T055) for collection in store.

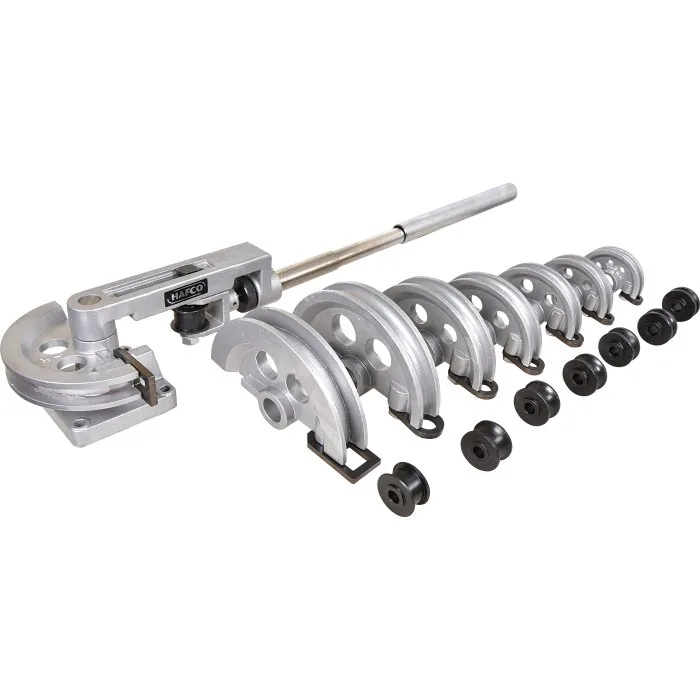

In the Box
- Cast Steel Round Tube Formers:
- D = Ø9.52mm OD – R = 47.5mm Centreline radius
- D = Ø12.7mm OD – R = 57.5mm Centreline radius
- D = Ø14.29mm OD – R = 67.5mm Centreline radius
- D = Ø15.87mm OD – R = 77.25mm Centreline radius
- D = Ø19.05mm OD – R = 88.25mm Centreline radius
- D = Ø22.22mm OD – R = 107.25mm Centreline radius
- Cast Steel Square Tube Formers:
- H = Ø19.05mm OD – L = 85mm Internal radius
- H = Ø25.4mm OD – L = 92.5mm Internal radius
Product Specifications
| Specification | Detail |
|---|---|
| Material (Type) | Tube |
| Material Section (Type) | Round & Square |
| Machine (Type) | Manual |
| Round Tube Range (OD) – Mild Steel (inch / mm) | Ø9.52 – Ø22.22 |
| Square Tube Range (inch / mm) | 19.05 & 25.4 |
| Tube Wall Thickness – Mild Steel (inch / mm) | 1.2 |
| Tube Formers Included (inch / mm) | 9.52, 12.7, 14.29 Round 15.87, 19.05, 22.22 Round 19.05 & 25.4 Square |
| Angle Capacity (deg) | 0 – 180º |
| Nett Weight (kg) | 28 |
