HAFCO-METALMASTER
Pipe & Tube Notcher – Linisher — PN-76E, Single Direction C/W 2 Working Stations Includes 1 set of Roller
Part No: L850 | Barcode: 9344195006975 | Model: PN-76E

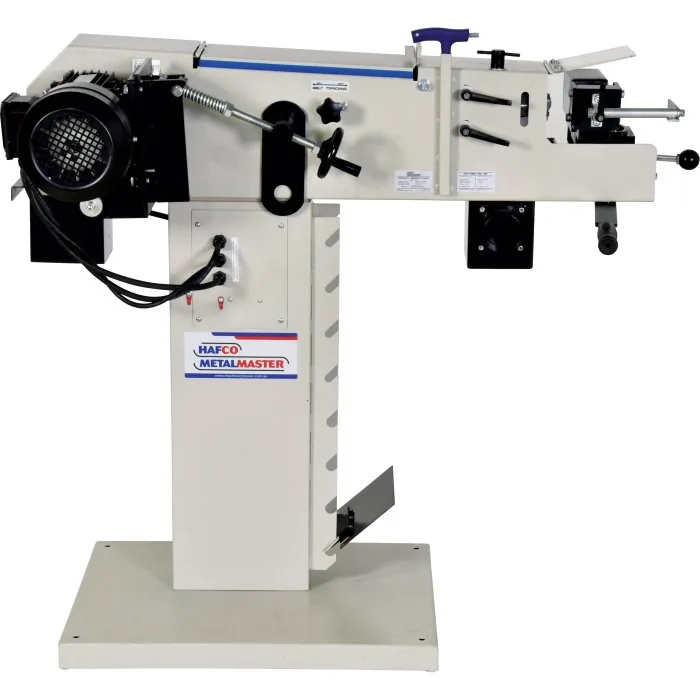

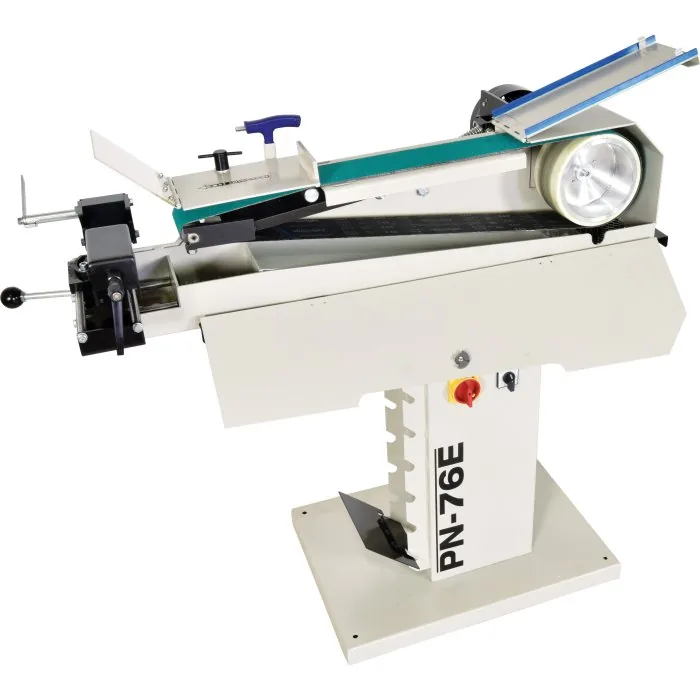

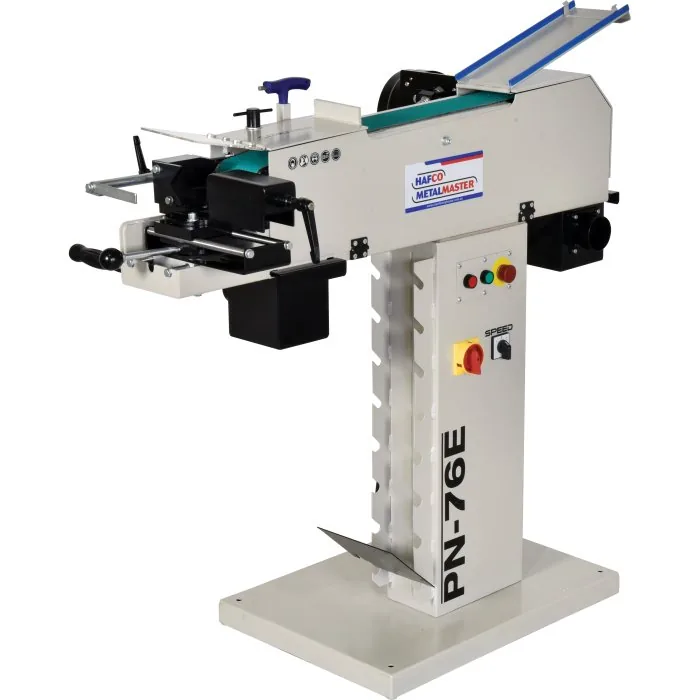

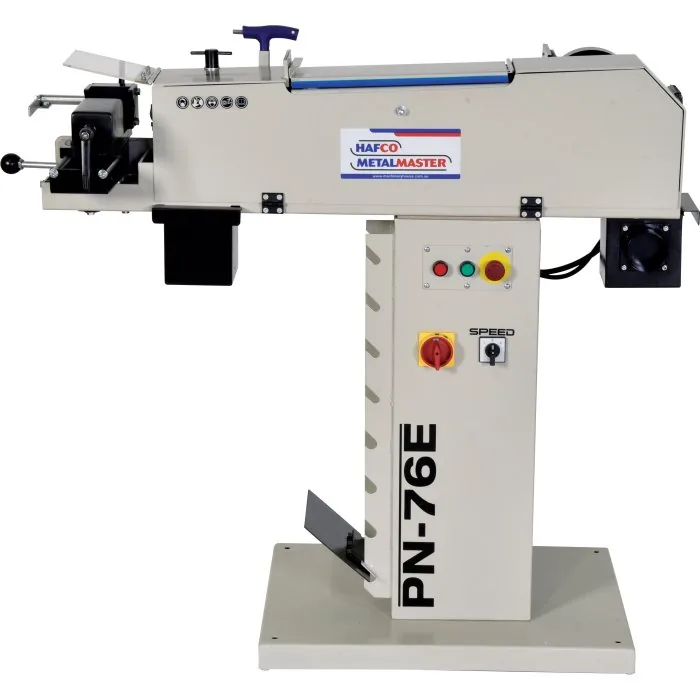

HAFCO-METALMASTER PN-76E Pipe & Tube Notcher – Linisher (Single Direction C/W 2 Working Stations Includes 1 set of Roller). The PN-76E Pipe & Tube Notcher / Linisher is our economy version for notching of tube & pipe with the added versatility of deburring & linishing all types of steels. This notcher comes…
Model PN-76E
Single Direction C/W 2 Working Stations
Includes 1 set of Roller
Belt Speed: 1400rpm / 2800rpm
Motor Power: 3 / 4
Voltage: 415 V
Key Features & Benefits

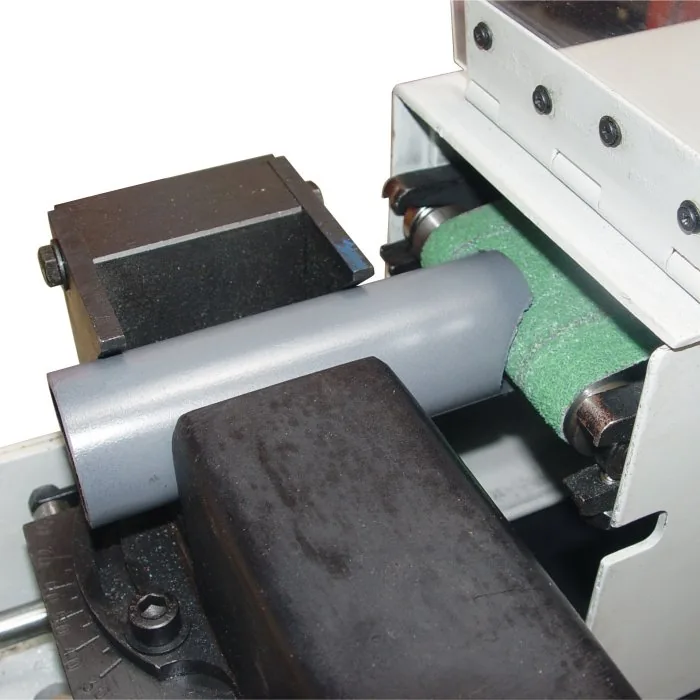

- Ø20-76mm OD tube notching capacity
- 1/2″ – 2-1/2″ NB pipe notching capacity
- Powerful 3kW / 4hp, 415V motor with overload protection
- 2 x speed motor 1400rpm for stainless steel, 2800rpm for steel

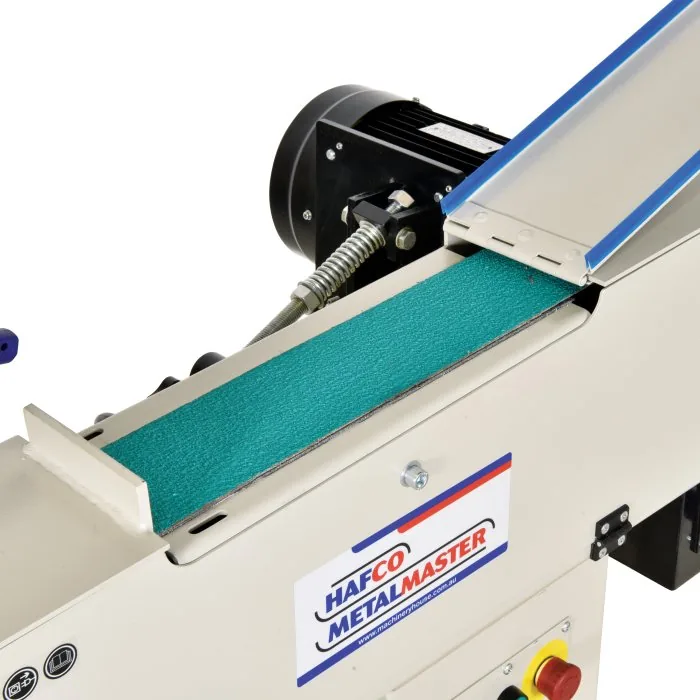

- Double working stations for Notching & de-burring

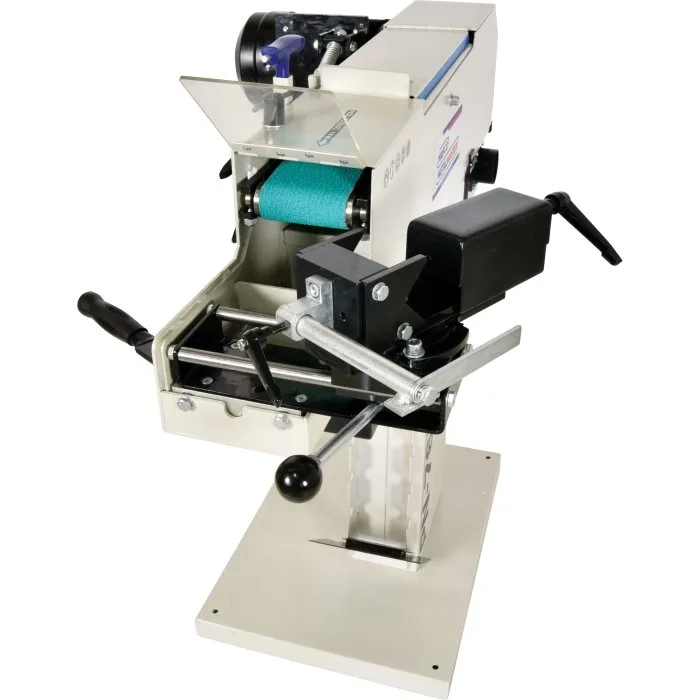

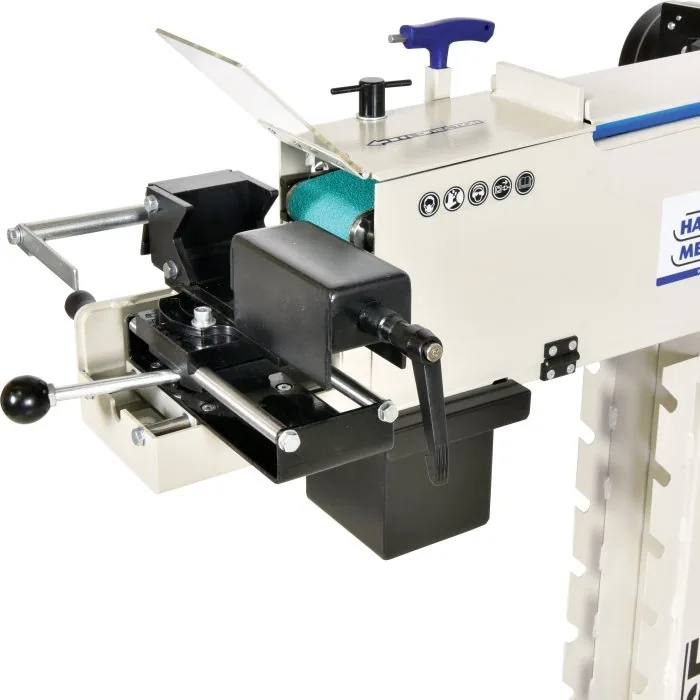

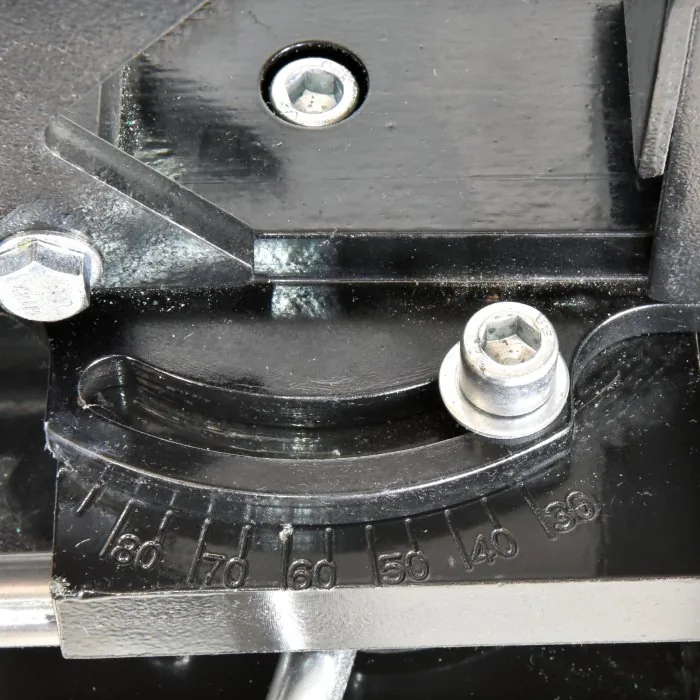

- Quick action compound swivel vice from 30-90º
- Heavy duty leadscrew vice for increasing clamp pressure
- Fast change belt system for fast and easy change of grinding rolls – no tools required
- Spring device allows for continuous belt tension

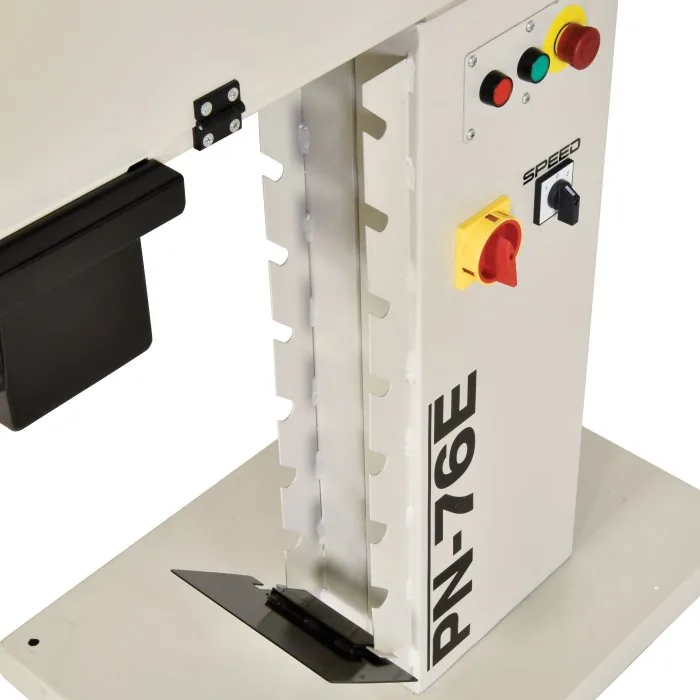

- Solid pedestal stand with built in storage rack for notching rollers
About This Product
The PN-76E Pipe & Tube Notcher / Linisher is our economy version for notching of tube & pipe with the added versatility of deburring & linishing all types of steels. This notcher comes standard with a single direction motor for maximising the use of the notching & top linishing stations & with a powerful 3Kw 415v motor it will remove material quickly & easily. The machine features a notching vice that allows you to adjust your notch to any angle between 90 to 30 degrees & a spring tension device to maintain continuous belt tension. With the Fast-Change tension system you can quickly change the diameter of the front roller to suit the diameter of the notch you require. The base includes a storage rack for up to 7 sets of notching rollers to keep them within easy reach saving you time when changing between sizes. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code L850) for collection in store.
In the Box
- 1 notching rollers suitable for the following material sizes
- Ø1-1/4″ NB pipe or Ø42mm tube
- 1 x linishing belt
Product Specifications
| Specification | Detail |
|---|---|
| Machine (Type) | Pipe & Tube Notcher – Linisher |
| Notching Cutter (Type) | Linisher |
| Tube Capacity (OD) – Mild Steel (mm) | Ø20 – Ø76 |
| Pipe Capacity (NB) – Mild Steel (inch / mm) | 1/2″ – 2-1/2″ |
| Angle Adjustment (Degree) | 30-90º |
| Belt Size (mm) | 100 x 2000 |
| Belt Speed | 1400rpm / 2800rpm |
| Motor Power (kW / hp) | 3 / 4 |
| Voltage (V) | 415 |
| Nett Weight (kg) | 160 |
