HAFCO
Tube Bender – Electric — DB-32, Ø15.87 – Ø31.75mm Round Tube Capacity Includes Ø15.87, Ø19.05, Ø22.22, Ø25.4 & Ø31.75mm Aluminium Tube Formers
Part No: T070 | Barcode: 9344195101441 | Model: DB-32
HAFCO DB-32 Tube Bender – Electric (Ø15.87 – Ø31.75mm Round Tube Capacity Includes Ø15.87, Ø19.05, Ø22.22, Ø25.4 & Ø31.75mm Aluminium Tube Formers). A versatile, powerful and portable tube-bending system for site use or pre-fabrication of pre-set angle
Model DB-32
Ø15.87 – Ø31.75mm Round Tube Capacity
Angle Capacity: 0 – 180º deg
Motor Power: 1.7 / 2.3
Voltage / Amperage: 240
Key Features & Benefits
- Complete with 5 Aluminium round tube formers (Ø15.87, Ø19.05, Ø22.22, Ø25.4 & Ø31.75mm OD)

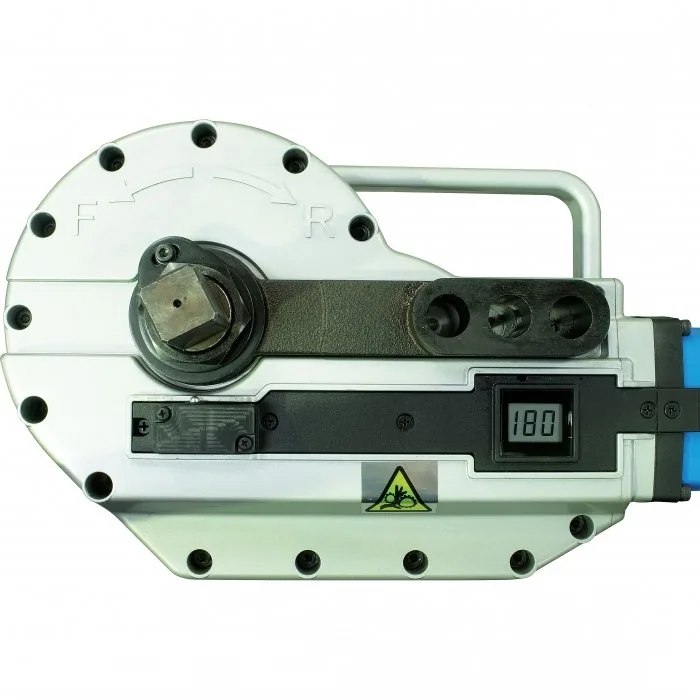

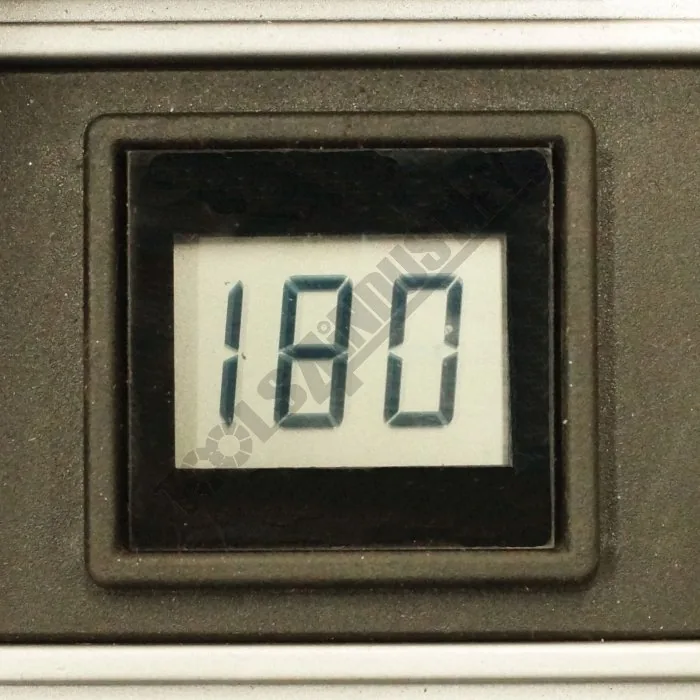

- Digital readout display 0-180º for repetitive bends
- Automatic stop at pre-selected angle
- High reduction transmission for increased torque
- Patented low-friction guide shoe

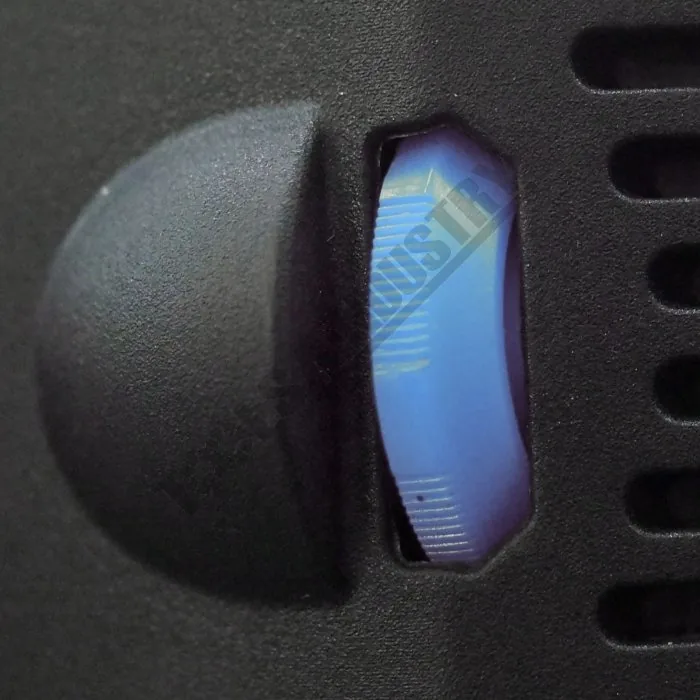

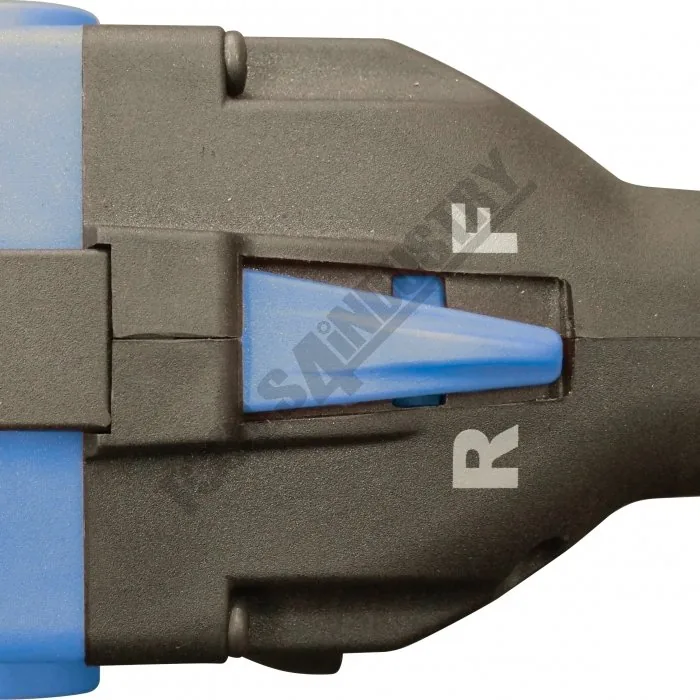

- Forward & reverse switch
- 1.7kW 240V motor
- Aluminium Round Tube Formers Capacities:
- Ø15.87, Ø19.05, Ø22.22, Ø25.4mm OD – 2.0mm mild steel wall & 1.6mm stainless steel wall thickness
- * Ø31.75mm OD – 1.6mm mild steel wall & 1.2mm stainless steel wall thickness
About This Product
A versatile, powerful and portable tube-bending system for site use or pre-fabrication of pre-set angle The DB-32 includes a digital display readout for dialling in the bend angle required and is use on the following material tube types; Steel, copper, plastic-coated copper, coated soft steel, aluminium. Universal applications for plumbing, heating, refrigeration, air conditioning and general industry. This is a Hare & Forbes special-order item, available to order through Alltools Geelong (order code T070) for collection in store.
In the Box

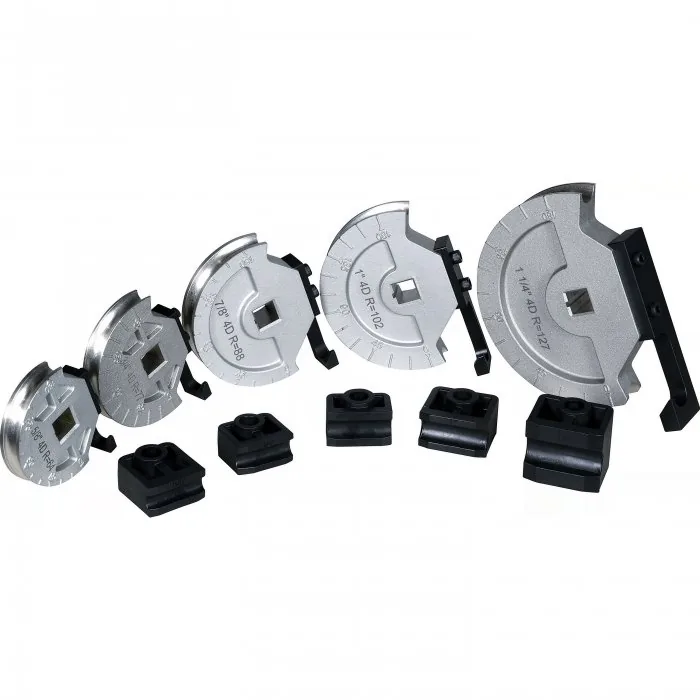

- Aluminium Round Tube Formers:
- Ø15.87mm OD x 68mm Centreline radius
- Ø19.05mm OD x 80mm Centreline radius
- Ø22.22mm OD x 92mm Centreline radius

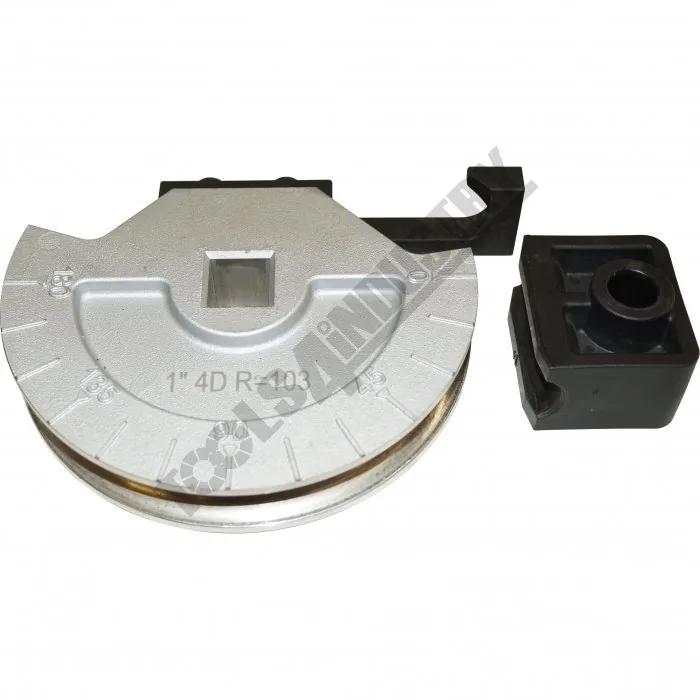

- Ø25.4mm OD x 103mm Centreline radius
- Ø31.75mm OD x 130mm Centreline radius

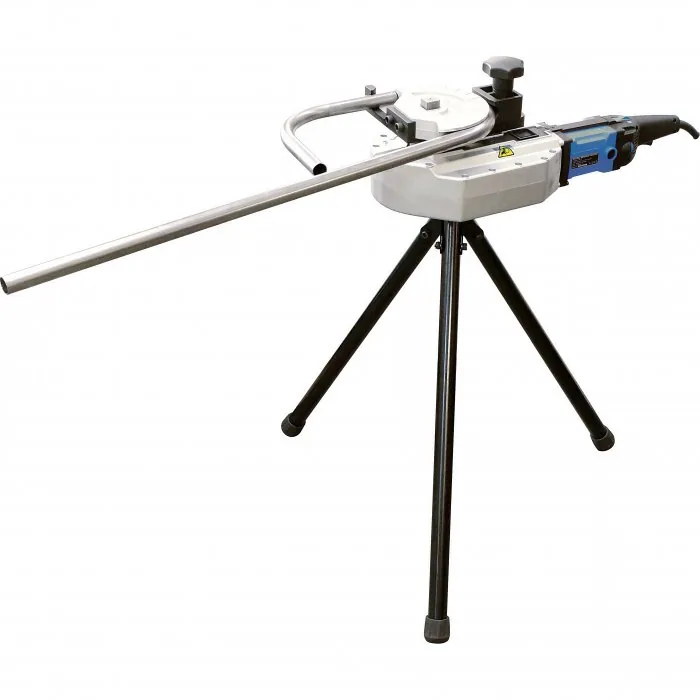

- Three leg stand

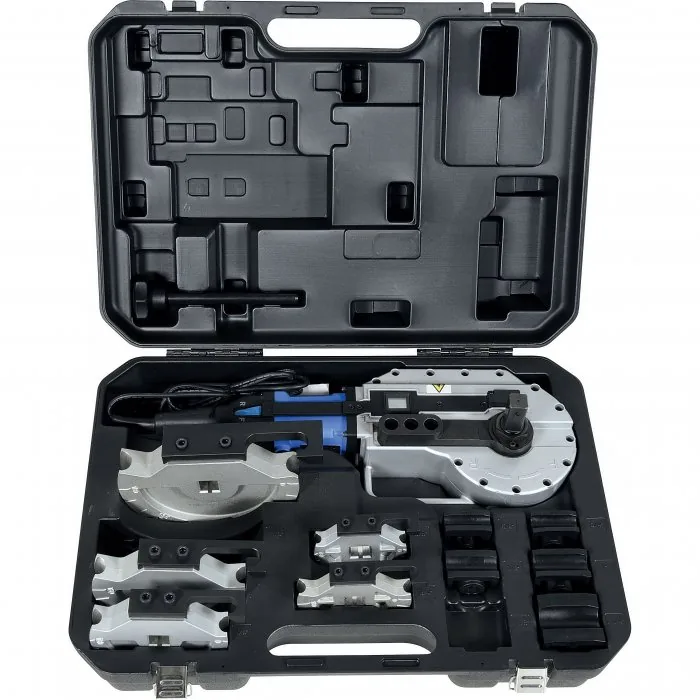

- Plastic carry case
Product Specifications
| Specification | Detail |
|---|---|
| Material (Type) | Tube |
| Material Section (Type) | Round |
| Machine (Type) | Electric |
| Round Tube Range (OD) – Mild Steel (inch / mm) | Ø15.87 – Ø31.75 |
| Tube Wall Thickness – Mild Steel (inch / mm) | 2.0* |
| Tube Formers Included (inch / mm) | 15.87, 19.05, 22.22, 25.4 & 31.75 OD Round |
| Angle Capacity (deg) | 0 – 180º |
| Motor Power (kW / hp) | 1.7 / 2.3 |
| Voltage / Amperage (V / amp) | 240 |
| Nett Weight (kg) | 32.6 |
